Transporto priemonė: 311 CDI,313 CDI; VIN numerio dalis: 690641

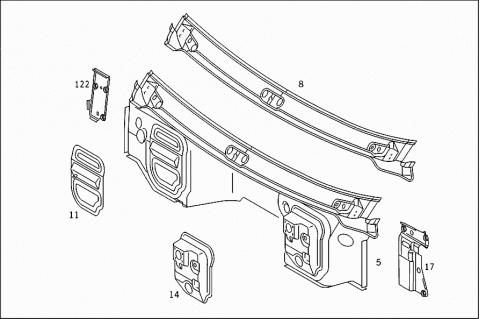

Grupė: 62 FRONT PANEL - 030 COWL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 9016200008 | FRONT PANEL |
| 005 | A 6906200008 | FRONT PANEL |
| 008 | A 9016270102 | PANELLING |
| WINDOW SILL | ||
| 011 | A 9016200107 | COVERING |
| 014 | A 9012950816 | LOCKING CAP |
| 017 | A 9016200814 | BRACKET |
| ACCELERATOR PEDAL | ||
| 026 | A 9016308206 | INTERIOR PART |
| CAB,LEFT | ||
| 026 | A 9016300063 | INTERIOR PART |
| CAB,LEFT | ||
| 026 | A 9016308406 | INTERIOR PART |
| CAB,LEFT | ||
| 026 | A 9016308706 | INTERIOR PART |
| CAB,RIGHT | ||
| 026 | A 9016308806 | INTERIOR PART |
| CAB,RIGHT | ||
| 026 | A 9016309006 | INTERIOR PART |
| CAB,RIGHT | ||
| 029 | A 9016309206 | INTERIOR PART |
| A-PILLAR,INSIDE LEFT | ||
| 029 | A 9016309206 | INTERIOR PART |
| A-PILLAR,INSIDE LEFT | ||
| 029 | A 9016309206 | INTERIOR PART |
| A-PILLAR,INSIDE LEFT | ||
| 029 | A 9016309306 | INTERIOR PART |
| A-PILLAR,INSIDE RIGHT | ||
| 029 | A 9016309306 | INTERIOR PART |
| A-PILLAR,INSIDE RIGHT | ||
| 029 | A 9016309306 | INTERIOR PART |
| A-PILLAR,INSIDE RIGHT | ||
| 032 | A 9016306006 | INTERIOR PART |
| Repalced by: A 9016309806 | ||
| 032 | A 9016309806 | INTERIOR PART |
| B-PILLAR,INSIDE LEFT | ||
| 032 | A 9016306306 | INTERIOR PART |
| B-PILLAR,INSIDE RIGHT | ||
| 032 | A 9016306306 | INTERIOR PART |
| B-PILLAR,INSIDE RIGHT | ||
| 032 | A 9016306206 | INTERIOR PART |
| Repalced by: A 9016309906 | ||
| 032 | A 9016309906 | INTERIOR PART |
| B-PILLAR,INSIDE LEFT | ||
| 035 | A 9016340232 | CONNECTION |
| BOTTOM LEFT | ||
| 035 | A 9016340332 | CONNECTION |
| RIGHT BOTTOM | ||
| 035 | A 9016340032 | CONNECTION |
| BOTTOM LEFT | ||
| 035 | A 9016340132 | CONNECTION |
| RIGHT | ||
| 038 | A 9016320131 | CONSOLE |
| 038 | A 9016320131 | CONSOLE |
| 039 | A 9016320931 | CONSOLE |
| 041 | A 9016320624 | BRACKET |
| LEFT | ||
| 041 | A 9016320624 | BRACKET |
| LEFT | ||
| 041 | A 9016320624 | BRACKET |
| LEFT | ||
| 041 | A 9016320724 | BRACKET |
| RIGHT | ||
| 041 | A 9016320724 | BRACKET |
| RIGHT | ||
| 041 | A 9016320724 | BRACKET |
| RIGHT | ||
| 044 | A 9016360128 | CONNECTION |
| 044 | A 9016360128 | CONNECTION |
| 044 | A 9016360228 | CONNECTION |
| 044 | A 9016360228 | CONNECTION |
| 044 | A 9016360228 | CONNECTION |
| 047 | A 9016306506 | INTERIOR PART |
| ROOF LEFT RAIL | ||
| 047 | A 9016306906 | INTERIOR PART |
| ROOF LEFT RAIL | ||
| 047 | A 9016307106 | INTERIOR PART |
| ROOF LEFT RAIL | ||
| 047 | A 9016306806 | INTERIOR PART |
| ROOF RIGHT RAIL | ||
| 047 | A 9016307006 | INTERIOR PART |
| ROOF RIGHT RAIL | ||
| 050 | A 1269840025 | THREADED CHUCK |
| 050 | A 1269840025 | THREADED CHUCK |
| 053 | A 9016360514 | BRACKET |
| GRAB HANDLE TO ROOF RAIL | ||
| 056 | A 9016301507 | PANELLING |
| Repalced by: A 9016307607 | ||
| 056 | A 9016307607 | PANELLING |
| LEFT | ||
| 056 | A 9016301307 | PANELLING |
| CAB,LEFT | ||
| 056 | A 9016306007 | PANELLING |
| RIGHT | ||
| 056 | A 9016301407 | PANELLING |
| CAB,RIGHT | ||
| 059 | A 9016370709 | PANELLING |
| LEFT | ||
| 059 | A 9016370509 | PANELLING |
| LEFT | ||
| 059 | A 9016370609 | PANELLING |
| RIGHT | ||
| 059 | A 9016370809 | PANELLING |
| RIGHT | ||
| 062 | A 9016300067 | RECESS |
| WITH CUTOUT FOR TANK FILLER | ||
| 062 | A 9016300067 | RECESS |
| WITH CUTOUT FOR TANK FILLER | ||
| 062 | A 9016300267 | RECESS |
| WITH CUTOUT FOR TANK FILLER | ||
| 062 | A 9016300267 | RECESS |
| WITH CUTOUT FOR TANK FILLER | ||
| 065 | A 9016320530 | WHEEL BOW |
| LEFT | ||
| 065 | A 9016320530 | WHEEL BOW |
| LEFT | ||
| 065 | A 9016320430 | WHEEL BOW |
| RIGHT | ||
| 065 | A 9016320430 | WHEEL BOW |
| RIGHT | ||
| 065 | A 9016320530 | WHEEL BOW |
| LEFT | ||
| 065 | A 9016320430 | WHEEL BOW |
| RIGHT | ||
| 068 | A 9017500003 | FLAP |
| TANK FLAP | ||
| 071 | A 9017550136 | SPRING |
| 072 | A 1119871740 | RUBBER BUFFER |
| TANK FLAP | ||
| 073 | A 0009843029 | SCREW |
| 083 | A 9018800514 | BRACKET |
| 086 | N 914126006000 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 6X12 | ||
| 089 | A 9016306907 | PANELLING |
| LEFT | ||
| 089 | A 9016307007 | PANELLING |
| RIGHT | ||
| 092 | A 9016300017 | FRAME |
| LEFT | ||
| 092 | A 9016300717 | FRAME |
| RIGHT | ||
| 095 | A 9016374901 | PANELLING |
| LEFT | ||
| 095 | A 9016375001 | PANELLING |
| RIGHT | ||
| 098 | A 9016300017 | FRAME |
| LEFT | ||
| 098 | A 9016300717 | FRAME |
| RIGHT | ||
| 101 | A 9016370240 | COVERING |
| BOTTOM | ||
| 101 | A 9016370340 | COVERING |
| BOTTOM | ||
| 104 | A 9018890090 | SPACER |
| 107 | N 000000000528 | SHEET METAL SCREW |
| PANELLING TO FRAME | ||
| 4.8X16 | ||
| 110 | N 910105008041 | SCREW |
| Repalced by: N 910143008000 | ||
| 110 | N 910105008041 | SCREW |
| Repalced by: N 910143008000 | ||
| 110 | N 910143008000 | SCREW |
| PANELLING TO FRAME | ||
| M 8X16 | ||
| 110 | N 910143008000 | SCREW |
| PANELLING TO FRAME | ||
| M 8X16 | ||
| 113 | N 000000000825 | TAPPING SCREW |
| PANELLING TO FRAME | ||
| 6,3X16 | ||
| 113 | N 000000000825 | TAPPING SCREW |
| PANELLING TO FRAME | ||
| 6,3X16 | ||
| A 9019880135 | CAP | |
| 116 | A 9018800103 | SUPPORT |
| 119 | A 0009842429 | SCREW |
| 122 | A 9016200914 | BRACKET |
| ACCELERATOR PEDAL | ||
| A 9016310050 | BUSHING | |
| AIR INTAKE | ||
| A 9018350314 | BRACKET | |
