Transporto priemonė: 311 CDI,313 CDI; VIN numerio dalis: 690641

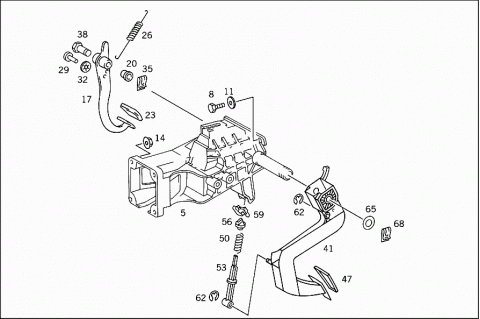

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 9012900719 | BEARING BRACKET |
| Repalced by: A 9012901019 | ||
| 005 | A 9012901019 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 005 | A 9012900919 | BEARING BRACKET |
| Repalced by: A 9012901119 | ||
| 005 | A 9012901119 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 008 | N 910106008018 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| M 8X25 | ||
| 011 | N 009021008108 | WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 014 | N 913023008003 | NUT |
| BRAKE BOOSTER TO BEARING BRACKET | ||
| 017 | A 9012901118 | PEDAL |
| (BRAKE PEDAL) | ||
| 020 | A 1242920050 | BUSHING |
| 023 | A 6382920082 | PAD |
| BRAKE PEDAL | ||
| 026 | A 9019931210 | SPRING |
| BRAKE PEDAL | ||
| 029 | A 1262920074 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 032 | N 912011008000 | LOCK |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 035 | A 0009941151 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 038 | A 9012940474 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 041 | A 9012902416 | PEDAL |
| (CLUTCH PEDAL) | ||
| 047 | A 3192920082 | PAD |
| CLUTCH PEDAL | ||
| 050 | A 9019933001 | SPRING |
| (OVER-CENTER ACTING SPRING) | ||
| 053 | A 2012910633 | ROD |
| (PUSH ROD) | ||
| 056 | A 1232910491 | SPRING RETAINER |
| 059 | A 9019880578 | CLIP |
| 062 | N 006799006000 | LOCK PLATE |
| PUSH ROD TO CLUTCH PEDAL | ||
| 062 | N 006799006000 | LOCK PLATE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 065 | A 1152910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 068 | A 0009941151 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
