Transporto priemonė: 311 CDI,313 CDI; VIN numerio dalis: 690641

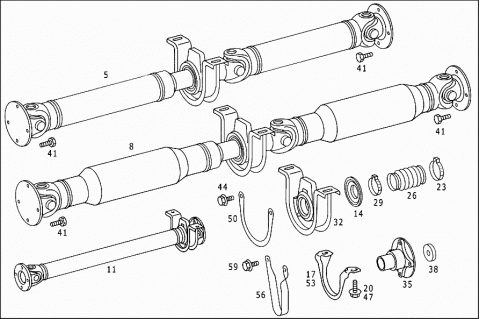

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
005	A 9014106606	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
	Y YYYYYYYYYYYY	PART NAME MISSING
		TWO-PART PROPELLER SHAFT
005	A 9014105906	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
	Y YYYYYYYYYYYY	PART NAME MISSING
		TWO-PART PROPELLER SHAFT
008	A 9014107406	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
	Y YYYYYYYYYYYY	PART NAME MISSING
		TWO-PART PROPELLER SHAFT
011	A 9014102401	PROPELLER SHAFT
		FRONT
	Y YYYYYYYYYYYY	PART NAME MISSING
		THREE-PART PROPELLER SHAFT
014	A 9014110396	PROTECTIVE CAP
014	A 9014110396	PROTECTIVE CAP
014	A 9014110396	PROTECTIVE CAP
017	A 9014110940	BRACKET
017	A 9014110940	BRACKET
017	A 9014110940	BRACKET
020	A 0119903701	SCREW
020	A 0119903701	SCREW
020	A 0119903701	SCREW
023	A 0059974790	LOOM TIE
023	A 0059974790	LOOM TIE
023	A 0059974790	LOOM TIE
026	A 9014110097	BOOT
026	A 9014110097	BOOT
026	A 9014110097	BOOT
029	A 0059971190	LOOM TIE
029	A 0059971190	LOOM TIE
029	A 0059971190	LOOM TIE
032	A 9014110412	INTERMEDIATE BEARING
032	A 9014110412	INTERMEDIATE BEARING
032	A 9014110412	INTERMEDIATE BEARING
035	A 9034110045	FLANGE
038	A 9014110062	THRUST WASHER
041	A 3099901801	SCREW
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
044	N 910105012007	SCREW
		BRACKET TO CROSS MEMBER
		M 12X1.5X30
047	A 0119903701	SCREW
		BRACKET TO CROSS MEMBER
050	A 9014110740	BRACKET
		AT CROSS MEMBER
053	A 9014110940	BRACKET
		BRACKET TO PROPELLER SHAFT BEARING
056	A 6904117140	REBOUND STRAP
056	A 6904117240	REBOUND STRAP
059	N 910105012007	SCREW
		REBOUND STRAP TO SUPPORT
059	N 910105012007	SCREW
		REBOUND STRAP TO SUPPORT
