Transporto priemonė: 311 CDI,313 CDI; VIN numerio dalis: 690641

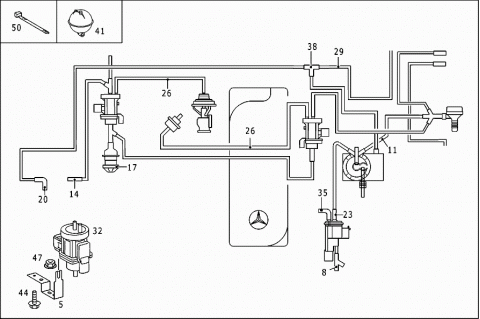

Grupė: 80 VACUUM SYSTEM - 020 ENGINE VACUUM CONNECTION OM 602 LA
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 9015242140 | BRACKET |
| 008 | A 6010780245 | BRANCH-OFF FITTING |
| CHANGE-OVER VALVE | ||
| 011 | A 0009973952 | HOSE |
| 014 | A 1162760929 | CONNECTOR |
| 017 | A 0000780956 | FILTER |
| 020 | A 6020781181 | HOSE |
| 023 | A 1179970982 | HOSE |
| 026 | A 6179970882 | HOSE |
| EXHAUST GAS RECIRCULATION | ||
| 029 | A 0009872627 | PLASTIC PIPE |
| 032 | A 0005450527 | PRESSURE CONVERTER |
| EXHAUST GAS RECIRCULATION | ||
| 035 | A 1170780181 | HOSE |
| 038 | A 1110780081 | HOSE |
| 041 | A 9012580003 | AIR RESERVOIR |
| VACUUM SUPPLY TANK | ||
| 044 | A 2029900236 | SCREW |
| VACUUM TANK TO BRACKET | ||
| 047 | N 910112006001 | NUT |
| BRACKET TO FLOOR | ||
| 050 | A 0019978490 | CABLE TIE |
| 050 | A 0019978390 | CABLE TIE |
