Transporto priemonė: 324,309CDI,311CDI,313CDI,315CDI,318CDI; VIN numerio dalis: 906633

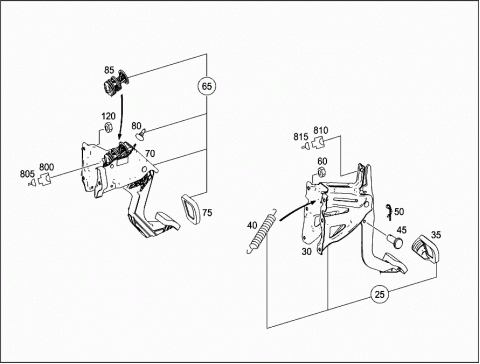

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 025 | A 9062900001 | PEDAL |
| BRAKE PEDAL | ||
| Repalced by: A 9062900901 | ||
| 025 | A 9062900901 | PEDAL SYSTEM |
| BRAKE PEDAL | ||
| 025 | A 9062900301 | PEDAL |
| BRAKE PEDAL | ||
| Repalced by: A 9062901001 | ||
| 025 | A 9062901001 | PEDAL SYSTEM |
| BRAKE PEDAL | ||
| 025 | A 9062901201 | PEDAL SYSTEM |
| BRAKE PEDAL | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 025 | A 9062901101 | PEDAL SYSTEM |
| BRAKE PEDAL | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 030 | A 9062900019 | PEDAL BEARING BRACKET |
| 030 | A 9062900119 | PEDAL BEARING BRACKET |
| 035 | A 2012920082 | PAD |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 035 | A 1232910082 | PAD |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 040 | A 9069930010 | SPRING |
| 045 | A 6392920074 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 050 | N 912011008000 | SECURING |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 060 | N 000000003175 | NUT |
| BRAKE PEDAL UNIT TO FIREWALL | ||
| M8 | ||
| 065 | A 9062900501 | PEDAL |
| CLUTCH PEDAL | ||
| 065 | A 9062900601 | PEDAL |
| CLUTCH PEDAL | ||
| 070 | A 9062900016 | PEDAL |
| 075 | A 2012910282 | PAD |
| 080 | A 9062930084 | RUBBER BUMPER |
| 085 | A 9069931601 | PUSH SPRING |
| Repalced by: A 9069931801 | ||
| 085 | A 9069931801 | SPRING |
| Repalced by: A 9069932001 | ||
| 085 | A 9069932001 | SPRING |
| 085 | A 9069931701 | PUSH SPRING |
| Repalced by: A 9069931901 | ||
| 085 | A 9069931901 | SPRING |
| Repalced by: A 9069932101 | ||
| 085 | A 9069932101 | SPRING |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 120 | N 000000003175 | NUT |
| CLUTCH PEDAL UNIT TO FIREWALL | ||
| M8 | ||
| 800 | A 0315453228 | PLUG HOUSING |
| CLUTCH PEDAL SWITCH | ||
| 2-PIN JPT;S40/3 | ||
| 800 | A 0315453228 | PLUG HOUSING |
| CLUTCH PEDAL SWITCH | ||
| 2-PIN JPT;S40/6 | ||
| 805 | A 0165454926 | CONTACT SPRING |
| CLUTCH PEDAL SWITCH | ||
| 0.2-0.5 MM2 JPT;S40/3 | ||
| 805 | A 0165454926 | CONTACT SPRING |
| CLUTCH PEDAL SWITCH | ||
| 0.2-0.5 MM2 JPT;S40/6 | ||
| 810 | A 0505456128 | PLUG |
| STOP LIGHT SWITCH | ||
| 4 PIN;S9/1 | ||
| 815 | A 0135457626 | CONTACT BUSHING |
| 0.5-1.0 MM2 MCP2.8;S9/1 | ||
