Transporto priemonė: 409 D/410 D; VIN numerio dalis: 611468

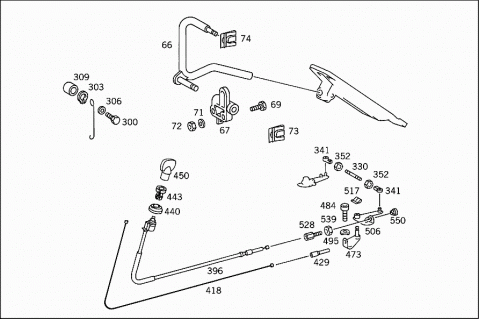

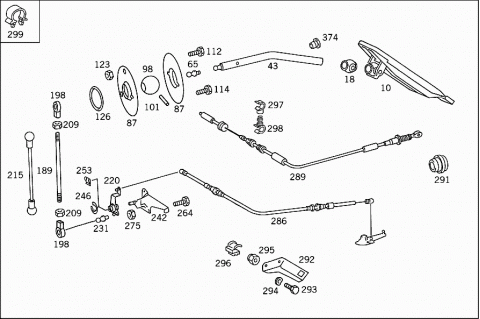

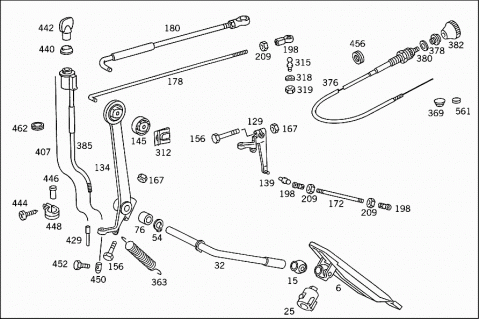

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 6013000604 | ACCELERATOR PEDAL |
| 006 | A 6013000604 | ACCELERATOR PEDAL |
| 010 | A 6083000104 | ACCELERATOR PEDAL |
| 015 | A 3093010022 | JOINT |
| 015 | A 3093010022 | JOINT |
| 018 | A 1153010022 | JOINT |
| 025 | A 1263010141 | STOP |
| FULL THROTTLE | ||
| 032 | A 6013000304 | ACCELERATOR PEDAL |
| (ACCELERATOR PEDAL CONTROL ROD) | ||
| 043 | A 6013000504 | ACCELERATOR PEDAL |
| (ACCELERATOR PEDAL CONTROL ROD) | ||
| 054 | N 900055010402 | RETAINING RING |
| 065 | N 071803008207 | BALL PIVOT |
| 066 | A 6013002625 | LEVER |
| (ACCELERATOR PEDAL CONTROL ROD) | ||
| 067 | A 2013010218 | BEARING |
| PEDAL LEVER TO FRONT PANEL | ||
| 069 | N 304017006016 | SCREW |
| PEDAL LEVER BEARING TO FRONT PANEL | ||
| 069 | N 304017006020 | SCREW |
| PEDAL LEVER BEARING TO FRONT PANEL | ||
| 071 | N 000125006445 | WASHER |
| PEDAL LEVER BEARING TO FRONT PANEL | ||
| 072 | N 910113006000 | NUT |
| PEDAL LEVER BEARING TO FRONT PANEL | ||
| 073 | N 912007012000 | CLIP |
| PEDAL LEVER TO BEARING | ||
| 073 | N 912001012001 | LOCK |
| PEDAL LEVER TO BEARING | ||
| 074 | N 912007006001 | CLIP |
| WIRE CABLE TO ACCELERATOR PEDAL | ||
| 076 | A 3193010150 | BUSHING |
| 087 | A 6013010135 | BEARING BRACKET |
| PEDAL LEVER | ||
| 098 | A 6013010018 | BEARING |
| PEDAL LEVER | ||
| 101 | N 000007005303 | CYLINDRICAL PIN |
| PEDAL LEVER | ||
| 112 | N 304017006034 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| M 6X10 | ||
| 114 | N 304017006016 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| M 6X16 | ||
| 123 | N 910113006000 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| 126 | A 0019875646 | SEALING CORD |
| BEARING BRACKET TO FIRE WALL | ||
| 129 | A 6013001525 | LEVER |
| (CONTROL LEVER) | ||
| 129 | A 6013002125 | LEVER |
| (CONTROL LEVER) | ||
| 134 | A 6013000625 | LEVER |
| (CONTROL LEVER) | ||
| 134 | A 6013002525 | LEVER |
| (CONTROL LEVER) | ||
| 139 | N 071803008207 | BALL PIVOT |
| 145 | A 6013010050 | BUSHING |
| 156 | N 304017008041 | SCREW |
| CONTROL LEVER TO PEDAL LEVER | ||
| 167 | N 910113008001 | NUT |
| CONTROL LEVER TO PEDAL LEVER | ||
| 172 | N 900331005050 | PULL ROD |
| FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE | ||
| 178 | A 6013010615 | ROD |
| FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE | ||
| 178 | A 6013010515 | ROD |
| FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE | ||
| 180 | A 6013014215 | ROD |
| Repalced by: A 6013003815 | ||
| 180 | A 6013003815 | ROD |
| FROM CONTROL LEVER TO REVERSING LEVER | ||
| 189 | N 900331005161 | PULL ROD |
| FROM PEDAL LEVER TO REVERSING LEVER | ||
| 198 | A 6089910022 | BALL SOCKET |
| 198 | A 6089910022 | BALL SOCKET |
| 198 | A 6089910022 | BALL SOCKET |
| 209 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 209 | N 304032005005 | NUT |
| 209 | N 304032005005 | NUT |
| 209 | N 304032005005 | NUT |
| 215 | A 6013014015 | ROD |
| FROM CONTROL LEVER TO REVERSING LEVER | ||
| 220 | A 6013001625 | LEVER |
| (REVERSING LEVER) | ||
| 231 | N 071803008202 | BALL PIVOT |
| 242 | A 6013000036 | BEARING BRACKET |
| REVERSING LEVER | ||
| 246 | N 006799007007 | LOCK PLATE |
| LEVER TO BEARING BRACKET | ||
| 253 | N 912007008001 | CLIP |
| LEVER TO BEARING BRACKET | ||
| 264 | N 304017008057 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| 275 | N 910113008001 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| 286 | A 6013001230 | WIRE CABLE |
| FROM REVERSING LEVER TO ENGINE | ||
| 286 | A 6013001330 | WIRE CABLE |
| FROM REVERSING LEVER TO ENGINE | ||
| 286 | A 6013001430 | WIRE CABLE |
| FROM REVERSING LEVER TO ENGINE | ||
| 289 | A 6013001630 | WIRE CABLE |
| Repalced by: A 6013003430 | ||
| 289 | A 6013003430 | WIRE CABLE |
| FROM LEVER TO INTERMEDIATE LEVER AT ENGINE | ||
| 289 | A 6013001830 | WIRE CABLE |
| Repalced by: A 6013003630 | ||
| 289 | A 6013003630 | WIRE CABLE |
| FROM LEVER TO INTERMEDIATE LEVER AT ENGINE | ||
| 289 | A 6013002530 | WIRE CABLE |
| FROM LEVER TO INTERMEDIATE LEVER AT ENGINE | ||
| 289 | A 6013002730 | WIRE CABLE |
| FROM LEVER TO INTERMEDIATE LEVER AT ENGINE | ||
| 291 | A 2013010285 | RUBBER BUFFER |
| WIRE CABLE TO FIRE WALL | ||
| 292 | A 6013011140 | BRACKET |
| WIRE CABLE | ||
| 293 | N 304017006016 | SCREW |
| BRACKET TO ENGINE | ||
| 294 | N 000137006204 | SPRING WASHER |
| BRACKET TO ENGINE | ||
| 295 | N 910113006000 | NUT |
| BRACKET TO BRACKET | ||
| 296 | A 0009881878 | CLIP |
| WIRE CABLE | ||
| A 6013010940 | BRACKET | |
| WIRE CABLE | ||
| A 6013010940 | BRACKET | |
| WIRE CABLE | ||
| 297 | A 0009951765 | CLAMP |
| WIRE CABLE | ||
| 297 | A 0009951765 | CLAMP |
| BOWDEN CABLE TO BRAKE LINE | ||
| 298 | A 0009952965 | CLAMP |
| WIRE CABLE | ||
| 298 | A 0009952965 | CLAMP |
| BOWDEN CABLE TO BRAKE LINE | ||
| 299 | A 0009955444 | CLAMP |
| Repalced by: A 0009956044 | ||
| 299 | A 0009956044 | CLAMP |
| WIRE CABLE | ||
| 299 | A 0009956044 | CLAMP |
| BOWDEN WIRE AT FRONT END BRACE | ||
| 300 | N 304017008029 | SCREW |
| BRACKET TO FIRE WALL | ||
| 303 | N 900055008002 | SPRING WASHER |
| BRACKET TO FIRE WALL | ||
| 306 | N 000125008008 | WASHER |
| BRACKET TO FIRE WALL | ||
| 309 | A 3094280053 | SPACER TUBE |
| BRACKET TO FIRE WALL | ||
| 312 | N 912007005000 | CLIP |
| LINK TO LEVER | ||
| 315 | A 6019910015 | BALL PIVOT |
| 318 | N 000137005203 | SPRING WASHER |
| BALL PIVOT TO THROTTLE VALVE LEVER | ||
| 319 | N 000439005201 | NUT |
| BALL PIVOT TO THROTTLE VALVE LEVER | ||
| 330 | N 900331005122 | PULL ROD |
| FROM ENGINE INTERMEDIATE SHAFT TO IDLING ADJUSTMENT LEVER | ||
| 341 | A 6089910022 | BALL SOCKET |
| 352 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 352 | N 304032005005 | NUT |
| 363 | A 1219930010 | SPRING |
| ACCELERATOR PEDAL RESET | ||
| 363 | A 1219930010 | SPRING |
| ACCELERATOR PEDAL RESET | ||
| 363 | A 1269932810 | SPRING |
| ACCELERATOR PEDAL RESET | ||
| 369 | A 0009977586 | PLUG |
| COVERING TO INSTRUMENT PANEL | ||
| 369 | A 0009977586 | PLUG |
| COVERING TO INSTRUMENT PANEL | ||
| 374 | A 0019970586 | PLUG |
| COVERING TO INSTRUMENT PANEL | ||
| 376 | A 6013000730 | WIRE CABLE |
| (CHOKE CABLE) | ||
| 378 | A 6013020008 | GUIDE |
| CHOKE CABLE | ||
| 380 | A 0019904140 | WASHER |
| CHOKE CABLE | ||
| 382 | A 0005454837 | BUTTON |
| CHOKE CABLE | ||
| 385 | A 6013000132 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 396 | A 1233001432 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 396 | A 6013000232 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 407 | A 6013020105 | WIRE |
| IDLING ADJUSTMENT | ||
| 418 | A 1233020905 | WIRE |
| IDLING ADJUSTMENT | ||
| A 6013020205 | WIRE | |
| IDLING ADJUSTMENT | ||
| 429 | A 1233020309 | SLEEVE |
| IDLING ADJUSTMENT | ||
| 429 | A 1233020009 | SLEEVE |
| Repalced by: A 1233020209 | ||
| 429 | A 1233020209 | SLEEVE |
| IDLING ADJUSTMENT | ||
| 440 | A 1105450272 | NUT |
| IDLING ADJUSTMENT | ||
| 442 | A 1105451137 | BUTTON |
| IDLING ADJUSTMENT | ||
| 443 | A 1163020150 | BUSHING |
| IDLING ADJUSTMENT WIRE CABLE | ||
| 444 | N 007981005213 | SHEET METAL SCREW |
| WIRE SPIRAL TO ENGINE HOOD BRACKET | ||
| 446 | A 3183020091 | GROMMET |
| WIRE SPIRAL TO ENGINE HOOD BRACKET | ||
| 448 | N 916016010204 | CLAMP |
| WIRE SPIRAL TO ENGINE HOOD BRACKET | ||
| 450 | A 1233000086 | END PIECE |
| WIRE CABLE TO LEVER | ||
| 452 | N 000933005058 | SCREW |
| WIRE CABLE TO LEVER | ||
| 456 | A 6019971381 | GROMMET |
| WIRE CABLE THRU FIRE WALL | ||
| 462 | A 0009972081 | GROMMET |
| WIRE CABLE THRU FIRE WALL | ||
| 462 | A 3129970981 | GROMMET |
| BORE IN HOOD CLAMP | ||
| 462 | A 6019972681 | GROMMET |
| BORE IN HOOD CLAMP | ||
| 473 | A 6160702424 | BEARING BRACKET |
| IDLING ADJUSTMENT | ||
| 484 | N 007984008003 | SCREW |
| BEARING BRACKET TO COVER PLATE | ||
| 495 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 495 | N 000137008212 | SPRING WASHER |
| BEARING BRACKET TO COVER PLATE | ||
| 506 | A 6013001925 | LEVER |
| Repalced by: A 6160704622 | ||
| 506 | A 6160704622 | LEVER |
| IDLING ADJUSTMENT | ||
| 517 | N 912007008001 | CLIP |
| LEVER TO BEARING BRACKET | ||
| 528 | A 6170720471 | SCREW |
| WIRE CABLE TO BEARING BRACKET | ||
| 539 | N 304032008005 | NUT |
| WIRE CABLE TO BEARING BRACKET | ||
| 550 | A 1163020150 | BUSHING |
| WIRE CABLE TO LEVER | ||
| 561 | A 3129970981 | GROMMET |
| HOOD BRACKET | ||
