Transporto priemonė: 410; VIN numerio dalis: 611067

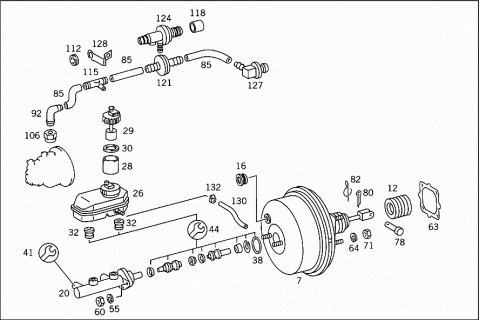

Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL: | ||
| 730.4 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL: | ||
| 741.5 | ||
| 007 | A 0024309930 | BRAKE BOOSTER ASSEMBLY |
| 012 | A 0004317187 | PROTECTIVE CAP |
| TO 002 430 99 30 | ||
| 012 | A 0014310486 | CUP |
| TO 002 430 03 30 | ||
| 016 | A 0004319960 | SEAL RING |
| TO 002 430 99 30 | ||
| 020 | A 0044300801 | BRAKE MASTER CYLINDER |
| 020 | A 0044302201 | BRAKE MASTER CYLINDER |
| 026 | A 0014313602 | RESERVOIR |
| Repalced by: A 0014315802 | ||
| 026 | A 0014315802 | RESERVOIR |
| TO 004 430 08 01 | ||
| 026 | A 0014316702 | RESERVOIR |
| TO 004 430 22 01 | ||
| 028 | A 0004314434 | STRAINER |
| TO 001 431 36 02 | ||
| 028 | A 0004315334 | STRAINER |
| Repalced by: A 0004316934 | ||
| 028 | A 0004316934 | STRAINER |
| TO 001 431 67 02,57 02 | ||
| 029 | A 0004314833 | FILLER CAP |
| Repalced by: A 0004315533 | ||
| 029 | A 0004315533 | FILLER CAP |
| TO 001 431 36 02,58 02 | ||
| 029 | A 0004315733 | FILLER CAP |
| Repalced by: A 0004316633 | ||
| 029 | A 0004316633 | FILLER CAP |
| Repalced by: A 0004317733 | ||
| 029 | A 0004317733 | FILLER CAP |
| TO 001 431 67 02 | ||
| 030 | A 0039976440 | SEAL RING |
| 42X21.5 MM | ||
| 030 | A 0009972940 | SEAL RING |
| TO 001 431 67 02 | ||
| 032 | A 0004311649 | GUIDE BUSHING |
| TO 004 430 08 01 | ||
| 038 | A 0049977948 | SEAL RING |
| TO 004 430 08 01 | ||
| 041 | A 0004306760 | REPAIR KIT |
| TO 004 430 22 01 | ||
| 044 | A 0004302860 | REPAIR KIT |
| TO 004 430 08 01 | ||
| 055 | N 912004008102 | LOCK WASHER |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 060 | N 304032008005 | NUT |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 060 | N 304032008005 | NUT |
| BRACKET TO FRAME | ||
| 063 | A 1154310180 | GASKET |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| 064 | N 912004008102 | LOCK WASHER |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| 071 | N 304032008005 | NUT |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| 078 | N 001444008206 | PIN |
| Repalced by: A 1262920074 | ||
| 078 | A 1262920074 | PIN |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| 080 | N 000094002059 | COTTER PIN |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| Repalced by: N 000094002060 | ||
| 080 | N 000094002060 | COTTER PIN |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| 082 | N 912011008000 | LOCK |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| N 304017008021 | SCREW | |
| BRACKET TO CROSS MEMBER | ||
| 085 | A 0139971282 | HOSE |
| 10,5X13 MM | ||
| 085 | A 0004358382 | HOSE |
| FROM VACUUM PUMP TO BRAKE BOOSTER | ||
| 10X12.5 MM | ||
| 092 | A 1154350125 | LINE |
| VACUUM LINE | ||
| 092 | A 1154350025 | LINE |
| VACUUM LINE | ||
| 092 | A 1154350325 | LINE |
| VACUUM LINE | ||
| 106 | N 915017010206 | UNION NUT |
| Repalced by: A 0009907454 | ||
| 106 | A 0009907454 | NUT |
| VACUUM LINE TO VACUUM PUMP | ||
| 112 | A 6019973481 | GROMMET |
| 112 | A 0009972781 | GROMMET |
| Repalced by: A 0009972881 | ||
| 112 | A 0009972881 | GROMMET |
| VACUUM LINE | ||
| 115 | A 1158050722 | DISTRIBUTOR |
| VACUUM LINE | ||
| 115 | A 1158050722 | DISTRIBUTOR |
| VACUUM LINE | ||
| 118 | A 0009974752 | HOSE |
| 12X20 MM | ||
| 121 | A 0004313607 | VALVE |
| STRAIGHT | ||
| 121 | A 0004313607 | VALVE |
| STRAIGHT | ||
| 121 | A 0004313607 | VALVE |
| STRAIGHT | ||
| 121 | A 0004314007 | VALVE |
| Repalced by: A 0004316107 | ||
| 121 | A 0004316107 | VALVE |
| STRAIGHT | ||
| 121 | A 0004316107 | VALVE |
| STRAIGHT | ||
| 121 | A 0004316107 | VALVE |
| STRAIGHT | ||
| 121 | A 0004351133 | VALVE |
| Repalced by: A 0004316307 | ||
| 121 | A 0004316307 | VALVE |
| BENT | ||
| 121 | A 0004316307 | VALVE |
| BENT | ||
| 124 | A 0004314307 | VALVE |
| (CHECK VALVE) | ||
| 124 | A 0004314307 | VALVE |
| (CHECK VALVE) | ||
| 127 | A 0019900371 | ELBOW FITTING |
| HOSE TO BRAKE BOOSTER ASSEMBLY | ||
| 128 | A 6014270741 | BRACKET |
| LINE TO RADIATOR | ||
| 128 | A 0004760436 | BRACKET |
| LINE MOUNTING | ||
| 130 | A 6039970482 | HOSE |
| FROM FLUID RESERVOIR TO CLUTCH MASTER CYLINDER | ||
| 132 | A 0029971090 | LOOM TIE |
| Repalced by: A 0039975390 | ||
| 132 | A 0039975390 | LOOM TIE |
| LINE MOUNTING | ||
| 140 | A 6014310002 | RESERVOIR |
| VACUUM TANK | ||
| 142 | A 6019870139 | RUBBER BUFFER |
| AT TANK | ||
| 144 | A 6014350080 | GASKET |
| AT TANK | ||
| 146 | A 6014350040 | BRACKET |
| RESERVOIR | ||
| 148 | A 6014350140 | BRACKET |
| RESERVOIR | ||
| 150 | A 6014300410 | BRACKET |
| BRACKET TO FRAME | ||
| 152 | N 304017008021 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 154 | N 910113008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 156 | N 000125008443 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 158 | N 916016012200 | CLAMP |
| LINE MOUNTING | ||
| 160 | A 3019912640 | SPACER TUBE |
| Repalced by: A 1009910740 | ||
| 160 | A 1009910740 | SPACER TUBE |
| Repalced by: A 1242670050 | ||
| 160 | A 1242670050 | BUSHING |
| LINE MOUNTING | ||
| 162 | N 304017006012 | SCREW |
| LINE MOUNTING | ||
| 162 | N 304017006016 | SCREW |
| LINE TO RADIATOR | ||
| 162 | N 304017006020 | SCREW |
| LINE MOUNTING | ||
| 162 | N 304017006016 | SCREW |
| LINE MOUNTING | ||
| 164 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 164 | N 009021006208 | WASHER |
| LINE TO RADIATOR | ||
| 164 | N 000125006445 | WASHER |
| LINE MOUNTING | ||
| 164 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 164 | N 009021006208 | WASHER |
| LINE MOUNTING | ||
| 166 | A 0009952965 | CLAMP |
| VACUUM LINE | ||
| 166 | A 1239950265 | CLAMP |
| LINE MOUNTING | ||
| 168 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 170 | A 0019886181 | FASTENER BUTTON |
| Repalced by: A 0019881581 | ||
| 170 | A 0019881581 | FASTENER BUTTON |
| LINE MOUNTING | ||
| 172 | A 0009871972 | EDGE GUARD SECTION |
| LEFT COVER PLATE | ||
| 174 | A 0029908271 | ELBOW FITTING |
| VACUUM LINE | ||
| 176 | A 1169900170 | T-FITTING |
| (CHECK VALVE) | ||
| 178 | A 6114200028 | LINE |
| Repalced by: A 6014201928 | ||
| 178 | A 6014201928 | LINE |
| Repalced by: A 1234205828 | ||
| 178 | A 1234205828 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO FRONT DISTRIBUTOR | ||
| 490 MM | ||
| 178 | A 1234205928 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO FRONT DISTRIBUTOR | ||
| 520 MM | ||
| 179 | A 0004290537 | DISTRIBUTOR |
| FRONT | ||
| 179 | A 0004284924 | DISTRIBUTOR |
| FRONT | ||
| 179 | A 0004284924 | DISTRIBUTOR |
| FRONT | ||
| 179 | A 0004284224 | DISTRIBUTOR |
| FRONT | ||
| 180 | N 000933006127 | SCREW |
| DISTRIBUTOR TO FRAME | ||
| M 6X25 | ||
| 180 | N 000933006127 | SCREW |
| DISTRIBUTOR TO FRAME | ||
| M 6X25 | ||
| 180 | N 304017006016 | SCREW |
| DISTRIBUTOR TO FRAME | ||
| M 6X16 | ||
| 183 | N 912004006102 | LOCK WASHER |
| DISTRIBUTOR TO FRAME | ||
| 183 | N 912004006102 | LOCK WASHER |
| DISTRIBUTOR TO FRAME | ||
| 183 | N 912004006102 | LOCK WASHER |
| DISTRIBUTOR TO FRAME | ||
| 190 | A 0009907191 | NUT RETAINER |
| DISTRIBUTOR TO FRAME | ||
| 197 | A 6014204528 | LINE |
| Repalced by: A 1234206428 | ||
| 197 | A 1234206428 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 895 MM | ||
| 197 | A 1234206428 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 895 MM | ||
| 197 | A 1234207628 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 2520 MM | ||
| 204 | A 6014205128 | LINE |
| Repalced by: A 1234207528 | ||
| 204 | A 1234207528 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 2200 MM | ||
| 204 | A 1234207528 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 2200 MM | ||
| 204 | A 1234206228 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 725 MM | ||
| 211 | A 0014289535 | BRAKE HOSE |
| FRONT LEFT AND RIGHT | ||
| 218 | A 0004280373 | LOCK |
| Repalced by: A 0004280673 | ||
| 218 | A 0004280673 | RETAINING SPRING |
| BRAKE HOSE TO BRACKET | ||
| 225 | A 6014203828 | LINE |
| Repalced by: A 1234205028 | ||
| 225 | A 1234205028 | LINE |
| FROM LEFT AND RIGHT STEERING KNUCKLES TO LEFT AND RIGHT CALIPERS | ||
| 180 MM | ||
| 232 | A 6014205128 | LINE |
| Repalced by: A 1234207528 | ||
| 232 | A 1234207528 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO PRESSURE RETAINING VALVE | ||
| 2200 MM | ||
| 232 | A 1234207528 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO PRESSURE RETAINING VALVE | ||
| 2200 MM | ||
| 232 | A 1234201328 | LINE |
| FROM MASTER CYLINDER TO PRESSURE RETAINING VALVE | ||
| 1800 MM | ||
| 232 | A 1234208628 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO PRESSURE RETAINING VALVE | ||
| 3560 MM | ||
| 239 | A 0004315907 | VALVE |
| Repalced by: A 0004313907 | ||
| 239 | A 0004313907 | VALVE |
| PRESSURE RETAINING | ||
| 246 | A 4604201928 | LINE |
| Repalced by: A 1234208128 | ||
| 246 | A 1234208128 | LINE |
| FROM PRESSURE RETAINING VALVE TO BRAKE POWER REGULATOR | ||
| 3090 MM | ||
| 246 | A 4604205028 | LINE |
| Repalced by: A 1234208428 | ||
| 246 | A 1234208428 | LINE |
| FROM PRESSURE RETAINING VALVE TO BRAKE POWER REGULATOR | ||
| 3390 MM | ||
| 246 | A 6114200228 | LINE |
| Repalced by: A 1234208628 | ||
| 246 | A 1234208628 | LINE |
| FROM PRESSURE RETAINING VALVE TO BRAKE POWER REGULATOR | ||
| 3560 MM | ||
| 253 | A 6114200628 | LINE |
| FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE | ||
| 725 MM | ||
| 260 | A 6014280040 | BRACKET |
| BRAKE LINES | ||
| 263 | A 6014282640 | BRACKET |
| BRAKE LINES | ||
| 267 | A 6014281240 | BRACKET |
| BRAKE LINES | ||
| 267 | A 6014281440 | BRACKET |
| BRAKE LINES | ||
| 274 | A 1234280535 | BRAKE HOSE |
| REAR | ||
| 281 | A 0004280373 | LOCK |
| Repalced by: A 0004280673 | ||
| 281 | A 0004280673 | RETAINING SPRING |
| REAR BRAKE HOSE TO BRACKET | ||
| 288 | A 0004284224 | DISTRIBUTOR |
| Repalced by: A 0004285624 | ||
| 288 | A 0004285624 | DISTRIBUTOR |
| REAR | ||
| 295 | A 6014285076 | WASHER |
| DISTRIBUTOR TO REAR AXLE | ||
| 302 | N 910113006000 | NUT |
| DISTRIBUTOR TO REAR AXLE | ||
| 309 | A 6014201528 | LINE |
| Repalced by: A 1234206728 | ||
| 309 | A 1234206728 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 1225 MM | ||
| 316 | A 4604202228 | LINE |
| Repalced by: A 1234206028 | ||
| 316 | A 1234206028 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 580 MM | ||
| 323 | A 6014285041 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 330 | N 304032006004 | NUT |
| BRAKE LINE MOUNTING | ||
| 337 | A 0014313912 | BRAKE PRESSURE REGULATOR |
| Repalced by: A 0024311312 | ||
| 337 | A 0024311312 | BRAKE PRESSURE REGULATOR |
| 340 | A 6115840338 | GUMMED LABEL |
| LOAD-DEPENDING BRAKE | ||
| 340 | A 6115841438 | GUMMED LABEL |
| LOAD-DEPENDING BRAKE | ||
| 344 | N 304017008016 | SCREW |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 351 | N 912004008102 | LOCK WASHER |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 358 | A 6114310140 | BRACKET |
| BRAKE POWER REGULATOR | ||
| 365 | N 304017010043 | SCREW |
| BRACKET TO FRAME | ||
| 372 | N 912004010102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 379 | N 000125010532 | WASHER |
| BRACKET TO FRAME | ||
| 386 | A 6014300335 | LEVER |
| Repalced by: A 6114300023 | ||
| 386 | A 6114300023 | LEVER |
| BRAKE POWER REGULATOR | ||
| 393 | A 1102910550 | BUSHING |
| 400 | A 6114310076 | WASHER |
| LEVER TO BRACKET | ||
| 407 | A 6114310050 | BUSHING |
| LEVER TO BRACKET | ||
| 414 | N 914125010108 | SCREW |
| LEVER TO BRACKET | ||
| 421 | A 6084270074 | PIN |
| SPRING TO LEVER | ||
| 428 | A 6019900038 | SCREW |
| SPRING TO LEVER | ||
| 435 | A 6039920101 | BUSHING |
| SPRING TO LEVER | ||
| 442 | N 304032008005 | NUT |
| SPRING TO LEVER | ||
| 449 | A 6119930110 | SPRING |
| LEVER | ||
| 456 | A 6014300435 | LEVER |
| Repalced by: A 6014300535 | ||
| 456 | A 6014300535 | LEVER |
| OPERATING ROD | ||
| 463 | N 912004008102 | LOCK WASHER |
| OPERATING ROD TO LEVER AND TO REAR AXLE | ||
| 470 | N 910113008001 | NUT |
| OPERATING ROD TO LEVER AND TO REAR AXLE | ||
| 618 | A 6014271511 | BEARING BRACKET |
| HAND BRAKE LEVER | ||
| 618 | A 6014271411 | BEARING BRACKET |
| HAND BRAKE LEVER | ||
| 634 | N 304017008034 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 8X22 | ||
| 634 | N 304017008033 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 8X30 | ||
| 638 | A 1109870441 | RUBBER RING |
| BEARING BRACKET TO FRAME | ||
| 642 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 646 | N 000125008443 | WASHER |
| BEARING BRACKET TO FRAME | ||
| 650 | N 304032008005 | NUT |
| BEARING BRACKET TO FRAME | ||
| 658 | A 6014200412 | BRAKE LEVER |
| HAND BRAKE | ||
| 666 | A 6014270074 | PIN |
| BRAKE LEVER TO BEARING BRACKET | ||
| 666 | A 6014270074 | PIN |
| PAWL TO HAND BRAKE LEVER | ||
| 672 | N 912007008000 | CLIP |
| Repalced by: N 000000002965 | ||
| 672 | N 000000002965 | CLIP |
| BRAKE LEVER TO BEARING BRACKET | ||
| 672 | N 000000002965 | CLIP |
| PAWL TO HAND BRAKE LEVER | ||
| 680 | A 6014270215 | PAWL |
| HAND BRAKE LEVER | ||
| 688 | A 6014270084 | SHIM |
| HAND BRAKE LEVER | ||
| 688 | A 6014270184 | SHIM |
| HAND BRAKE LEVER | ||
| 696 | A 6014270231 | ROD |
| HAND BRAKE LEVER | ||
| 704 | A 0119975345 | SEAL RING |
| HAND BRAKE LEVER | ||
| 712 | A 6019930001 | SPRING |
| HAND BRAKE LEVER | ||
| 720 | A 6014270020 | HANDLE |
| HAND BRAKE LEVER | ||
| 728 | A 6014270022 | FASTENER BUTTON |
| HAND BRAKE LEVER | ||
| 736 | A 6014201585 | BRAKE CABLE |
| FROM HAND BRAKE LEVER TO REVERSING LEVER | ||
| 744 | A 6014270074 | PIN |
| BRAKE CABLE TO HAND BRAKE LEVER | ||
| 752 | N 912007008000 | CLIP |
| Repalced by: N 000000002965 | ||
| 752 | N 000000002965 | CLIP |
| BRAKE CABLE TO HAND BRAKE LEVER | ||
| 760 | A 6014200778 | BEARING BRACKET |
| Repalced by: A 6014200978 | ||
| 760 | A 6014200978 | BEARING BRACKET |
| REVERSING LEVER | ||
| 760 | A 6014200978 | BEARING BRACKET |
| REVERSING LEVER | ||
| 760 | A 6014201078 | BEARING BRACKET |
| REVERSING LEVER | ||
| 776 | N 304017006016 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 780 | N 912004006102 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 788 | A 6014200091 | LEVER |
| Repalced by: A 6014200040 | ||
| 788 | A 6014200040 | ADJUSTING LEVER |
| (REVERSING LEVER) | ||
| 796 | N 912007014000 | CLIP |
| LEVER TO BEARING BRACKET | ||
| 804 | A 6114200485 | BRAKE CABLE |
| Repalced by: A 6114201085 | ||
| 804 | A 6114201085 | BRAKE CABLE |
| FROM ADJUSTMENT LEVER TO REVERSING LEVER | ||
| 804 | A 6114200385 | BRAKE CABLE |
| Repalced by: A 6114201185 | ||
| 804 | A 6114201185 | BRAKE CABLE |
| FROM ADJUSTMENT LEVER TO REVERSING LEVER | ||
| 812 | A 6014270074 | PIN |
| BRAKE CABLE TO REVERSING LEVER | ||
| 812 | A 6014270874 | PIN |
| BRAKE CABLE TO REVERSING LEVER | ||
| 820 | N 912007008000 | CLIP |
| Repalced by: N 000000002965 | ||
| 820 | N 000000002965 | CLIP |
| BRAKE CABLE TO REVERSING LEVER | ||
| 828 | A 6014270091 | GROMMET |
| BRAKE CABLE | ||
| 836 | A 6014270013 | LEVER |
| MANUAL ADJUSTMENT | ||
| 844 | N 006319008301 | SPHERICAL WASHER |
| OSCILLATING LEVER TO BRAKE CABLE | ||
| 848 | N 304032008005 | NUT |
| OSCILLATING LEVER TO BRAKE CABLE | ||
| 856 | A 6119930210 | SPRING |
| (RELEASE SPRING) | ||
| 856 | A 6119930510 | SPRING |
| (RELEASE SPRING) | ||
| 864 | A 6014280740 | BRACKET |
| RELEASE SPRING | ||
| 872 | A 1159930325 | SPRING |
| TO SECURE BRAKE CABLE | ||
| 880 | A 6014270441 | BRACKET |
| BRAKE CABLE | ||
| 888 | N 304017006016 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 892 | N 912004006102 | LOCK WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 896 | N 910113006000 | NUT |
| CLAMP TO BRACKET | ||
| 904 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 904 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 904 | N 000000001045 | CLAMP |
| BRAKE CABLE | ||
| 912 | N 304017006016 | SCREW |
| CLAMP TO BRACKET | ||
| 916 | N 912004006102 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 920 | N 304032006004 | NUT |
| CLAMP TO BRACKET | ||
| 926 | A 6114200085 | BRAKE CABLE |
| Repalced by: A 6114200985 | ||
| 926 | A 6114200985 | BRAKE CABLE |
| REAR | ||
| PERROT | ||
| 926 | A 6114201685 | BRAKE CABLE |
| REAR LEFT | ||
| DB | ||
| 926 | A 6114201885 | BRAKE CABLE |
| REAR LEFT | ||
| DB | ||
| 926 | A 6114201785 | BRAKE CABLE |
| REAR RIGHT | ||
| DB | ||
| 926 | A 6114201985 | BRAKE CABLE |
| REAR RIGHT | ||
| 930 | A 6019930025 | SPRING |
| BRAKE CABLE | ||
| PERROT | ||
| 934 | N 304017008016 | SCREW |
| BRAKE CABLE TO BRAKE ANCHOR PLATE | ||
| DB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
