Transporto priemonė: 412 D; VIN numerio dalis: 690412
Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|

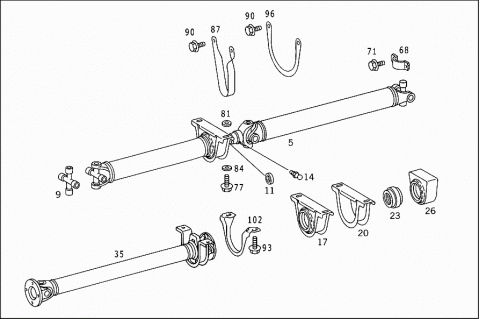

| 005 | A 6904107406 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 3000 MM | ||
| 005 | A 6904107506 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 3550 MM | ||
| 009 | A 0004102631 | UNIVERSAL JOINT CROSS |
| 009 | A 0004102631 | UNIVERSAL JOINT CROSS |
| 011 | A 0004130580 | SEAL RING |
| 011 | A 0004130580 | SEAL RING |
| 014 | A 0009974888 | GREASE NIPPLE |
| 014 | A 0009974888 | GREASE NIPPLE |
| 017 | A 0004100622 | INTERMEDIATE BEARING |
| 017 | A 0004100622 | INTERMEDIATE BEARING |
| 020 | A 0004100040 | BRACKET |
| 020 | A 0004100040 | BRACKET |
| 023 | A 0004100051 | BALL BEARING |
| 023 | A 0004100051 | BALL BEARING |
| 023 | A 0004100151 | BALL BEARING |
| 023 | A 0004100151 | BALL BEARING |
| 026 | A 0004110147 | VIBRATION DAMPER |
| 026 | A 0004110147 | VIBRATION DAMPER |

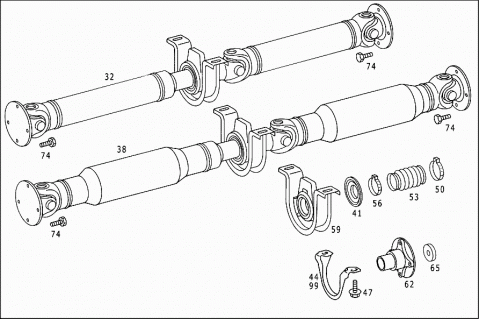

| 032 | A 6904107806 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 032 | A 6904108306 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 032 | A 9014103306 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 035 | A 6904107401 | PROPELLER SHAFT |
| FRONT | ||
| 038 | A 9014106606 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 4025 MM | ||
| 038 | A 6904107906 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 038 | A 6904108206 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 041 | A 9014110396 | PROTECTIVE CAP |
| 041 | A 9014110396 | PROTECTIVE CAP |
| 041 | A 9014110396 | PROTECTIVE CAP |
| 044 | A 9014110940 | BRACKET |
| 044 | A 9014110940 | BRACKET |
| 044 | A 9014110940 | BRACKET |
| 047 | A 0119903701 | SCREW |
| 047 | A 0119903701 | SCREW |
| 047 | A 0119903701 | SCREW |
| 050 | A 0059974790 | LOOM TIE |
| 050 | A 0059974790 | LOOM TIE |
| 050 | A 0059974790 | LOOM TIE |
| 053 | A 9014110097 | BOOT |
| 053 | A 9014110097 | BOOT |
| 053 | A 9014110097 | BOOT |
| 056 | A 0059971190 | LOOM TIE |
| 056 | A 0059971190 | LOOM TIE |
| 056 | A 0059971190 | LOOM TIE |
| 059 | A 9014110412 | INTERMEDIATE BEARING |
| 059 | A 9014110412 | INTERMEDIATE BEARING |
| 059 | A 9014110412 | INTERMEDIATE BEARING |
| 062 | A 9034110045 | FLANGE |
| 065 | A 9014110062 | THRUST WASHER |
| 068 | A 6909957010 | CLAMP |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 068 | A 6909957010 | CLAMP |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 071 | A 6909907101 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 071 | A 6909907101 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 074 | A 3099901801 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 074 | A 3099901801 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 074 | A 3099901801 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 077 | N 910105012015 | SCREW |
| M 12X1.5X45 | ||
| 077 | N 910105012015 | SCREW |
| M 12X1.5X45 | ||
| 081 | A 6909917035 | SPACER RING |
| 081 | A 6909917035 | SPACER RING |
| 084 | N 000125013022 | WASHER |
| 084 | N 000125013022 | WASHER |
| 084 | N 000125013022 | WASHER |
| 087 | A 6904117140 | REBOUND STRAP |
| 087 | A 6904117240 | REBOUND STRAP |
| 090 | N 910105012007 | SCREW |
| REBOUND STRAP TO SUPPORT | ||
| M 12X1.5X30 | ||
| 090 | N 910105012007 | SCREW |
| REBOUND STRAP TO SUPPORT | ||
| M 12X1.5X30 | ||
| 090 | N 910105012007 | SCREW |
| REBOUND STRAP TO SUPPORT | ||
| M 12X1.5X30 | ||
| 090 | N 910105012007 | SCREW |
| REBOUND STRAP TO SUPPORT | ||
| M 12X1.5X30 | ||
| 090 | N 910105012007 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 12X1.5X30 | ||
| 090 | N 910105012007 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 12X1.5X30 | ||
| 093 | A 0119903701 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 096 | A 9014110740 | BRACKET |
| AT CROSS MEMBER | ||
| 096 | A 9014110740 | BRACKET |
| AT CROSS MEMBER | ||
| 096 | A 6904117340 | BRACKET |
| Repalced by: A 9014110740 | ||
| 099 | A 9014110940 | BRACKET |
| 102 | A 9014110940 | BRACKET |
| BRACKET TO PROPELLER SHAFT BEARING | ||
