Transporto priemonė: 412 D; VIN numerio dalis: 690412
Grupė: 40 WHEELS - 090 DISC WHEELS AND SPARE WHEEL CARRIER
| # | Kodas | Pavadinimas |
|---|---|---|

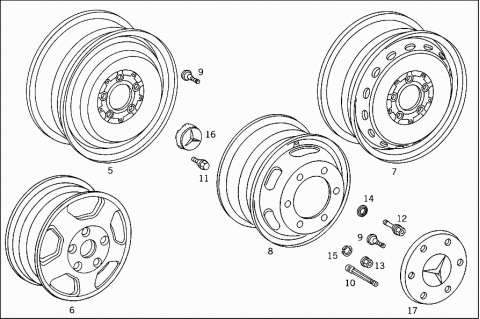

| 005 | A 6904007002 | DISC WHEEL |
| 6.00 X 15 H2 | ||
| 006 | B 66010051 | DISC WHEEL |
| ALUMINUM DISC WHEEL | ||
| 7.00 X 15 H2 | ||
| 006 | A 9034011102 | DISC WHEEL |
| ALUMINUM DISC WHEEL | ||
| 7J X 15 H2 | ||
| A 6904007302 | DISC WHEEL | |
| 6.00 X 15H2 | ||
| 007 | A 6904007102 | DISC WHEEL |
| Repalced by: A 9034010802 | ||
| 007 | A 9034010802 | DISC WHEEL |
| A 6904007202 | DISC WHEEL | |
| 008 | A 9044000002 | DISC WHEEL |
| 5.00X15 HZ | ||
| 009 | A 0004000313 | TIRE VALVE |
| 009 | A 0004000313 | TIRE VALVE |
| 009 | A 0004000313 | TIRE VALVE |
| 009 | A 0004000313 | TIRE VALVE |
| 010 | A 6114010113 | VALVE |
| 011 | A 6014010270 | SCREW |
| 011 | A 6014010270 | SCREW |
| 012 | A 6384010171 | WHEEL MOUNTING BOLT |
| 013 | N 074361014204 | NUT |
| 014 | A 3194020075 | SPHERICAL RING |
| 015 | A 9019900047 | LOCK WASHER |
| 016 | A 6014010325 | HUB CAP |
| 016 | A 2014000425 | HUB CAP |
| 017 | A 6674000325 | HUB CAP |

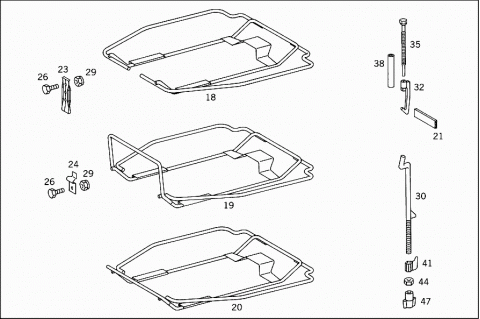

| 018 | A 9014000241 | MOUNTING BOW |
| SPARE WHEEL CARRIER | ||
| 018 | A 9014000241 | MOUNTING BOW |
| SPARE WHEEL CARRIER | ||
| 019 | A 9044000641 | MOUNTING BOW |
| SPARE WHEEL CARRIER | ||
| 020 | A 9044000541 | MOUNTING BOW |
| SPARE WHEEL CARRIER | ||
| 020 | A 9044000541 | MOUNTING BOW |
| SPARE WHEEL CARRIER | ||
| 021 | A 9014030119 | BASE BLOCK |
| 021 | A 9014030119 | BASE BLOCK |
| 021 | A 9014030119 | BASE BLOCK |
| 021 | A 9014030219 | BASE BLOCK |
| 021 | A 9014030219 | BASE BLOCK |
| 023 | A 9014030105 | SHACKLE |
| CARRIER TO BRACKET | ||
| 023 | A 9014030105 | SHACKLE |
| CARRIER TO BRACKET | ||
| 024 | A 9044030035 | JOINT PART |
| CARRIER TO BRACKET | ||
| 024 | A 9044030035 | JOINT PART |
| CARRIER TO BRACKET | ||
| 024 | A 9044030035 | JOINT PART |
| CARRIER TO BRACKET | ||
| 026 | N 304017008001 | SCREW |
| CARRIER TO BRACKET | ||
| M 8X16 | ||
| 026 | N 304017008001 | SCREW |
| CARRIER TO BRACKET | ||
| M 8X16 | ||
| 026 | N 304017008001 | SCREW |
| CARRIER TO BRACKET | ||
| M 8X16 | ||
| 026 | N 304017008001 | SCREW |
| CARRIER TO BRACKET | ||
| M 8X16 | ||
| 026 | N 304017008001 | SCREW |
| CARRIER TO BRACKET | ||
| M 8X16 | ||
| 029 | N 913004008001 | NUT |
| CARRIER TO BRACKET | ||
| 029 | N 913004008001 | NUT |
| CARRIER TO BRACKET | ||
| 029 | N 913004008001 | NUT |
| CARRIER TO BRACKET | ||
| 029 | N 913004008001 | NUT |
| CARRIER TO BRACKET | ||
| 029 | N 913004008001 | NUT |
| CARRIER TO BRACKET | ||
| 030 | A 6904007070 | CLAMPING SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 030 | A 6904007070 | CLAMPING SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 030 | A 6904007070 | CLAMPING SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 030 | A 9014000270 | CLAMPING SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 030 | A 9014000270 | CLAMPING SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 030 | A 9014000270 | CLAMPING SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT | ||
| 030 | A 6904007170 | CLAMPING SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 030 | A 6904007170 | CLAMPING SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 030 | A 6904007170 | CLAMPING SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 030 | A 9014000270 | CLAMPING SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 030 | A 9014000270 | CLAMPING SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 030 | A 9014000270 | CLAMPING SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RIGHT | ||
| 030 | A 9044000170 | CLAMPING SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 032 | A 9014000170 | CLAMPING SCREW |
| Repalced by: A 9014000470 | ||
| 032 | A 9014000470 | CLAMPING SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 035 | A 9014030271 | SCREW |
| Repalced by: A 9014030571 | ||
| 035 | A 9014030571 | SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 038 | A 9014030153 | SPACER TUBE |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 041 | A 9014030169 | CLAMPING PIECE |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 041 | A 9014030169 | CLAMPING PIECE |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 041 | A 9014030169 | CLAMPING PIECE |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 041 | A 9014030169 | CLAMPING PIECE |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 044 | N 304032010002 | NUT |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 044 | N 304032010002 | NUT |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 044 | N 304032010002 | NUT |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 044 | N 304032010002 | NUT |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 047 | A 9014030230 | NUT |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 047 | A 9014030230 | NUT |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 047 | A 9014030230 | NUT |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 047 | A 9014030230 | NUT |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| A 3909977190 | LOOM TIE | |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| A 3909977090 | LOOM TIE | |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
