Transporto priemonė: 412 D; VIN numerio dalis: 690412

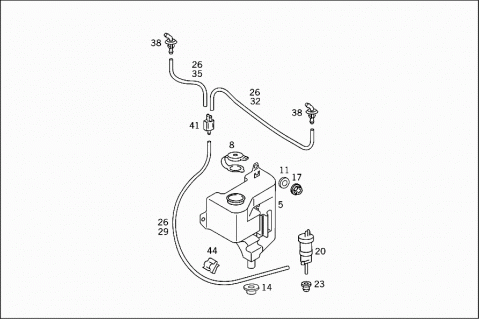

Grupė: 86 WINDSHIELD WASHER - 070 PANE WASHER,HEADLAMP WIPER/WASHER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 9018690020 | RESERVOIR |
| 008 | A 1248690172 | FILLER CAP |
| Repalced by: A 2028609369 | ||
| 008 | A 2028609369 | FASTENER |
| 011 | A 1139870044 | EXPANSION PLUG |
| 20.5 MM | ||
| 014 | A 2019975181 | GROMMET |
| 017 | A 0039900251 | NUT |
| 020 | A 0008603326 | PUMP |
| PANE WASHER | ||
| 020 | A 0008603526 | PUMP |
| PANE WASHER | ||
| 023 | A 0008690298 | SEAL |
| PUMP TO RESERVOIR | ||
| 026 | A 0109978982 | HOSE |
| PANE WASHER | ||
| 029 | A 6908697194 | HOSE |
| FROM PUMP TO CHECK VALVE | ||
| 1080 MM | ||
| 032 | A 6908697294 | HOSE |
| FROM LEFT NOZZLE TO CHECK VALVE | ||
| 275 MM | ||
| 035 | A 6908697394 | HOSE |
| FROM RIGHT NOZZLE TO CHECK VALVE | ||
| 1300 MM | ||
| 038 | A 6318690024 | CONNECTOR |
| 041 | A 0008600862 | VALVE |
| (CHECK VALVE) REAR PANEL DOOR PANE WASHER | ||
| 044 | A 0089882978 | CLIP |
| HOSE ATTACHMENT | ||
