Transporto priemonė: 508 I INDONESIA; VIN numerio dalis: 684001

Grupė: 25 CLUTCH

#	Kodas	Pavadinimas

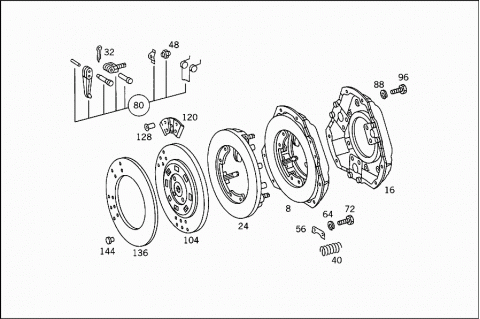

008	A 3082500004	CLUTCH PRESSURE PLATE
	Repalced by: A 0032501004
008	A 0032501004	CLUTCH PRESSURE PLATE
		FA."AMORTEX"
016	H 983082520032	HOUSING
024	H 983082500104	CLUTCH PRESSURE PLATE
032	N 000094002030	COTTER PIN
040	H 983082520020	PRESSURE SPRING
048	A 0002523372	NUT
056	A 0002520573	LOCK
064	N 912004008102	LOCK WASHER
072	N 000933008005	SCREW
080	A 3445867025	REPAIR KIT
088	N 912004008104	LOCK WASHER
		CLUTCH TO FLYWHEEL
096	A 3122521071	SCREW
		CLUTCH TO FLYWHEEL
104	A 0022507403	CLUTCH DISC
		FA."FICHTEL U. SACHS"
104	A 3082507003	CLUTCH DISC
	Repalced by: A 0072501503
104	A 0072501503	CLUTCH DISC
		FA."FICHTEL & SACHS"
120	A 0002520919	LEAF SPRING
		TO 002 250 74 03,007 250 15 03
128	A 0002520175	RIVET
		TO 002 250 74 03, 007 250 15 03
136	A 0002528110	CLUTCH LINING
		TO 002 250 74 03, 007 250 15 03
136	A 3082527010	CLUTCH LINING
		TO 308 250 70 03
144	A 3452527075	RIVET
		TO 308 250 70 03
144	A 0002521275	RIVET
	Repalced by: A 0002524375
144	A 0002524375	RIVET
		TO 002 250 74 03, 007 250 15 03

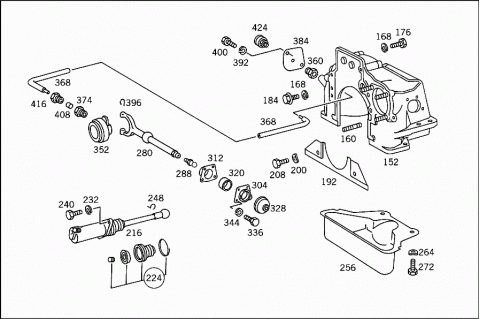

152	A 3452511201	BELL HOUSING
160	N 000939010041	STUD BOLT
		BELL HOUSING
168	N 912004012100	LOCK WASHER
		BELL HOUSING TO CYLINDER CRANKCASE
176	N 900170012049	SCREW
		BELL HOUSING TO CYLINDER CRANKCASE
		M 12X40
176	N 000931012277	SCREW
		BELL HOUSING TO CYLINDER CRANKCASE
		M 12X135
184	N 900170012005	SCREW
		BELL HOUSING TO CYLINDER CRANKCASE
		M 12X35
192	A 3522510106	PROTECTIVE PLATE
		BELL HOUSING
200	N 000137006002	SPRING WASHER
		PROTECTIVE PLATE TO BELL HOUSING
208	N 000933006223	SCREW
		PROTECTIVE PLATE TO BELL HOUSING
216	A 3082957007	SLAVE CYLINDER
		CLUTCH RELEASE
		"VARGA"
224	A 3085867029	REPAIR KIT
		CLUTCH SLAVE CYLINDER
232	N 912004008102	LOCK WASHER
		CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE
240	N 000933008270	SCREW
		CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE
248	N 071805016402	SECURING CLIP
		CLUTCH SLAVE CYLINDER TO RELEASE YOKE
256	A 3082517002	BELL HOUSING
		LOWER PART
264	N 000137006002	SPRING WASHER
		BELL HOUSING LOWER PART TO BELL HOUSING
272	N 000933006223	SCREW
		BELL HOUSING LOWER PART TO BELL HOUSING
280	A 3522930311	RELEASE YOKE
		CLUTCH
288	A 3029910015	BALL PIVOT
		FOR YOKE
288	A 3529910415	BALL PIVOT
		FOR YOKE
296	A 3402540013	SPRING LOCK
		RELEASE LEVER TO RELEASE COLLAR
304	A 3452500043	BRACKET
		OUTSIDE
312	A 3522540040	BRACKET
		INSIDE
320	A 3522540135	BEARING
		OUTSIDE
328	A 3142540197	BOOT
		RELEASE LEVER
336	N 000933008271	SCREW
		BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING
344	N 912004008102	LOCK WASHER
		BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING
352	A 3082507015	RELEASE BEARING
		CLUTCH
360	N 071428004102	SCREW-IN FITTING
		RELEASE BEARING LUBRICATION
368	A 3059971982	HOSE
		RELEASE COLLAR LUBRICATION
368	A 3089977182	HOSE
		RELEASE COLLAR LUBRICATION
376	N 003871004100	UNION SCREW
		RELEASE COLLAR LUBRICATION
384	A 3102500155	COVER
		RELEASE COLLAR LUBRICATION
392	N 912004008102	LOCK WASHER
		COVER TO BELL HOUSING
400	N 000933008271	SCREW
		COVER TO BELL HOUSING
408	N 003862004001	DOUBLE TAPER RING
		RELEASE COLLAR LUBRICATION
416	N 071428004102	SCREW-IN FITTING
		RELEASE COLLAR LUBRICATION
424	N 003411002001	GREASE CUP
		RELEASE COLLAR LUBRICATION
