Transporto priemonė: 508 I INDONESIA; VIN numerio dalis: 684001
Grupė: 30 CONTROL

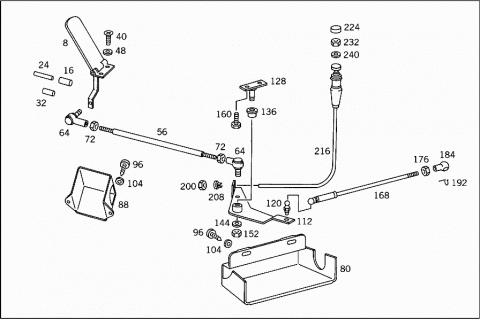

27552
# Kodas Pavadinimas
008 A 3143001304 ACCELERATOR PEDAL
016 A 3143010050 BUSHING
024 N 000007008303 CYLINDRICAL PIN
ACCELERATOR PEDAL BEARING
032 N 001473003023 GROOVED PIN
ACCELERATOR PEDAL BEARING
040 N 000965006014 SCREW
PEDAL TO CAB FLOOR
048 N 007349008003 WASHER
PEDAL TO CAB FLOOR
056 A 3183002415 ROD
CONTROL LEVER TO ACCELERATOR PEDAL
064 A 1233280063 JOINT
CONTROL LEVER TO ACCELERATOR PEDAL
072 N 000934006007 NUT
CONTROL LEVER TO ACCELERATOR PEDAL
080 A 3143010088 COVERING
ACCELERAT0R CONTROL LINKAGE
088 A 3143010188 COVERING
ACCELERAT0R CONTROL LINKAGE
096 N 007976006212 SHEET METAL SCREW
COVER PLATE
104 N 000125006421 WASHER
COVER PLATE
112 A 3143003025 LEVER
CONTROL,LEFT
120 N 071803010205 BALL PIVOT
128 A 3143000274 PIN
LEFT CONTROL LEVER
136 A 3813020050 BUSHING
LEFT CONTROL LEVER
144 N 000125008417 WASHER
CONTROL LEVER TO PIVOT PIN
152 N 913004008004 NUT
CONTROL LEVER TO PIVOT PIN
160 N 000933008212 SCREW
PIN TO SUBSTRUCTURE
168 A 3183002915 ROD
CONTROL LEVER TO INJECTION PUMP LEVER
176 N 000934006007 NUT
BALL SOCKET TO ROD
184 A 0009912422 BALL SOCKET
PULL ROD
192 N 071805010402 SECURING CLIP
BALL SOCKET TO BALL PIVOT
200 N 000934008010 NUT
KNOB WITH SPINDLE TO BRACKET
208 A 3093020050 BUSHING
(REVERSING LEVER)
216 A 3183000307 KNOB
WITH SPINDLE
"FA.MAGENWIRTH"
224 A 3093020001 KNOB
232 A 0003020072 NUT
240 A 0003020052 SPACER WASHER
