Transporto priemonė: 508 I INDONESIA; VIN numerio dalis: 684001

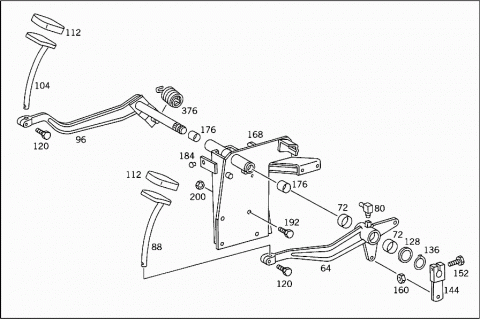

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3182900313 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CONNECTOR | ||
| 016 | A 3182900413 | LINE |
| FROM CONNECTOR TO CLUTCH SLAVE CYLINDER | ||
| 032 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 032 | N 916016008200 | CLAMP |
| PIPE LINE TO CAB | ||
| 032 | N 916016008200 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 040 | N 000933006235 | SCREW |
| LINES TO FRAME | ||
| 048 | N 913004006002 | NUT |
| LINES TO FRAME | ||
| 056 | A 0004292736 | CONNECTOR |
| 064 | A 3182900616 | PEDAL |
| CLUTCH | ||
| 072 | A 3142910150 | BUSHING |
| 080 | N 071412010100 | GREASE NIPPLE |
| 088 | A 3162900024 | PEDAL PLATE |
| CLUTCH | ||
| 096 | A 3182900818 | PEDAL |
| BRAKE | ||
| 104 | A 3162900024 | PEDAL PLATE |
| BRAKE | ||
| 112 | A 3202925082 | PAD |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 120 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 128 | N 000988035004 | FITTED WASHER |
| CLUTCH LEVER TO PEDAL SHAFT | ||
| 136 | N 000471034001 | LOCK RING |
| CLUTCH LEVER TO PEDAL SHAFT | ||
| 144 | A 3182900227 | LEVER |
| BRAKE LINKAGE | ||
| 152 | N 000931008244 | SCREW |
| LEVER AND BRAKE PEDAL TO CONSOLE | ||
| 160 | N 913004008004 | NUT |
| LEVER AND BRAKE PEDAL TO CONSOLE | ||
| 168 | A 3182900019 | BEARING BRACKET |
| 176 | A 3144270350 | BUSHING |
| 184 | A 1152910186 | STOP |
| 192 | N 000933010129 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 200 | N 913004010008 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 208 | A 0002957706 | MASTER CYLINDER |
| CLUTCH | ||
| "FAG" | ||
| 216 | A 0002951583 | BOOT |
| 224 | A 0009971186 | PLUG |
| 232 | A 0005862929 | REPAIR KIT |
| LESS PISTON | ||
| 232 | A 0005865229 | REPAIR KIT |
| WITH PISTON | ||
| 240 | A 3092950036 | INTERMEDIATE PIECE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 248 | N 009045028001 | SNAP RING |
| CLUTCH MASTER CYLINDER | ||
| 256 | N 000931006134 | SCREW |
| CLUTCH MASTER CYLINDER TO CONSOLE | ||
| 264 | N 913004006002 | NUT |
| CLUTCH MASTER CYLINDER TO CONSOLE | ||
| 272 | N 900288015000 | CLAMP |
| HOSE TO MASTER CYLINDER | ||
| A 3802900093 | REPAIR KIT | |
| DEAD CENTER SPRING | ||
| 280 | A 3812910233 | ROD |
| 280 | A 3812910333 | ROD |
| 288 | A 3812950033 | ROD |
| 296 | A 0009961045 | ARTICULATION PIECE |
| 296 | A 0009961145 | ARTICULATION PIECE |
| 304 | A 0059813810 | NEEDLE BEARING |
| 304 | A 0059814410 | NEEDLE BEARING |
| 304 | A 0089811210 | NEEDLE BEARING |
| 304 | A 0139818210 | NEEDLE BEARING |
| 312 | N 000439008104 | NUT |
| AM 8 | ||
| 312 | N 000439008206 | NUT |
| BM 8 | ||
| 320 | N 006799007007 | LOCK PLATE |
| PISTON ROD TO CLUTCH PEDAL | ||
| 328 | N 000433008406 | WASHER |
| PISTON ROD TO CLUTCH PEDAL | ||
| 336 | A 3182950383 | BOOT |
| PISTON ROD AND PUSH ROD | ||
| 344 | A 3182901739 | ROD |
| CLUTCH PEDAL PISTON ROD | ||
| 352 | N 071752010004 | YOKE |
| Repalced by: A 0009961401 | ||
| 352 | A 0009961401 | YOKE |
| 360 | N 000934010014 | NUT |
| 368 | A 3182960083 | PROTECTIVE CAP |
| CLUTCH PEDAL PISTON ROD | ||
| 376 | A 3859930010 | SPRING |
| SPRING TO CLUTCH PEDAL | ||
| 384 | A 3529910007 | PIN |
| PISTON ROD TO LEVER | ||
| 392 | N 000094003201 | COTTER PIN |
| PISTON ROD TO LEVER | ||
| 400 | A 1112910491 | SPRING RETAINER |
| CLUTCH PEDAL PISTON ROD | ||
| 408 | A 1109930501 | SPRING |
| CLUTCH PEDAL PISTON ROD | ||
| 416 | A 3092910091 | SPRING RETAINER |
| CLUTCH PEDAL PISTON ROD | ||
| 424 | N 000934010000 | NUT |
| CLUTCH PEDAL PISTON ROD | ||
| 432 | A 3182950006 | MASTER CYLINDER |
| BRAKE | ||
| "ATE" | ||
| 440 | A 0002950050 | BUSHING |
| Repalced by: A 0004310950 | ||
| 440 | A 0004310950 | BUSHING |
| 448 | A 0002950536 | INTERMEDIATE PIECE |
| 45 DEGREES | ||
| 456 | A 3075530107 | VALVE |
| 464 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 464 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 464 | A 0004210887 | PROTECTIVE CAP |
| 472 | A 0005864729 | REPAIR KIT |
| 480 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 488 | N 913004006002 | NUT |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 496 | N 900288015000 | CLAMP |
| REFILLING LINE TO MASTER CYLINDER | ||
| 504 | A 0014313802 | RESERVOIR |
| WITH WARNING DEVICE | ||
| "KUGELFISCHER" | ||
| 504 | A 0004315802 | RESERVOIR |
| WITH WARNING DEVICE | ||
| "ATE" | ||
| 512 | A 0014310802 | RESERVOIR |
| Repalced by: A 0004318302 | ||
| 512 | A 0004318302 | RESERVOIR |
| WITH WARNING DEVICE | ||
| "ATE" | ||
| 520 | A 0004313134 | STRAINER |
| 528 | A 0004313733 | FILLER CAP |
| 536 | A 0009972940 | SEAL RING |
| TO ATE | ||
| 536 | A 0039976440 | SEAL RING |
| TO KUGELFISCHER | ||
| 552 | A 0004311040 | CLAMP |
| 560 | N 000933006235 | SCREW |
| RESERVOIR TO SEAT BOX | ||
| 568 | N 913004006002 | NUT |
| RESERVOIR TO SEAT BOX | ||
| 576 | N 000125006421 | WASHER |
| RESERVOIR TO SEAT BOX | ||
| 584 | A 0009978952 | HOSE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 592 | N 900288015000 | CLAMP |
| HOSE TO RESERVOIR | ||
| 600 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 608 | A 0009972881 | GROMMET |
| HOSE THRU CAB FLOOR | ||
