Transporto priemonė: 508 I INDONESIA; VIN numerio dalis: 684001

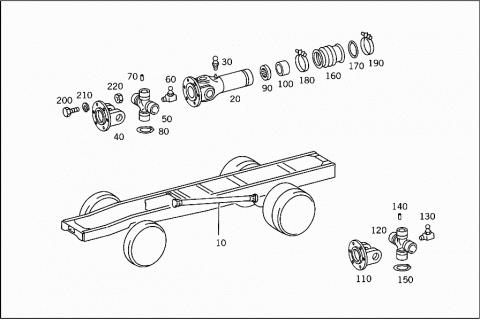

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
010	A 3144100402	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1970 MM
020	A 3234100108	UNIVERSAL JOINT YOKE
030	N 071412008101	GREASE NIPPLE
040	A 3024110011	DRIVE FLANGE
050	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
060	N 071412008300	GREASE NIPPLE
070	A 3189810287	NEEDLE
080	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
080	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
080	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
080	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
080	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
080	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
090	A 3124131180	SEAL RING
100	A 3124131258	SEAL HOLDER
110	A 3024110011	DRIVE FLANGE
120	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
130	N 071412008300	GREASE NIPPLE
140	A 3189810287	NEEDLE
150	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
150	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
150	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
150	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
150	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
150	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
160	A 3144100080	BOOT
170	A 3284110051	SPACER RING
180	N 916002070101	CLAMP
190	N 916002078100	CLAMP
200	A 3219901501	SCREW
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
210	N 912004010102	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
220	N 000934010010	NUT
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
