Transporto priemonė: 508 I INDONESIA; VIN numerio dalis: 684001
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

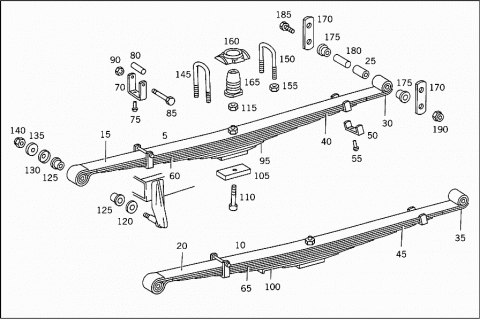

| 005 | A 3183201202 | FRONT SPRING |
| 6-LEAF | ||
| 010 | A 3163201002 | FRONT SPRING |
| 8-LEAF | ||
| 015 | A 3183201394 | SPRING LEAF |
| NO.1 | ||
| 020 | A 3143203094 | SPRING LEAF |
| NO.1 | ||
| 025 | A 3183220150 | BUSHING |
| 030 | A 3183211212 | SPRING LEAF |
| NO.2 | ||
| 035 | A 3143212312 | SPRING LEAF |
| NO.2 | ||
| 040 | A 3183200194 | SPRING LEAF |
| NO.3 | ||
| 045 | A 3163201794 | SPRING LEAF |
| NO.3 | ||
| 050 | A 3143210233 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 055 | N 910006008022 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 060 | A 3183201994 | SPRING LEAF |
| NO.4 | ||
| 065 | A 3163201894 | SPRING LEAF |
| NO.4 | ||
| 070 | A 0033212733 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 070 | A 0033213033 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 075 | N 910006008022 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 080 | A 0003212353 | SPACER TUBE |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 085 | N 000601008037 | SCREW |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 090 | N 000934008010 | NUT |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 095 | A 3183211118 | SPRING LEAF |
| NO.8 | ||
| 100 | A 3163211017 | SPRING LEAF |
| NO.7 | ||
| 105 | A 3183240035 | SPACER |
| FRONT SPRING | ||
| 105 | A 3143221284 | SHIM |
| FRONT SPRING | ||
| 110 | N 004626012106 | SPRING BOLT |
| FRONT SPRING | ||
| 115 | N 000934012010 | NUT |
| FRONT SPRING | ||
| 120 | A 3093250042 | SUPPORTING SHELL |
| FRONT SPRING FRONT BRACKET | ||
| 125 | A 3183220250 | BUSHING |
| Repalced by: A 6673220350 | ||
| 125 | A 6673220350 | BUSHING |
| FRONT SPRING FRONT BRACKET | ||
| 130 | A 3093250142 | SUPPORTING SHELL |
| FRONT SPRING FRONT BRACKET | ||
| 135 | A 3183250162 | THRUST WASHER |
| FRONT SPRING FRONT BRACKET | ||
| 140 | N 913004016004 | NUT |
| FRONT SPRING FRONT BRACKET | ||
| 145 | A 3143510425 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 150 | A 3123513025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 155 | N 913001016001 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 160 | A 3183310227 | SPACER |
| LEFT AND RIGHT | ||
| 165 | A 3183240008 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE | ||
| 170 | A 3183220120 | SHACKLE |
| FRONT SPRING REAR BRACKET | ||
| 175 | A 3183220250 | BUSHING |
| Repalced by: A 6673220350 | ||
| 175 | A 6673220350 | BUSHING |
| FRONT SPRING REAR BRACKET | ||
| 180 | A 3183220130 | SHACKLE PIN |
| FRONT SPRING REAR BRACKET | ||
| 185 | N 000960016175 | SCREW |
| FRONT SPRING REAR BRACKET | ||
| 190 | N 913004016004 | NUT |
| FRONT SPRING REAR BRACKET | ||

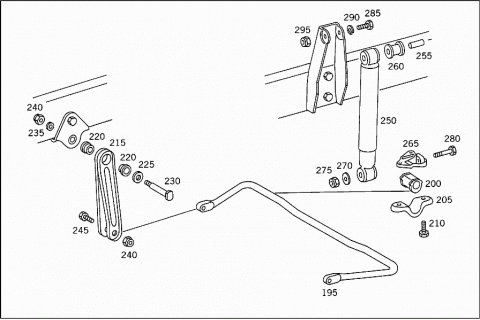

| 195 | A 3183230365 | TORSION BAR |
| FRONT AXLE | ||
| 195 | A 3183230265 | TORSION BAR |
| FRONT AXLE | ||
| 200 | A 3183210185 | RUBBER MOUNTING |
| TORSION BAR TO BEARING BRACKET | ||
| 200 | A 3183210085 | RUBBER MOUNTING |
| TORSION BAR TO BEARING BRACKET | ||
| 205 | A 3183210040 | BRACKET |
| TORSION BAR TO BEARING BRACKET | ||
| 210 | N 000933010128 | SCREW |
| TORSION BAR TO BEARING BRACKET | ||
| 215 | A 3183200062 | SHACKLE |
| TORSION BAR TO FRONT AXLE | ||
| 220 | A 3143260181 | RUBBER MOUNTING |
| SHACKLE TO CONSOLE | ||
| 225 | N 009021017201 | WASHER |
| SHACKLE TO CONSOLE | ||
| 230 | A 3183230274 | PIN |
| SHACKLE TO CONSOLE | ||
| 235 | N 000125013008 | WASHER |
| SHACKLE TO CONSOLE | ||
| 240 | N 913004012009 | NUT |
| SHACKLE TO CONSOLE | ||
| 240 | N 913004012009 | NUT |
| SHACKLE TO TORSION BAR | ||
| 245 | N 000960012261 | SCREW |
| SHACKLE TO GUIDE PLATE | ||
| 250 | A 3143230800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 250 | A 3143230900 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 255 | A 0003232750 | BUSHING |
| 260 | A 0003230185 | RUBBER MOUNTING |
| TO 314 323 09 00 | ||
| 260 | A 0003231585 | RUBBER MOUNTING |
| TO 314 323 08 00 | ||
| 265 | A 3183230263 | BEARING BRACKET |
| LEFT | ||
| 265 | A 3183230363 | BEARING BRACKET |
| RIGHT | ||
| 270 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 275 | N 913004014002 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 280 | N 000960014232 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| M 14X80 | ||
| 285 | N 000960014247 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M 14X65 | ||
| 285 | N 000960014205 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M 14X90 | ||
| 290 | N 912004014100 | LOCK WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 295 | N 913004014005 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||

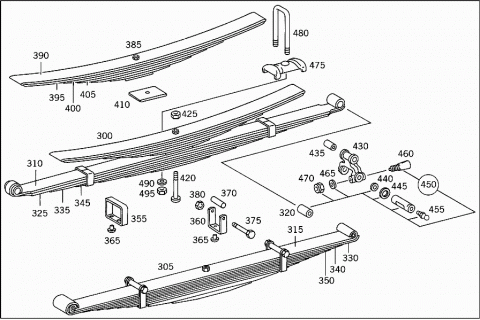

| 300 | A 3183200008 | REAR SPRING |
| 8-LEAF;WITH 7-LEAF HELPER SPRING | ||
| 305 | A 3143202906 | REAR SPRING |
| 8-LEAF | ||
| 310 | A 3183200293 | SPRING LEAF |
| NO.1 | ||
| A 3163200293 | SPRING LEAF | |
| 315 | A 6843200593 | SPRING LEAF |
| NO.1 | ||
| 320 | A 3163240350 | BUSHING |
| 320 | A 3163240450 | BUSHING |
| 320 | A 3523220050 | BUSHING |
| 320 | A 3853220050 | BUSHING |
| 325 | A 3183240012 | SPRING LEAF |
| NO.2 | ||
| 330 | A 3143241912 | SPRING LEAF |
| NO.2 | ||
| 335 | A 3183240013 | SPRING LEAF |
| NO.3 | ||
| 340 | A 3143241813 | SPRING LEAF |
| NO.3 | ||
| 345 | A 3183200393 | SPRING LEAF |
| NO.4 | ||
| 350 | A 3143241814 | SPRING LEAF |
| NO.4 | ||
| 355 | A 3403240333 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 360 | A 3243240033 | SPRING CLAMP |
| AT SPRING LEAF NO.5 | ||
| 365 | N 910006008025 | RIVET |
| 370 | A 0003213053 | SPACER TUBE |
| 375 | N 000601010027 | SCREW |
| 380 | N 000934010000 | NUT |
| 385 | A 3183200110 | HELPER SPRING |
| 7-LEAF | ||
| 390 | A 3183240040 | SPRING LEAF |
| NO.1 | ||
| 395 | A 3183240041 | SPRING LEAF |
| NO.2 | ||
| 400 | A 3183240042 | SPRING LEAF |
| NO.3 | ||
| 405 | A 3183240043 | SPRING LEAF |
| NO.4 | ||
| 410 | A 3213240035 | SPACER |
| 420 | N 004626012113 | SPRING BOLT |
| M 12X180 | ||
| 420 | N 004626012136 | SPRING BOLT |
| M 12X110 | ||
| 425 | N 000934012010 | NUT |
| 430 | A 3143200563 | SHACKLE |
| (SPRING SHACKLE) | ||
| 430 | A 3123201663 | SHACKLE |
| (SPRING SHACKLE) | ||
| 435 | A 3183250050 | BUSHING |
| 440 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 445 | A 0029973140 | SEAL RING |
| REAR SPRING TO BEARING BRACKET | ||
| 450 | A 3953200165 | SHACKLE PIN |
| PARTS KIT | ||
| A 3403200364 | SHACKLE PIN | |
| PARTS KIT | ||
| 455 | N 071412010100 | GREASE NIPPLE |
| REAR SPRING TO BEARING BRACKET | ||
| A 3129941209 | LOCK | |
| REAR SPRING TO BEARING BRACKET | ||
| 460 | A 3529900337 | BOLT |
| REAR SPRING TO BEARING BRACKET | ||
| N 000933008145 | SCREW | |
| REAR SPRING TO BEARING BRACKET | ||
| 465 | N 000433010505 | WASHER |
| REAR SPRING TO BEARING BRACKET | ||
| N 912004008102 | LOCK WASHER | |
| REAR SPRING TO BEARING BRACKET | ||
| 470 | N 913004010008 | NUT |
| REAR SPRING TO BEARING BRACKET | ||
| 475 | A 3183250931 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 480 | A 3143510925 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 480 | A 3143510625 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 490 | A 3123251070 | SPHERICAL WASHER |
| REAR SPRING TO REAR AXLE | ||
| 495 | N 913004016004 | NUT |
| REAR SPRING TO REAR AXLE | ||

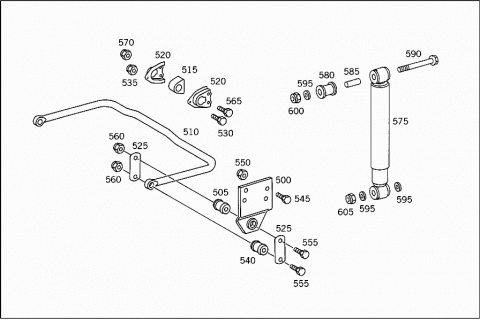

| 500 | A 3143201078 | CONSOLE |
| LEFT | ||
| 500 | A 3143201178 | CONSOLE |
| RIGHT | ||
| 505 | A 3093200073 | BEARING |
| 510 | A 3183260565 | TORSION BAR |
| REAR AXLE | ||
| 510 | A 3163260065 | TORSION BAR |
| REAR AXLE | ||
| 515 | A 3183260081 | RUBBER MOUNTING |
| TORSION BAR | ||
| 515 | A 3163260081 | RUBBER MOUNTING |
| TORSION BAR | ||
| 520 | A 3163260040 | BRACKET |
| TORSION BAR | ||
| 525 | A 3143260247 | SHACKLE |
| TORSION BAR | ||
| 530 | N 000933008261 | SCREW |
| BRACKET TO TORSION BAR | ||
| 535 | N 913004008004 | NUT |
| BRACKET TO TORSION BAR | ||
| 540 | A 3093200073 | BEARING |
| SHACKLE TO TORSION BAR | ||
| 545 | N 000961014050 | SCREW |
| CONSOLE TO FRAME | ||
| 550 | N 913004014002 | NUT |
| CONSOLE TO FRAME | ||
| 555 | N 000960012296 | SCREW |
| SHACKLE TO TORSION BAR | ||
| 560 | N 913004012009 | NUT |
| SHACKLE TO TORSION BAR | ||
| 565 | N 000931010293 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| 570 | N 913004010008 | NUT |
| TORSION BAR TO REAR AXLE | ||
| 575 | A 0013268800 | SHOCK ABSORBER |
| REAR AXLE | ||
| 575 | A 0023261900 | SHOCK ABSORBER |
| REAR AXLE | ||
| 575 | A 3143260400 | SHOCK ABSORBER |
| REAR AXLE | ||
| 575 | A 3143260500 | SHOCK ABSORBER |
| REAR AXLE | ||
| 580 | A 0003231585 | RUBBER MOUNTING |
| 585 | A 0003232750 | BUSHING |
| 590 | N 000960014180 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 595 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO REAR AXLE | ||
| 600 | N 913004014005 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 605 | N 913004014002 | NUT |
| SHOCK ABSORBER TO REAR AXLE | ||
