Transporto priemonė: 510 CDI; VIN numerio dalis: 900655

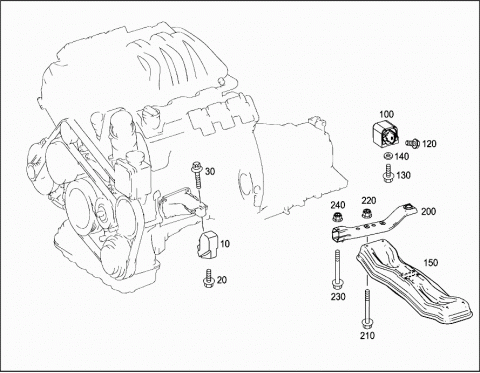

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 9002410113 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 010 | A 9002410213 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 020 | N 000000005258 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO CONSOLE | ||
| M10X16 MKL | ||
| 030 | N 910105010012 | HEXAGON HEAD BOLT |
| ENGINE MOUNT TO ENGINE SUPPORT ARM | ||
| M10X65 | ||
| 100 | A 6362420013 | ENGINE SUPPORT |
| REAR | ||
| 120 | N 910105010009 | HEXAGON HEAD BOLT |
| BEARING TO TRANSMISSION | ||
| M10X25 | ||
| 130 | N 304017008021 | HEXAGON HEAD BOLT |
| ENGINE MOUNT TO ENGINE SUPPORT ARM | ||
| M8X20 | ||
| 140 | N 000125008445 | WASHER |
| ENGINE MOUNT TO ENGINE SUPPORT ARM | ||
| 150 | A 9062400501 | TRANSMISSION CARRIER |
| 200 | A 9063300105 | REAR SUBFRAME |
| ALONGSIDE | ||
| 210 | N 910105010003 | HEXAGON HEAD BOLT |
| TRANSMISSION CARRIER TOFRAME-TYPE INTEGRAL SUPPORT | ||
| M10X60 | ||
| 220 | N 000000003275 | NUT |
| TRANSMISSION CARRIER TOFRAME-TYPE INTEGRAL SUPPORT | ||
| M10 | ||
| 230 | N 910105014016 | HEXAGON HEAD BOLT |
| FRONT FRAME-TYPE INT. SUPPORT TOREAR FRAME-TYPE INT. SUPPORT | ||
| M14X1.5X90 | ||
| 240 | N 000000003277 | NUT |
| FRONT FRAME-TYPE INT. SUPPORT TOREAR FRAME-TYPE INT. SUPPORT | ||
| M14X1.5 |
