Transporto priemonė: 609 D; VIN numerio dalis: 668002

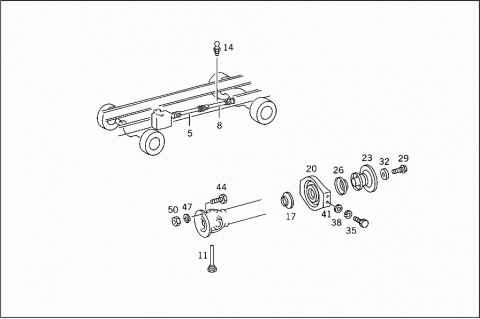

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6734106804 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 854 MM | ||
| 005 | A 6734106704 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1248 MM | ||
| 005 | A 6734107004 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1516 MM | ||
| 005 | A 6734106904 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 822 MM | ||
| 005 | A 6734104104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1212 MM | ||
| 008 | A 6734106504 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1170 MM | ||
| 008 | A 6734106404 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1320 MM | ||
| 008 | A 6734103604 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1595 MM | ||
| 011 | A 0009974188 | GREASE NIPPLE |
| Repalced by: A 0009974588 | ||
| 011 | A 0009974588 | GREASE NIPPLE |
| Repalced by: N 900216008100 | ||
| 011 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 011 | N 071412008102 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| 014 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 014 | N 071412008102 | GREASE NIPPLE |
| 017 | A 4604130061 | PROTECTIVE CAP |
| INTERMEDIATE SHAFT BEARING | ||
| 017 | A 4604110096 | PROTECTIVE CAP |
| INTERMEDIATE SHAFT BEARING | ||
| 020 | A 4604100022 | INTERMEDIATE BEARING |
| Repalced by: A 4604100222 | ||
| 020 | A 4604100222 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 023 | A 6734100030 | CENTERING FLANGE |
| INTERMEDIATE SHAFT BEARING | ||
| 023 | A 6734100045 | FLANGE |
| INTERMEDIATE SHAFT BEARING | ||
| 026 | A 4604130061 | PROTECTIVE CAP |
| 026 | A 4604110096 | PROTECTIVE CAP |
| 029 | A 3609901304 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 032 | A 3182740276 | WASHER |
| Repalced by: A 6734110062 | ||
| 032 | A 6734110062 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 035 | N 304017010040 | SCREW |
| INTERMEDIATE BEARING TO BRACKET | ||
| 038 | N 912004010102 | LOCK WASHER |
| INTERMEDIATE BEARING TO BRACKET | ||
| 041 | N 007349010007 | WASHER |
| INTERMEDIATE BEARING TO BRACKET | ||
| 044 | A 3129901601 | SCREW |
| Repalced by: A 3099901501 | ||
| 044 | A 3099901501 | SCREW |
| Repalced by: A 3539900001 | ||
| 044 | A 3539900001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
| 047 | N 912004010102 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
| 050 | N 000934010010 | NUT |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
