Transporto priemonė: 616 CDI; VIN numerio dalis: 905613

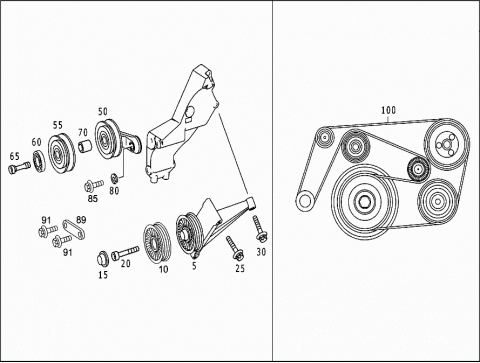

Grupė: 21 MAJOR ASSEMBLY DETACHABLE BODY COMP. - 210 BELT TENSIONER, V-BELT/RIBBED BELT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6112340093 | SHEAVE PULLEY |
| Repalced by: A 6112340393 | ||
| 005 | A 6112340493 | SHEAVE PULLEY |
| Repalced by: A 6112340393 | ||
| 005 | A 6112340393 | SHEAVE PULLEY |
| 005 | A 6112300042 | CONSOLE |
| WITH GUIDE PULLEY, FOR PTO FRONT | ||
| Repalced by: A 6112300142 | ||
| 005 | A 6112300342 | SUPPORT |
| 005 | A 6112300142 | SUPPORT |
| Repalced by: A 6112300342 | ||
| 005 | A 6112300342 | SUPPORT |
| 010 | A 6112340293 | SHEAVE PULLEY |
| 010 | A 6112340293 | SHEAVE PULLEY |
| 015 | A 6119880235 | PROTECTIVE CAP |
| 015 | A 6119880235 | PROTECTIVE CAP |
| 015 | A 6119880235 | PROTECTIVE CAP |
| 020 | N 000912010222 | SCREW |
| SHEAVE PULLEY TO SUPPORT | ||
| M10X50 | ||
| 020 | N 000912010222 | SCREW |
| SHEAVE PULLEY TO SUPPORT | ||
| M10X50 | ||
| 020 | N 000912010222 | SCREW |
| SHEAVE PULLEY TO SUPPORT | ||
| M10X50 | ||
| 025 | N 910143008017 | HEXALOBULAR BOLT |
| DEFLECTION PULLEY ON CYLINDER CRANKCASE | ||
| M8X55 | ||
| 030 | N 910143008011 | HEXALOBULAR BOLT |
| GUIDE ROLLER ON TIMING CASE | ||
| M8X90;M 8X90 | ||
| 030 | N 910143008011 | HEXALOBULAR BOLT |
| GUIDE ROLLER ON TIMING CASE | ||
| M8X90;M 8X90 | ||
| 030 | N 910143008019 | HEXALOBULAR BOLT |
| CONSOLE TO SUPPORT | ||
| M8X60 | ||
| 030 | N 910143008019 | HEXALOBULAR BOLT |
| CONSOLE TO SUPPORT | ||
| M8X60 | ||
| 050 | A 1171300160 | PULLEY |
| 050 | A 6472300040 | BELT TENSIONER |
| 055 | A 1161300460 | PULLEY |
| 060 | A 0039818025 | BALL BEARING |
| 065 | A 1159900219 | BOLT |
| 070 | A 1151320053 | SPACER TUBE |
| 080 | N 912006012000 | LOCK WASHER |
| PULLEY TO SUPPORT | ||
| 085 | N 910142012002 | HEXALOBULAR BOLT |
| PULLEY TO SUPPORT | ||
| 089 | A 6112340140 | BRACKET |
| SHEAVE PULLEY TO SUPPORT | ||
| 091 | N 000000001685 | HEXALOBULAR BOLT |
| GUIDE ROLLER ON TIMING CASE | ||
| M8X100;M 8X100 | ||
| 091 | N 910143008012 | HEXALOBULAR BOLT |
| M8X100 | ||
| 091 | N 000000001685 | HEXALOBULAR BOLT |
| BRACKET TO TIMING CASE | ||
| M8X100 | ||
| 091 | N 000000003853 | HEXALOBULAR BOLT |
| BRACKET TO SUPPORT | ||
| M8X16 | ||
| 100 | A 0149971792 | V-BELT |
| 21,36X2265 | ||
| 100 | A 0149970492 | V-BELT |
| USED WITH AIR CONDITIONER | ||
| 21,36X2271 | ||
