Transporto priemonė: 616 CDI; VIN numerio dalis: 905613

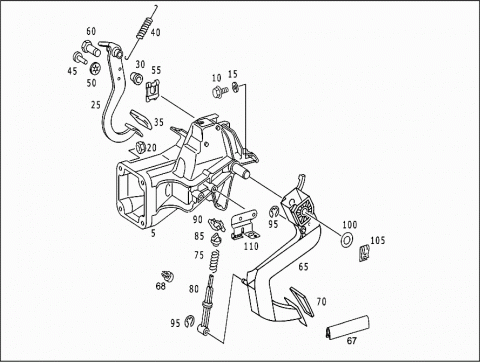

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 9052900019 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 010 | N 910106008018 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FIRE WALL | ||
| M8X25 | ||
| 015 | N 009021008213 | WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 8 MM | ||
| Repalced by: N 000000003250 | ||
| 015 | N 000000003250 | WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 020 | N 000000003175 | NUT |
| BRAKE BOOSTER TO BEARING BRACKET | ||
| M8 | ||
| 025 | A 9052900018 | PEDAL |
| BRAKE PEDAL | ||
| 030 | A 1242920050 | BUSHING |
| 035 | A 6382920082 | PAD |
| BRAKE PEDAL | ||
| 040 | A 9019931210 | SPRING |
| BRAKE PEDAL | ||
| 045 | A 1262920074 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 050 | N 912011008000 | SECURING |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 055 | N 912002016001 | SECURING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 060 | A 9012940474 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 065 | A 9012902416 | CLUTCH PEDAL |
| 067 | A 0019875572 | EDGE GUARD |
| CLUTCH PEDAL | ||
| Repalced by: A 2012910286 | ||
| 067 | A 0019875572 | EDGE GUARD |
| CLUTCH PEDAL | ||
| Repalced by: A 2012910286 | ||
| 068 | A 2012910286 | STOP |
| 068 | A 2012910286 | STOP |
| 070 | A 3192920082 | PAD |
| CLUTCH PEDAL | ||
| 075 | A 9019933001 | SPRING |
| (OVER-CENTER ACTING SPRING) | ||
| 080 | A 2012910633 | ROD |
| (PUSH ROD) | ||
| 085 | A 1232910491 | SPRING RETAINER |
| OVER-CENTER ACTING SPRING | ||
| 090 | A 9019880578 | CLIP |
| OVER-CENTER ACTING SPRING | ||
| 095 | N 006799006003 | CIRCLIP |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 6MM | ||
| 095 | N 006799006003 | CIRCLIP |
| PUSH ROD TO CLUTCH PEDAL | ||
| 6MM | ||
| 100 | A 1152910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 105 | A 0009941151 | FUSE |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 110 | A 9012900032 | STOP |
| CLUTCH PEDAL | ||
