Transporto priemonė: 616 CDI; VIN numerio dalis: 905613

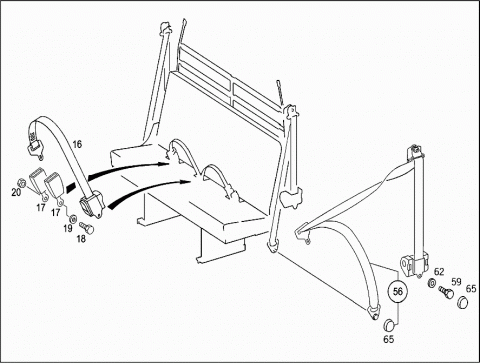

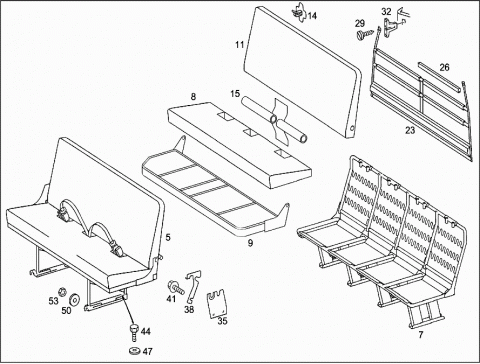

Grupė: 92 REARSEATS - 090 PASSENGER SEAT, FOUR-SEATER BENCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | X KL92000004 | QUADRUPLE |
| FABRIC | ||
| "VENICE" | ||
| 005 | X KL92000006 | QUADRUPLE |
| FABRIC | ||
| "SANTOS" | ||
| 005 | X KL92000005 | QUADRUPLE |
| IMITATION LEATHER | ||
| 005 | X KL92000008 | QUADRUPLE |
| "SANTOS" FABRIC | ||
| 005 | X KL92000009 | QUADRUPLE |
| IMITATION LEATHER | ||
| 007 | A 0009201220 | SEAT FRAMEWORK |
| 008 | A 0009505021 | SEAT CUSHION |
| IMITATION LEATHER | ||
| 008 | A 0009504921 | SEAT CUSHION |
| "VENICE" FABRIC | ||
| 008 | A 0009504921 | SEAT CUSHION |
| "VENICE" FABRIC | ||
| 008 | A 0009505921 | SEAT CUSHION |
| "SANTOS" FABRIC | ||
| 008 | A 0009505921 | SEAT CUSHION |
| "SANTOS" FABRIC | ||
| 009 | A 0009500028 | FRAME SEGMENT |
| BELOW SEAT CUSHION | ||
| 011 | A 0009508031 | BACKREST |
| IMITATION LEATHER | ||
| 011 | A 0009507931 | BACKREST |
| "VENICE" FABRIC | ||
| 011 | A 0009507931 | BACKREST |
| "VENICE" FABRIC | ||
| 011 | A 0009508931 | BACKREST |
| "SANTOS" FABRIC | ||
| 011 | A 0009508931 | BACKREST |
| "SANTOS" FABRIC | ||
| 014 | A 0009570314 | BRACKET |
| 36 MM | ||
| 014 | A 0009570214 | BRACKET |
| 16 MM | ||
| 015 | A 0009500016 | REINFORCEMENT |
| AT BACKREST | ||
| 016 | A 0028607385 | SEAT BELT |
| LAP-TYPE,LEFT | ||
| 016 | A 0028607285 | SEAT BELT |
| LAP-TYPE,RIGHT | ||
| 017 | A 9018601169 | CATCH |
| 018 | A 0099906901 | BOLT |
| BELT LOCK MOUNTING | ||
| 019 | A 1159906640 | WASHER |
| BELT LOCK MOUNTING | ||
| 020 | A 0049903851 | NUT |
| BELT LOCK MOUNTING | ||
| 023 | A 9019700179 | PAD |
| 026 | A 0009780079 | CASING |
| 029 | N 914151005007 | SCREW |
| 032 | A 0039942245 | FUSE |
| 035 | A 9019210114 | BRACKET |
| 038 | A 9019290094 | INTERLOCK |
| 041 | N 910105008004 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 044 | N 304017010041 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 047 | N 009021010209 | WASHER |
| 050 | N 009021008213 | WASHER |
| SEAT FRAMEWORK TO FLOOR | ||
| 8 MM | ||
| Repalced by: N 000000003250 | ||
| 050 | N 000000003250 | WASHER |
| SEAT FRAMEWORK TO FLOOR | ||
| 050 | N 009021008213 | WASHER |
| 8 MM | ||
| 053 | N 304032008012 | HEXAGON NUT |
| M8 | ||
| 056 | A 0028607185 | SEAT BELT |
| C-PILLAR | ||
| 059 | A 2029901301 | HEXAGON HEAD BOLT |
| M10X25 | ||
| Repalced by: A 0039901700 | ||
| 059 | A 0039901700 | HEXAGON HEAD BOLT |
| 7/16X23 | ||
| 062 | A 1159906640 | WASHER |
| 065 | A 0009871445 | PLUG |
| Repalced by: A 6319973286 | ||
| 065 | A 6319973286 | STOP PLUG |
