Transporto priemonė: 709 D; VIN numerio dalis: 669003

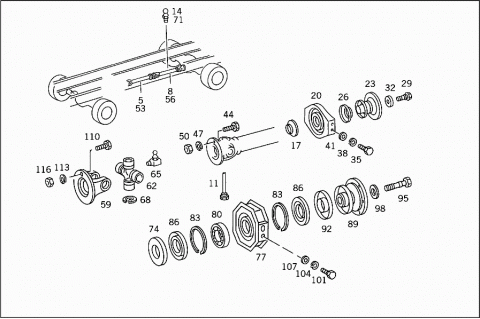

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
005	A 6734106704	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1248 MM
005	A 6734106804	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		854 MM
005	A 6734107004	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1516 MM
005	A 6734106904	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		822 MM
005	A 6734104104	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1212 MM
008	A 6734106604	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1110 MM
008	A 6734106504	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1170 MM
008	A 6734106504	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1170 MM
008	A 6734106404	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1320 MM
008	A 6734106404	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1320 MM
008	A 6734106104	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1260 MM
008	A 6734103604	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1595 MM
011	A 0009974188	GREASE NIPPLE
	Repalced by: A 0009974588
011	A 0009974588	GREASE NIPPLE
	Repalced by: N 900216008100
011	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
011	N 071412008102	GREASE NIPPLE
		UNIVERSAL JOINT CROSS
014	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
014	N 071412008102	GREASE NIPPLE
017	A 4604130061	PROTECTIVE CAP
		INTERMEDIATE SHAFT BEARING
017	A 4604110096	PROTECTIVE CAP
		INTERMEDIATE SHAFT BEARING
020	A 4604100022	INTERMEDIATE BEARING
	Repalced by: A 4604100222
020	A 4604100222	INTERMEDIATE BEARING
		PROPELLER SHAFT
023	A 6734100030	CENTERING FLANGE
		INTERMEDIATE SHAFT BEARING
023	A 6734100045	FLANGE
		INTERMEDIATE SHAFT BEARING
026	A 4604130061	PROTECTIVE CAP
026	A 4604110096	PROTECTIVE CAP
029	A 3609901304	SCREW
		FOLLOWER FLANGE TO PROPELLER SHAFT
032	A 3182740276	WASHER
	Repalced by: A 6734110062
032	A 6734110062	THRUST WASHER
		FOLLOWER FLANGE TO PROPELLER SHAFT
035	N 304017010040	SCREW
		INTERMEDIATE BEARING TO BRACKET
038	N 912004010102	LOCK WASHER
		INTERMEDIATE BEARING TO BRACKET
041	N 007349010007	WASHER
		INTERMEDIATE BEARING TO BRACKET
044	A 3129901601	SCREW
	Repalced by: A 3099901501
044	A 3099901501	SCREW
	Repalced by: A 3539900001
044	A 3539900001	SCREW
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
047	N 912004010102	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
050	N 000934010010	NUT
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
053	A 6744100504	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		900 MM
053	A 6744102004	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1272 MM
053	A 6744102304	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1540 MM
056	A 6744102902	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1070 MM
056	A 6744102302	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1235 MM
056	A 6744103902	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1524 MM
059	A 3814110811	DRIVE FLANGE
062	A 6174100031	UNIVERSAL JOINT CROSS
	Repalced by: A 0004104031
062	A 0004104031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
065	N 071412008302	GREASE NIPPLE
068	N 000472042001	LOCK RING
		AS REQUIRED
		1.750 MM
068	A 0059949741	LOCK
		AS REQUIRED
		1.825 MM
068	A 0059949941	LOCK
		AS REQUIRED
		1.875 MM
068	A 0069940141	LOCK
		AS REQUIRED
		1.925 MM
068	A 0069940441	LOCK
		AS REQUIRED
		2.000 MM
	A 3814110559	SEAL RING
		PROTECTIVE TUBE
		77X14.5 MM
	A 0004110059	SEAL RING
		PROTECTIVE TUBE
		74.5X22 MM
071	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
071	N 071412008102	GREASE NIPPLE
074	A 3814130261	PROTECTIVE CAP
		INTERMEDIATE SHAFT BEARING
074	A 3814130461	PROTECTIVE CAP
		INTERMEDIATE SHAFT BEARING
077	A 3814100222	INTERMEDIATE BEARING
	Repalced by: A 3814101222
077	A 3814101222	INTERMEDIATE BEARING
	Repalced by: A 3814101522
077	A 3814101522	INTERMEDIATE BEARING
		PROPELLER SHAFT
080	A 0019818625	BALL BEARING
083	A 0019948141	LOCK
086	A 3814130161	PROTECTIVE CAP
089	A 3814100130	CENTERING FLANGE
	Repalced by: A 3814110145
	A 3814110145	FLANGE
		INTERMEDIATE SHAFT BEARING
092	A 3814130261	PROTECTIVE CAP
092	A 3814130461	PROTECTIVE CAP
095	A 3839900019	SCREW
		FOLLOWER FLANGE TO PROPELLER SHAFT
098	A 3832820262	THRUST WASHER
		FOLLOWER FLANGE TO PROPELLER SHAFT
101	N 304017010036	SCREW
		INTERMEDIATE BEARING TO BRACKET
		M 10X40
101	N 304017010040	SCREW
		INTERMEDIATE BEARING TO BRACKET
		M 10X25
104	N 912004010102	LOCK WASHER
		INTERMEDIATE BEARING TO BRACKET
107	N 007349010007	WASHER
		INTERMEDIATE BEARING TO BRACKET
110	A 3529900401	SCREW
	Repalced by: A 3529904701
110	A 3529904701	SCREW
	Repalced by: A 0079901001
110	A 0079901001	SCREW
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
113	N 912004010102	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
116	N 000934010010	NUT
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
