Transporto priemonė: 814 D; VIN numerio dalis: 670312

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas

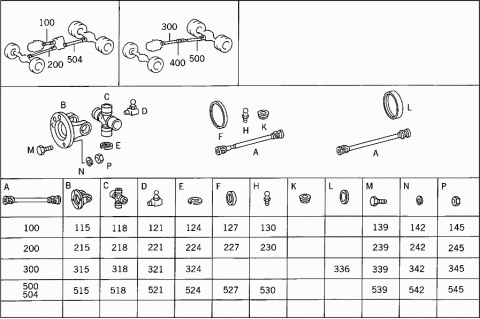

100	A 6744104402	PROPELLER SHAFT
		FROM TRANSMISSION TO TRANSFER CASE
		770 MM
115	A 3814110811	DRIVE FLANGE
118	A 6174100031	UNIVERSAL JOINT CROSS
	Repalced by: A 0004104031
118	A 0004104031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
121	N 071412008302	GREASE NIPPLE
124	N 000472042001	LOCK RING
		AS REQUIRED
		1.750 MM
124	A 0059949741	LOCK
		AS REQUIRED
		1.825 MM
124	A 0059949941	LOCK
		AS REQUIRED
		1.875 MM
124	A 0069940141	LOCK
		AS REQUIRED
		1.925 MM
124	A 0069940441	LOCK
		AS REQUIRED
		2.000 MM
127	A 3814110559	SEAL RING
		PROTECTIVE TUBE
		77X14,5 MM
130	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
130	N 071412008102	GREASE NIPPLE
139	A 3529900401	SCREW
	Repalced by: A 3529904701
139	A 3529904701	SCREW
	Repalced by: A 0079901001
139	A 0079901001	SCREW
		PROPELLER SHAFT TO TRANSMISSION
142	N 912004010102	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE
145	N 000934010010	NUT
		PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE
200	A 3814107202	PROPELLER SHAFT
		FROM TRANSFER CASE TO FRONT AXLE
		1314 MM
215	A 3814110811	DRIVE FLANGE
218	A 6174100031	UNIVERSAL JOINT CROSS
	Repalced by: A 0004104031
218	A 0004104031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
221	N 071412008302	GREASE NIPPLE
224	N 000472042001	LOCK RING
		AS REQUIRED
		1.750 MM
224	A 0059949741	LOCK
		AS REQUIRED
		1.825 MM
224	A 0059949941	LOCK
		AS REQUIRED
		1.875 MM
224	A 0069940141	LOCK
		1.925 MM
224	A 0069940441	LOCK
		2.000 MM
227	A 3814110559	SEAL RING
		PROTECTIVE TUBE
		77X14.5 MM
230	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
230	N 071412008102	GREASE NIPPLE
239	A 3529900401	SCREW
	Repalced by: A 3529904701
239	A 3529904701	SCREW
	Repalced by: A 0079901001
239	A 0079901001	SCREW
		PROPELLER SHAFT TO FRONT AXLE
242	N 912004010102	LOCK WASHER
		PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE
245	N 000934010010	NUT
		PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE
300	A 6744102104	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1167 MM
300	A 6744100704	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1425 MM
300	A 6744102604	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		797 MM
315	A 3814110811	DRIVE FLANGE
318	A 6174100031	UNIVERSAL JOINT CROSS
	Repalced by: A 0004104031
318	A 0004104031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
321	N 071412008302	GREASE NIPPLE
324	N 000472042001	LOCK RING
		AS REQUIRED
		1.750 MM
324	A 0059949741	LOCK
		AS REQUIRED
		1.825 MM
324	A 0059949941	LOCK
		AS REQUIRED
		1.875 MM
324	A 0069940141	LOCK
		AS REQUIRED
		1.925 MM
324	A 0069940441	LOCK
		AS REQUIRED
		2.000 MM
336	A 3814130261	PROTECTIVE CAP
		INTERMEDIATE SHAFT BEARING
336	A 3814130461	PROTECTIVE CAP
		INTERMEDIATE SHAFT BEARING
339	A 3529900401	SCREW
	Repalced by: A 3529904701
339	A 3529904701	SCREW
	Repalced by: A 0079901001
339	A 0079901001	SCREW
		PROPELLER SHAFT TO TRANSMISSION
342	N 912004010102	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION
345	N 000934010010	NUT
		PROPELLER SHAFT TO TRANSMISSION

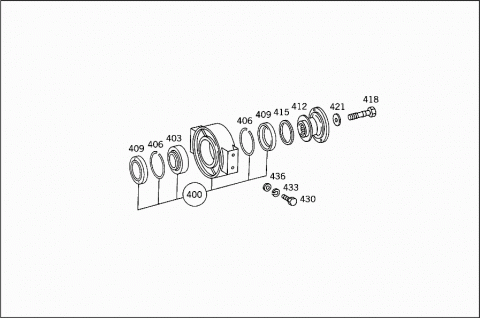

400	A 3814100222	INTERMEDIATE BEARING
	Repalced by: A 3814101222
400	A 3814101222	INTERMEDIATE BEARING
	Repalced by: A 3814101522
400	A 3814101522	INTERMEDIATE BEARING
		PROPELLER SHAFT
403	A 0019818625	BALL BEARING
406	A 0019948141	LOCK
409	A 3814130161	PROTECTIVE CAP
412	A 3814100130	CENTERING FLANGE
	Repalced by: A 3814110145
412	A 3814110145	FLANGE
		INTERMEDIATE SHAFT BEARING
415	A 3814130261	PROTECTIVE CAP
415	A 3814130461	PROTECTIVE CAP
418	A 3839900019	SCREW
		FOLLOWER FLANGE TO PROPELLER SHAFT
421	A 3832820262	THRUST WASHER
		FOLLOWER FLANGE TO PROPELLER SHAFT
430	N 304017010036	SCREW
		INTERMEDIATE BEARING TO BRACKET
		M 10X40
430	N 304017010040	SCREW
		INTERMEDIATE BEARING TO BRACKET
		M 10X25
433	N 912004010102	LOCK WASHER
		INTERMEDIATE BEARING TO BRACKET
436	N 007349010007	WASHER
		INTERMEDIATE BEARING TO BRACKET
500	A 6744102302	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1235 MM
500	A 6744103902	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1524 MM
500	A 6744102902	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1070 MM
504	A 6744104402	PROPELLER SHAFT
		FROM TRANSFER CASE TO REAR AXLE
		770 MM
504	A 3814107202	PROPELLER SHAFT
		FROM TRANSFER CASE TO REAR AXLE
		1314 MM
515	A 3814110811	DRIVE FLANGE
518	A 6174100031	UNIVERSAL JOINT CROSS
	Repalced by: A 0004104031
518	A 0004104031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
521	N 071412008302	GREASE NIPPLE
521	N 071412008302	GREASE NIPPLE
524	N 000472042001	LOCK RING
		AS REQUIRED
		1.750 MM
524	A 0059949741	LOCK
		AS REQUIRED
		1.825 MM
524	A 0059949941	LOCK
		AS REQUIRED
		1.875 MM
524	A 0069940141	LOCK
		AS REQUIRED
		1.925 MM
524	A 0069940441	LOCK
		AS REQUIRED
		2.000 MM
527	A 3814110559	SEAL RING
		PROTECTIVE TUBE
		77X14,5 MM
530	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
530	N 071412008102	GREASE NIPPLE
539	A 3529900401	SCREW
	Repalced by: A 3529904701
539	A 3529904701	SCREW
	Repalced by: A 0079901001
539	A 0079901001	SCREW
		PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE
539	A 0079901001	SCREW
		PROPELLER SHAFT TO REAR AXLE
542	N 912004010102	LOCK WASHER
		FROM PROPELLER SHAFT TO REAR AXLE
545	N 000934010010	NUT
		FROM PROPELLER SHAFT TO REAR AXLE
