Transporto priemonė: 914/42; VIN numerio dalis: 685211

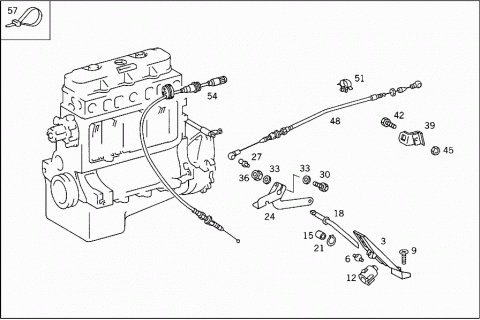

Grupė: 30 CONTROL - 060 ACCELERATOR PEDAL CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3843007004 | ACCELERATOR PEDAL |
| 006 | A 3093010022 | JOINT |
| 009 | N 000965006064 | SCREW |
| PEDAL TO CAB FLOOR | ||
| 012 | A 1263010141 | STOP |
| FULL THROTTLE | ||
| 015 | A 3863017050 | BUSHING |
| 018 | A 3843007625 | LEVER |
| (PEDAL LEVER) | ||
| 021 | N 006799009001 | LOCK PLATE |
| 024 | A 6883007025 | LEVER |
| 027 | N 071803008200 | BALL PIVOT |
| 030 | N 000931006197 | SCREW |
| CONTROL LEVER TO PEDAL LEVER | ||
| M 6X30 | ||
| 033 | N 000125006420 | WASHER |
| CONTROL LEVER TO PEDAL LEVER | ||
| 036 | N 913004006001 | NUT |
| CONTROL LEVER TO PEDAL LEVER | ||
| 039 | A 6673000040 | BRACKET |
| 042 | N 000933006221 | SCREW |
| BRACKET TO COWL | ||
| M 6X20 | ||
| 045 | N 000934006006 | NUT |
| BRACKET TO COWL | ||
| 048 | A 6883007130 | WIRE CABLE |
| CONTROL LEVER TO PEDAL LEVER | ||
| 051 | A 0009956044 | CLAMP |
| BOWDEN CABLE TO CAB | ||
| 054 | A 6883007732 | WIRE CABLE |
| Repalced by: A 6883000032 | ||
| 054 | A 6883007932 | WIRE CABLE |
| Repalced by: A 6883000032 | ||
| 054 | A 6883008232 | WIRE CABLE |
| Repalced by: A 6883000032 | ||
| 054 | A 6883000032 | WIRE CABLE |
| IDLING ADJUSTER | ||
| 057 | A 3449977290 | LOOM TIE |
| 230 MM | ||
