Transporto priemonė: 914/42; VIN numerio dalis: 685211

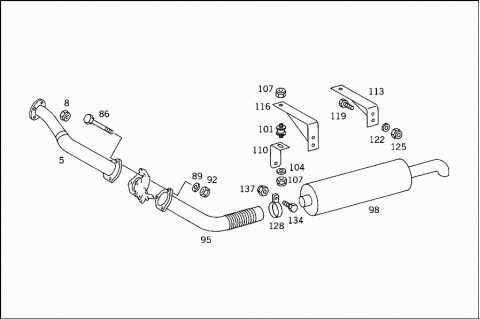

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | H XM6854903019 | EXHAUST PIPE |
| FRONT | ||
| 008 | N 914440008000 | NUT |
| FRONT EXHAUST PIPE TO TURBOCHARGER | ||
| H XM6854920341 | BRACKET | |
| FRONT EXHAUST PIPE TO TURBOCHARGER | ||
| H XM6854920740 | CLAMP | |
| FRONT EXHAUST PIPE TO TURBOCHARGER | ||
| Q 23-09436-150 | PART NAME MISSING | |
| SCREW | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FRONT EXHAUST PIPE TO TURBOCHARGER | ||
| Q 23-09901-106 | PART NAME MISSING | |
| WASHER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FRONT EXHAUST PIPE TO TURBOCHARGER | ||

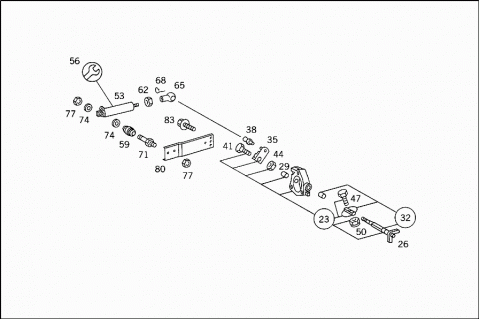

| 023 | A 3661405153 | THROTTLE HOUSING |
| PARTS KIT | ||
| 026 | A 3661400328 | SHAFT |
| THROTTLE VALVE SHAFT | ||
| 029 | A 3521441650 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 032 | A 3661401363 | VALVE |
| 035 | A 3661400232 | LEVER |
| EXHAUST-BRAKE THROTTLE VALVE | ||
| 038 | N 071803013211 | BALL PIVOT |
| 041 | N 914126006025 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| M 6X28 | ||
| 044 | N 913017006002 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| 047 | N 000933008337 | SCREW |
| THROTTLE VALVE TO SHAFT | ||
| M 8X28 | ||
| 050 | N 913004008014 | NUT |
| THROTTLE VALVE TO SHAFT | ||
| 053 | A 0004306026 | CYLINDER |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| "KNORR" | ||
| 056 | A 0004306526 | REPAIR KIT |
| SHIFTING CYLINDER | ||
| 059 | A 4421440050 | BUSHING |
| SHIFTING CYLINDER | ||
| 062 | N 000439008201 | NUT |
| SHIFTING CYLINDER | ||
| 065 | A 4039910222 | BALL SOCKET |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 065 | A 3769917022 | BALL SOCKET |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 068 | N 071805013403 | CIRCLIP |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 071 | A 4421440274 | PIN |
| SHIFTING CYLINDER TO BRACKET | ||
| 074 | A 0039902940 | WASHER |
| SHIFTING CYLINDER TO BRACKET | ||
| 077 | N 000934008000 | NUT |
| SHIFTING CYLINDER TO BRACKET | ||
| 080 | A 3661440040 | BRACKET |
| Repalced by: A 3661440440 | ||
| 080 | A 3661440440 | BRACKET |
| SHIFTING CYLINDER | ||
| 083 | N 914126008037 | SCREW |
| BRACKET TO THROTTLE HOUSING | ||
| 086 | Q 23-09440-300 | PART NAME MISSING |
| SCREW | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 089 | Q 23-09319-013 | PART NAME MISSING |
| WASHER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 092 | Q 23-09247-108 | PART NAME MISSING |
| NUT | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 095 | H XM6854900022 | EXHAUST PIPE |
| CENTRAL PART | ||
| 098 | H XM6854901001 | EXHAUST MUFFLER |
| 101 | A 0019873140 | RUBBER BUFFER |
| 104 | N 000125010517 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 107 | N 913004010004 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 110 | H XM6854921216 | SUPPORT |
| EXHAUST MUFFLER | ||
| 113 | H XM6854921116 | SUPPORT |
| EXHAUST MUFFLER | ||
| 116 | H XM6854921316 | SUPPORT |
| EXHAUST MUFFLER | ||
| 119 | Q 23-11007-125 | PART NAME MISSING |
| SCREW | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SUPPORT TO FRAME | ||
| 122 | N 000125010517 | WASHER |
| SUPPORT TO FRAME | ||
| 125 | Q 23-11020-006 | PART NAME MISSING |
| NUT | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SUPPORT TO FRAME | ||
| 128 | N 071555078500 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT | ||
| 78.5 MM | ||
| H XM6854920640 | CLAMP | |
| 134 | Q 23-09436-150 | PART NAME MISSING |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| PARAFUSO | ||
| 137 | Q 23-09901-106 | PART NAME MISSING |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| PORCA | ||
