Transporto priemonė: 914/42; VIN numerio dalis: 685211

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas

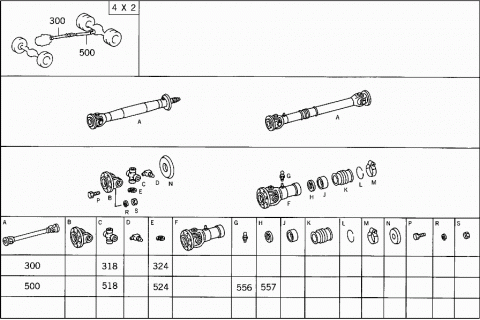

300	H XM6854100417	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
318	A 0004101931	UNIVERSAL JOINT CROSS
324	A 0029944435	SNAP RING
		AS REQUIRED
		1.37/1.41MM
324	A 0029944535	SNAP RING
		AS REQUIRED
		1.42/1.46MM
324	A 0029944635	SNAP RING
		AS REQUIRED
		1.47/1.51MM
324	A 0029944735	SNAP RING
		AS REQUIRED
		1.52/1.56MM
324	A 0029944835	SNAP RING
		AS REQUIRED
		1.57/1.61MM
324	A 0029944935	SNAP RING
		AS REQUIRED
		1.62/1.66MM

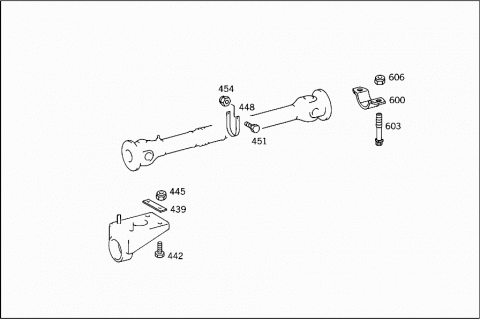

439	A 6884137084	SHIM
		BRACKET TO CROSS MEMBER
442	N 000961012154	SCREW
		BRACKET TO CROSS MEMBER
		M 12X1.5X30
445	N 913002012003	NUT
		BRACKET TO CROSS MEMBER
448	A 6884117182	REBOUND STRAP
		BRACKET TO CROSS MEMBER
451	N 000933008270	SCREW
		REBOUND STRAP TO CROSS MEMBER
		M 8X25
454	N 913004008001	NUT
		REBOUND STRAP TO CROSS MEMBER
500	H XM6854108902	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
518	A 0004101931	UNIVERSAL JOINT CROSS
524	A 0029944435	SNAP RING
		AS REQUIRED
		1.37/1.41MM
524	A 0029944535	SNAP RING
		AS REQUIRED
		1.42/1.46MM
524	A 0029944635	SNAP RING
		AS REQUIRED
		1.47/1.51MM
524	A 0029944735	SNAP RING
		AS REQUIRED
		1.52/1.56MM
524	A 0029944835	SNAP RING
		AS REQUIRED
		1.57/1.61MM
524	A 0029944935	SNAP RING
		AS REQUIRED
		1.62/1.66MM
556	A 0009974888	GREASE NIPPLE
557	A 0004130480	SEAL RING
600	A 6889907145	BEARING COVER
		PROPELLER SHAFT TO REAR AXLE
603	A 6889907201	SCREW
		PROPELLER SHAFT TO REAR AXLE
		M 10X1X45
603	A 3849907801	SCREW
		PROPELLER SHAFT TO REAR AXLE
		M10X1X20
606	N 913004010014	NUT
		PROPELLER SHAFT TO REAR AXLE
