Transporto priemonė: KASTENWAGEN; VIN numerio dalis: 639601

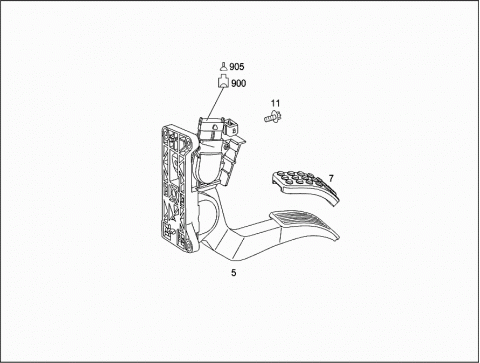

Grupė: 30 CONTROL - 015 REGULATION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6393000604 | ACCELERATOR PEDAL |
| 005 | A 9063000404 | ACCELERATOR PEDAL |
| 005 | A 9063000404 | ACCELERATOR PEDAL |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 005 | A 6393000704 | ACCELERATOR PEDAL |
| 005 | A 9063000304 | ACCELERATOR PEDAL |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 005 | A 9063000304 | ACCELERATOR PEDAL |
| 007 | A 6393000082 | PEDAL COVER |
| 011 | N 910143006002 | HEXALOBULAR BOLT |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| M6X20 | ||
| 011 | N 910143006002 | HEXALOBULAR BOLT |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| M6X20 | ||
| 900 | A 2205459828 | PLUG |
| ACCELERATOR MODULE | ||
| 5-PIN;B37/3 | ||
| 900 | A 2115452128 | COUPLING CONNECTOR |
| ACCELERATOR MODULE | ||
| 6-PIN MLK1.2;B37/3 | ||
| 905 | A 0115457726 | CONTACT SPRING |
| 0.5-1.0 MM2 JPT | ||
| 905 | A 0195451826 | FEMALE CONTACT |
| 0.22-0.5 MM2 MLK1.2 | ||
| 905 | A 0005453839 | GASKET |
| 905 | A 0015455080 | SEAL |
| 0.22-1.0 MM2 | ||
| 905 | A 0015455980 | BLIND PLUG |
