Transporto priemonė: KASTENWAGEN; VIN numerio dalis: 639601

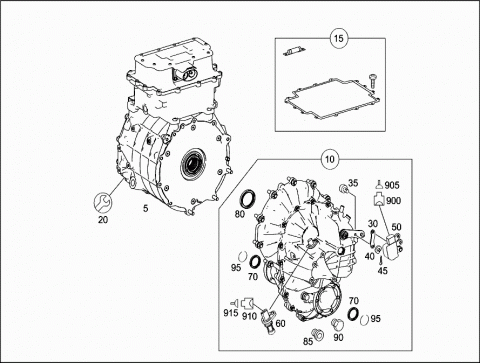

Grupė: 08 ELECTRIC DRIVE - 010 ELECTRIC MOTOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6393400016 | ELECTRIC TRACTION MOTOR |
| 005 | A 6393400016 | ELECTRIC TRACTION MOTOR |
| 005 | A 6393400116 | ELECTRIC TRACTION MOTOR |
| 005 | A 6393400116 | ELECTRIC TRACTION MOTOR |
| 010 | A 6393440001 | SWITCHING OUTPUT STAGE |
| 015 | A 6393400400 | RS ELECT. TRACTION MOTOR |
| 020 | A 6393400500 | RS ELECT. TRACTION MOTOR |
| 030 | A 6392670417 | LINK ROD |
| 035 | A 1154270974 | PIN |
| LINK | ||
| 040 | N 000125006449 | WASHER |
| LINK | ||
| 045 | N 000094001622 | COTTER PIN |
| LINK | ||
| 050 | A 6399050043 | POSITION SENSOR |
| 060 | A 6399050001 | RPM SENSOR |
| 070 | A 0159973446 | RADIAL SHAFT SEALING RING |
| DRIVE SHAFT | ||
| 080 | A 0159973546 | RADIAL SHAFT SEALING RING |
| MAIN SHAFT | ||
| 085 | N 000908018011 | SCREW PLUG, FILLING |
| M18 X 1.5 | ||
| 090 | A 0019909317 | SCREW PLUG |
| DRAIN PLUG | ||
| 095 | A 0049949840 | SNAP RING |
| DRIVE SHAFT | ||
| 900 | A 2105403681 | PIN BUSHING HOUSING |
| TRANSMISSION POSITION SENSOR | ||
| 6-PIN MQS;B79 | ||
| 905 | A 0085456326 | FEMALE CONTACT |
| TRANSMISSION POSITION SENSOR | ||
| 0.5-0.75 MM2 MQS;B79 | ||
| 905 | A 0005456980 | GASKET |
| TRANSMISSION POSITION SENSOR | ||
| 1.4-1.9 MM;B79 | ||
| 905 | A 0005458780 | BLIND PLUG |
| TRANSMISSION POSITION SENSOR | ||
| 4.1MM;B79 | ||
| 910 | A 2115452728 | COUPLING HOUSING |
| RPM SENSOR | ||
| 3-PIN MLK1.2;L8 | ||
| 915 | A 0195451926 | CONTACT SPRING |
| RPM SENSOR | ||
| 0.75-1.0 MM2 MLK1.2;L8 | ||
| 915 | A 0195451726 | FEMALE CONTACT |
| RPM SENSOR | ||
| L8 | ||
| 915 | A 0135457826 | CONTACT BUSHING |
| RPM SENSOR | ||
| 1.5-2.5 MM2 MCP2.8;L8 |
