Transporto priemonė: KASTENWAGEN; VIN numerio dalis: 639601

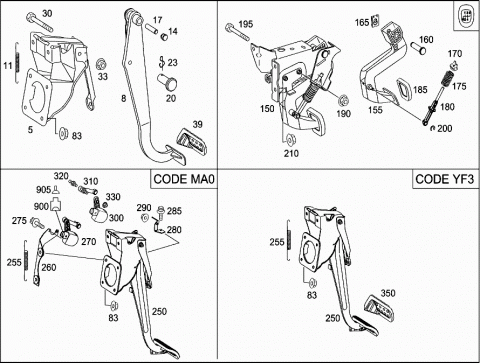

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6392900219 | PEDAL BEARING BRACKET |
| 005 | A 6392900319 | PEDAL BEARING BRACKET |
| 008 | A 6392900218 | BRAKE PEDAL |
| 008 | A 6392900418 | BRAKE PEDAL |
| 008 | A 6392900318 | BRAKE PEDAL |
| 008 | A 6392900518 | BRAKE PEDAL |
| 011 | A 6399930011 | SPRING |
| 014 | A 6392910050 | BUSHING |
| 017 | A 6392940053 | SPACER TUBE |
| 017 | A 6392940153 | SPACER TUBE |
| 020 | A 6392920074 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 023 | N 912011008000 | SECURING |
| PIN | ||
| 030 | N 910105008009 | HEXAGON HEAD BOLT |
| M8X60 | ||
| 030 | A 0079903004 | BOLT |
| 033 | N 913023008002 | NUT |
| M8 | ||
| 039 | A 2012920082 | PAD |
| BRAKE PEDAL | ||
| 039 | A 1232910082 | PAD |
| BRAKE PEDAL | ||
| 083 | N 000000003175 | NUT |
| BRAKE PEDAL TO FIRE WALL | ||
| M8 | ||
| 083 | N 000000003175 | NUT |
| BRAKE PEDAL TO FIRE WALL | ||
| M8 | ||
| 150 | A 6392900801 | PEDAL ASSEMBLY |
| CLUTCH | ||
| 150 | A 6392902401 | PEDAL SYSTEM |
| CLUTCH | ||
| Repalced by: A 6392904501 | ||
| 150 | A 6392904501 | PEDAL SYSTEM |
| CLUTCH | ||
| 150 | A 6392904601 | PEDAL SYSTEM |
| CLUTCH | ||
| 155 | A 6382900516 | PEDAL |
| CLUTCH | ||
| Repalced by: A 6392900016 | ||
| 155 | A 6392900016 | PEDAL |
| CLUTCH | ||
| 155 | A 6392900116 | CLUTCH PEDAL |
| Repalced by: A 6392900216 | ||
| 155 | A 6392900216 | CLUTCH PEDAL |
| 155 | A 6392900216 | CLUTCH PEDAL |
| 160 | A 6382940605 | SHAFT |
| 165 | N 000000003588 | CLIP |
| 170 | A 1232910491 | SPRING RETAINER |
| 175 | A 1249932401 | SPRING |
| 180 | A 2012910633 | ROD |
| 185 | A 2012910282 | PAD |
| CLUTCH PEDAL | ||
| 185 | A 1702900282 | PAD |
| CLUTCH PEDAL | ||
| 190 | N 913023006001 | NUT |
| M6 | ||
| 195 | N 910142006012 | HEXALOBULAR BOLT |
| 200 | N 006799006003 | CIRCLIP |
| 6MM | ||
| 210 | N 000000003175 | NUT |
| CLUTCH PEDAL TO FIREWALL | ||
| M8 | ||
| 250 | A 6392903201 | PEDAL SYSTEM |
| BRAKE PEDAL | ||
| 250 | A 6392904101 | PEDAL SYSTEM |
| BRAKE PEDAL | ||
| 250 | A 6392903301 | PEDAL SYSTEM |
| BRAKE PEDAL | ||
| Repalced by: A 6392904201 | ||
| 250 | A 6392904201 | PEDAL SYSTEM |
| BRAKE PEDAL | ||
| 250 | A 6392902901 | PEDAL SYSTEM |
| BRAKE PEDAL | ||
| 250 | A 6392903101 | PEDAL SYSTEM |
| BRAKE PEDAL | ||
| 250 | A 6392904301 | PEDAL SYSTEM |
| BRAKE PEDAL | ||
| 250 | A 6392904401 | PEDAL SYSTEM |
| BRAKE PEDAL | ||
| 255 | A 0009936911 | EXTENSION SPRING EYELET |
| PEDAL ASSEMBLY | ||
| 260 | A 6392920240 | BRACKET |
| PEDAL VALUE SENSOR | ||
| 260 | A 6392920440 | BRACKET |
| PEDAL VALUE SENSOR | ||
| 270 | A 9069050500 | TURNING ANGLE PICKUP |
| 275 | N 000000001883 | HEXALOBULAR BOLT |
| TURNING ANGLE SENSOR AT BRACKET | ||
| M5X10 | ||
| 280 | A 6392920340 | BRACKET |
| LINK | ||
| 285 | N 000000001883 | HEXALOBULAR BOLT |
| LINK ROD AT BRAKE PEDAL | ||
| M5X10 | ||
| 290 | N 913023006001 | NUT |
| M6 | ||
| 300 | A 9065420118 | SENDER UNIT |
| 310 | A 6393280434 | LINK ROD |
| 320 | A 6393330000 | BALL PIN |
| 330 | N 913023006001 | NUT |
| M6 | ||
| 350 | A 1702900182 | PAD |
| BRAKE PEDAL | ||
| 350 | A 1702900082 | PAD |
| BRAKE PEDAL | ||
| 900 | A 0215459526 | SOCKET HOUSING |
| PEDAL VALUE SENSOR | ||
| 4-PIN MT2;B37 | ||
| 905 | A 0155457326 | CONTACT SPRING |
| PEDAL VALUE SENSOR | ||
| 0.5-1.0 MM2 MT2;B37 | ||
| 905 | A 0005457380 | CORE BUNDLE SEALING |
| PEDAL VALUE SENSOR | ||
| 2.1-2.9 MM;B37 | ||
| 905 | A 0029976086 | STOP PLUG |
| PEDAL VALUE SENSOR | ||
| B37 | ||
