Transporto priemonė: KASTENWAGEN; VIN numerio dalis: 639601

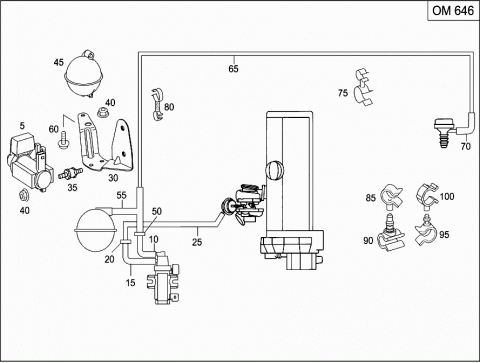

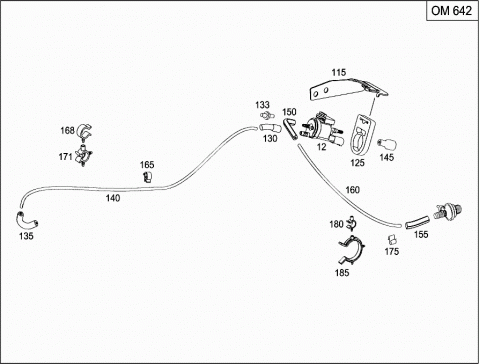

Grupė: 80 VACUUM SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0041539328 | PRESSURE CONVERTER |
| EXHAUST GAS TURBOCHARGER | ||
| 005 | A 0041539328 | PRESSURE CONVERTER |
| EXHAUST GAS RECIRCULATION | ||
| 010 | A 1170780281 | HOSE |
| PRESSURE CONVERTER | ||
| 010 | A 1170780281 | HOSE |
| PRESSURE CONVERTER TO VACUUM TANK | ||
| 012 | A 0025401497 | CHANGE-OVER VALVE |
| Repalced by: A 0025407097 | ||
| 012 | A 0025407097 | CHANGE-OVER VALVE |
| 015 | A 6020781181 | HOSE |
| PRESSURE TRANSDUCER TURBOCHARGER | ||
| 015 | A 6020781181 | HOSE |
| PRESSURE CONVERTER | ||
| 020 | A 6030780047 | CONNECTOR |
| 6MM | ||
| 020 | A 6030780047 | CONNECTOR |
| 6MM | ||
| 025 | A 6179970882 | HOSE |
| VACUUM LINE | ||
| 10X5.5 | ||
| 025 | A 6179970882 | HOSE |
| VACUUM LINE | ||
| 10X5.5 | ||
| 030 | A 6395200141 | BRACKET |
| 030 | A 6395200141 | BRACKET |
| 035 | A 1269880311 | BUFFER |
| PRESSURE CONVERTER TO BRACKET | ||
| 035 | A 1269880311 | BUFFER |
| PRESSURE CONVERTER TO BRACKET | ||
| 040 | N 913023006001 | NUT |
| PRESSURE CONVERTER TO BRACKET | ||
| M6 | ||
| 040 | N 913023006001 | NUT |
| PRESSURE CONVERTER TO BRACKET | ||
| M6 | ||
| 040 | N 913023006001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| M6 | ||
| 045 | A 9012580003 | AIR RESERVOIR |
| 050 | A 1162760929 | CONNECTOR |
| HOSE TO RESERVOIR | ||
| 4 MM | ||
| 055 | A 1110780081 | HOSE |
| CHANGE-OVER VALVE | ||
| 060 | A 0019846429 | FILLISTER HEAD SCREW |
| RESERVOIR TO BRACKET | ||
| M5X16 | ||
| 065 | A 0009973952 | HOSE |
| VACUUM LINE | ||
| 065 | A 0009973952 | HOSE |
| VACUUM LINE | ||
| 070 | A 1170780181 | HOSE |
| EXHAUST GAS TURBOCHARGER | ||
| 075 | A 0004760436 | HOSE BRACKET |
| VACUUM LINE | ||
| 11 MM | ||
| 080 | A 0019950444 | CLAMP |
| VACUUM LINE | ||
| 080 | A 0019950444 | CLAMP |
| VACUUM LINE | ||
| 080 | A 0019950444 | CLAMP |
| VACUUM LINE | ||
| 085 | A 1239950365 | CLAMP |
| VACUUM LINE | ||
| 4.5 MM | ||
| 090 | A 0079973890 | CLAMP |
| HOSE | ||
| 4.3/8.0MM | ||
| 090 | A 0079973890 | CLAMP |
| HOSE | ||
| 4.3/8.0MM | ||
| 095 | A 0009956665 | EXTENDABLE SPACER |
| HOSE BRACKET | ||
| 11MM | ||
| 100 | A 0009952365 | CLAMP |
| HOSE | ||
| 15 MM | ||
| 100 | A 0009952365 | CLAMP |
| HOSE | ||
| 15 MM | ||
| 100 | A 0009952365 | CLAMP |
| HOSE | ||
| 15 MM | ||
| 115 | A 6395280640 | BRACKET |
| CHANGE-OVER VALVE | ||
| 125 | A 9014930040 | BRACKET |
| CHANGE-OVER VALVE | ||
| 130 | A 1170780381 | HOSE |
| 133 | A 1162760929 | CONNECTOR |
| 4 MM | ||
| 135 | A 1170780581 | HOSE |
| 140 | A 0009973952 | HOSE |
| 145 | A 1170780981 | PROTECTIVE CAP |
| 150 | A 1170780181 | HOSE |
| 155 | A 1179970982 | RUBBER HOSE |
| 8X3.5 MM | ||
| 160 | A 0009973952 | HOSE |
| 160 | A 0009973952 | HOSE |
| 165 | A 0009957544 | CLAMP |
| AT ENGINE COVER | ||
| 165 | A 6679950065 | CLAMP |
| AT ENGINE COVER | ||
| 38MM | ||
| 168 | A 1239950265 | CLAMP |
| AT ENGINE COVER | ||
| 14 MM | ||
| 171 | A 0009956665 | EXTENDABLE SPACER |
| AT ENGINE COVER | ||
| 11MM | ||
| 175 | A 0109886278 | CLIP |
| AT BELT RAIL | ||
| Repalced by: A 0009881678 | ||
| 175 | A 0009881678 | CLIP |
| AT BELT RAIL | ||
| 180 | A 0004760436 | HOSE BRACKET |
| FASTENING, VACUUM LINE TO COOLANT HOSE | ||
| 11 MM | ||
| 185 | A 6679950065 | CLAMP |
| FASTENING, VACUUM LINE TO COOLANT HOSE | ||
| 38MM | ||

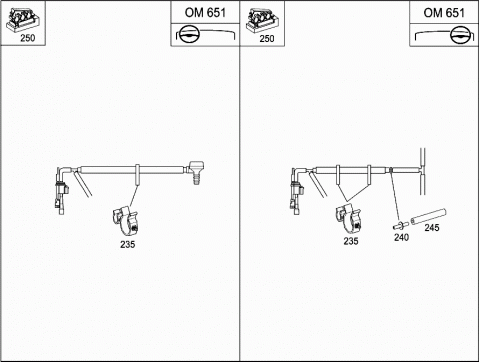

| 235 | A 0009956114 | LINE HOLDER |
| VACUUM LINE MOUNTING | ||
| 235 | A 0009956114 | LINE HOLDER |
| VACUUM LINE MOUNTING | ||
| 240 | A 1162760929 | CONNECTOR |
| VACUUM LINE | ||
| 4 MM | ||
| 245 | A 1179970982 | RUBBER HOSE |
| 8X3.5 MM;50 MM | ||
| 250 | A 0029956777 | LINE HOLDER |
| 250 | A 0029956777 | LINE HOLDER |
