Transporto priemonė: LF 408 G,LF 409; VIN numerio dalis: 309053

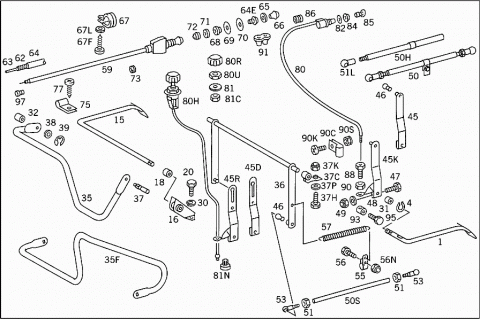

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3093000304 | ACCELERATOR PEDAL |
| 004 | N 900055010402 | LOCK RING |
| 010 | A 3093001204 | ACCELERATOR PEDAL |
| Repalced by: A 3093001304 | ||
| 010 | A 3093001304 | ACCELERATOR PEDAL |
| 011 | A 3093010022 | JOINT |
| 012 | N 000965006014 | SCREW |
| ACCELERATOR PEDAL TO CAB | ||
| M 6X16 | ||
| 012 | N 000965006040 | SCREW |
| ACCELERATOR PEDAL TO CAB | ||
| M 6X30 | ||
| 012C | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 012C | N 913004006001 | NUT |
| ACCELERATOR PEDAL TO CAB | ||
| 012H | A 3093010184 | SHIM |
| ACCELERATOR PEDAL TO CAB | ||
| 012N | N 000125006421 | WASHER |
| ACCELERATOR PEDAL TO CAB | ||
| A 3093002325 | LEVER | |
| Repalced by: A 3103000425 | ||
| A 3093002325 | LEVER | |
| Repalced by: A 3103000425 | ||
| 013 | A 3103000425 | LEVER |
| CONTROL | ||
| 013 | A 3103000425 | LEVER |
| CONTROL | ||
| 013C | A 3103001025 | LEVER |
| CONTROL | ||
| 013F | N 900055010402 | LOCK RING |
| 013K | A 3093000041 | STOP |
| KICK-DOWN | ||
| 013N | N 000933006102 | SCREW |
| STOP TO CONTROL LEVER | ||
| 013Q | N 000137006204 | SPRING WASHER |
| STOP TO CONTROL LEVER | ||
| 013T | A 1153010241 | STOP |
| FULL THROTTLE | ||
| 014 | A 1159970640 | SEAL RING |
| STOP TO FLOOR BOARD | ||
| 014E | A 3093010284 | SHIM |
| STOP TO FLOOR BOARD | ||
| 014K | A 3093040384 | SHIM |
| STOP TO FLOOR BOARD | ||
| 014N | N 007985106164 | SCREW |
| STOP TO FLOOR BOARD | ||
| 014R | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 014R | N 913004006001 | NUT |
| STOP TO FLOOR BOARD | ||
| 014U | N 000125006421 | WASHER |
| STOP TO FLOOR BOARD | ||
| A 3093000404 | ACCELERATOR PEDAL | |
| Repalced by: A 3093001504 | ||
| A 3093000404 | ACCELERATOR PEDAL | |
| Repalced by: A 3093001504 | ||
| 015 | A 3093001504 | ACCELERATOR PEDAL |
| A 3093001404 | ACCELERATOR PEDAL | |
| Repalced by: A 3103000004 | ||
| A 3093001404 | ACCELERATOR PEDAL | |
| Repalced by: A 3103000004 | ||
| 015C | A 3103000004 | ACCELERATOR PEDAL |
| 015C | A 3103000004 | ACCELERATOR PEDAL |
| Repalced by: A 3103000104 | ||
| 015C | A 3103000104 | ACCELERATOR PEDAL |
| 015M | N 900055010402 | LOCK RING |
| A 3093000036 | BEARING BRACKET | |
| Repalced by: A 3093000236 | ||
| 016 | A 3093000236 | BEARING BRACKET |
| Repalced by: A 3093000436 | ||
| 017 | A 3093000436 | BEARING BRACKET |
| ACCELERATOR PEDAL | ||
| 018 | A 3193010150 | BUSHING |
| 018 | A 3193010150 | BUSHING |
| 020 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 020 | N 304017006018 | SCREW |
| BEARING BRACKET TO CAB FLOOR | ||
| 030 | N 912004006102 | LOCK WASHER |
| BEARING BRACKET TO CAB FLOOR | ||
| 031 | A 3193010150 | BUSHING |
| ACCELERATOR PEDAL TO JOINT | ||
| 031 | A 3193010150 | BUSHING |
| ACCELERATOR PEDAL TO JOINT | ||
| 031 | A 3193010150 | BUSHING |
| ACCELERATOR PEDAL TO JOINT | ||
| 032 | A 3093010053 | SPACER TUBE |
| ACCELERATOR PEDAL TO JOINT | ||
| A 3093010119 | SHAFT | |
| Repalced by: A 3093010419 | ||
| 035 | A 3093010419 | SHAFT |
| CONTROL | ||
| A 3093010319 | SHAFT | |
| Repalced by: A 3093010519 | ||
| 035F | A 3093010519 | SHAFT |
| CONTROL | ||
| 036 | A 3093000120 | SHAFT |
| CONTROL | ||
| 037 | A 3093010121 | PIVOT PIN |
| Repalced by: A 3093010221 | ||
| 037 | A 3093010221 | PIVOT PIN |
| CONTROL SHAFT | ||
| 037C | A 1233010118 | BEARING |
| CONTROL SHAFT | ||
| 037H | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 037H | N 304017006020 | SCREW |
| CONTROL SHAFT | ||
| 037K | N 913004005005 | NUT |
| CONTROL SHAFT | ||
| 037P | N 000125006421 | WASHER |
| CONTROL SHAFT | ||
| 038 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 038 | N 000125010532 | WASHER |
| CONTROL SHAFT | ||
| 039 | N 006799007007 | LOCK PLATE |
| A 3093002425 | LEVER | |
| Repalced by: A 3093005025 | ||
| 045 | A 3093005025 | LEVER |
| CONTROL | ||
| 045 | A 3093005025 | LEVER |
| CONTROL | ||
| 045C | A 3093004225 | LEVER |
| CONTROL | ||
| A 3093003225 | LEVER | |
| Repalced by: A 3093004825 | ||
| 045D | A 3093004825 | LEVER |
| CONTROL | ||
| 045F | A 3093005125 | LEVER |
| CONTROL | ||
| A 3093002525 | LEVER | |
| Repalced by: A 3103000025 | ||
| 045K | A 3103000025 | LEVER |
| CONTROL | ||
| 045K | A 3103000025 | LEVER |
| CONTROL | ||
| 045K | A 3103000025 | LEVER |
| CONTROL | ||
| 045K | A 3103000525 | LEVER |
| CONTROL | ||
| A 3093003125 | LEVER | |
| Repalced by: A 3093004925 | ||
| 045R | A 3093004925 | LEVER |
| CONTROL | ||
| 045R | A 3093004125 | LEVER |
| CONTROL | ||
| 046 | N 071803008207 | BALL PIVOT |
| 046 | N 071803008207 | BALL PIVOT |
| 046 | N 071803008205 | BALL PIVOT |
| 047 | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 047 | N 304017006012 | SCREW |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 048 | N 000125006421 | WASHER |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 049 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 049 | N 913002006009 | NUT |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 049 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 049 | N 913004006001 | NUT |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| N 000934010015 | NUT | |
| Repalced by: N 308673010000 | ||
| N 308673010000 | NUT | |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| N 000137010201 | SPRING WASHER | |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 049A | N 900331005122 | PULL ROD |
| CONTROL | ||
| 049A | N 900331005054 | PULL ROD |
| CONTROL | ||
| 049C | N 071805008207 | BALL SOCKET |
| ROD TO LEVER | ||
| 049E | N 000934005008 | NUT |
| CONTROL | ||
| 049F | A 3093005225 | LEVER |
| CONTROL | ||
| 049H | N 071803008205 | BALL PIVOT |
| 049K | A 3093000074 | PIN |
| CONTROL | ||
| 049L | A 3813020050 | BUSHING |
| LEVER TO BRACKET | ||
| 049M | A 3813010188 | COVERING |
| Repalced by: A 4073015088 | ||
| 049M | A 4073015088 | COVERING |
| LEVER TO BRACKET | ||
| 049N | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 049N | N 000125008443 | WASHER |
| LEVER TO BRACKET | ||
| 049P | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 049P | N 913004008001 | NUT |
| LEVER TO BRACKET | ||
| 049Q | N 000933006124 | SCREW |
| LEVER TO OIL FILLER NECK | ||
| 049R | N 000137006204 | SPRING WASHER |
| LEVER TO OIL FILLER NECK | ||
| 049T | A 3093000715 | ROD |
| FROM PEDAL PLATE TO LEVER | ||
| A 3093003115 | ROD | |
| Repalced by: A 3093011415 | ||
| 050 | A 3093011415 | ROD |
| FROM PEDAL PLATE TO LEVER | ||
| 050H | A 3093012115 | ROD |
| FROM PEDAL PLATE TO LEVER | ||
| 050H | A 3093012115 | ROD |
| FROM PEDAL PLATE TO LEVER | ||
| 050L | A 3093004715 | ROD |
| CONTROL | ||
| 050L | A 3093004715 | ROD |
| CONTROL | ||
| A 3093004815 | ROD | |
| A 3093004815 | ROD | |
| 050Q | N 900331005093 | PULL ROD |
| 5X40 MM | ||
| 050Q | N 900331005068 | PULL ROD |
| 5X120 MM | ||
| N 000934005008 | NUT | |
| A 1009910222 | BALL SOCKET | |
| A 1009910222 | BALL SOCKET | |
| 050Q | N 900331005159 | PULL ROD |
| CONTROL | ||
| 5X210 MM | ||
| A 3093000615 | ROD | |
| Repalced by: A 3093011315 | ||
| 050S | A 3093011315 | ROD |
| FROM PEDAL PLATE TO LEVER | ||
| 050S | A 3093011315 | ROD |
| FROM PEDAL PLATE TO LEVER | ||
| 050S | A 3093012515 | ROD |
| Repalced by: A 3093011315 | ||
| 050S | A 3093011315 | ROD |
| FROM PEDAL PLATE TO LEVER | ||
| 051 | N 000934005008 | NUT |
| FROM PEDAL PLATE TO LEVER | ||
| 051 | N 000934005008 | NUT |
| FROM PEDAL PLATE TO LEVER | ||
| 051 | N 000934006007 | NUT |
| FROM PEDAL PLATE TO LEVER | ||
| 051L | A 0009910620 | BALL SOCKET |
| Repalced by: A 0009911220 | ||
| 051L | A 0009911220 | BALL PIVOT |
| FROM PEDAL PLATE TO LEVER | ||
| 052 | A 1009910222 | BALL SOCKET |
| ROD TO LEVER | ||
| 052 | A 1009910222 | BALL SOCKET |
| ROD TO LEVER | ||
| 052 | A 1153000086 | END PIECE |
| Repalced by: A 0009918822 | ||
| 052 | A 0009918822 | BALL SOCKET |
| FROM PEDAL PLATE TO LEVER | ||
| N 071805008300 | SNAP RING | |
| FROM PEDAL PLATE TO LEVER | ||
| 053 | A 0009914722 | BALL SOCKET |
| FROM PEDAL PLATE TO LEVER | ||
| 053 | A 0009914722 | BALL SOCKET |
| FROM PEDAL PLATE TO LEVER | ||
| 053 | A 0009914722 | BALL SOCKET |
| FROM PEDAL PLATE TO LEVER | ||
| 055 | A 3099950044 | CLAMP |
| ROD | ||
| 055 | A 3099950044 | CLAMP |
| ROD | ||
| 055 | A 3099950044 | CLAMP |
| ROD | ||
| 056 | N 000933005057 | SCREW |
| CLAMP MOUNTING | ||
| 056N | N 913004005001 | NUT |
| CLAMP MOUNTING | ||
| 057 | A 1819930310 | SPRING |
| (RELEASE SPRING) | ||
| 057 | A 1819930310 | SPRING |
| (RELEASE SPRING) | ||
| 057F | A 1109931710 | SPRING |
| (RELEASE SPRING) | ||
| 057P | A 6019930110 | SPRING |
| (RELEASE SPRING) | ||
| 058 | A 3604280143 | ANGLE |
| RELEASE SPRING | ||
| 058H | N 000933005059 | SCREW |
| ANGLE TO CAB FLOOR | ||
| 058M | N 913004005001 | NUT |
| ANGLE TO CAB FLOOR | ||
| 059 | A 1803001830 | WIRE CABLE |
| Repalced by: A 3093000730 | ||
| 059 | A 3093000730 | WIRE CABLE |
| CHOKE | ||
| 062 | A 0009880172 | WIRE SPIRAL |
| CHOKE CABLE | ||
| 1070 MM | ||
| 063 | N 002076001010 | WIRE |
| CHOKE CABLE | ||
| 1180 MM | ||
| 064 | N 040621005200 | INSULATING HOSE |
| CHOKE CABLE | ||
| 1030 MM | ||
| A 1203020208 | GUIDE | |
| Repalced by: A 3093020008 | ||
| 064E | A 3093020008 | GUIDE |
| CHOKE CABLE | ||
| 065 | A 0009972040 | SEAL RING |
| CHOKE CABLE | ||
| 066 | A 1103000207 | KNOB |
| 066 | A 0005452437 | BUTTON |
| CHOKE CABLE | ||
| 067 | A 0009950401 | CLAMP |
| CHOKE CABLE TO COWL | ||
| 067 | A 0009950401 | CLAMP |
| CHOKE CABLE TO COWL | ||
| 067F | N 007981003214 | SHEET METAL SCREW |
| CHOKE CABLE TO COWL | ||
| 067F | N 007981003214 | SHEET METAL SCREW |
| CHOKE CABLE TO COWL | ||
| 067L | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 067L | N 000125004319 | WASHER |
| CHOKE CABLE TO COWL | ||
| 068 | A 3193020091 | GROMMET |
| CHOKE CABLE TO INSTRUMENT PANEL | ||
| 069 | A 3199901040 | WASHER |
| CHOKE CABLE TO INSTRUMENT PANEL | ||
| 070 | A 3195100067 | FILLER |
| CHOKE CABLE TO INSTRUMENT PANEL | ||
| 071 | A 3093020051 | SPACER RING |
| CHOKE CABLE TO INSTRUMENT PANEL | ||
| 071 | A 3095450076 | WASHER |
| CHOKE CABLE TO INSTRUMENT PANEL | ||
| 072 | A 3099900840 | WASHER |
| CHOKE CABLE TO INSTRUMENT PANEL | ||
| 072 | A 3095450176 | WASHER |
| CHOKE CABLE TO INSTRUMENT PANEL | ||
| 073 | A 0009972881 | GROMMET |
| CHOKE CABLE TO INSTRUMENT PANEL | ||
| 075 | A 1869950220 | CLAMP |
| Repalced by: N 072571001035 | ||
| 075 | N 072571001035 | CLAMP |
| Repalced by: A 1279950020 | ||
| 075 | A 1279950020 | CLAMP |
| CHOKE CABLE TO INSTRUMENT PANEL | ||
| 077 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 077 | N 000000002062 | SCREW |
| CHOKE CABLE TO INSTRUMENT PANEL | ||
| 080 | A 3093000032 | WIRE CABLE |
| Repalced by: A 3633000032 | ||
| 080 | A 3633000032 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 080 | A 3633000032 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 080 | A 3093000132 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 080H | A 3093001407 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 080R | A 3093020001 | KNOB |
| WIRE CABLE | ||
| 080U | A 0003020072 | NUT |
| Repalced by: A 3129901151 | ||
| 080U | A 3129901151 | NUT |
| WIRE CABLE TO INSTRUMENT PANEL | ||
| 081 | A 0003020052 | SPACER WASHER |
| WIRE CABLE TO INSTRUMENT PANEL | ||
| 081C | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 081C | N 304035008001 | NUT |
| WIRE CABLE TO BRACKET | ||
| 081N | A 3093020050 | BUSHING |
| PULL WIRE TO LEVER | ||
| 082 | A 1539902240 | WASHER |
| WIRE CABLE | ||
| 082 | A 3099900840 | WASHER |
| WIRE CABLE | ||
| 084 | A 1105450272 | NUT |
| WIRE CABLE | ||
| 085 | A 1105450937 | BUTTON |
| WIRE CABLE | ||
| 085 | A 1105451137 | BUTTON |
| WIRE CABLE | ||
| 086 | A 0009972881 | GROMMET |
| WIRE CABLE THRU WINDOW SILL | ||
| 088 | A 1863050115 | SCREW |
| WIRE CABLE TO LEVER | ||
| 090 | N 000934006007 | NUT |
| WIRE CABLE TO LEVER | ||
| 090C | A 3609950301 | CLAMP |
| WIRE CABLE TO BRACKET | ||
| 090K | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 090K | N 000000001145 | SCREW |
| WIRE CABLE TO BRACKET | ||
| 090S | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 090S | N 913004006001 | NUT |
| WIRE CABLE TO BRACKET | ||
| 091 | A 3183020091 | GROMMET |
| WIRE CABLE TO BRACKET | ||
| 093 | A 3093020068 | END PIECE |
| Repalced by: A 1233000086 | ||
| 093 | A 1233000086 | END PIECE |
| WIRE CABLE TO LEVER | ||
| 095 | A 3099900015 | SCREW |
| Repalced by: N 000933005058 | ||
| 095 | N 000933005058 | SCREW |
| WIRE CABLE TO LEVER | ||
| 097 | N 915042016000 | PLUG |
| WIRE CABLE TO LEVER | ||
| A 3093020097 | GASKET | |
| TO PLUG THE HOLE USED FOR STARTER CABLE IN INSTRUMENT PANEL | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
