Transporto priemonė: LF 408 G,LF 409; VIN numerio dalis: 309053

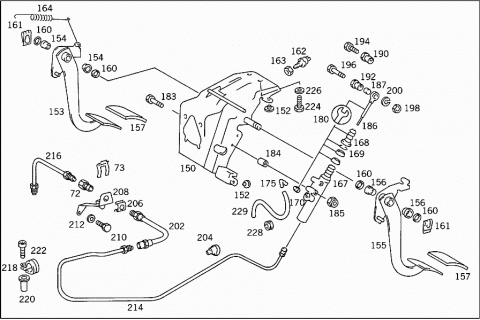

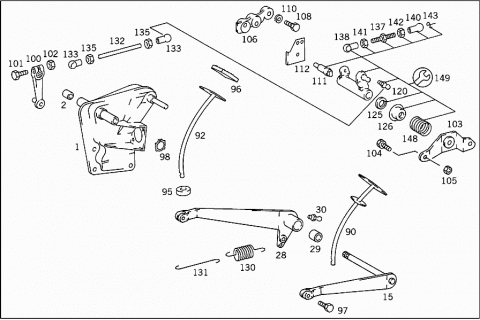

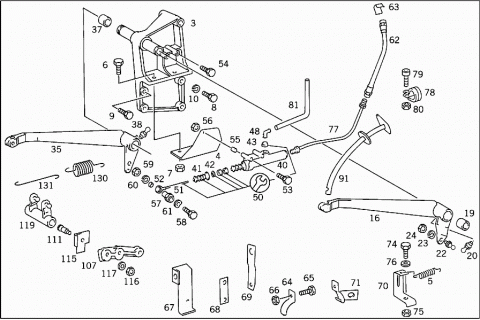

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3092902719 | BEARING BRACKET |
| CLUTCH AND BRAKE | ||
| A 3102900019 | BEARING BRACKET | |
| Repalced by: A 3102900119 | ||
| 001 | A 3102900119 | BEARING BRACKET |
| CLUTCH AND BRAKE | ||
| 002 | A 3198920117 | BUSHING |
| 003 | A 3092903419 | BEARING BRACKET |
| Repalced by: A 3092903619 | ||
| 003 | A 3092903619 | BEARING BRACKET |
| CLUTCH AND BRAKE | ||
| 004 | A 3102950440 | BRACKET |
| Repalced by: A 3102951440 | ||
| 004 | A 3102951440 | BRACKET |
| CLUTCH AND BRAKE | ||
| 005 | A 3099931110 | SPRING |
| CLUTCH AND BRAKE | ||
| 006 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 006 | N 304017010002 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X30 | ||
| 006 | N 304017010002 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X30 | ||
| 006 | N 000933010105 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X35 | ||
| 006 | N 000931010282 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X40 | ||
| 007 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 007 | N 910113010000 | NUT |
| PEDAL BEARING BRACKET TO FRAME | ||
| 008 | N 000931010271 | SCREW |
| Repalced by: N 304017010051 | ||
| 008 | N 304017010051 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X60 | ||
| 008 | N 000931010258 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X55 | ||
| 008 | N 000931010282 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X40 | ||
| 009 | N 000933010145 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X35 | ||
| 009 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 009 | N 304017010002 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X30 | ||
| 010 | N 912004010102 | LOCK WASHER |
| PEDAL BEARING BRACKET TO FRAME | ||
| N 000933010105 | SCREW | |
| CROSS MEMBER TO FRAME | ||
| M 10X25 | ||
| N 000933010105 | SCREW | |
| CROSS MEMBER TO FRAME | ||
| M 10X25 | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| CROSS MEMBER TO FRAME | ||
| N 910113010000 | NUT | |
| CROSS MEMBER TO FRAME | ||
| 015 | A 3092900216 | PEDAL |
| Repalced by: A 3092900716 | ||
| 015 | A 3092900716 | PEDAL |
| CLUTCH | ||
| 016 | A 3092900516 | PEDAL |
| CLUTCH | ||
| 016 | A 3092901216 | PEDAL |
| CLUTCH | ||
| 016 | A 3092902416 | PEDAL |
| CLUTCH | ||
| 019 | A 3092920050 | BUSHING |
| 020 | N 071412008200 | GREASE NIPPLE |
| 022 | N 071803013102 | BALL PIVOT |
| CLUTCH | ||
| 023 | N 912004008102 | LOCK WASHER |
| CLUTCH | ||
| 024 | N 304032008006 | NUT |
| CLUTCH | ||
| 028 | A 3092900218 | PEDAL |
| BRAKE | ||
| 029 | A 3092920050 | BUSHING |
| 030 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 030 | N 071412008102 | GREASE NIPPLE |
| 035 | A 3092900818 | PEDAL |
| BRAKE | ||
| 037 | A 3092920050 | BUSHING |
| 038 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 038 | N 071412008102 | GREASE NIPPLE |
| 040 | A 0012951506 | MASTER CYLINDER |
| Repalced by: A 0002957706 | ||
| 040 | A 0012951406 | MASTER CYLINDER |
| Repalced by: A 0002959106 | ||
| 040 | A 0002959106 | MASTER CYLINDER |
| CLUTCH | ||
| 040 | A 0002957706 | MASTER CYLINDER |
| Repalced by: A 0012958706 | ||
| 040 | A 0012958706 | MASTER CYLINDER |
| CLUTCH | ||
| 041 | A 0002951583 | BOOT |
| 042 | N 000472019000 | LOCK RING |
| A 0009974235 | PLUG | |
| Repalced by: A 0009971186 | ||
| 043 | A 0009971186 | PLUG |
| 048 | A 3092950036 | INTERMEDIATE PIECE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 050 | A 0005862929 | REPAIR KIT |
| LESS PISTON | ||
| 050 | A 0005865229 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 000 295 77 06 | ||
| A 0002903112 | REPAIR KIT | |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 87 06 | ||
| 051 | A 1152900639 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 051 | A 3102900339 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 052 | A 1102950250 | BUSHING |
| 053 | N 000931006191 | SCREW |
| MASTER CYLINDER TO SUPPORT | ||
| M 6X55 | ||
| 053 | N 000931006118 | SCREW |
| MASTER CYLINDER TO SUPPORT | ||
| M 6X35 | ||
| 054 | N 000931006181 | SCREW |
| Repalced by: N 000933006226 | ||
| 054 | N 000933006226 | SCREW |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| M 6X120 | ||
| 054 | N 000931006216 | SCREW |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| M 6X110 | ||
| 055 | A 3092950153 | SPACER TUBE |
| Repalced by: A 3529910340 | ||
| 055 | A 3529910340 | SPACER TUBE |
| Repalced by: A 4082910153 | ||
| 055 | A 4082910153 | SPACER TUBE |
| MASTER CYLINDER TO SUPPORT | ||
| 056 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 056 | N 913004006001 | NUT |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| A 1102950571 | SCREW | |
| Repalced by: A 1152950172 | ||
| A 1152950172 | NUT | |
| PISTON ROD TO LEVER | ||
| 057 | A 1232950150 | BUSHING |
| PISTON ROD TO LEVER | ||
| 058 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 058 | N 304017008016 | SCREW |
| PISTON ROD TO LEVER | ||
| M 8X16 | ||
| 058 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 058 | N 304017008018 | SCREW |
| PISTON ROD TO LEVER | ||
| M 8X35 | ||
| 059 | N 000439008213 | NUT |
| PISTON ROD TO LEVER | ||
| 059 | N 000439018204 | NUT |
| PISTON ROD TO LEVER | ||
| 060 | N 912004008102 | LOCK WASHER |
| PISTON ROD TO LEVER | ||
| 061 | N 000137008204 | SPRING WASHER |
| PISTON ROD TO LEVER | ||
| 062 | A 3092950035 | HOSE |
| CLUTCH | ||
| A 3092951140 | BRACKET | |
| BEARING BRACKET TO STEERING | ||
| N 000933010128 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 063 | A 1072950073 | LOCK |
| Repalced by: A 1072950173 | ||
| 063 | A 1072950173 | LOCK |
| CLUTCH | ||
| 064 | A 3092950940 | BRACKET |
| CLUTCH | ||
| 065 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 065 | N 304017008034 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 066 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 066 | N 913004008001 | NUT |
| BRACKET TO TRANSMISSION | ||
| 067 | A 3102951040 | BRACKET |
| CLUTCH | ||
| 068 | A 3102951140 | BRACKET |
| CLUTCH | ||
| 069 | A 3092950740 | BRACKET |
| CLUTCH | ||
| 069 | A 3092950740 | BRACKET |
| CLUTCH | ||
| 070 | A 3094280940 | BRACKET |
| CLUTCH | ||
| 071 | A 3092901533 | BRACKET |
| CLUTCH | ||
| 072 | A 0004281131 | CONNECTOR |
| CLUTCH | ||
| 073 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 073 | A 6525040038 | MOUNTING PLATE |
| CLUTCH | ||
| 074 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 075 | N 913002010001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 076 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 076 | N 000125010532 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 077 | A 3102900213 | LINE |
| Repalced by: A 3404201929 | ||
| 077 | A 3404201929 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 1100 MM | ||
| 077 | A 3092900913 | LINE |
| Repalced by: A 3404200329 | ||
| 077 | A 3404200329 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 300 MM | ||
| 077 | A 3404200429 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 350 MM | ||
| 078 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 078 | N 916016008200 | CLAMP |
| LINES TO FRAME | ||
| 079 | N 007985006155 | SCREW |
| LINES TO FRAME | ||
| 080 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 080 | N 913002006009 | NUT |
| LINES TO FRAME | ||
| 081 | A 3109970382 | HOSE |
| Repalced by: A 6039970482 | ||
| 081 | A 6039970482 | HOSE |
| REFILLING LINE TO MASTER CYLINDER | ||
| 7.3X11.8 MM | ||
| 090 | A 3092900724 | PEDAL PLATE |
| CLUTCH | ||
| 091 | A 3092900124 | PEDAL PLATE |
| CLUTCH | ||
| 092 | A 3092900524 | PEDAL PLATE |
| BRAKE | ||
| 092 | A 3092900524 | PEDAL PLATE |
| BRAKE | ||
| 095 | A 3092920086 | BUFFER |
| CLUTCH AND BRAKE | ||
| 095 | A 3092920086 | BUFFER |
| CLUTCH AND BRAKE | ||
| 096 | A 3192920082 | PAD |
| CLUTCH AND BRAKE | ||
| 096 | A 3192920082 | PAD |
| CLUTCH AND BRAKE | ||
| 097 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 097 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 098 | N 000983028000 | LOCK RING |
| CLUTCH AND BRAKE | ||
| 098 | N 000983028000 | LOCK RING |
| CLUTCH AND BRAKE | ||
| 100 | A 3092900134 | LEVER |
| BRAKE | ||
| 101 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 101 | N 304017008018 | SCREW |
| BRAKE | ||
| 102 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 102 | N 913004008001 | NUT |
| BRAKE | ||
| 103 | A 3092900033 | BRACKET |
| CLUTCH | ||
| 104 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 104 | N 304017010002 | SCREW |
| CLUTCH | ||
| M 10X30 | ||
| 104 | N 000933010145 | SCREW |
| CLUTCH | ||
| M 10X35 | ||
| 105 | N 913002010001 | NUT |
| CLUTCH | ||
| 106 | A 3092931240 | BRACKET |
| INTERMEDIATE LEVER | ||
| 107 | A 3092931340 | BRACKET |
| INTERMEDIATE LEVER | ||
| 108 | N 000931008152 | SCREW |
| BRACKET TO BELL HOUSING | ||
| M 8X30 | ||
| 108 | N 000931008152 | SCREW |
| BRACKET TO BELL HOUSING | ||
| M 8X30 | ||
| 108 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 108 | N 304017008018 | SCREW |
| BRACKET TO BELL HOUSING | ||
| M 8X35 | ||
| 108 | N 304017008018 | SCREW |
| BRACKET TO BELL HOUSING | ||
| M 8X35 | ||
| 110 | N 912004008102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 110 | N 912004008102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 111 | A 3092930074 | PIN |
| IN BEARING BRACKET,FOR DOUBLE LEVER BEARING | ||
| 111 | A 3092930074 | PIN |
| IN BEARING BRACKET,FOR DOUBLE LEVER BEARING | ||
| 112 | A 3092930540 | BRACKET |
| INTERMEDIATE LEVER | ||
| 115 | A 3092930840 | BRACKET |
| INTERMEDIATE LEVER | ||
| 116 | N 913002010001 | NUT |
| INTERMEDIATE LEVER TO BRACKET | ||
| 117 | A 3092930177 | WASHER |
| INTERMEDIATE LEVER TO BRACKET | ||
| A 3092900435 | SHAFT | |
| Repalced by: A 3092901639 | ||
| 119 | A 3092900535 | SHAFT |
| INTERMEDIATE LEVER | ||
| 120 | N 071803013207 | BALL PIVOT |
| INTERMEDIATE LEVER | ||
| 120 | N 071803013207 | BALL PIVOT |
| INTERMEDIATE LEVER | ||
| 125 | A 3092930060 | SEAL RING |
| INTERMEDIATE LEVER | ||
| 125 | A 3092930060 | SEAL RING |
| INTERMEDIATE LEVER | ||
| 126 | A 3092930085 | SPRING RETAINER |
| 126 | A 3092930085 | SPRING RETAINER |
| 130 | A 3099930010 | SPRING |
| BRAKE PEDAL RESET | ||
| 130 | A 3099930010 | SPRING |
| BRAKE PEDAL RESET | ||
| 130 | A 3099930010 | SPRING |
| BRAKE PEDAL RESET | ||
| 131 | A 3092920042 | EXTENSION |
| BRAKE PEDAL RESET | ||
| 131 | A 3092920042 | EXTENSION |
| BRAKE PEDAL RESET | ||
| 132 | N 900331008419 | PULL ROD |
| CLUTCH PEDAL TO LEVER | ||
| 132 | N 900331008419 | PULL ROD |
| CLUTCH PEDAL TO LEVER | ||
| 133 | N 071805013203 | BALL SOCKET |
| PULL ROD TO PEDAL LEVER AND TO COMPENSATING LEVER | ||
| 133 | N 071805013203 | BALL SOCKET |
| PULL ROD TO PEDAL LEVER AND TO COMPENSATING LEVER | ||
| 135 | N 304032008006 | NUT |
| PULL ROD TO PEDAL LEVER AND TO COMPENSATING LEVER | ||
| 135 | N 304032008006 | NUT |
| PULL ROD TO PEDAL LEVER AND TO COMPENSATING LEVER | ||
| 137 | A 3092900839 | ROD |
| PULL ROD TO RELEASE YOKE | ||
| 137 | A 3092900839 | ROD |
| PULL ROD TO RELEASE YOKE | ||
| 138 | A 3099910222 | BALL SOCKET |
| RIGHT | ||
| 138 | A 3099910222 | BALL SOCKET |
| RIGHT | ||
| 140 | A 3099910322 | BALL SOCKET |
| Repalced by: N 071805013205 | ||
| 140 | N 071805013205 | BALL SOCKET |
| LEFT | ||
| 140 | N 071805013205 | BALL SOCKET |
| LEFT | ||
| 141 | N 304032008006 | NUT |
| CLUTCH | ||
| 141 | N 304032008006 | NUT |
| CLUTCH | ||
| 142 | N 000934008035 | NUT |
| CLUTCH | ||
| 142 | N 000934008035 | NUT |
| CLUTCH | ||
| 143 | N 071805013402 | SECURING CLIP |
| CLUTCH | ||
| 143 | N 071805013402 | SECURING CLIP |
| CLUTCH | ||
| 148 | A 3099930001 | SPRING |
| CLUTCH | ||
| 148 | A 3099930001 | SPRING |
| CLUTCH | ||
| 149 | A 3095860029 | REPAIR KIT |
| Repalced by: A 3092901639 | ||
| 149 | A 3092901639 | REPAIR KIT |
| CLUTCH ACTUATING PARTS | ||
| A 3092901639 | REPAIR KIT | |
| A 3092901133 | BRACKET | |
| Repalced by: A 3092901333 | ||
| 150 | A 3092901333 | BRACKET |
| CLUTCH AND BRAKE | ||
| 152 | A 1152910186 | STOP |
| CLUTCH AND BRAKE | ||
| 153 | A 3092900918 | PEDAL |
| BRAKE | ||
| 154 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 154 | A 1242920050 | BUSHING |
| 155 | A 3092901016 | PEDAL |
| CLUTCH | ||
| A 3092902216 | PEDAL | |
| Repalced by: A 3102900416 | ||
| 155 | A 3102900416 | PEDAL |
| CLUTCH | ||
| 156 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 156 | A 1242920050 | BUSHING |
| 157 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 157 | A 1072910182 | PAD |
| CLUTCH AND BRAKE | ||
| 160 | A 1152910076 | WASHER |
| PEDALS TO PIVOT PINS | ||
| 161 | A 0009941151 | LOCK |
| PEDALS TO PIVOT PINS | ||
| 162 | A 0005453509 | SWITCH |
| STOP LIGHT | ||
| 162 | A 0005456909 | SWITCH |
| STOP LIGHT | ||
| 163 | A 0009909251 | NUT |
| STOP LIGHT SWITCH | ||
| 164 | A 3099931110 | SPRING |
| BRAKE | ||
| 167 | A 0012951506 | MASTER CYLINDER |
| Repalced by: A 0002957706 | ||
| 167 | A 0002959106 | MASTER CYLINDER |
| Repalced by: A 0002957706 | ||
| 167 | A 0002957706 | MASTER CYLINDER |
| Repalced by: A 0012958706 | ||
| 167 | A 0012958706 | MASTER CYLINDER |
| CLUTCH | ||
| 168 | A 0002951583 | BOOT |
| 169 | N 000472019000 | LOCK RING |
| A 0009974235 | PLUG | |
| Repalced by: A 0009971186 | ||
| 170 | A 0009971186 | PLUG |
| 175 | A 3092950036 | INTERMEDIATE PIECE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 180 | A 0005862929 | REPAIR KIT |
| LESS PISTON | ||
| 180 | A 0005865229 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 000 295 77 06 | ||
| A 0002903112 | REPAIR KIT | |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 87 06 | ||
| 183 | N 000931006115 | SCREW |
| Repalced by: N 000933006151 | ||
| 183 | N 000933006151 | SCREW |
| MASTER CYLINDER TO SUPPORT | ||
| M 6X50,TO 000 295 77 06 | ||
| 183 | N 000933006147 | SCREW |
| MASTER CYLINDER TO SUPPORT | ||
| M 6X45,TO 000 295 91 06 | ||
| 184 | A 3092950053 | SPACER TUBE |
| MASTER CYLINDER TO SUPPORT | ||
| TO 000 295 91 06 | ||
| 185 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 185 | N 913004006001 | NUT |
| MASTER CYLINDER TO SUPPORT | ||
| 186 | A 1152900639 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 186 | A 3102900339 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 187 | A 1102950250 | BUSHING |
| 190 | A 1102950571 | SCREW |
| Repalced by: A 1152950172 | ||
| 190 | A 1152950172 | NUT |
| ROD TO LEVER | ||
| 192 | A 1232950150 | BUSHING |
| ROD TO LEVER | ||
| 194 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 194 | N 304017008016 | SCREW |
| ROD TO LEVER | ||
| M 8X16 | ||
| 196 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 196 | N 304017008018 | SCREW |
| ROD TO LEVER | ||
| M 8X35 | ||
| 198 | N 000439008213 | NUT |
| ROD TO LEVER | ||
| 198 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 198 | N 913004008001 | NUT |
| ROD TO LEVER | ||
| 200 | N 912004008102 | LOCK WASHER |
| ROD TO LEVER | ||
| 202 | A 3092950035 | HOSE |
| CLUTCH | ||
| 204 | A 1079970881 | GROMMET |
| Repalced by: A 0079975881 | ||
| 204 | A 0079975881 | GROMMET |
| SLAVE CYLINDER | ||
| 206 | A 1072950073 | LOCK |
| Repalced by: A 1072950173 | ||
| 206 | A 1072950173 | LOCK |
| SLAVE CYLINDER | ||
| 208 | A 3092951040 | BRACKET |
| AT TRANSMISSION CASE | ||
| 210 | N 000933007032 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 7X22 | ||
| 212 | N 000125007408 | WASHER |
| BRACKET TO TRANSMISSION | ||
| A 3092900013 | LINE | |
| Repalced by: A 3404201129 | ||
| 214 | A 3404201129 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 700 MM | ||
| 214 | A 3404201129 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 700 MM | ||
| 214 | A 3404201629 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 950 MM | ||
| 214 | A 3404201629 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 950 MM | ||
| A 3092900813 | LINE | |
| Repalced by: A 3404200629 | ||
| 216 | A 3404200629 | LINE |
| FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER | ||
| 450 MM | ||
| 216 | A 3404200629 | LINE |
| FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER | ||
| 450 MM | ||
| 216 | A 3404200429 | LINE |
| FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER | ||
| 350 MM | ||
| 218 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 218 | N 916016008200 | CLAMP |
| LINES TO FRAME | ||
| 220 | N 913010006106 | RIVETED NUT |
| LINES TO FRAME | ||
| 222 | N 000000001147 | SCREW |
| LINES TO FRAME | ||
| M 6X20 | ||
| 224 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 224 | N 304017008021 | SCREW |
| LINES TO FRAME | ||
| 226 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 226 | N 000125008443 | WASHER |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 228 | A 0009972781 | GROMMET |
| Repalced by: A 0009972881 | ||
| 228 | A 0009972881 | GROMMET |
| SLAVE CYLINDER | ||
| 229 | A 0099973882 | HOSE |
| SLAVE CYLINDER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
