Transporto priemonė: LF 408 G,LF 409; VIN numerio dalis: 309053

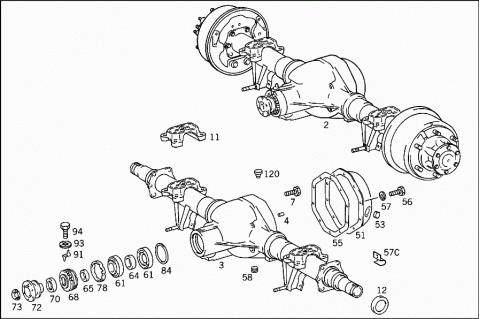

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 3093502700 | REAR AXLE |
| Repalced by: A 3093504300 | ||
| 002 | A 3093504300 | REAR AXLE |
| Repalced by: A 3093505600 | ||
| 002 | A 3093505600 | REAR AXLE |
| WITH BRAKES;RATIO: | ||
| 39:6 | ||
| 002 | A 3093505400 | REAR AXLE |
| WITH BRAKES;RATIO: | ||
| 45:7 | ||
| A 3093504100 | REAR AXLE | |
| Repalced by: A 3093505500 | ||
| 002 | A 3093505500 | REAR AXLE |
| WITH BRAKES;RATIO: | ||
| 41:7 | ||
| A 3093504200 | REAR AXLE | |
| Repalced by: A 3093505600 | ||
| 002 | A 3093505600 | REAR AXLE |
| WITH BRAKES;RATIO: | ||
| 41:7 | ||
| 003 | A 3093500520 | AXLE HOUSING |
| Repalced by: A 3093500920 | ||
| 003 | A 3093500920 | AXLE HOUSING |
| WITH REAR AXLE TUBES | ||
| 004 | N 000007006205 | CYLINDRICAL PIN |
| AXLE HOUSING | ||
| 007 | N 000931014024 | SCREW |
| BEARING COVER TO AXLE HOUSING | ||
| 009 | A 3193570482 | OIL COLLECTOR |
| Repalced by: A 3093570082 | ||
| 009 | A 3093570082 | OIL COLLECTOR |
| REAR AXLE TUBE | ||
| 011 | A 3093250212 | SPRING SADDLE |
| REAR AXLE TUBE | ||
| 012 | A 3093560015 | THRUST RING |
| Repalced by: A 6673560115 | ||
| 012 | A 6673560115 | THRUST RING |
| LEFT AND RIGHT | ||
| A 3193500127 | DIFFERENTIAL CASE | |
| Repalced by: A 3093503623 | ||
| A 3193500227 | DIFFERENTIAL CASE | |
| Repalced by: A 3093503623 | ||
| 020 | A 3093503623 | DIFFERENTIAL GEAR |
| Repalced by: A 3093506323 | ||
| 020 | A 3093506323 | DIFFERENTIAL GEAR |
| LESS RING GEAR AND PINION | ||
| 023 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 023 | N 304017010047 | SCREW |
| COVER TO DIFFERENTIAL CASE | ||
| 025 | A 3193530815 | SIDE GEAR |
| 025 | A 3093530015 | SIDE GEAR |
| NUMBER OF TEETH: | ||
| "16" | ||
| 027 | A 3095860035 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| A 3093530014 | DIFFERENTIAL PINION | |
| Repalced by: A 3093500040 | ||
| 027 | A 3095860135 | REPAIR KIT |
| Repalced by: A 3093500040 | ||
| 027 | A 3093500040 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 028 | A 3193530514 | DIFFERENTIAL PINION |
| NUMBER OF TEETH: | ||
| 10 | ||
| 029 | A 3193530624 | SPHERICAL WASHER |
| 1.00 MM | ||
| 031 | A 3193534352 | SPACER WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 031 | A 3193534552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.70 MM | ||
| 031 | A 6693530062 | THRUST WASHER |
| Repalced by: A 6693531362 | ||
| 031 | A 6693531362 | THRUST WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 031 | A 6693530162 | THRUST WASHER |
| Repalced by: A 6693531362 | ||
| 031 | A 6693531362 | THRUST WASHER |
| AS REQUIRED | ||
| 1.35 MM | ||
| 031 | A 6693530262 | THRUST WASHER |
| Repalced by: A 6693531562 | ||
| 031 | A 6693531562 | THRUST WASHER |
| AS REQUIRED | ||
| 1.40 MM | ||
| 031 | A 6693530362 | THRUST WASHER |
| AS REQUIRED | ||
| 1.45 MM | ||
| 031 | A 6693530462 | THRUST WASHER |
| Repalced by: A 6693531762 | ||
| 031 | A 6693531762 | THRUST WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 031 | A 6693530662 | THRUST WASHER |
| Repalced by: A 6693531962 | ||
| 031 | A 6693531962 | THRUST WASHER |
| AS REQUIRED | ||
| 1.60 MM | ||
| 031 | A 6693530762 | THRUST WASHER |
| AS REQUIRED | ||
| 1.65 MM | ||
| 031 | A 6693530862 | THRUST WASHER |
| Repalced by: A 6693532162 | ||
| 031 | A 6693532162 | THRUST WASHER |
| AS REQUIRED | ||
| 1.70 MM | ||
| 031 | A 6693530962 | THRUST WASHER |
| AS REQUIRED | ||
| 1.75 MM | ||
| 031 | A 6693531062 | THRUST WASHER |
| Repalced by: A 6693532362 | ||
| 031 | A 6693532362 | THRUST WASHER |
| AS REQUIRED | ||
| 1.80 MM | ||
| 031 | A 6693531162 | THRUST WASHER |
| AS REQUIRED | ||
| 1.85 MM | ||
| 035 | A 3193530020 | DIFFERENTIAL SPIDER |
| Repalced by: A 3093530020 | ||
| 035 | A 3093530020 | DIFFERENTIAL SPIDER |
| A 3093500139 | RING GEAR AND PINION | |
| Repalced by: A 3093500939 | ||
| 040 | A 3093500939 | RING GEAR AND PINION |
| Repalced by: A 3093501539 | ||
| 040 | A 3093501539 | RING GEAR AND PINION |
| RATIO: | ||
| 39:6 | ||
| 040 | A 3093501839 | RING GEAR AND PINION |
| RATIO: | ||
| 45:7 | ||
| A 3093500439 | RING GEAR AND PINION | |
| Repalced by: A 3093500739 | ||
| A 3193500639 | RING GEAR AND PINION | |
| Repalced by: A 3193500839 | ||
| 040 | A 3093500739 | RING GEAR AND PINION |
| RATIO: | ||
| 41:7 | ||
| 040 | A 3193500839 | RING GEAR AND PINION |
| Repalced by: A 3093501639 | ||
| 040 | A 3093501639 | RING GEAR AND PINION |
| RATIO: | ||
| 41:7 | ||
| 042 | A 3199901701 | SCREW |
| Repalced by: A 3199901801 | ||
| 042 | A 3199901901 | SCREW |
| Repalced by: A 6709900501 | ||
| 042 | A 6709900501 | SCREW |
| RING GEAR TO DIFFERENTIAL CASE | ||
| 043 | A 0019818905 | TAPERED ROLLER BEARING |
| DIFFERENTIAL GEAR IN REAR AXLE HOUSING | ||
| 043 | A 0029811905 | TAPERED ROLLER BEARING |
| DIFFERENTIAL GEAR IN REAR AXLE HOUSING | ||
| 043 | A 0029812205 | TAPERED ROLLER BEARING |
| DIFFERENTIAL GEAR IN REAR AXLE HOUSING | ||
| 043 | A 0079815505 | TAPERED ROLLER BEARING |
| DIFFERENTIAL GEAR IN REAR AXLE HOUSING | ||
| 045 | A 3193530825 | SCREW COLLAR |
| DIFFERENTIAL GEAR ADJUSTMENT | ||
| 047 | A 3193530273 | LOCK |
| Repalced by: A 6693530073 | ||
| 047 | A 6693530073 | LOCK |
| DIFFERENTIAL GEAR ADJUSTMENT | ||
| 048 | N 000933008005 | SCREW |
| DIFFERENTIAL GEAR ADJUSTMENT | ||
| 049 | N 006797008120 | TOOTHED WASHER |
| DIFFERENTIAL GEAR ADJUSTMENT | ||
| 051 | A 3093500021 | COVER |
| Repalced by: A 6733500021 | ||
| 051 | A 6733500021 | COVER |
| Repalced by: A 6733510408 | ||
| 051 | A 6733510408 | COVER |
| REAR AXLE HOUSING | ||
| 053 | A 1869970032 | SCREW PLUG |
| Repalced by: A 3529970032 | ||
| 053 | A 3529970032 | SCREW PLUG |
| OIL FILLING | ||
| 055 | A 3193510280 | GASKET |
| COVER TO DIFFERENTIAL CASE | ||
| TO 309 350 00 21 | ||
| 055 | A 6733510080 | GASKET |
| COVER TO DIFFERENTIAL CASE | ||
| TO 673 350 00 21 | ||
| 056 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 056 | N 304017010028 | SCREW |
| COVER TO DIFFERENTIAL CASE | ||
| M10X18,TO 309 350 00 21 | ||
| 056 | N 914112010016 | SCREW |
| COVER TO DIFFERENTIAL CASE | ||
| M 10X20,TO 673 350 00 21 | ||
| 057 | N 912004010102 | LOCK WASHER |
| COVER TO DIFFERENTIAL CASE | ||
| 057C | A 3129951020 | CLAMP |
| LINE MOUNTING | ||
| 058 | A 3529970032 | SCREW PLUG |
| OIL DRAIN | ||
| A 3199810705 | TAPERED ROLLER BEARING | |
| Repalced by: A 0029818505 | ||
| A 0029814305 | TAPERED ROLLER BEARING | |
| Repalced by: A 0029819405 | ||
| 061 | A 0029818505 | TAPERED ROLLER BEARING |
| DRIVE PINION | ||
| 061 | A 0029819405 | TAPERED ROLLER BEARING |
| DRIVE PINION | ||
| 061 | A 0059814505 | TAPERED ROLLER BEARING |
| DRIVE PINION | ||
| 064 | A 3193530751 | SPACER RING |
| AS REQUIRED | ||
| 15.00 MM | ||
| 064 | A 3193530651 | SPACER RING |
| AS REQUIRED | ||
| 15.60 MM | ||
| 064 | A 3093530251 | SPACER RING |
| AS REQUIRED | ||
| 12.00 MM | ||
| 064 | A 3093530151 | SPACER RING |
| AS REQUIRED | ||
| 12.60 MM | ||
| 065 | A 3193530551 | SPACER RING |
| AS REQUIRED | ||
| 10.00 MM | ||
| 068 | A 3193531025 | SCREW COLLAR |
| DRIVE PINION | ||
| 070 | A 0009975146 | SEAL RING |
| Repalced by: A 0129973047 | ||
| 070 | A 0129973047 | SEAL RING |
| FLANGE TO DRIVE PINION | ||
| 070 | A 0119977347 | SEAL RING |
| FLANGE TO DRIVE PINION | ||
| 072 | A 3193500645 | FLANGE |
| Repalced by: A 3193500745 | ||
| 072 | A 3193500745 | FLANGE |
| 073 | A 3193530126 | NUT |
| Repalced by: A 6013510072 | ||
| 073 | A 6013510072 | NUT |
| FLANGE TO DRIVE PINION | ||
| 078 | A 3103534952 | SPACER WASHER |
| Repalced by: A 3193534952 | ||
| 078 | A 3193534952 | SPACER WASHER |
| AS REQUIRED | ||
| 10.40 MM | ||
| 078 | A 3193535152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.50 MM | ||
| 078 | A 3193535452 | SPACER WASHER |
| AS REQUIRED | ||
| 10.65 MM | ||
| 078 | A 3193536052 | SPACER WASHER |
| AS REQUIRED | ||
| 10.95 MM | ||
| 078 | A 3093530951 | SPACER RING |
| AS REQUIRED | ||
| 7.50 MM | ||
| 078 | A 3093531151 | SPACER RING |
| AS REQUIRED | ||
| 7.55 MM | ||
| 078 | A 3093531951 | SPACER RING |
| AS REQUIRED | ||
| 7.70 MM | ||
| 078 | A 3093532151 | SPACER RING |
| AS REQUIRED | ||
| 7.75 MM | ||
| 078 | A 3093532951 | SPACER RING |
| AS REQUIRED | ||
| 7.90 MM | ||
| 078 | A 3093533151 | SPACER RING |
| AS REQUIRED | ||
| 7.95 MM | ||
| 084 | A 3193534652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 084 | A 3193534752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.25 MM | ||
| 084 | A 3193536252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 084 | A 3193536352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.45 MM | ||
| 084 | A 3193534852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 084 | A 3193536552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 089 | A 3199810001 | CYLINDR. ROLLER BEARING |
| PINION,INSIDE | ||
| 089 | A 0039812101 | CYLINDR. ROLLER BEARING |
| PINION,INSIDE | ||
| 089 | A 0039812801 | CYLINDR. ROLLER BEARING |
| PINION,INSIDE | ||
| 090 | N 000471025002 | LOCK RING |
| PINION,INSIDE | ||
| 091 | A 3193530273 | LOCK |
| Repalced by: A 6693530073 | ||
| 091 | A 6693530073 | LOCK |
| DRIVE PINION | ||
| 093 | N 006797008120 | TOOTHED WASHER |
| DRIVE PINION | ||
| 094 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 094 | N 304017008039 | SCREW |
| DRIVE PINION | ||
| A 3093501047 | DRUM HUB | |
| Repalced by: A 3093560402 | ||
| 097 | A 3093560402 | DRUM HUB |
| 099 | A 3194020471 | WHEEL MOUNTING BOLT |
| Repalced by: A 3094020271 | ||
| 099 | A 3094020271 | WHEEL MOUNTING BOLT |
| WHEEL HUB | ||
| 100 | A 3199900005 | STUD |
| REAR AXLE SHAFT TO HUB | ||
| 102 | A 3193560282 | OIL COLLECTOR |
| WHEEL BEARING | ||
| 103 | A 0019818405 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 55 MM | ||
| 103 | A 0019818605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 55 MM | ||
| 103 | A 0029812405 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 55 MM | ||
| 103 | A 0009804102 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 60.325 MM | ||
| 103 | A 0009804402 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 60.325 MM | ||
| 103 | A 0009804502 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 60.325 MM | ||
| 103 | A 0029816205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 60.325 MM | ||
| 106 | A 3093560051 | SPACER RING |
| WHEEL BEARING | ||
| 107 | A 0009971446 | SEAL RING |
| Repalced by: A 0199975847 | ||
| 107 | A 0199975847 | SEAL RING |
| WHEEL BEARING | ||
| 109 | A 0019818905 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 109 | A 0029811905 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 109 | A 0029812205 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 109 | A 0079815505 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 113 | A 3193570252 | SPACER WASHER |
| Repalced by: A 3093560052 | ||
| 113 | A 3093560052 | SPACER WASHER |
| WHEEL BEARING | ||
| 114 | A 3199900060 | NUT |
| WHEEL BEARING | ||
| 115 | N 070952050102 | LOCK PLATE |
| WHEEL BEARING | ||
| 116 | A 3093570101 | REAR AXLE SHAFT |
| Repalced by: A 3093570401 | ||
| 116 | A 3093570401 | REAR AXLE SHAFT |
| 117 | N 912004010102 | LOCK WASHER |
| REAR AXLE SHAFT TO HUB | ||
| 118 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 118 | N 304032010002 | NUT |
| REAR AXLE SHAFT TO HUB | ||
| 120 | A 3123501090 | VALVE |
| Repalced by: A 3833510065 | ||
| 120 | A 3833510065 | FITTING |
| AXLE BREATHING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
