Transporto priemonė: LF 408 G; VIN numerio dalis: 309054
Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

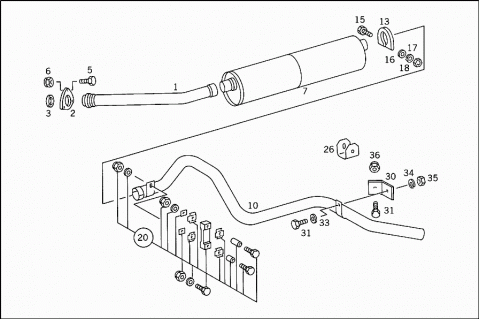

| 001 | A 3094900319 | EXHAUST PIPE |
| FRONT | ||
| 001 | A 3094900919 | EXHAUST PIPE |
| FRONT | ||
| 001 | A 3094900619 | EXHAUST PIPE |
| FRONT | ||
| 001 | A 3094900619 | EXHAUST PIPE |
| FRONT | ||
| 002 | A 3094920013 | FLANGE |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 003 | N 915035000009 | SEAL RING |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 005 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 005 | N 304017008053 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 006 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 006 | A 0009903250 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 3194901501 | EXHAUST MUFFLER | |
| Repalced by: A 3194901601 | ||
| 007 | A 3194901601 | EXHAUST MUFFLER |
| 010 | A 3094900121 | EXHAUST PIPE |
| REAR | ||
| 010 | A 3094900221 | EXHAUST PIPE |
| REAR | ||
| 010 | A 3094901221 | EXHAUST PIPE |
| REAR | ||
| 010 | A 3094901321 | EXHAUST PIPE |
| REAR | ||
| 010 | A 3094903321 | EXHAUST PIPE |
| REAR | ||
| 010 | A 3094903321 | EXHAUST PIPE |
| REAR | ||
| 010 | A 3094903421 | EXHAUST PIPE |
| REAR | ||
| 010 | A 3094903421 | EXHAUST PIPE |
| REAR | ||

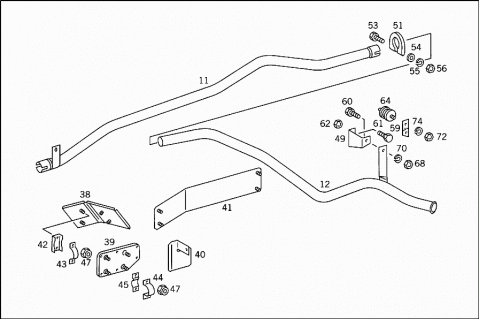

| 011 | A 3094903821 | EXHAUST PIPE |
| REAR,FRONT PART | ||
| 011 | A 3094903821 | EXHAUST PIPE |
| REAR,FRONT PART | ||
| 011 | A 3094901421 | EXHAUST PIPE |
| REAR,FRONT PART | ||
| 011 | A 3094903621 | EXHAUST PIPE |
| REAR,FRONT PART | ||
| A 3094903921 | EXHAUST PIPE | |
| Repalced by: A 3094904721 | ||
| 012 | A 3094904721 | EXHAUST PIPE |
| REAR;REAR PART | ||
| 012 | A 3094904821 | EXHAUST PIPE |
| REAR;REAR PART | ||
| A 1204910240 | CLAMP | |
| Repalced by: A 1144920040 | ||
| 013 | A 1144920040 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 013 | A 3094920040 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 015 | N 000931008251 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 016 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 016 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 017 | N 912004008102 | LOCK WASHER |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 018 | N 304032008006 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| A 3095860049 | REPAIR KIT | |
| Repalced by: A 3094900037 | ||
| 020 | A 3094900037 | SUSPENSION |
| EXHAUST PIPE SUSPENSION | ||
| 026 | A 3094921019 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 030 | A 3094921819 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 030 | A 3094921819 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 031 | N 000931008266 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X40 | ||
| 031 | N 000931008244 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X45 | ||
| 031 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 031 | N 304017008021 | SCREW |
| BRACKET TO SUPPORT | ||
| 031 | N 000933010105 | SCREW |
| BRACKET TO SUPPORT | ||
| 033 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 033 | N 000125008443 | WASHER |
| BRACKET TO SUPPORT | ||
| 034 | N 912004008102 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 035 | N 304032008006 | NUT |
| BRACKET TO SUPPORT | ||
| 036 | N 913002010001 | NUT |
| BRACKET TO SUPPORT | ||
| 038 | A 3094900430 | PROTECTIVE PLATE |
| SPARE WHEEL COVERING | ||
| 038 | A 3094900330 | PROTECTIVE PLATE |
| SPARE WHEEL COVERING | ||
| 038 | A 3094900330 | PROTECTIVE PLATE |
| SPARE WHEEL COVERING | ||
| 039 | A 3094900730 | PROTECTIVE PLATE |
| SPARE WHEEL COVERING | ||
| 040 | A 3094920030 | PROTECTIVE PLATE |
| BEHIND EXHAUST MUFFLER | ||
| 040 | A 3094920030 | PROTECTIVE PLATE |
| BEHIND EXHAUST MUFFLER | ||
| 041 | A 3094902330 | PROTECTIVE PLATE |
| AT BODY BOTTOM SIDE | ||
| 042 | A 3094920641 | BRACKET |
| HEAT SHIELD MOUNTING | ||
| 042 | A 3094920641 | BRACKET |
| HEAT SHIELD MOUNTING | ||
| 042 | A 3094920641 | BRACKET |
| HEAT SHIELD MOUNTING | ||
| 043 | A 3099950010 | CLAMP |
| HEAT SHIELD MOUNTING | ||
| 043 | A 3099950010 | CLAMP |
| HEAT SHIELD MOUNTING | ||
| 043 | A 3099950010 | CLAMP |
| HEAT SHIELD MOUNTING | ||
| 044 | A 3104921041 | BRACKET |
| HEAT SHIELD MOUNTING | ||
| 044 | A 3104921041 | BRACKET |
| HEAT SHIELD MOUNTING | ||
| 045 | A 3104921141 | BRACKET |
| HEAT SHIELD MOUNTING | ||
| 045 | A 3104921141 | BRACKET |
| HEAT SHIELD MOUNTING | ||
| A 0019908851 | NUT | |
| Repalced by: N 913004006004 | ||
| 047 | N 913004006004 | NUT |
| HEAT SHIELD MOUNTING | ||
| 047 | N 913004006004 | NUT |
| HEAT SHIELD MOUNTING | ||
| 049 | A 3094920116 | SUPPORT |
| TAIL PIPE | ||
| 049 | A 3094920416 | SUPPORT |
| TAIL PIPE | ||
| 051 | A 3094920040 | CLAMP |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 051 | A 3094920040 | CLAMP |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 053 | N 000931008251 | SCREW |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 054 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 054 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 055 | N 912004008102 | LOCK WASHER |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 055 | N 912004008102 | LOCK WASHER |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 056 | N 304032008006 | NUT |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 059 | A 3094922119 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 059 | A 3094922119 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 060 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 060 | N 304014008002 | SCREW |
| RUBBER BUFFER TO BRACKET | ||
| 060 | N 304014008002 | SCREW |
| RUBBER BUFFER TO BRACKET | ||
| 061 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 061 | N 304017008021 | SCREW |
| RUBBER BUFFER TO BRACKET | ||
| 062 | N 304032008006 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 062 | N 304032008006 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| A 0009886310 | RUBBER MOUNTING | |
| Repalced by: A 0019873140 | ||
| A 0019873140 | RUBBER BUFFER | |
| Repalced by: A 0019875340 | ||
| 064 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 064 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 065 | A 3094920530 | PROTECTIVE PLATE |
| REAR EXHAUST PIPE | ||
| 066 | A 3094922230 | PROTECTIVE PLATE |
| REAR EXHAUST PIPE | ||
| 068 | N 304032008006 | NUT |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 070 | N 912004008102 | LOCK WASHER |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 072 | N 000934010014 | NUT |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 074 | N 912004010102 | LOCK WASHER |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||

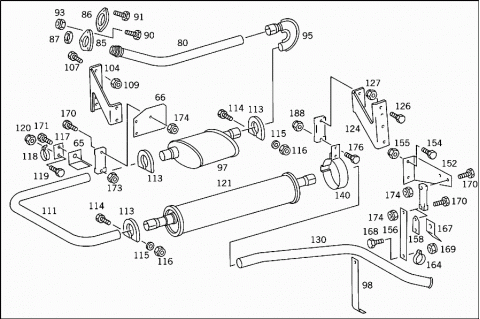

| 080 | A 3094902419 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 080 | A 3094902419 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 080 | A 3094902819 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 080 | A 3094926201 | FRONT EXHAUST PIPE |
| FRONT PART | ||
| 080 | A 3094926201 | FRONT EXHAUST PIPE |
| FRONT PART | ||
| 080 | A 3094926301 | FRONT EXHAUST PIPE |
| FRONT PART | ||

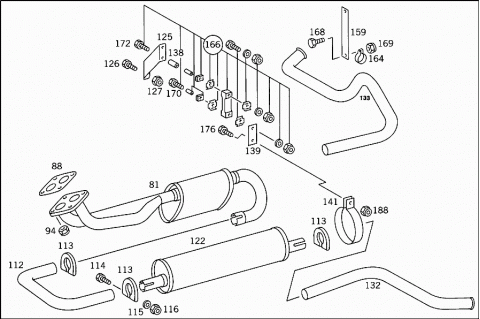

| 081 | A 3094903919 | EXHAUST PIPE |
| Repalced by: A 3094904019 | ||
| 081 | A 3094904019 | EXHAUST PIPE |
| WITH PRE-MUFFLER | ||

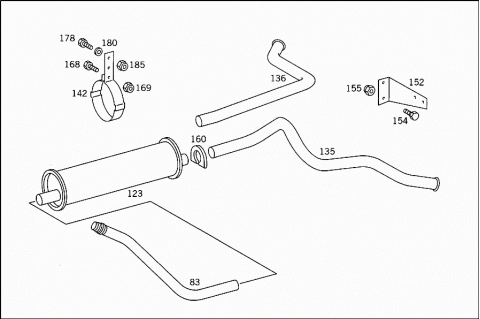

| 083 | A 3094902519 | EXHAUST PIPE |
| FRONT | ||
| 085 | A 3094920245 | FLANGE |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 1074920345 | FLANGE | |
| Repalced by: A 1264920745 | ||
| 086 | A 1264920745 | FLANGE |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 087 | N 915035000009 | SEAL RING |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 088 | A 1234920080 | FLANGE GASKET |
| Repalced by: A 1234920380 | ||
| 088 | A 1234920380 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 088 | A 1234920280 | FLANGE GASKET |
| Repalced by: A 1234920380 | ||
| 088 | A 1234920380 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 090 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 090 | N 304017008053 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 091 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 091 | N 304017008028 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 8X50 | ||
| 093 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 093 | A 0009903250 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 094 | N 999901010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 3094900123 | PIPE ELBOW | |
| Repalced by: A 3094920133 | ||
| 095 | A 3094920133 | PIPE ELBOW |
| 097 | A 3094900701 | EXHAUST MUFFLER |
| FRONT | ||
| 098 | A 3094923241 | BRACKET |
| PIPE ELBOW AND MUFFLER TO FRONT SUPPORT | ||
| 104 | A 3094920516 | SUPPORT |
| FRONT EXHAUST PIPE | ||
| 104 | A 3094920516 | SUPPORT |
| CENTRAL EXHAUST PIPE | ||
| 107 | N 000933010128 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 107 | N 000933010128 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 109 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 109 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 109 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| A 3094900122 | EXHAUST PIPE | |
| Repalced by: A 3094923601 | ||
| 111 | A 3094923601 | FRONT EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| 112 | A 3094927101 | FRONT EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| A 1074900141 | CLAMP | |
| Repalced by: A 1074900041 | ||
| 113 | A 1074900041 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 113 | A 1074900041 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 114 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 114 | N 304017008043 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M 8X55 | ||
| 114 | N 304017008043 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M 8X55 | ||
| 115 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 115 | N 000125008443 | WASHER |
| CLAMP TO EXHAUST PIPE | ||
| 115 | N 000433008406 | WASHER |
| CLAMP TO EXHAUST PIPE | ||
| 116 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 116 | A 1201420072 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 116 | A 1201420072 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 117 | A 3094922841 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 117 | A 3094922841 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 118 | N 071555050500 | CLAMP |
| CENTRAL EXHAUST PIPE | ||
| 119 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 119 | N 304017008034 | SCREW |
| CENTRAL EXHAUST PIPE | ||
| 120 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 120 | A 1201420072 | NUT |
| CENTRAL EXHAUST PIPE | ||
| 121 | A 3094900801 | EXHAUST MUFFLER |
| (MAIN MUFFLER) | ||
| 122 | A 6014901801 | EXHAUST MUFFLER |
| (MAIN MUFFLER) | ||
| 123 | A 3094900901 | EXHAUST MUFFLER |
| (MAIN MUFFLER) | ||
| 124 | A 3094920516 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 125 | A 3094920616 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 126 | N 000933010128 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 127 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 127 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||

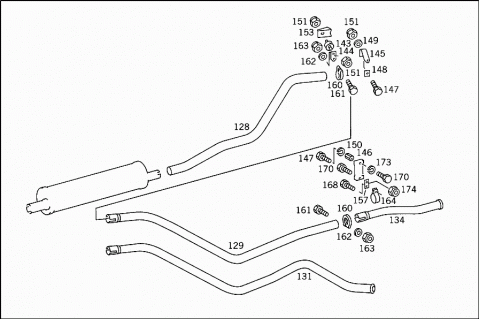

| 128 | A 3094922801 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 128 | A 3094922801 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 128 | A 3094922901 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 128 | A 3094927704 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 129 | A 3094926004 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 129 | A 3094926104 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 130 | A 3094925604 | REAR EXHAUST PIPE |
| 131 | A 3094926504 | REAR EXHAUST PIPE |
| REAR PART | ||
| 132 | A 3104921704 | REAR EXHAUST PIPE |
| 133 | A 3094927904 | REAR EXHAUST PIPE |
| 134 | A 3094926304 | REAR EXHAUST PIPE |
| REAR PART | ||
| 135 | A 3094925404 | REAR EXHAUST PIPE |
| Repalced by: A 3094927504 | ||
| 135 | A 3094927504 | REAR EXHAUST PIPE |
| 136 | A 3094925504 | REAR EXHAUST PIPE |
| A 3094921641 | BRACKET | |
| A 3094910050 | BUSHING | |
| Repalced by: A 3094280053 | ||
| 138 | A 3094280053 | SPACER TUBE |
| EXHAUST MUFFLER TO SUPPORT | ||
| 139 | A 3184923841 | BRACKET |
| Repalced by: A 3184923441 | ||
| 139 | A 3184923441 | BRACKET |
| BRACKET TO DAMPING PAD | ||
| 140 | A 3094910141 | BRACKET |
| EXHAUST MUFFLER TO DAMPING PAD | ||
| 141 | A 3184910041 | BRACKET |
| EXHAUST MUFFLER TO BRACKET | ||
| 142 | A 3094910041 | BRACKET |
| AT MUFFLER SUPPORT | ||
| 143 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 144 | A 3094921841 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 145 | A 3094922641 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 146 | A 3094920172 | NUT |
| AT FRAME | ||
| 147 | N 000933010105 | SCREW |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| M 10X25 | ||
| 147 | N 000933010105 | SCREW |
| AT SIDE MEMBER | ||
| M 10X25 | ||
| 148 | N 000436011004 | WASHER |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 149 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 149 | N 000125010532 | WASHER |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 149 | N 000125010532 | WASHER |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 150 | N 912004010102 | LOCK WASHER |
| AT SIDE MEMBER | ||
| 151 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 151 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 151 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 152 | A 3094921341 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 152 | A 3094921341 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 152 | A 3094921341 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 153 | A 3094921741 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 154 | N 000933010128 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 154 | N 000933010128 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 154 | N 000933010128 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 155 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 155 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 155 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 155 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 156 | A 3094921441 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET | ||
| 157 | A 3094922841 | BRACKET |
| EXHAUST PIPE TO NUT | ||
| 158 | A 3094921841 | BRACKET |
| EXHAUST PIPE TO NUT | ||
| 159 | A 3184924841 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET | ||
| A 1074900141 | CLAMP | |
| Repalced by: A 1074900041 | ||
| 160 | A 1074900041 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 160 | A 1074900041 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 160 | A 1074900041 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 160 | A 1074900041 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 160 | A 1074900041 | CLAMP |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 161 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 161 | N 304017008043 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8X55 | ||
| 161 | N 304017008043 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8X55 | ||
| 162 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 162 | N 000125008443 | WASHER |
| CLAMP TO BRACKET AND TO PIPE | ||
| 162 | N 000433008406 | WASHER |
| CLAMP TO BRACKET AND TO PIPE | ||
| 163 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 163 | A 1201420072 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 163 | A 1201420072 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 164 | N 071555050503 | CLAMP |
| Repalced by: N 000000001641 | ||
| 164 | N 000000001641 | CLAMP |
| Repalced by: A 9424310043 | ||
| 164 | A 9424310043 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 164 | A 9424310043 | CLAMP |
| EXHAUST PIPE TO NUT | ||
| 164 | A 9424310043 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 164 | A 9424310043 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| A 3095860049 | REPAIR KIT | |
| Repalced by: A 3094900037 | ||
| 166 | A 3094900037 | SUSPENSION |
| EXHAUST PIPE SUSPENSION | ||
| 166 | A 3094900037 | SUSPENSION |
| INTERMEDIATE PIECE,FRONT | ||
| 166 | A 3094900037 | SUSPENSION |
| FRONT EXHAUST PIPE | ||
| 166 | A 3094900037 | SUSPENSION |
| EXHAUST MUFFLER | ||
| 166 | A 3094900037 | SUSPENSION |
| TAIL PIPE | ||
| 166 | A 3094900037 | SUSPENSION |
| EXHAUST PIPE TO NUT | ||
| 166 | A 3094900037 | SUSPENSION |
| TAIL PIPE | ||
| 166 | A 3094900037 | SUSPENSION |
| EXHAUST PIPE SUSPENSION | ||
| 167 | A 3094920530 | PROTECTIVE PLATE |
| TO DAMPING PAD | ||
| 167 | A 3094920530 | PROTECTIVE PLATE |
| TO DAMPING PAD | ||
| 168 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 168 | N 304017008034 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 8X25 | ||
| 168 | N 304017008034 | SCREW |
| EXHAUST PIPE TO NUT | ||
| M 8X25 | ||
| 168 | N 304017008034 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 8X25 | ||
| 168 | N 304017008034 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 8X25 | ||
| 169 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 169 | A 1201420072 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 169 | A 1201420072 | NUT |
| EXHAUST PIPE TO NUT | ||
| 169 | A 1201420072 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 169 | A 1201420072 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 170 | N 000931008266 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X40 | ||
| 170 | N 000931008266 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X40 | ||
| 170 | N 000931008266 | SCREW |
| EXHAUST PIPE TO NUT | ||
| M 8X40 | ||
| 171 | N 000931008244 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X45 | ||
| 171 | N 000931008244 | SCREW |
| EXHAUST PIPE TO NUT | ||
| M 8X45 | ||
| 172 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 172 | N 304017008053 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X60 | ||
| 172 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 172 | N 304017008043 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X55 | ||
| 173 | N 912004008102 | LOCK WASHER |
| EXHAUST PIPE TO NUT | ||
| 174 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 174 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 176 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 176 | N 304017008021 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| M 8X20 | ||
| 178 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 178 | N 304017008034 | SCREW |
| EXHAUST MUFFLER TO DAMPING PAD | ||
| 180 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 180 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO DAMPING PAD | ||
| 180 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 185 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 185 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO DAMPING PAD | ||
| 188 | A 0019907751 | NUT |
| Repalced by: N 913004008007 | ||
| 188 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 188 | A 1201420072 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||

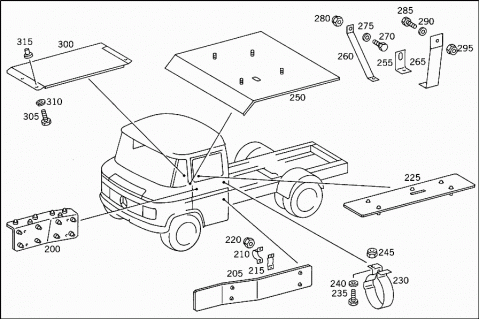

| 200 | A 3094903130 | PROTECTIVE PLATE |
| CLUTCH CYLINDER | ||
| 205 | A 3094901630 | PROTECTIVE PLATE |
| FUEL PUMP | ||
| 210 | A 3104921041 | BRACKET |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 215 | A 3104921141 | BRACKET |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 220 | N 913004006004 | NUT |
| PROTECTIVE PLATE | ||
| 225 | A 3094902130 | PROTECTIVE PLATE |
| CAB FLOOR | ||
| 230 | A 3094922441 | BRACKET |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 235 | N 304017006026 | SCREW |
| Repalced by: N 304017006026 | ||
| 235 | N 304017006026 | SCREW |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| M 6X40 | ||
| 240 | N 000125006421 | WASHER |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| A 0019908851 | NUT | |
| Repalced by: N 913004006004 | ||
| 245 | N 913004006004 | NUT |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 250 | A 3094903430 | PROTECTIVE PLATE |
| CAB FLOOR | ||
| 255 | A 3094922941 | BRACKET |
| PROTECTIVE PLATE | ||
| 260 | A 3094923041 | BRACKET |
| PROTECTIVE PLATE | ||
| 265 | A 3094923141 | BRACKET |
| PROTECTIVE PLATE | ||
| 270 | N 000933010105 | SCREW |
| BRACKET TO FRAME | ||
| 275 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 275 | N 000125010532 | WASHER |
| BRACKET TO FRAME | ||
| 280 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 280 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 285 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 285 | N 304017008021 | SCREW |
| BRACKET TO FRAME | ||
| 290 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 290 | N 000125008443 | WASHER |
| BRACKET TO FRAME | ||
| 295 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 295 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 300 | A 3094903330 | PROTECTIVE PLATE |
| CAB FLOOR | ||
| 305 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 305 | N 304017008034 | SCREW |
| PROTECTIVE PLATE | ||
| 310 | N 912004008102 | LOCK WASHER |
| PROTECTIVE PLATE | ||
| 315 | N 913010008300 | RIVETED NUT |
| PROTECTIVE PLATE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
