Transporto priemonė: LF 408 G; VIN numerio dalis: 309054

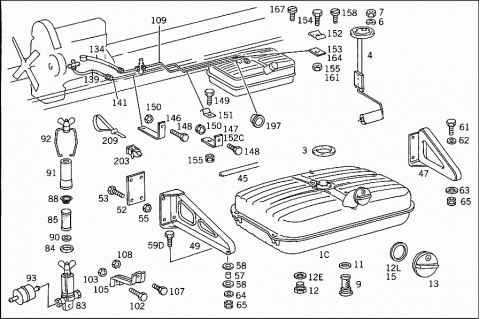

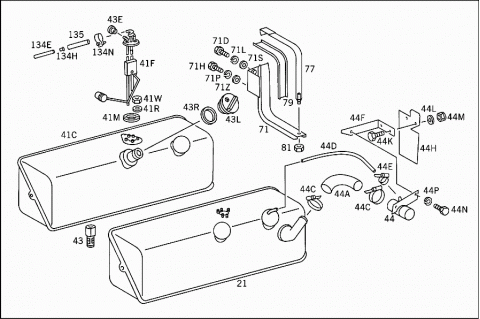

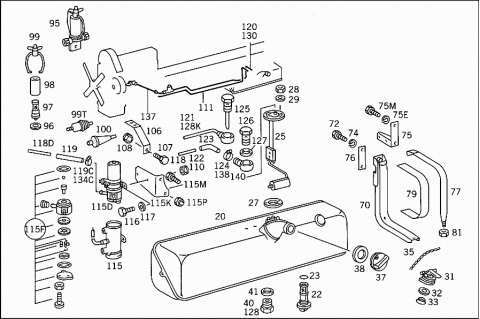

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3194702201 | FUEL TANK | |
| Repalced by: A 3094708801 | ||
| 001 | A 3094705901 | FUEL TANK |
| Repalced by: A 3094708801 | ||
| 001C | A 3094708801 | FUEL TANK |
| 003 | A 1104710180 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 004 | A 0005425217 | SENDER UNIT |
| Repalced by: A 0015427517 | ||
| 004 | A 0015427517 | SENDER UNIT |
| 006 | N 000137005203 | SPRING WASHER |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 007 | N 000934005008 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 009 | A 1204700186 | FUEL STRAINER |
| 011 | N 007603027100 | SEAL RING |
| AT SCREEN | ||
| 012 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 012 | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| 012E | N 915035000017 | SEAL RING |
| AT TANK | ||
| A 0004710780 | GASKET | |
| Repalced by: A 1104710280 | ||
| 012L | A 1104710280 | GASKET |
| 013 | A 0004717430 | FILLER CAP |
| Repalced by: A 1244700005 | ||
| 013 | A 1244700005 | FILLER CAP |
| Repalced by: A 0004700730 | ||
| 013 | A 0004700730 | FILLER CAP |
| Repalced by: A 9014700005 | ||
| 013 | A 9014700005 | FILLER CAP |
| Repalced by: A 9014700105 | ||
| 013 | A 9014700105 | FILLER CAP |
| 015 | A 1154710079 | SEAL RING |
| 020 | A 3094703101 | FUEL TANK |
| Repalced by: A 3094703001 | ||
| 020 | A 3094705101 | FUEL TANK |
| Repalced by: A 3094705401 | ||
| 020 | A 3094701701 | FUEL TANK |
| Repalced by: A 3094701801 | ||
| 020 | A 3094701801 | FUEL TANK |
| 020 | A 3094703001 | FUEL TANK |
| 020 | A 3094700301 | FUEL TANK |
| 021 | A 3094705401 | FUEL TANK |
| 022 | A 3214700006 | FUEL STRAINER |
| Repalced by: A 3604700506 | ||
| 022 | A 3604700506 | FUEL STRAINER |
| 023 | A 0029977245 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 025 | A 0015429717 | SENDER UNIT |
| 027 | A 3524710080 | GASKET |
| Repalced by: A 4044710080 | ||
| 027 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 028 | N 000934005008 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 029 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 031 | A 3094700005 | FILLER CAP |
| 032 | A 3099970040 | SEAL RING |
| 033 | A 3094710076 | WASHER |
| 035 | A 3034700031 | CHAIN |
| A 1104700605 | FILLER CAP | |
| Repalced by: A 0004715130 | ||
| 037 | A 0004715130 | FILLER CAP |
| 038 | A 0004710780 | GASKET |
| Repalced by: A 1104710280 | ||
| 038 | A 1104710280 | GASKET |
| 040 | N 000908016001 | SCREW PLUG |
| AT TANK | ||
| 041 | N 915035000014 | SEAL RING |
| AT TANK | ||
| 041C | A 3094708301 | FUEL TANK |
| 041C | A 3094708601 | FUEL TANK |
| 041C | A 3094708501 | FUEL TANK |
| 041F | A 0045425117 | SENDER UNIT |
| Repalced by: A 0075424117 | ||
| 041F | A 0075424117 | SENDER UNIT |
| 041M | A 3524710080 | GASKET |
| Repalced by: A 4044710080 | ||
| 041M | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 041R | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 041W | N 000934005008 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 043 | A 3094700006 | FUEL STRAINER |
| 043E | A 1109870245 | LOCKING CAP |
| Repalced by: A 0009873745 | ||
| 043E | A 0009873745 | LOCKING CAP |
| RETURN | ||
| 043L | A 0004717430 | FILLER CAP |
| Repalced by: A 1244700005 | ||
| 043L | A 1244700005 | FILLER CAP |
| Repalced by: A 0004700730 | ||
| 043L | A 0004700730 | FILLER CAP |
| Repalced by: A 9014700005 | ||
| 043L | A 9014700005 | FILLER CAP |
| Repalced by: A 9014700105 | ||
| 043L | A 9014700105 | FILLER CAP |
| 043R | A 1154710079 | SEAL RING |
| A 3094710081 | BOOT | |
| (FILLER PIPE) | ||
| A 0009908720 | SCREW | |
| ON SIDE PANEL | ||
| 044 | A 3094701220 | FILLER NECK |
| 044A | A 3099972282 | HOSE |
| FROM TANK TO FITTING | ||
| 044C | N 900288066004 | CLAMP |
| FROM TANK TO FITTING | ||
| 044D | N 073379014101 | HOSE |
| FROM TANK TO FITTING | ||
| 044E | N 916033021100 | CLAMP |
| FROM TANK TO FITTING | ||
| 044F | A 3094710641 | BRACKET |
| Repalced by: A 6204750340 | ||
| 044F | A 6204750340 | BRACKET |
| FROM TANK TO FITTING | ||
| 044H | A 3094710187 | COVERING |
| FROM TANK TO FITTING | ||
| 044K | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 044K | N 304017006020 | SCREW |
| COVERING TO BRACKET | ||
| 044L | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 044L | N 009021006208 | WASHER |
| COVERING TO BRACKET | ||
| 044M | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 044M | N 913004006001 | NUT |
| COVERING TO BRACKET | ||
| 044N | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 044N | N 304017008021 | SCREW |
| BRACKET TO BODY | ||
| M 8X20 | ||
| 044P | N 912004008102 | LOCK WASHER |
| BRACKET TO BODY | ||
| 045 | A 0009876870 | RUBBER SECTION |
| 840 MM | ||
| 047 | A 3094700242 | SUPPORT |
| Repalced by: A 3094703242 | ||
| 047 | A 3094701942 | SUPPORT |
| Repalced by: A 3094703242 | ||
| 047 | A 3094703242 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 047 | A 3094703242 | SUPPORT |
| FUEL TANK TO FRAME | ||
| A 3094700342 | SUPPORT | |
| Repalced by: A 3094703442 | ||
| A 3094702042 | SUPPORT | |
| Repalced by: A 3094703442 | ||
| 047 | A 3094703442 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 049 | A 3094700042 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 049 | A 3094700042 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 049 | A 3094700142 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 052 | A 3094750184 | SHIM |
| SUPPORT TO FRAME | ||
| 053 | N 000933010157 | SCREW |
| SUPPORT TO FRAME | ||
| M 10X28 | ||
| 055 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 055 | N 910113010000 | NUT |
| SUPPORT TO FRAME | ||
| A 3094710053 | SPACER TUBE | |
| Repalced by: A 3094710153 | ||
| 057 | A 3094710153 | SPACER TUBE |
| FUEL TANK TO SUPPORT | ||
| 058 | A 3194710081 | BOOT |
| Repalced by: A 1119900340 | ||
| 058 | A 1119900340 | WASHER |
| Repalced by: A 0039902940 | ||
| 058 | A 0039902940 | WASHER |
| FUEL TANK TO SUPPORT | ||
| 059D | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 059D | N 304017008034 | SCREW |
| FUEL TANK TO SUPPORT | ||
| M 8X25 | ||
| 059D | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 059D | N 304017008027 | SCREW |
| FUEL TANK TO SUPPORT | ||
| M 8X30 | ||
| 061 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 061 | N 304017008018 | SCREW |
| FUEL TANK TO SUPPORT | ||
| M 8X35 | ||
| 062 | A 1119900340 | WASHER |
| Repalced by: A 0039902940 | ||
| 062 | A 0039902940 | WASHER |
| FUEL TANK TO SUPPORT | ||
| 063 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 063 | N 009021008213 | WASHER |
| FUEL TANK TO SUPPORT | ||
| 064 | N 000125013008 | WASHER |
| 065 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 065 | N 913004008001 | NUT |
| FUEL TANK TO SUPPORT | ||
| 070 | A 3094700642 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 070 | A 3094701742 | SUPPORT |
| Repalced by: A 3094702442 | ||
| 070 | A 3094702442 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 070 | A 3094701342 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 070 | A 3094701042 | SUPPORT |
| Repalced by: A 3094701842 | ||
| 070 | A 3094701842 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 071 | A 3094702842 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 071 | A 3094702842 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 071D | N 000933010176 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 071D | N 000933010176 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 071H | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 071H | N 304017008034 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 8X25 | ||
| 071H | N 304017008034 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 8X25 | ||
| 071L | N 912004010102 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 071P | N 912004008102 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 071S | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 071S | N 000125010532 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 071Z | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 071Z | N 000125008443 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 072 | N 000933010105 | SCREW |
| FUEL TANK TO FRAME | ||
| M 10X25 | ||
| 072 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 072 | N 304017010002 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 10X30 | ||
| 074 | N 912004010102 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 075 | A 3094700181 | BRACKET |
| CONSOLE TO SIDE MEMBER | ||
| 075E | N 912004010102 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 075M | N 000933010105 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 10X25 | ||
| 076 | A 3094750284 | SHIM |
| 077 | A 3144700240 | STRAP |
| FUEL TANK TO CONSOLE | ||
| 079 | A 3149870214 | RUBBER STRIP |
| FUEL TANK TO CONSOLE | ||
| 081 | N 000934010014 | NUT |
| FUEL TANK TO CONSOLE | ||
| 083 | A 0004778301 | FUEL FILTER |
| 084 | A 0004772880 | GASKET |
| 085 | A 0004775015 | FILTER ELEMENT |
| 088 | A 0009940837 | SNAP RING |
| 090 | A 0004772980 | GASKET |
| 091 | A 0004771516 | FILTER BOWL |
| 092 | A 0004771318 | MOUNTING BOW |
| 093 | A 0014773801 | FUEL FILTER |
| KNECHT | ||
| 093 | A 0014773901 | FUEL FILTER |
| MANN | ||
| 095 | A 0004776801 | FUEL FILTER |
| Repalced by: A 0014774301 | ||
| 095 | A 0014774301 | FUEL FILTER |
| 095 | A 0014778001 | FUEL FILTER |
| 096 | A 0004771980 | GASKET |
| TO 001 477 43 01 | ||
| 096 | A 0004771360 | SEAL RING |
| TO 001 477 80 01 | ||
| 097 | A 0004773015 | FILTER ELEMENT |
| Repalced by: A 0004775815 | ||
| 097 | A 0004775815 | FILTER ELEMENT |
| TO 001 477 43 01 | ||
| 097 | A 0004777415 | FILTER ELEMENT |
| TO 001 477 80 01 | ||
| 098 | A 0004770216 | FILTER BOWL |
| TO 001 477 43 01 | ||
| 098 | A 0004771816 | FILTER BOWL |
| TO 001 477 80 01 | ||
| 099 | A 0004770918 | MOUNTING BOW |
| TO 001 477 43 01 | ||
| 099 | A 0004770918 | MOUNTING BOW |
| TO 001 477 80 01 | ||
| 099T | A 0014774201 | FUEL FILTER |
| 100 | A 0014773301 | FUEL FILTER |
| Repalced by: A 0014775601 | ||
| 100 | A 0014775601 | FUEL FILTER |
| 102 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 102 | N 304017006020 | SCREW |
| FUEL FILTER TO BRACKET | ||
| M 6X20 | ||
| 103 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 103 | N 913002006009 | NUT |
| FUEL FILTER TO BRACKET | ||
| 105 | A 3140940641 | BRACKET |
| FUEL FILTER | ||
| 106 | A 3094761236 | BRACKET |
| Repalced by: A 3094761336 | ||
| 106 | A 3094761336 | BRACKET |
| FUEL FILTER | ||
| 107 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 108 | N 913002010001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| A 3094700564 | LINE | |
| Repalced by: A 3104282301 | ||
| 109 | A 3104282301 | LINE |
| FROM FUEL TANK TO FILTER | ||
| A 3094708964 | LINE | |
| Repalced by: A 3104282301 | ||
| A 3094708964 | LINE | |
| 110 | A 0004290801 | LINE |
| FROM FUEL TANK TO FILTER | ||
| A 3094700864 | LINE | |
| Repalced by: A 3104282301 | ||
| A 3094709664 | LINE | |
| Repalced by: A 3104282301 | ||
| 111 | A 3094701464 | LINE |
| Repalced by: A 3094702665 | ||
| 115 | A 0010915101 | FUEL PUMP |
| Repalced by: A 0020910001 | ||
| 115D | A 0020910001 | FUEL PUMP |
| Repalced by: A 0020918401 | ||
| 115D | A 0020918401 | FUEL PUMP |
| 12 V | ||
| 115F | A 0000900398 | REPAIR KIT |
| TO 002 091 00 01 | ||
| 115K | A 3094750640 | BRACKET |
| AT SIDE MEMBER | ||
| 115M | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 115M | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 115P | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 115P | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 116 | N 000933006102 | SCREW |
| PUMP TO BRACKET | ||
| 117 | N 000125006421 | WASHER |
| PUMP TO BRACKET | ||
| 118 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 118 | N 913002006009 | NUT |
| PUMP TO BRACKET | ||
| 118D | A 0004290801 | LINE |
| FROM FUEL PUMP TO FILTER | ||
| 119 | A 1004761126 | HOSE |
| Repalced by: N 073379008200 | ||
| 119 | N 073379008200 | HOSE |
| FUEL LINE TO FEED PUMP | ||
| 119C | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 119C | N 000000000665 | CLAMP |
| FUEL LINE TO FEED PUMP | ||
| A 3094700765 | LINE | |
| Repalced by: A 3094702665 | ||
| 120 | A 3094701564 | LINE |
| A 3094701265 | LINE | |
| Repalced by: A 3094702665 | ||
| A 3094701764 | LINE | |
| Repalced by: A 3104282301 | ||
| A 3094709564 | LINE | |
| Repalced by: A 3104282301 | ||
| A 3094705264 | LINE | |
| Repalced by: A 3104282301 | ||
| A 3094709864 | LINE | |
| Repalced by: A 3094702665 | ||
| A 3094705864 | LINE | |
| Repalced by: A 3104282301 | ||
| A 3094709264 | LINE | |
| Repalced by: A 3094702665 | ||
| A 3094706164 | LINE | |
| Repalced by: A 3104282301 | ||
| A 3094709364 | LINE | |
| Repalced by: A 3094702665 | ||
| 121 | A 3094702665 | LINE |
| FROM TANK TO FILTER | ||
| 8X0,7 MM | ||
| 121 | A 3094702665 | LINE |
| FROM FUEL TANK TO PUMP | ||
| 8X0,7 MM | ||
| 121 | A 3094702665 | LINE |
| RETURN; FROM FITTING TO FUEL TANK | ||
| 8X0,7 MM | ||
| 122 | A 0004290801 | LINE |
| RETURN; FROM FITTING TO FUEL TANK | ||
| 123 | A 0004295235 | HOSE |
| RETURN; FROM FITTING TO FUEL TANK | ||
| 124 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 124 | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 124 | N 000000000665 | CLAMP |
| RETURN; FROM FITTING TO FUEL TANK | ||
| 125 | A 3094700126 | RISING PIPE |
| FUEL LINE TO TANK | ||
| 126 | N 915036012203 | HOLLOW SCREW |
| FUEL LINE TO TANK | ||
| 127 | N 915035000014 | SEAL RING |
| FUEL LINE TO TANK | ||
| 128 | N 000908016001 | SCREW PLUG |
| FUEL LINE TO TANK | ||
| 128K | A 3094703665 | LINE |
| FROM FUEL TANK TO FILTER | ||
| 128K | A 3094703765 | LINE |
| FROM FUEL TANK TO FILTER | ||
| 128K | A 3094703565 | LINE |
| FROM FUEL TANK TO FILTER | ||
| A 3094700464 | LINE | |
| Repalced by: A 3104282301 | ||
| A 3094282201 | LINE | |
| Repalced by: A 3104282301 | ||
| 130 | A 3104282301 | LINE |
| FROM FUEL TANK TO FILTER | ||
| 1000 MM | ||
| A 3094700364 | LINE | |
| Repalced by: A 3104282301 | ||
| A 3104282301 | LINE | |
| A 1809900066 | UNION SCREW | |
| 134 | N 073379008200 | HOSE |
| 8X12 MM | ||
| 134C | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 134C | N 000000000665 | CLAMP |
| FUEL LINE TO FEED PUMP | ||
| 134C | N 000000000665 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| A 0029971090 | LOOM TIE | |
| Repalced by: A 0039975390 | ||
| A 0039975390 | LOOM TIE | |
| LINE CONNECTION | ||
| N 915062006000 | SLEEVE | |
| LINE CONNECTION | ||
| 134E | A 0089979082 | HOSE |
| FROM TANK TO PUMP | ||
| 134E | A 0089979082 | HOSE |
| RETURN LINE | ||
| 134E | A 0089979082 | HOSE |
| DE-AERATION | ||
| 134H | N 915062006000 | SLEEVE |
| 134N | N 916002008100 | CLAMP |
| FUEL TANK BREATHING | ||
| 135 | A 0004295235 | HOSE |
| 137 | A 0069979582 | HOSE |
| 138 | A 0009971190 | LOOM TIE |
| Repalced by: N 916018011000 | ||
| 138 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 138 | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 138 | N 000000000665 | CLAMP |
| 139 | A 1364760026 | HOSE |
| Repalced by: A 3094760126 | ||
| 139 | A 3094760126 | HOSE |
| 140 | N 915052008016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 8/14 MM | ||
| N 916017011001 | CLAMP | |
| Repalced by: N 000000000665 | ||
| N 000000000665 | CLAMP | |
| A 3094700664 | LINE | |
| Repalced by: A 3404706165 | ||
| 141 | A 3104282301 | LINE |
| FROM HOSE TO TANK | ||
| 141 | A 3104282301 | LINE |
| FROM HOSE TO TANK | ||
| A 3094700764 | LINE | |
| Repalced by: A 3404706165 | ||
| 141 | A 3404706165 | LINE |
| FROM HOSE TO TANK | ||
| 146 | A 3094760036 | BRACKET |
| AT SIDE MEMBER | ||
| 147 | A 3094760136 | BRACKET |
| AT SIDE MEMBER | ||
| 148 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 148 | N 304017008021 | SCREW |
| FUEL LINE TO BRACKET | ||
| 149 | N 000933006102 | SCREW |
| FUEL LINE TO BRACKET | ||
| 150 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 150 | N 913004008001 | NUT |
| FUEL LINE TO BRACKET | ||
| 151 | A 1989950020 | CLAMP |
| FUEL LINE TO BRACKET | ||
| 152 | A 3199950132 | CLAMP |
| Repalced by: A 3379950332 | ||
| 152 | A 3379950332 | CLAMP |
| FUEL LINE TO BRACKET | ||
| 152 | A 3379950332 | CLAMP |
| FUEL LINE TO BRACKET | ||
| 152C | A 3094760136 | BRACKET |
| AT SIDE MEMBER | ||
| 153 | A 3124761036 | BRACKET |
| Repalced by: A 3124761236 | ||
| 153 | A 3124761236 | BRACKET |
| Repalced by: A 3604293140 | ||
| 153 | A 3604293140 | BRACKET |
| FUEL LINES | ||
| 153 | A 3604293140 | BRACKET |
| FUEL LINES | ||
| 154 | N 000933006102 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 155 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 155 | N 913002006009 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 158 | N 000084006197 | SCREW |
| FUEL LINE TO BRACKET | ||
| M 6X16 | ||
| 161 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 161 | N 913004006001 | NUT |
| FUEL LINE TO BRACKET | ||
| 164 | A 3124761036 | BRACKET |
| Repalced by: A 3124761236 | ||
| 164 | A 3124761236 | BRACKET |
| Repalced by: A 3604293140 | ||
| 164 | A 3604293140 | BRACKET |
| AT SIDE MEMBER | ||
| 167 | N 007513006210 | TAPPING SCREW |
| FUEL LINE TO BRACKET | ||
| 167 | N 007513006210 | TAPPING SCREW |
| FUEL LINE TO BRACKET | ||
| 197 | A 3094760150 | BUSHING |
| FUEL LINE TO FRAME | ||
| 197 | A 3094760350 | BUSHING |
| Repalced by: A 0009973481 | ||
| 197 | A 0009973481 | GROMMET |
| FUEL LINE TO FRAME | ||
| 203 | A 0049881378 | CLIP |
| FUEL LINE TO FRAME | ||
| 209 | A 0019978490 | LOOM TIE |
| FUEL LINE TO FRAME | ||
| 376 MM | ||
| 209 | A 0019978390 | LOOM TIE |
| FUEL LINE TO BRACKET | ||
| 280 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
