Transporto priemonė: LF 408 G; VIN numerio dalis: 309054

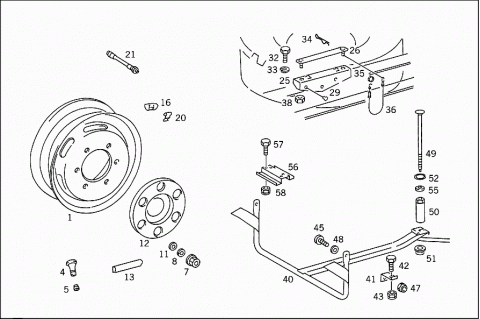

Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3094000202 | DISC WHEEL |
| Repalced by: A 3094001302 | ||
| 001 | A 3094001302 | DISC WHEEL |
| 4.50-16 | ||
| 001 | A 3094001302 | DISC WHEEL |
| 4.50-16 | ||
| 001 | A 3094001902 | DISC WHEEL |
| Repalced by: A 3094002002 | ||
| 001 | A 3094002002 | DISC WHEEL |
| 4.50-16 | ||
| 001 | A 3094002002 | DISC WHEEL |
| 4.50-16 | ||
| 001 | A 3094002002 | DISC WHEEL |
| 4.50-16 | ||
| 001 | A 3094001502 | DISC WHEEL |
| Repalced by: A 3094002002 | ||
| 001 | A 3094002002 | DISC WHEEL |
| 4.50-16 | ||
| 001 | A 3094002002 | DISC WHEEL |
| 4.50-16 | ||
| 004 | A 0004012713 | VALVE |
| Repalced by: A 0004016713 | ||
| 004 | A 0004016713 | VALVE |
| 005 | N 007757008600 | VALVE CAP |
| 007 | N 074361014202 | NUT |
| Repalced by: N 074361014205 | ||
| 007 | N 074361014205 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 008 | N 074361014353 | LOCK WASHER |
| Repalced by: A 9019900047 | ||
| 008 | A 9019900047 | LOCK WASHER |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 011 | A 3194020075 | SPHERICAL RING |
| DISC WHEEL TO REAR AXLE | ||
| 012 | A 3094000925 | HUB CAP |
| Repalced by: A 3104001725 | ||
| 012 | A 3104001725 | HUB CAP |
| FRONT DISC WHEEL | ||
| 013 | A 0009876870 | RUBBER SECTION |
| WHEEL COVERING,FRONT | ||
| 016 | A 1264010494 | BALANCING WEIGHT |
| 50 G | ||
| 016 | A 1264010594 | BALANCING WEIGHT |
| 60 G | ||
| 016 | A 1264010694 | BALANCING WEIGHT |
| 70 G | ||
| 020 | A 3194010028 | BRACKET |
| BALANCING WEIGHT | ||
| 020 | A 1264010828 | BRACKET |
| BALANCING WEIGHT | ||
| 021 | A 0004011313 | VALVE |
| EXTENSION | ||
| 021 | A 0004011413 | VALVE |
| EXTENSION | ||
| 025 | A 3094000339 | BRACKET |
| SPARE WHEEL | ||
| 026 | A 3094000839 | BRACKET |
| SPARE WHEEL | ||
| 029 | N 910005010012 | RIVET |
| BRACKET TO FRAME | ||
| 029 | N 910005010016 | RIVET |
| BRACKET TO FRAME | ||
| 032 | N 308676012012 | SCREW |
| SPARE WHEEL MOUNTING | ||
| 033 | N 074361014351 | LOCK WASHER |
| SPARE WHEEL MOUNTING | ||
| 034 | A 3144030073 | LOCK |
| SPARE WHEEL MOUNTING | ||
| 035 | N 005296020204 | RING |
| SPARE WHEEL MOUNTING | ||
| 036 | N 005686001003 | CHAIN |
| SPARE WHEEL MOUNTING | ||
| 038 | N 000934012022 | NUT |
| SPARE WHEEL MOUNTING | ||
| 040 | A 3094000441 | MOUNTING BOW |
| SPARE WHEEL CARRIER | ||
| 041 | A 3094030240 | BRACKET |
| MOUNTING BRACKET TO FRAME | ||
| 042 | N 000933008145 | SCREW |
| BRACKET TO FRAME | ||
| 043 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 043 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 045 | A 3094030075 | PIN |
| CARRIER TO BRACKET | ||
| 047 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 047 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 048 | N 900055014002 | SPRING WASHER |
| CARRIER TO BRACKET | ||
| 049 | A 3094030371 | SCREW |
| SPARE WHEEL CARRIER | ||
| 049 | A 3094030271 | SCREW |
| SPARE WHEEL CARRIER | ||
| 050 | A 3094000170 | CLAMPING SCREW |
| Repalced by: A 3094000470 | ||
| 050 | A 3094000470 | CLAMPING NUT |
| SPARE WHEEL CARRIER | ||
| 051 | A 0004000072 | NUT |
| SPARE WHEEL CARRIER | ||
| 052 | N 009045008002 | SNAP RING |
| SPARE WHEEL CARRIER | ||
| 055 | N 000125013008 | WASHER |
| 056 | A 3094030740 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 057 | N 000933008145 | SCREW |
| SPARE WHEEL CARRIER | ||
| 058 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 058 | N 913004008001 | NUT |
| SPARE WHEEL CARRIER | ||
| 059 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 059 | N 304017010002 | SCREW |
| REAR SPRING BRACKET TO FRAME | ||
| 060 | N 913002010001 | NUT |
| REAR SPRING BRACKET TO FRAME | ||
| 061 | A 3094003439 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 061 | A 3094003439 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 062 | A 3094030182 | RUBBER BUFFER |
| SPARE WHEEL CARRIER | ||
| 062 | A 3094030182 | RUBBER BUFFER |
| SPARE WHEEL CARRIER | ||
| 063 | A 3094000085 | CHAIN |
| SPARE WHEEL CARRIER | ||
| 063 | A 3094000085 | CHAIN |
| SPARE WHEEL CARRIER | ||
| 065 | A 3094001342 | CONNECTING RAIL |
| SPARE WHEEL CARRIER | ||
| 065 | A 3094001342 | CONNECTING RAIL |
| SPARE WHEEL CARRIER | ||
| 066 | A 0004000072 | NUT |
| SPARE WHEEL CARRIER | ||
| 067 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 067 | N 910113012003 | NUT |
| SPARE WHEEL CARRIER | ||
| 067 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 067 | N 913004008001 | NUT |
| SPARE WHEEL CARRIER | ||
| 067 | N 913004008001 | NUT |
| SPARE WHEEL CARRIER | ||
| 068 | A 3094030471 | SCREW |
| SPARE WHEEL CARRIER | ||
| 068 | A 3094030471 | SCREW |
| SPARE WHEEL CARRIER | ||
| 069 | A 3094000172 | NUT |
| Repalced by: A 0004000072 | ||
| 069 | A 0004000072 | NUT |
| SPARE WHEEL CARRIER | ||
| 069 | A 0004000072 | NUT |
| SPARE WHEEL CARRIER | ||
| 070 | N 912004010102 | LOCK WASHER |
| DISC WHEEL TO SUPPORT | ||
| 072 | N 074361014202 | NUT |
| Repalced by: N 074361014205 | ||
| 072 | N 074361014205 | NUT |
| DISC WHEEL TO SUPPORT | ||
| 072 | N 074361014205 | NUT |
| DISC WHEEL TO SUPPORT | ||
| 073 | N 074361014353 | LOCK WASHER |
| Repalced by: A 9019900047 | ||
| 073 | A 9019900047 | LOCK WASHER |
| DISC WHEEL TO SUPPORT | ||
| 073 | A 9019900047 | LOCK WASHER |
| DISC WHEEL TO SUPPORT | ||
| 075 | A 3094002239 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 075 | A 3094002239 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 076 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 076 | N 304017008021 | SCREW |
| SPARE WHEEL CARRIER | ||
| 076 | N 304017008021 | SCREW |
| SPARE WHEEL CARRIER | ||
| 077 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 077 | N 913004008001 | NUT |
| SPARE WHEEL CARRIER | ||
| 077 | N 913004008001 | NUT |
| SPARE WHEEL CARRIER | ||
| 080 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 080 | N 304017010002 | SCREW |
| REAR SPRING BRACKET TO FRAME | ||
| 080 | N 304017010002 | SCREW |
| REAR SPRING BRACKET TO FRAME | ||
| 083 | N 913002010001 | NUT |
| REAR SPRING BRACKET TO FRAME | ||
| 083 | N 913002010001 | NUT |
| REAR SPRING BRACKET TO FRAME | ||
| 086 | N 000933010105 | SCREW |
| CROSS MEMBER TO FRAME | ||
| 089 | N 913002010001 | NUT |
| CROSS MEMBER TO FRAME | ||
