Transporto priemonė: LKO 408 G,LKO 409; VIN numerio dalis: 309032
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

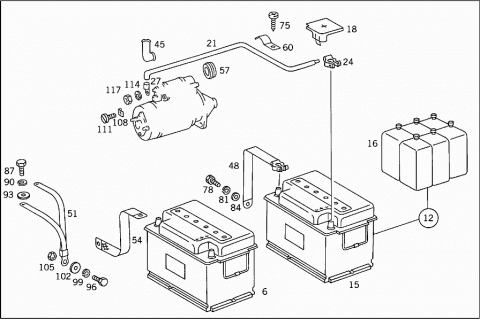

| 006 | A 3875400701 | BATTERY |
| Repalced by: A 0035410001 | ||
| 006 | A 0035410001 | BATTERY |
| 12V / 100AH | ||
| 012 | A 1235400201 | BATTERY |
| Repalced by: A 1405400101 | ||
| 012 | A 1405400101 | BATTERY |
| Repalced by: A 0035419201 | ||
| 012 | A 0035419201 | BATTERY |
| Repalced by: A 0045414601 | ||
| 012 | A 0045414601 | BATTERY |
| PARTS KIT | ||
| 015 | A 0015418001 | BATTERY |
| Repalced by: A 0025414101 | ||
| 015 | A 0025414101 | BATTERY |
| Repalced by: A 0045411501 | ||
| 015 | A 0045411501 | BATTERY |
| Repalced by: A 0045413101 | ||
| 015 | A 0045413101 | BATTERY |
| 12 V/88 AH | ||
| 016 | A 0009890815 | BATTERY ACID BOTTLE SET |
| Repalced by: A 0009891415 | ||
| 016 | A 0009891415 | BATTERY ACID BOTTLE SET |
| 018 | A 0005462335 | BOOT |
| POS. POLE | ||
| 021 | N 922002050000 | ELECTRIC CABLE |
| Repalced by: A 6735460011 | ||
| 021 | A 6735460011 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 024 | N 072332011100 | SOLDERING TERMINAL |
| FROM BATTERY TO STARTING MOTOR | ||
| 027 | N 046234010008 | CABLE SHOE |
| FROM BATTERY TO STARTING MOTOR | ||
| 045 | A 3095460035 | BOOT |
| Repalced by: A 0005460135 | ||
| 045 | A 0005460135 | BOOT |
| POS. CABLE | ||
| 048 | A 3095400031 | NEG. CABLE |
| FROM BATTERY TO BATTERY SUPPORT | ||
| 051 | A 3095400341 | GROUND STRAP |
| Repalced by: A 3135400041 | ||
| 051 | A 3135400041 | GROUND STRAP |
| FROM BELL HOUSING TO CAB SIDE MEMBER | ||
| 051 | A 3095400641 | GROUND STRAP |
| Repalced by: A 3095400741 | ||
| 051 | A 3095400741 | GROUND STRAP |
| FROM BELL HOUSING TO CAB SIDE MEMBER | ||
| 054 | A 3095460120 | GROUND STRAP |
| FROM CAB RIGHT SIDE MEMBER TO FRAME SIDE MEMBER | ||
| 057 | A 1869970781 | GROMMET |
| ELECTRIC CABLE THRU DRIVER'S SEAT BOX | ||
| 060 | A 3049950220 | CLAMP |
| Repalced by: A 3129952420 | ||
| 060 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 060 | A 1109950401 | CLAMP |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 075 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 075 | N 007981006305 | SHEET METAL SCREW |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| A 3095460075 | CLAMP | |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 075 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 075 | N 007981006305 | SHEET METAL SCREW |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 078 | N 000933010128 | SCREW |
| BATTERY CABLE TO BATTERY SUPPORT | ||
| 081 | N 912004010102 | LOCK WASHER |
| BATTERY CABLE TO BATTERY SUPPORT | ||
| 084 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 084 | N 009021010209 | WASHER |
| BATTERY CABLE TO BATTERY SUPPORT | ||
| 087 | N 000125010532 | WASHER |
| Repalced by: N 304017010043 | ||
| 087 | N 304017010043 | SCREW |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| 090 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| 093 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 093 | N 009021010209 | WASHER |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| 096 | N 000933010128 | SCREW |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| 099 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| 102 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 102 | N 009021010209 | WASHER |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| 105 | N 000934010014 | NUT |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| 108 | A 0001510276 | WASHER |
| Repalced by: A 0001510011 | ||
| 108 | A 0001510011 | MOUNTING BOW |
| STARTING MOTOR TERMINAL 50 | ||
| 108 | A 0001510011 | MOUNTING BOW |
| STARTING MOTOR TERMINAL 50 | ||
| 111 | N 007985004123 | SCREW |
| STARTING MOTOR TERMINAL 50 | ||
| 114 | N 912004008102 | LOCK WASHER |
| AT STARTER TERMINAL 30 | ||
| 114 | N 912004010102 | LOCK WASHER |
| AT STARTER TERMINAL 30 | ||
| 117 | N 304032008006 | NUT |
| AT STARTER TERMINAL 30 | ||
| 117 | N 000934010014 | NUT |
| AT STARTER TERMINAL 30 | ||
| A 3095401305 | CABLE HARNESS | |
| Repalced by: A 3095402005 | ||
| A 3095402005 | CABLE HARNESS | |
| CAB MAIN CABLE HARNESS | ||
| A 3095403005 | CABLE HARNESS | |
| CAB MAIN CABLE HARNESS | ||

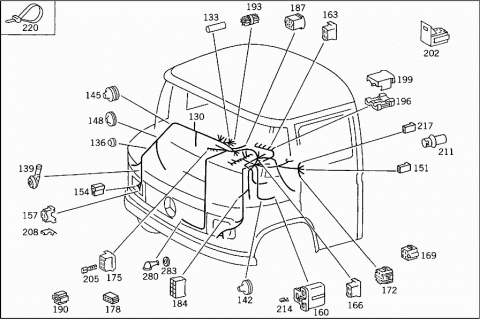

| 130 | A 3095404905 | CABLE HARNESS |
| Repalced by: A 3095404505 | ||
| 130 | A 3095404505 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 130 | A 3095406605 | CABLE HARNESS |
| Repalced by: A 3095407605 | ||
| 130 | A 3095407605 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 130 | A 3095408605 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| A 3095400505 | CABLE HARNESS | |
| A 3095401405 | CABLE HARNESS | |
| CAB MAIN CABLE HARNESS | ||
| 130 | A 3095402105 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 130 | A 3095405005 | CABLE HARNESS |
| Repalced by: A 3095404605 | ||
| 130 | A 3095404605 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 130 | A 3095406705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 130 | A 3095408705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 130 | A 3095400005 | CABLE HARNESS |
| Repalced by: A 3095401805 | ||
| 130 | A 3095401805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 130 | A 3095403205 | CABLE HARNESS |
| Repalced by: A 3095403905 | ||
| 130 | A 3095403905 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 130 | A 3095405105 | CABLE HARNESS |
| Repalced by: A 3095404705 | ||
| 130 | A 3095404705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 130 | A 3095400505 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 130 | A 3095401905 | CABLE HARNESS |
| Repalced by: A 3095404005 | ||
| 130 | A 3095404005 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 130 | A 3095405205 | CABLE HARNESS |
| Repalced by: A 3095404805 | ||
| 130 | A 3095404805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 133 | A 0009970181 | GROMMET |
| 133 | A 0009970381 | GROMMET |
| 133 | A 0009970581 | GROMMET |
| 133 | A 0009970681 | GROMMET |
| 136 | A 1109970481 | GROMMET |
| 136 | A 3109970081 | GROMMET |
| 139 | A 3149970181 | GROMMET |
| 142 | A 3219970281 | GROMMET |
| Repalced by: A 3359970081 | ||
| 142 | A 3359970081 | GROMMET |
| 145 | A 3099970081 | GROMMET |
| 145 | A 3099970681 | GROMMET |
| 148 | A 6018260024 | GROMMET |
| 151 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 154 | A 0025458428 | PLUG |
| Repalced by: A 0015458728 | ||
| 154 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 157 | A 0015456528 | PLUG |
| Repalced by: A 0015458528 | ||
| 157 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 160 | A 0075458728 | COVER |
| Repalced by: A 0055450228 | ||
| 160 | A 0055450228 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 163 | A 0015452428 | PIN BUSHING HOUSING |
| Repalced by: A 0015458428 | ||
| 163 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 166 | A 0035450928 | PLUG |
| Repalced by: A 0015454128 | ||
| 166 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 169 | A 0075457328 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 172 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 175 | A 0035451028 | PIN BUSHING HOUSING |
| Repalced by: A 0015458128 | ||
| 175 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 178 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 184 | A 0015458928 | PIN BUSHING HOUSING |
| Repalced by: A 0015458328 | ||
| 184 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 187 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 190 | A 0015451428 | PLUG |
| Repalced by: A 0025451728 | ||
| 190 | A 0025451728 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 193 | A 0045451428 | PLUG |
| 8-POLE | ||
| 196 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 196 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 196 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 199 | A 0005452403 | CAP |
| 202 | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| 202 | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| 205 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 205 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 205 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 205 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 205 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 205 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 208 | A 0005457926 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 208 | A 0005456626 | PIN BUSHING |
| Repalced by: A 0085459826 | ||
| 208 | A 0085459826 | PIN BUSHING |
| LESS DETENT | ||
| 2.5 MM2 | ||
| 208 | A 0005453626 | PIN BUSHING |
| Repalced by: A 0075457426 | ||
| 208 | A 0075457426 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4 MM2 | ||
| 211 | A 0005451826 | PLUG SOCKET |
| 6-10 MM2 | ||
| 214 | A 0005467940 | PIN BUSHING |
| ALTERNATOR | ||
| 214 | A 0005467840 | PIN BUSHING |
| ALTERNATOR | ||
| 217 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 220 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| 223 | A 3099971181 | GROMMET |
| 226 | A 0085452028 | PIN BUSHING HOUSING |
| TEMPERATURE SWITCH,100 DEGS. | ||
| 229 | A 0095451428 | COVER |
| 232 | A 0015454426 | ROUND PIN BUSHING |
| 235 | A 0005453013 | SWITCH |
| (IGNITION AND LIGHT SWITH) | ||
| 238 | A 0005454813 | SWITCH |
| Repalced by: A 0005455913 | ||
| 238 | A 0005455913 | LIGHT SWITCH |
| 241 | A 3145450001 | FUSE BOX |
| 10-POLE; TERMINALS 1-2-3;5-6;7-8;9-10 SHUNTED | ||
| 244 | A 0005458501 | FUSE BOX |
| 12-POLE;TERMINALS 2-8;9-10;11-12 SHUNTED | ||
| 244 | A 0005458401 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-8,9-12 SHUNTED | ||
| 247 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 247 | N 072581008101 | FUSE |
| 8A | ||
| 250 | N 007985004136 | SCREW |
| CABLE TO FUSE BOX | ||
| M 4X12 | ||
| 253 | N 912004004102 | LOCK WASHER |
| CABLE TO FUSE BOX | ||
| 256 | A 0005452303 | CAP |
| FUSE BOX | ||
| 259 | N 007985005175 | SCREW |
| Repalced by: N 000000001181 | ||
| 259 | N 000000001181 | SCREW |
| FUSE BOX TO BRACKET | ||
| 262 | N 912004005103 | LOCK WASHER |
| FUSE BOX TO BRACKET | ||
| 265 | N 000934005008 | NUT |
| FUSE BOX TO BRACKET | ||
| 268 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 268 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 268 | N 000000001149 | SCREW |
| FUSE BOX | ||
| 271 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 271 | N 913004006001 | NUT |
| FUSE BOX | ||
| 274 | A 3109970181 | GROMMET |
| REGULATOR FEED CABLE TO VENTILATION DUCT | ||
| 274 | A 3109970181 | GROMMET |
| REGULATOR FEED CABLE TO VENTILATION DUCT | ||
| 277 | A 0009954701 | CLAMP |
| Repalced by: N 916016015202 | ||
| 277 | N 916016015202 | CLAMP |
| CABLE TO ALTERNATOR | ||
| 280 | A 0005463335 | BOOT |
| 283 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 283 | N 009021005205 | WASHER |
| 286 | N 000933005059 | SCREW |
| CABLE TO ALTERNATOR | ||
| 289 | N 000137005203 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| 292 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 292 | N 009021005205 | WASHER |
| CABLE TO ALTERNATOR | ||
| 295 | A 0005450176 | WASHER |
| Repalced by: A 0005450376 | ||
| 295 | A 0005450376 | WASHER |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 298 | A 0005450672 | NUT |
| Repalced by: A 0005451072 | ||
| 298 | A 0005451072 | NUT |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 301 | A 3875450037 | BUTTON |
| Repalced by: A 2015400183 | ||
| 301 | A 2015400183 | HANDLE |
| Repalced by: A 2025450081 | ||
| 301 | A 2025450081 | KNOB |
| LIGHT SWITCH | ||
| 304 | A 0005451235 | KEY |
| IGNITION AND LIGHT SWITCH | ||
| 307 | A 0005830296 | RING |
| IGNITION AND LIGHT SWITCH | ||
| 310 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 310 | N 000000001145 | SCREW |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 313 | N 912004006102 | LOCK WASHER |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 316 | N 000934006007 | NUT |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 319 | A 3209950220 | CLAMP |
| Repalced by: A 1989950020 | ||
| 319 | A 1989950020 | CLAMP |
| TO MOUNT MAIN CABLE HARNESS BRANCH-OFF TO WINDSHIELD WIPER MOTOR | ||
| 322 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 322 | N 304017006018 | SCREW |
| CLAMP MOUNTING | ||
| 325 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 328 | A 0029972290 | LOOM TIE |
| Repalced by: A 0019978390 | ||
| 328 | A 0019978390 | LOOM TIE |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| 280 MM | ||
| 331 | A 0009888978 | CLIP |
| TO MOUNT MAIN CABLE HARNESS | ||
| 331 | A 0009881778 | CLIP |
| MAIN CABLE HARNESS TO CAB FLOOR PLATE | ||
| 331 | A 0009883478 | CLIP |
| MAIN CABLE HARNESS TO WINDOW LEVEL GIRDER | ||
| 334 | A 0009885378 | CLIP |
| MAIN CABLE HARNESS TO WINDOW LEVEL GIRDER | ||
| 337 | A 3049951920 | CLAMP |
| Repalced by: A 3049951620 | ||
| 337 | A 3049951620 | CLAMP |
| MAIN CABLE HARNESS TO CAB STAY | ||
| 337 | A 3049951520 | CLAMP |
| MAIN CABLE HARNESS TO CAB STAY | ||
| 340 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 340 | N 000000000460 | SCREW |
| MAIN CABLE HARNESS TO CAB STAY | ||
| 343 | A 0005461143 | BRACKET |
| MAIN CABLE HARNESS TO WINDOW LEVEL GIRDER | ||
| 346 | A 3099870072 | EDGE GUARD SECTION |
| Repalced by: A 0009876870 | ||
| 346 | A 0009876870 | RUBBER SECTION |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| 300 MM | ||

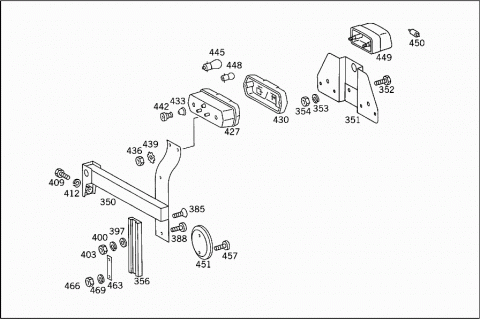

| 350 | A 3095400373 | BRACKET |
| Repalced by: A 3095401873 | ||
| 350 | A 3095401873 | BRACKET |
| LEFT TAIL LAMP | ||
| 350 | A 3095402373 | BRACKET |
| Repalced by: A 3095403873 | ||
| 350 | A 3095403873 | BRACKET |
| LEFT TAIL LAMP | ||
| 350 | A 3095400473 | BRACKET |
| Repalced by: A 3095401973 | ||
| 350 | A 3095401973 | BRACKET |
| RIGHT TAIL LAMP | ||
| 350 | A 3095402773 | BRACKET |
| Repalced by: A 3095403973 | ||
| 350 | A 3095403973 | BRACKET |
| RIGHT TAIL LAMP | ||
| 351 | A 3095440141 | REINFORCEMENT |
| TAIL AND LICENSE PLATE LAMPS | ||
| 352 | N 000933006102 | SCREW |
| TAIL AND LICENSE PLATE LAMPS | ||
| 353 | N 912004006102 | LOCK WASHER |
| TAIL AND LICENSE PLATE LAMPS | ||
| 354 | N 000934006007 | NUT |
| TAIL AND LICENSE PLATE LAMPS | ||
| 356 | A 3525440538 | BRACKET |
| REFLECTOR | ||
| 385 | N 000963006005 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 388 | N 000084006137 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| A 3095440084 | SHIM | |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 397 | N 000125006421 | WASHER |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 400 | N 912004006102 | LOCK WASHER |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 403 | N 000934006007 | NUT |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 409 | N 000933010128 | SCREW |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 409 | N 000933010105 | SCREW |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 412 | N 912004010102 | LOCK WASHER |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 427 | A 0008260144 | TAIL LAMP |
| Repalced by: A 0015445403 | ||
| 427 | A 0015441203 | TAIL LAMP |
| Repalced by: A 0015445403 | ||
| 427 | A 0015445403 | TAIL LAMP |
| Repalced by: A 0025441503 | ||
| 427 | A 0025441503 | TAIL LAMP |
| LEFT | ||
| 427 | A 0015447603 | TAIL LAMP |
| Repalced by: A 0015449203 | ||
| 427 | A 0015449203 | TAIL LAMP |
| LEFT | ||
| 427 | A 0008260444 | TAIL LAMP |
| Repalced by: A 0015445503 | ||
| 427 | A 0015441303 | TAIL LAMP |
| Repalced by: A 0015445503 | ||
| 427 | A 0015445503 | TAIL LAMP |
| Repalced by: A 0025441603 | ||
| 427 | A 0025441603 | TAIL LAMP |
| RIGHT | ||
| 427 | A 0015447703 | TAIL LAMP |
| RIGHT | ||
| 427 | A 0008260244 | TAIL LAMP |
| Repalced by: A 0015445303 | ||
| 427 | A 0015441403 | TAIL LAMP |
| Repalced by: A 0015445303 | ||
| 427 | A 0015445303 | TAIL LAMP |
| Repalced by: A 0025441403 | ||
| 427 | A 0025441403 | TAIL LAMP |
| RIGHT | ||
| 427 | A 0015447503 | TAIL LAMP |
| Repalced by: A 0015449103 | ||
| 427 | A 0015449103 | TAIL LAMP |
| RIGHT | ||
| 427 | A 0008260344 | TAIL LAMP |
| Repalced by: A 0015445203 | ||
| 427 | A 0015441503 | TAIL LAMP |
| Repalced by: A 0015445203 | ||
| 427 | A 0015445203 | TAIL LAMP |
| Repalced by: A 0025441303 | ||
| 427 | A 0025441303 | TAIL LAMP |
| LEFT | ||
| 427 | A 0015447803 | TAIL LAMP |
| LEFT | ||
| 430 | A 0018265390 | LENS |
| LEFT | ||
| 430 | A 0015447790 | LENS |
| LEFT | ||
| 430 | A 0018265490 | LENS |
| RIGHT | ||
| 430 | A 0015447890 | LENS |
| RIGHT | ||
| 433 | A 0009978081 | GROMMET |
| 436 | N 000934006007 | NUT |
| TAIL LAMP TO BRACKET | ||
| 439 | N 006798006103 | SERRATED WASHER |
| TAIL LAMP TO BRACKET | ||
| 442 | A 6019972181 | GROMMET |
| CABLE SEALING AT TAIL LAMPS | ||
| 445 | N 072601012190 | BULB |
| BLINKER AND STOP LIGHTS | ||
| 448 | N 072601012702 | BULB |
| TAIL LIGHT | ||
| 449 | A 0005442534 | LICENSE PLATE LAMP |
| 449 | A 0005442634 | LICENSE PLATE LAMP |
| Repalced by: A 0005442834 | ||
| 449 | A 0005442834 | LICENSE PLATE LAMP |
| 450 | N 072601012130 | BULB |
| 451 | A 0005441605 | REFLECTOR |
| Repalced by: A 0005443305 | ||
| 451 | A 0005443305 | REFLECTOR |
| 457 | N 007985005146 | SCREW |
| REFLECTOR TO BRACKET | ||
| 463 | A 3225440184 | SHIM |
| REFLECTOR TO BRACKET | ||
| 466 | N 000934005008 | NUT |
| REFLECTOR TO BRACKET | ||
| 469 | N 912004005101 | LOCK WASHER |
| REFLECTOR TO BRACKET | ||

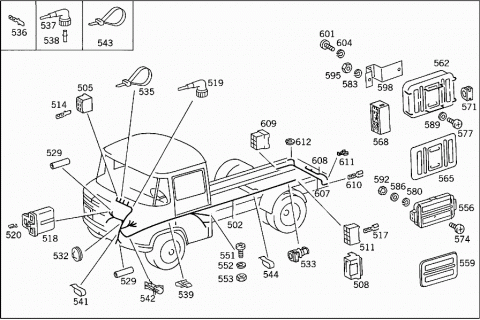

| 502 | A 3095400127 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3095402127 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3105400127 | ELECTRIC CABLE |
| Repalced by: A 3105400327 | ||
| 502 | A 3105400227 | ELECTRIC CABLE |
| Repalced by: A 3105400327 | ||
| 502 | A 3105400327 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3105400327 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3105403727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3105403727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3095400832 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3095400227 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3095402227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3095402227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3105403827 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3105403827 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3095401027 | ELECTRIC CABLE |
| Repalced by: A 3095401327 | ||
| 502 | A 3095401327 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3095402427 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3105400527 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3095400932 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3095400932 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3095402827 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3105400927 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3095401127 | ELECTRIC CABLE | |
| Repalced by: A 3095401427 | ||
| A 3095401427 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3095402627 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3105400627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3105400627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3095401832 | ELECTRIC CABLE |
| Repalced by: A 3095402532 | ||
| 502 | A 3095401632 | ELECTRIC CABLE |
| Repalced by: A 3095402532 | ||
| 502 | A 3095401732 | ELECTRIC CABLE |
| Repalced by: A 3095402532 | ||
| 502 | A 3095402532 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3095407832 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3095407932 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3095403808 | CABLE HARNESS |
| FROM PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 502 | A 3095403908 | CABLE HARNESS |
| FROM PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 505 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 508 | A 0015452828 | PLUG |
| Repalced by: A 0015458228 | ||
| 508 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 511 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 514 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 514 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 517 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 517 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 517 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 518 | A 0055450228 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 519 | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 519 | A 3805402281 | PLUG SOCKET |
| REPAIR SIZE | ||
| M27X1 | ||
| 519 | A 3805402281 | PLUG SOCKET |
| REPAIR SIZE | ||
| M27X1 | ||
| 520 | A 0005467840 | PIN BUSHING |
| ALTERNATOR | ||
| 520 | A 0005467940 | PIN BUSHING |
| ALTERNATOR | ||
| 529 | A 0009970381 | GROMMET |
| 529 | A 0009970581 | GROMMET |
| 532 | A 0009972781 | GROMMET |
| Repalced by: A 0009972881 | ||
| 532 | A 0009972881 | GROMMET |
| 533 | A 0005461237 | GROMMET |
| 535 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| A 3095402632 | ELECTRIC CABLE | |
| STOP LIGHT SWITCH | ||
| 536 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 537 | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 537 | A 3805402281 | PLUG SOCKET |
| REPAIR SIZE | ||
| M 27X1 | ||
| 538 | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M27X1 | ||
| 539 | A 3129951040 | CLAMP |
| Repalced by: A 0005460875 | ||
| 539 | A 0005460875 | CLAMP |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 541 | A 3219950140 | CLAMP |
| Repalced by: A 3099950240 | ||
| 541 | A 3099950240 | CLAMP |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 542 | A 0049881378 | CLIP |
| BRANCH-OFF CABLE TO HORN TO FRAME LEFT SIDE MEMBER | ||
| 542 | A 0049882678 | CLIP |
| BRANCH-OFF CABLE TO HORN TO FRAME LEFT SIDE MEMBER | ||
| 543 | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||
| 544 | A 3529950040 | CLAMP |
| Repalced by: A 3099950140 | ||
| 544 | A 3099950140 | CLAMP |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 551 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 551 | N 000000001145 | SCREW |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 552 | N 912004006102 | LOCK WASHER |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 553 | N 000934006007 | NUT |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 556 | A 0005466141 | CABLE CONNECTOR |
| REAR | ||
| 559 | A 0005460781 | COVERING |
| WITH GASKET | ||
| 562 | A 0005469541 | CABLE CONNECTOR |
| Repalced by: A 0015463341 | ||
| 562 | A 0015463341 | CABLE CONNECTOR |
| Repalced by: A 0015463841 | ||
| 562 | A 0015463841 | CABLE CONNECTOR |
| Repalced by: A 0015465441 | ||
| 562 | A 0015465441 | CABLE CONNECTOR |
| REAR | ||
| 565 | A 0005460481 | COVERING |
| Repalced by: A 0005460581 | ||
| 565 | A 0005460581 | COVERING |
| 568 | A 0045458928 | PLUG |
| Repalced by: A 0105456728 | ||
| 568 | A 0105456728 | PLUG |
| 571 | A 0009872844 | EXPANSION PLUG |
| CABLE CONNECTOR | ||
| 574 | N 007985004179 | SCREW |
| CABLE CONNECTOR TO FRAME | ||
| 577 | N 007985005175 | SCREW |
| Repalced by: N 000000001181 | ||
| 577 | N 000000001181 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| 580 | N 912004004102 | LOCK WASHER |
| CABLE CONNECTOR TO FRAME | ||
| 583 | N 912004005103 | LOCK WASHER |
| CABLE CONNECTOR TO BRACKET | ||
| 586 | N 000125004308 | WASHER |
| CABLE CONNECTOR TO FRAME | ||
| 589 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 589 | N 000433005304 | WASHER |
| CABLE CONNECTOR TO BRACKET | ||
| 592 | N 000934004006 | NUT |
| CABLE CONNECTOR TO FRAME | ||
| 595 | N 000934005008 | NUT |
| CABLE CONNECTOR TO BRACKET | ||
| 598 | A 3095405173 | BRACKET |
| Repalced by: A 6675400273 | ||
| 598 | A 6675400273 | BRACKET |
| CABLE CONNECTOR | ||
| 601 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 601 | N 000000001146 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 601 | N 000000001146 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 601 | N 007985008107 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 604 | N 912004006102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 604 | N 912004006102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 604 | N 912004008102 | LOCK WASHER |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 607 | A 3095408527 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LICENSE PLATE LAMP | ||
| 607 | A 3095403232 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LICENSE PLATE LAMP | ||
| 608 | A 3095409932 | ELECTRIC CABLE |
| FROM TAIL LAMP TO LICENSE PLATE LAMP | ||
| 609 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 610 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 611 | A 0015451326 | PLUG DISTRIBUTOR |
| 2.50 MM2 | ||
| 612 | N 912004008102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||

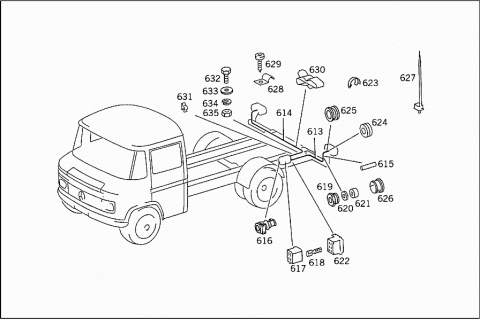

| 613 | A 3095403027 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 613 | A 3095404827 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 613 | A 3095407827 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 613 | A 3095402832 | ELECTRIC CABLE |
| Repalced by: A 3095402932 | ||
| 613 | A 3095402932 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 613 | A 3095406932 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 614 | A 3095400427 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 614 | A 3095400427 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 614 | A 3095407927 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 614 | A 3095407032 | ELECTRIC CABLE |
| Repalced by: A 3095409632 | ||
| 614 | A 3095409632 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 615 | A 0009970381 | GROMMET |
| PIN BUSHING | ||
| 616 | A 3805461937 | GROMMET |
| REAR CABLE CONNECTOR | ||
| 616 | A 0005461237 | GROMMET |
| REAR CABLE CONNECTOR | ||
| 617 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 618 | A 0005455326 | PIN BUSHING |
| 2.5 MM2 | ||
| 618 | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 618 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 618 | A 0075458426 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 618 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 618 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| A 3095440050 | BUSHING | |
| Repalced by: A 0009975486 | ||
| 619 | A 0009970434 | SCREW |
| CABLE SEALING AT TAIL LAMPS | ||
| 620 | A 0009910145 | RING |
| CABLE SEALING AT TAIL LAMPS | ||
| 621 | A 0009975486 | PLUG |
| CABLE SEALING AT TAIL LAMPS | ||
| 622 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 623 | A 0015460144 | CLAMPING PIECE |
| ELECTRIC CABLE TENSILE STRESS RELIEF | ||
| 624 | A 3099970181 | GROMMET |
| ELECTRIC CABLE THRU FRAME SIDE MEMBER | ||
| 625 | A 3129970481 | GROMMET |
| TAIL LAMP CABLES THRU FRAME SIDE MEMBERS | ||
| 625 | A 3129970481 | GROMMET |
| TAIL LAMP CABLES THRU FRAME SIDE MEMBERS | ||
| 625 | A 0009972281 | GROMMET |
| TAIL LAMP CABLES THRU FRAME SIDE MEMBERS | ||
| 625 | A 8339970081 | GROMMET |
| TAIL LAMP CABLES THRU TAIL LAMP BRACKETS | ||
| 626 | A 3094760350 | BUSHING |
| Repalced by: A 0009973481 | ||
| 626 | A 0009973481 | GROMMET |
| TAIL LAMP CABLES THRU FRAME SIDE MEMBERS | ||
| 627 | A 0005461143 | BRACKET |
| ELECTRIC CABLE TO BRACKET | ||
| 628 | N 072571001008 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 628 | N 072571001008 | CLAMP |
| TAL LAMP CABLE TO FRAME | ||
| 629 | A 0009900232 | SCREW |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 629 | A 0009900232 | SCREW |
| TAL LAMP CABLE TO FRAME | ||
| 630 | A 3129951040 | CLAMP |
| Repalced by: A 0005460875 | ||
| 630 | A 0005460875 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 631 | A 3529950040 | CLAMP |
| Repalced by: A 3099950140 | ||
| 631 | A 3099950140 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 632 | N 000933010128 | SCREW |
| GROUND CABLE TO SIDE MEMBER | ||
| 633 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 633 | N 009021010209 | WASHER |
| GROUND CABLE TO SIDE MEMBER | ||
| 634 | N 912004010102 | LOCK WASHER |
| GROUND CABLE TO SIDE MEMBER | ||
| 635 | N 000934010014 | NUT |
| GROUND CABLE TO SIDE MEMBER | ||
| A 3095400838 | ELECTRIC CABLE | |
| FROM SWITCH BOX TO STARTER PUSH BUTTON | ||
| A 3215401939 | ELECTRIC CABLE | |
| FROM SWITCH BOX TO HEATER PLUG STARTING SWITCH | ||
| A 3095400137 | ELECTRIC CABLE | |
| FROM FRONT END TO BACK-UP LIGHT SWITCH & TO BACK-UP LAMP | ||
| A 3095400637 | ELECTRIC CABLE | |
| FROM FRONT END TO BACK-UP LIGHT SWITCH & TO BACK-UP LAMP | ||
| A 3095400237 | ELECTRIC CABLE | |
| FROM FRONT END TO BACK-UP LIGHT SWITCH & TO BACK-UP LAMP | ||
| A 3095400837 | ELECTRIC CABLE | |
| FROM FRONT END TO BACK-UP LIGHT SWITCH & TO BACK-UP LAMP | ||

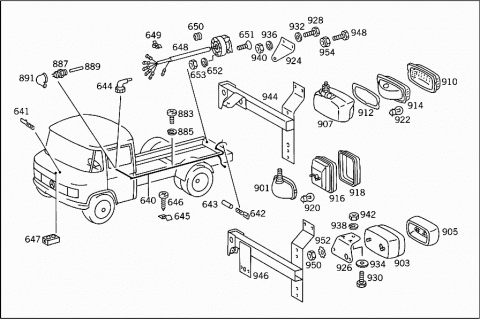

| 640 | A 3095407037 | ELECTRIC CABLE |
| Repalced by: A 3095407137 | ||
| 640 | A 3095406437 | ELECTRIC CABLE |
| Repalced by: A 3095406537 | ||
| 640 | A 3095406837 | ELECTRIC CABLE |
| Repalced by: A 3095407137 | ||
| 640 | A 3095406337 | ELECTRIC CABLE |
| Repalced by: A 3095406537 | ||
| A 3095407137 | ELECTRIC CABLE | |
| FROM FRONT END TO BACK-UP LIGHT SWITCH & TO BACK-UP LAMP | ||
| 640 | A 3095406537 | ELECTRIC CABLE |
| Repalced by: A 3805402181 | ||
| 640 | A 3805402181 | PLUG SOCKET |
| FROM FRONT END TO BACK-UP LIGHT SWITCH & TO BACK-UP LAMP | ||
| 640 | A 3805402181 | PLUG SOCKET |
| FROM FRONT END TO BACK-UP LIGHT SWITCH & TO BACK-UP LAMP | ||
| 640 | A 3095405032 | ELECTRIC CABLE |
| Repalced by: A 3095405232 | ||
| 640 | A 3095405132 | ELECTRIC CABLE |
| Repalced by: A 3095405232 | ||
| 640 | A 3095405232 | ELECTRIC CABLE |
| FROM FRONT END TO BACK-UP LIGHT SWITCH & TO BACK-UP LAMP | ||
| 641 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 641 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 642 | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 642 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 642 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 642 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 642 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 643 | A 0009970381 | GROMMET |
| 644 | A 3805400181 | PLUG SOCKET |
| Repalced by: A 3805402181 | ||
| 644 | A 3805402181 | PLUG SOCKET |
| REPAIR SIZE | ||
| 24X1 MM | ||
| 645 | N 072571001004 | CLAMP |
| LINE TO CROSS MEMBER | ||
| 646 | A 0009900232 | SCREW |
| LINE TO CROSS MEMBER | ||
| A 3125408640 | ELECTRIC CABLE | |
| Repalced by: A 3405400938 | ||
| A 3405400938 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO FUEL PUMP | ||
| A 3095400738 | ELECTRIC CABLE | |
| GROUND CABLE | ||
| 647 | N 072586001200 | CABLE CONNECTOR |
| ELECTRIC CABLES | ||
| 648 | A 3095400007 | CABLE HARNESS |
| WITH TRAILER PLUG SOCKET | ||
| 648 | A 3095400107 | CABLE HARNESS |
| Repalced by: A 3075401827 | ||
| 648 | A 3075401827 | ELECTRIC CABLE |
| WITH TRAILER PLUG SOCKET | ||
| 649 | A 3129951040 | CLAMP |
| Repalced by: A 0005460875 | ||
| 649 | A 0005460875 | CLAMP |
| LINE TO CROSS MEMBER | ||
| 650 | A 0009973481 | GROMMET |
| ELECTRIC CABLE THRU REAR CROSS MEMBER | ||
| 651 | N 000964005004 | SCREW |
| TRAILER PLUG SOCKET TO SUPPORT | ||
| 652 | N 912004005103 | LOCK WASHER |
| TRAILER PLUG SOCKET TO SUPPORT | ||
| 653 | N 000934005008 | NUT |
| TRAILER PLUG SOCKET TO SUPPORT | ||

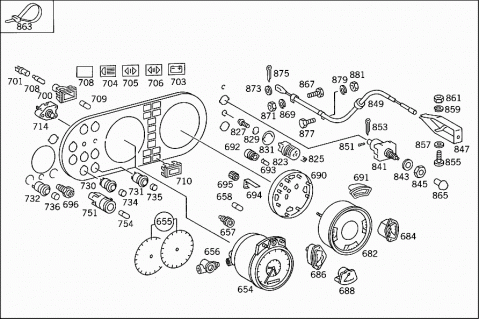

| 654 | A 0055426206 | SPEEDOMETER |
| Repalced by: A 0075422706 | ||
| 654 | A 0075422706 | SPEEDOMETER |
| Repalced by: A 0075429210 | ||
| 654 | A 0055426306 | SPEEDOMETER |
| Repalced by: A 0075422506 | ||
| 654 | A 0075422506 | SPEEDOMETER |
| Repalced by: A 0075429210 | ||
| 654 | A 0055426706 | SPEEDOMETER |
| Repalced by: A 0075429210 | ||
| 654 | A 0055426606 | SPEEDOMETER |
| Repalced by: A 0075422906 | ||
| 654 | A 0075422906 | SPEEDOMETER |
| Repalced by: A 0075429210 | ||
| 654 | A 0075429210 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| 654 | A 0095424310 | TACHOGRAPH |
| Repalced by: A 0095424410 | ||
| 654 | A 0095424410 | TACHOGRAPH |
| Repalced by: A 0085425310 | ||
| 654 | A 0085425310 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| 655 | A 0005423394 | DIAGRAM PAPER |
| TO 007 542 92 10,008 542 53 10 | ||
| 655 | A 0005423394 | DIAGRAM PAPER |
| TO 009 542 43 10,009 542 44 10 | ||
| 655 | A 0005423394 | DIAGRAM PAPER |
| TO 007 542 92 10,008 542 53 10 | ||
| 656 | A 0025429330 | ANGLE DRIVE |
| TO 009 542 43 10,44 10 | ||
| 656 | A 0035427130 | ANGLE DRIVE |
| TO 008 542 53 10 | ||
| 657 | A 0005421347 | COUPLER |
| TACHOGRAPH | ||
| 658 | N 072601012800 | BULB |
| H 12 V/2-W | ||
| 658 | A 0015442594 | BULB |
| 659 | A 0005421840 | BRACKET |
| TACHOGRAPH | ||
| 660 | A 0005421172 | NUT |
| Repalced by: N 000934005008 | ||
| 660 | N 000934005008 | NUT |
| TACHOGRAPH | ||
| 661 | A 0025427407 | FLEXIBLE SHAFT |
| Repalced by: A 0015427507 | ||
| 661 | A 0015427507 | FLEXIBLE SHAFT |
| 2000 MM | ||
| 661 | A 0015427507 | FLEXIBLE SHAFT |
| 2000 MM | ||
| 661 | A 0035422907 | FLEXIBLE SHAFT |
| Repalced by: A 0035421707 | ||
| 661 | A 0035421707 | FLEXIBLE SHAFT |
| FRONT | ||
| 1360 MM | ||
| 661 | A 0035421707 | FLEXIBLE SHAFT |
| FRONT | ||
| 1360 MM | ||
| 662 | A 0045428407 | FLEXIBLE SHAFT |
| Repalced by: A 0055423007 | ||
| 662 | A 0055423007 | FLEXIBLE SHAFT |
| FRONT | ||
| 662 | A 0055425007 | FLEXIBLE SHAFT |
| FRONT | ||
| 662 | A 0035422707 | FLEXIBLE SHAFT |
| FRONT | ||
| 2300 MM | ||
| 662 | A 0035422707 | FLEXIBLE SHAFT |
| FRONT | ||
| 2300 MM | ||
| 662 | A 0015429907 | FLEXIBLE SHAFT |
| FRONT | ||
| 1700 MM | ||
| 662 | A 0015429907 | FLEXIBLE SHAFT |
| FRONT | ||
| 1700 MM | ||
| 662 | A 0045428507 | FLEXIBLE SHAFT |
| FRONT | ||
| 1700 MM | ||
| 662 | A 0045428907 | FLEXIBLE SHAFT |
| Repalced by: A 0065421707 | ||
| 662 | A 0065421707 | FLEXIBLE SHAFT |
| FRONT | ||
| 663 | A 0045423707 | FLEXIBLE SHAFT |
| REAR | ||
| 663 | A 0045423707 | FLEXIBLE SHAFT |
| REAR | ||
| 664 | N 912004006102 | LOCK WASHER |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| 665 | N 000933006201 | SCREW |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| 666 | A 0015425430 | ANGLE DRIVE |
| RATIO: | ||
| 1.411 | ||
| 666 | A 0015425430 | ANGLE DRIVE |
| RATIO: | ||
| 1.411 | ||
| 666 | A 0005427730 | ANGLE DRIVE |
| RATIO: | ||
| 1.333 | ||
| 666 | A 0005427730 | ANGLE DRIVE |
| RATIO: | ||
| 1.333 | ||
| 666 | A 0015423230 | ANGLE DRIVE |
| RATIO: | ||
| 1.375 | ||
| 666 | A 0015428530 | ANGLE DRIVE |
| RATIO: | ||
| 1.294 | ||
| 666 | A 0015428530 | ANGLE DRIVE |
| RATIO: | ||
| 1.294 | ||
| 666 | A 0015422030 | ANGLE DRIVE |
| Repalced by: A 0015422730 | ||
| 666 | A 0015422730 | ANGLE DRIVE |
| RATIO: | ||
| 1.176 | ||
| 666 | A 0015422730 | ANGLE DRIVE |
| RATIO: | ||
| 1.176 | ||
| 666 | A 0015420830 | ANGLE DRIVE |
| RATIO: | ||
| 1.210 | ||
| 666 | A 0015420830 | ANGLE DRIVE |
| RATIO: | ||
| 1.210 | ||
| 666 | A 0015425830 | ANGLE DRIVE |
| RATIO: | ||
| 1.250 | ||
| 666 | A 0015425830 | ANGLE DRIVE |
| RATIO: | ||
| 1.250 | ||
| 667 | A 3875422909 | ADAPTER |
| RATIO: | ||
| 1.250 | ||
| 667 | A 0015424009 | ADAPTER |
| Repalced by: A 3875423109 | ||
| 667 | A 3875423009 | ADAPTER |
| RATIO: | ||
| 1.294 | ||
| 667 | A 0015420009 | ADAPTER |
| Repalced by: A 3875423109 | ||
| 667 | A 3875423109 | ADAPTER |
| RATIO: | ||
| 1.339 | ||
| 667 | A 0005428009 | ADAPTER |
| Repalced by: A 3875423109 | ||
| 667 | A 3875423209 | ADAPTER |
| RATIO: | ||
| 1.412 | ||
| 668 | A 3219970081 | GROMMET |
| Repalced by: A 3359970081 | ||
| 668 | A 3359970081 | GROMMET |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 668 | A 3099971081 | GROMMET |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 669 | A 3039950232 | CLAMP |
| FLEXIBLE SHAFT AND STARTING CABLE TO CROSS MEMBER | ||
| 670 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 670 | N 007981006305 | SHEET METAL SCREW |
| FLEXIBLE SHAFT AND STARTING CABLE TO CROSS MEMBER | ||
| 671 | A 3129952020 | CLAMP |
| 671 | A 3049951920 | CLAMP |
| Repalced by: A 3049951620 | ||
| 671 | A 3049951620 | CLAMP |
| FLEXIBLE SHAFT TO CAB STAY | ||
| 671 | A 3609951901 | CLAMP |
| FLEXIBLE SHAFT TO CAB STAY | ||
| 672 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 672 | N 000000000460 | SCREW |
| FLEXIBLE SHAFT TO CAB STAY | ||
| 672 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 672 | N 007981006305 | SHEET METAL SCREW |
| FLEXIBLE SHAFT TO CAB STAY | ||
| 673 | A 0009953344 | CLAMP |
| Repalced by: A 0019978390 | ||
| 673 | A 0019978390 | LOOM TIE |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 280 MM | ||
| 674 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 674 | N 000125004319 | WASHER |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 675 | N 007981003214 | SHEET METAL SCREW |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 676 | A 1009870044 | EXPANSION PLUG |
| Repalced by: A 3099970981 | ||
| 676 | A 3099970981 | GROMMET |
| A 3095401473 | BRACKET | |
| TO ANGLE DRIVE | ||
| 677 | A 3095402073 | BRACKET |
| TO ANGLE DRIVE | ||
| 677 | A 3095420840 | BRACKET |
| TO ANGLE DRIVE | ||
| 678 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 678 | N 304017008034 | SCREW |
| BRACKET MOUNTING | ||
| 678 | N 000933010128 | SCREW |
| BRACKET MOUNTING | ||
| 679 | N 912004008102 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 680 | N 304032008006 | NUT |
| BRACKET MOUNTING | ||
| 680 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 680 | N 910113010000 | NUT |
| BRACKET MOUNTING | ||
| 682 | A 0015406347 | INSTRUMENT CLUSTER |
| 682 | A 0025402447 | INSTRUMENT CLUSTER |
| Repalced by: A 0025406647 | ||
| 682 | A 0025406647 | INSTRUMENT CLUSTER |
| 682 | A 0025406647 | INSTRUMENT CLUSTER |
| 682 | A 0035408747 | INSTRUMENT CLUSTER |
| Repalced by: A 0035407347 | ||
| 682 | A 0035407347 | INSTRUMENT CLUSTER |
| 684 | A 0025425505 | TEMPERATURE GAUGE |
| Repalced by: A 0035421005 | ||
| 684 | A 0035421005 | TEMPERATURE GAUGE |
| TO 001 540 63 47,002 540 24 47/66 47 | ||
| 684 | A 0035423805 | TEMPERATURE GAUGE |
| TO 002 540 89 47 | ||
| 684 | A 0035428905 | TEMPERATURE GAUGE |
| TO 003 540 87 47 | ||
| 684 | A 0035429605 | TEMPERATURE GAUGE |
| TO 003 540 73 47 | ||
| 686 | A 0015424102 | OIL PRESSURE GAUGE |
| TO 001 540 63 47,002 540 24 47/66 47 | ||
| 686 | A 0025420202 | OIL PRESSURE GAUGE |
| TO 002 540 89 47 | ||
| 686 | A 0025422802 | OIL PRESSURE GAUGE |
| TO 003 540 87 47 | ||
| 686 | A 0025423202 | OIL PRESSURE GAUGE |
| TO 003 540 73 47 | ||
| 688 | A 0005428503 | FUEL GAUGE DASH UNIT |
| TO 001 540 63 47,002 540 24 47/66 47 | ||
| 688 | A 0015425103 | FUEL GAUGE DASH UNIT |
| TO 002 540 89 47 | ||
| 688 | A 0025429103 | FUEL GAUGE DASH UNIT |
| TO 003 540 87 47 | ||
| 688 | A 0025429303 | FUEL GAUGE DASH UNIT |
| TO 003 540 73 47 | ||
| 690 | A 0005422878 | CONNECTION PLATE |
| TO 002 540 89 47 | ||
| 690 | A 0005423278 | CONNECTION PLATE |
| TO 003 540 87 47 | ||
| 690 | A 0005423878 | CONNECTION PLATE |
| TO 003 540 73 47 | ||
| 691 | A 0005420332 | TELL-TALE LAMP |
| 692 | A 0005451219 | SOCKET |
| 693 | N 072601012800 | BULB |
| 2 W | ||
| 694 | A 0005421740 | BRACKET |
| INSTRUMENT CLUSTER | ||
| 695 | A 0005421072 | NUT |
| INSTRUMENT CLUSTER | ||
| 696 | A 0005453526 | PLUG SOCKET |
| Repalced by: A 0015458526 | ||
| 696 | A 0015458526 | PLUG SOCKET |
| TO HAND LAMP | ||
| 697 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 697 | A 0045454326 | PLUG SOCKET |
| AT INSTRUMENT PANEL | ||

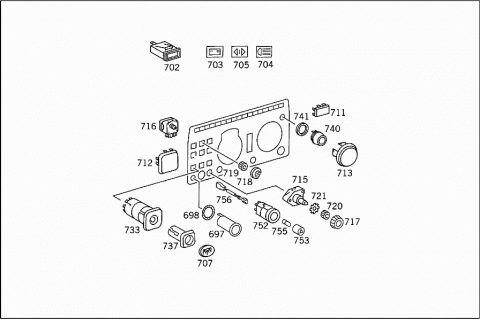

| 698 | A 0009900946 | WASHER |
| AT INSTRUMENT PANEL | ||
| 700 | A 0015450615 | TELL-TALE LAMP |
| Repalced by: A 0005451630 | ||
| 700 | A 0005451630 | SHELL |
| LESS LENS | ||
| 701 | A 0005452319 | SOCKET |
| 702 | A 0015451815 | TELL-TALE LAMP |
| LESS LENS | ||
| 703 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| 703 | A 0005453790 | LENS |
| Repalced by: A 0035453290 | ||
| 703 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 704 | A 0005451190 | LENS |
| HIGH BEAM | ||
| 704 | A 0035453390 | LENS |
| Repalced by: A 0065451990 | ||
| 704 | A 0065451990 | LENS |
| HIGH BEAM | ||
| 705 | A 0005451290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 705 | A 0035454190 | LENS |
| Repalced by: A 0035455290 | ||
| 705 | A 0035455290 | LENS |
| BLINKER LIGHT CONTROL | ||
| 706 | A 0005451390 | LENS |
| TRAILER BLINKER | ||
| 707 | A 0005459090 | LENS |
| Repalced by: A 0005459590 | ||
| 707 | A 0005459590 | LENS |
| INTERIOR LIGHTING | ||
| 708 | A 0015450690 | LENS |
| RED | ||
| TO 001 545 06 15 | ||
| 708 | A 0015450790 | LENS |
| GREEN | ||
| TO 001 545 06 15 | ||
| 708 | A 0015450890 | LENS |
| AMBER | ||
| TO 001 545 06 15 | ||
| 708 | A 0015450990 | LENS |
| LESS SYMBOL; WHITE | ||
| TO 001 545 06 15 | ||
| 709 | N 072601012800 | BULB |
| 2 W | ||
| 710 | A 0009973535 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 711 | A 0009974335 | PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 712 | A 0009974435 | PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 713 | A 3169880035 | CAP |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 714 | A 0005421425 | POTENTIOMETER |
| Repalced by: A 3015420025 | ||
| 714 | A 3015420025 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 715 | A 0005422925 | POTENTIOMETER |
| Repalced by: A 6155420125 | ||
| 715 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 716 | A 0005421325 | POTENTIOMETER |
| HEATER BLOWER | ||
| 717 | A 0005421189 | KNOB |
| Repalced by: A 0005421889 | ||
| 717 | A 0005421889 | KNOB |
| SYMBOL: INSTRUMENT LIGHTING | ||
| 718 | A 0005421089 | KNOB |
| Repalced by: A 3095420089 | ||
| 718 | A 3095420089 | KNOB |
| SYMBOL: HEATER BLOWER | ||
| 719 | A 0005450372 | NUT |
| HEATER BLOWER SWITCH | ||
| 719 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING | ||
| 720 | A 0005421472 | NUT |
| INSTRUMENT LIGHTING | ||
| 721 | N 006797012153 | TOOTHED WASHER |
| INSTRUMENT LIGHTING | ||
| 722 | A 0005458305 | RELAY |
| STEERING LOCK | ||
| 12 V | ||
| 722 | A 0005458305 | RELAY |
| INTAKE MANIFOLD HEATING | ||
| 12 V | ||
| A 0025452624 | SWITCH,AUTOMATIC | |
| Repalced by: A 0025457724 | ||
| 724 | A 0025457724 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 724 | A 0035455724 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 725 | A 0055453124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 725 | A 0055453524 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 725 | A 0065450224 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 726 | A 0005454237 | BUTTON |
| 726 | A 0005454437 | BUTTON |
| 727 | A 0005453445 | BOOT |
| 728 | A 0029976890 | LOOM TIE |
| Repalced by: A 0019978390 | ||
| 728 | A 0019978390 | LOOM TIE |
| STEERING-COLUMN-MOUNTED-SWITCH CABLE TO SUSPENDED PEDAL SUPPORT | ||
| 203 MM | ||
| 729 | A 3149970281 | GROMMET |
| Repalced by: A 3359970081 | ||
| 729 | A 3359970081 | GROMMET |
| STEERING-COLUMN-MOUNTED-SWITCH CABLE THRU BODY | ||
| 730 | A 0005458211 | SWITCH |
| PANE WIPER | ||
| 730 | A 0005459311 | SWITCH |
| WINDSHIELD WIPER O F F O N | ||
| 731 | A 0005459211 | SWITCH |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 732 | A 0005459111 | SWITCH |
| INTERIOR LIGHTING | ||
| 733 | A 0015450311 | SWITCH |
| Repalced by: A 0015450511 | ||
| 733 | A 0015450511 | SWITCH |
| INTERIOR LIGHTING | ||
| 734 | A 0005451483 | CAP |
| WINDSHIELD WIPER O F F O N | ||
| 735 | A 0005451583 | CAP |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 736 | A 0005451883 | CAP |
| INTERIOR LIGHTING | ||
| 737 | A 0005452883 | CAP |
| INTERIOR LIGHTING | ||
| 738 | A 0055450524 | SENDER UNIT |
| Repalced by: A 0055451324 | ||
| 738 | A 0055451324 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 738 | A 0055451524 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 739 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 739 | N 007981006305 | SHEET METAL SCREW |
| WIPER PULSE SENDER UNIT | ||
| 740 | A 0015450214 | SWITCH |
| Repalced by: A 0015454914 | ||
| 740 | A 0015454914 | SWITCH |
| STARTING MOTOR | ||
| 741 | A 3099900640 | WASHER |
| SWITCH | ||
| 742 | N 007603014400 | SEAL RING |
| OIL PRESSURE GAUGE | ||
| 743 | A 0015424917 | SENDER UNIT |
| Repalced by: A 0045428917 | ||
| 743 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| 744 | A 0005452209 | SWITCH |
| Repalced by: A 0005456109 | ||
| 744 | A 0005456109 | SWITCH |
| Repalced by: A 0015450809 | ||
| 744 | A 0015450809 | SWITCH |
| STOP LIGHT | ||
| 745 | A 0005454709 | SWITCH |
| Repalced by: A 0005455909 | ||
| 745 | A 0005455009 | SWITCH |
| Repalced by: A 0005455909 | ||
| 745 | A 0005455909 | SWITCH |
| STOP LIGHT | ||
| 745 | A 0005455909 | SWITCH |
| STOP LIGHT | ||
| 746 | A 0015442532 | SENDER UNIT |
| BLINKER LIGHT CONTROL | ||
| 746 | A 0015442732 | SENDER UNIT |
| BLINKER LIGHT CONTROL | ||
| 747 | A 3095440032 | CONVERSION KIT |
| HAZARD WARNING LIGHT | ||
| 748 | A 0015447932 | SENDER UNIT |
| Repalced by: A 0025447332 | ||
| 748 | A 0025447332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 748 | A 0025447332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 748 | A 0025444832 | SENDER UNIT |
| Repalced by: A 0025449832 | ||
| 748 | A 0025449832 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 748 | A 0025449832 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 748 | A 0025444132 | SENDER UNIT |
| Repalced by: A 0025448632 | ||
| 748 | A 0025448632 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 748 | A 0025448632 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 748 | A 0025441032 | SENDER UNIT |
| Repalced by: A 0025447232 | ||
| 748 | A 0025447232 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 749 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 749 | N 000000001145 | SCREW |
| BLINKER SENDER UNIT TO BODY | ||
| 750 | N 912004006102 | LOCK WASHER |
| BLINKER SENDER UNIT TO BODY | ||
| 751 | A 0025457124 | SWITCH,AUTOMATIC |
| HAZARD WARNING LIGHT | ||
| 751 | A 0025457124 | SWITCH,AUTOMATIC |
| HAZARD WARNING LIGHT | ||
| 752 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 753 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 753 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 754 | N 072601012110 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 12V/2 W | ||
| 754 | N 072601012110 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 12V/2 W | ||
| 755 | N 072601012800 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 2 W | ||
| 756 | A 3015400165 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 757 | A 3095402527 | ELECTRIC CABLE |
| HAZARD WARNING LIGHT | ||
| 757 | A 3095402527 | ELECTRIC CABLE |
| HAZARD WARNING LIGHT | ||
| 758 | N 007985005157 | SCREW |
| BLINKER SENDER UNIT TO BODY | ||
| 759 | N 000127005103 | LOCK WASHER |
| BLINKER SENDER UNIT TO BODY | ||
| 760 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 760 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 761 | A 0021542806 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021543606 | ||
| 761 | A 0021543606 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021547406 | ||
| 761 | A 0021547406 | REGULATOR AND CUT-OUT |
| SHIELDED | ||
| 761 | A 0021547406 | REGULATOR AND CUT-OUT |
| SHIELDED | ||
| A 3095401627 | ELECTRIC CABLE | |
| FROM ALTERNATOR TO STARTING MOTOR | ||
| 762 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 762 | N 000000001145 | SCREW |
| REGULATOR AND CUT-OUT TO BODY | ||
| 763 | N 912004006102 | LOCK WASHER |
| REGULATOR AND CUT-OUT TO BODY | ||
| 764 | N 007976004217 | SHEET METAL SCREW |
| Repalced by: N 914128004303 | ||
| 764 | N 914128004303 | SHEET METAL SCREW |
| REGULATOR TO VENTILATION DUCT | ||
| 766 | A 0025426220 | HORN |
| Repalced by: A 0035423220 | ||
| 766 | A 0035423220 | HORN |
| Repalced by: A 6315420120 | ||
| 766 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 766 | A 0035422720 | HORN |
| 766 | A 0015428320 | HORN |
| Repalced by: A 0025426420 | ||
| 766 | A 0025426420 | HORN |
| Repalced by: A 6315420120 | ||
| 766 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 766 | A 0035422720 | HORN |
| 767 | A 3095420140 | BRACKET |
| Repalced by: A 3095421340 | ||
| 767 | A 3095421340 | BRACKET |
| HORN | ||
| 768 | N 000933010128 | SCREW |
| HORN TO BRACKET | ||
| 769 | N 912004010102 | LOCK WASHER |
| HORN TO BRACKET | ||
| 770 | N 000934010014 | NUT |
| HORN TO BRACKET | ||
| 771 | A 3044310076 | WASHER |
| HORN TO FRAME | ||
| 772 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 772 | N 304017008034 | SCREW |
| HORN TO FRAME | ||
| 773 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 773 | N 000125008443 | WASHER |
| HORN TO FRAME | ||
| 774 | N 912004008102 | LOCK WASHER |
| HORN TO FRAME | ||
| 775 | N 304032008006 | NUT |
| HORN TO FRAME | ||
| 776 | N 007985004123 | SCREW |
| CABLE TO DISC-TYPE HORN | ||
| 777 | N 912004004102 | LOCK WASHER |
| CABLE TO DISC-TYPE HORN | ||
| 780 | A 0001580003 | IGNITION COIL |
| 780 | A 0001582603 | IGNITION COIL |
| Repalced by: A 0001584903 | ||
| 780 | A 0001584903 | IGNITION COIL |
| 780 | A 0001584003 | IGNITION COIL |
| 781 | A 0001580240 | BRACKET |
| 782 | N 000084005222 | SCREW |
| 783 | N 000562005000 | NUT |
| 784 | A 0001581785 | SUPPRESSOR HOUSING |
| IGNITION COIL | ||
| 785 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 785 | N 007981006305 | SHEET METAL SCREW |
| IGNITION COIL TO FIRE WALL | ||
| 786 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 786 | N 009021006208 | WASHER |
| IGNITION COIL TO FIRE WALL | ||
| 788 | A 1235849321 | GUIDE SIGN |
| Repalced by: A 2105840047 | ||
| 788 | A 2105840047 | WARNING STRIP |
| "DANGER!HIGH TENSION!"; IN GERMAN,ENGLISH,AND FRENCH | ||
| 789 | N 000934005008 | NUT |
| CABLES TO IGNITION COIL | ||
| 789 | N 000934005008 | NUT |
| CABLES TO IGNITION COIL | ||
| 789 | N 000934006007 | NUT |
| CABLES TO IGNITION COIL | ||
| 790 | N 912004005103 | LOCK WASHER |
| CABLES TO IGNITION COIL | ||
| 790 | N 912004005103 | LOCK WASHER |
| CABLES TO IGNITION COIL | ||
| 790 | N 912004006102 | LOCK WASHER |
| CABLES TO IGNITION COIL | ||
| A 3095402238 | ELECTRIC CABLE | |
| IGNITION COIL TO SOLENOID VALVE | ||
| 791 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 791 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 791 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 791 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 792 | A 0005451745 | BOOT |
| 793 | A 3095408627 | ELECTRIC CABLE |
| IGNITION COIL TO SOLENOID VALVE | ||
| 794 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| 796 | A 0001581845 | SERIES RESISTOR |
| Repalced by: A 0001582445 | ||
| 796 | A 0001582445 | SERIES RESISTOR |
| 796 | A 0001582345 | SERIES RESISTOR |
| 797 | N 007985004149 | SCREW |
| Repalced by: N 000000001933 | ||
| 797 | N 007985004107 | SCREW |
| CABLE TO SERIES RESISTOR | ||
| 798 | N 000137004202 | SPRING WASHER |
| CABLE TO SERIES RESISTOR | ||
| 799 | N 912004004102 | LOCK WASHER |
| CABLE TO SERIES RESISTOR | ||
| 806 | A 0025452432 | CONTROL UNIT |
| Repalced by: A 0035451732 | ||
| 800 | A 0035451732 | CONTROL UNIT |
| Repalced by: A 0025455832 | ||
| 800 | A 0025455832 | IGNITION CONTROL BOX |
| TRANSISTORIZED IGNITION | ||
| 801 | A 3095421040 | BRACKET |
| 802 | N 007985005175 | SCREW |
| Repalced by: N 000000001181 | ||
| 802 | N 000000001181 | SCREW |
| DIAGNOSIS BOX TO BRACKET | ||
| M5X16 | ||
| 803 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 803 | N 009021005205 | WASHER |
| DIAGNOSIS BOX TO BRACKET | ||
| 804 | N 912004005103 | LOCK WASHER |
| DIAGNOSIS BOX TO BRACKET | ||
| 805 | N 000934005008 | NUT |
| DIAGNOSIS BOX TO BRACKET | ||
| 806 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 806 | N 000000001146 | SCREW |
| TRANSISTORIZED IGNITION SWITCHGEAR TO WHEELHOUSE PANEL | ||
| 807 | N 000125006421 | WASHER |
| TRANSISTORIZED IGNITION SWITCHGEAR TO WHEELHOUSE PANEL | ||
| 808 | N 912004006102 | LOCK WASHER |
| TRANSISTORIZED IGNITION SWITCHGEAR TO WHEELHOUSE PANEL | ||
| 809 | N 000934006007 | NUT |
| TRANSISTORIZED IGNITION SWITCHGEAR TO WHEELHOUSE PANEL | ||
| 810 | A 3095403508 | CABLE HARNESS |
| FROM IGNITION COIL TO SWITCHING APPARATUS | ||
| 811 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 812 | A 0025451328 | PIN BUSHING HOUSING |
| A 0065451528 | PLUG | |
| 813 | A 1235450026 | PLUG SOCKET |
| 814 | A 1235450003 | CAP |
| 815 | A 0009970381 | GROMMET |
| 816 | A 0005456201 | FUSE BOX |
| Repalced by: A 0005459901 | ||
| 816 | A 0005459901 | FUSE BOX |
| 817 | N 072581008101 | FUSE |
| A 8 | ||
| 818 | N 072581025100 | FUSE |
| Repalced by: A 0015457534 | ||
| 818 | A 0015457534 | FUSE |
| A 25 | ||
| 819 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 819 | N 000000000460 | SCREW |
| FUSE BOX MOUNTING | ||
| 820 | N 007985004136 | SCREW |
| CABLE TO FUSE BOX | ||
| 821 | N 912004004102 | LOCK WASHER |
| CABLE TO FUSE BOX | ||
| 823 | A 0005451820 | HEATER PLUG CONTROL |
| 823 | A 0005453420 | HEATER PLUG CONTROL |
| 825 | A 0005450621 | INCANDESCENT SPIRAL |
| 825 | A 0005451321 | INCANDESCENT SPIRAL |
| 827 | N 007985005148 | SCREW |
| HEATER-PLUG INDICATOR RESISTOR | ||
| 829 | A 0005450286 | CLAMP |
| HEATER-PLUG INDICATOR RESISTOR | ||
| 831 | A 3099901340 | WASHER |
| HEATER-PLUG INDICATOR RESISTOR | ||
| 833 | A 0005455818 | RESISTOR |
| 833 | A 0005455718 | RESISTOR |
| 835 | N 007981005214 | SHEET METAL SCREW |
| RESISTOR TO BRACKET | ||
| 837 | N 000934005008 | NUT |
| CABLE TO SERIES RESISTOR | ||
| 839 | N 006797005231 | TOOTHED WASHER |
| CABLE TO SERIES RESISTOR | ||
| 841 | A 0005452917 | SWITCH |
| HEATER PLUG STARTING | ||
| 841 | A 0005453717 | SWITCH |
| HEATER PLUG STARTING | ||
| 843 | A 0009906940 | WASHER |
| Repalced by: A 0019904140 | ||
| 843 | A 0019904140 | WASHER |
| HEATER PLUG STARTING SWITCH | ||
| 845 | A 0005450472 | NUT |
| HEATER PLUG STARTING SWITCH | ||
| 845 | A 0005450972 | NUT |
| HEATER PLUG STARTING SWITCH | ||
| 847 | A 3195400173 | BRACKET |
| Repalced by: A 1215400173 | ||
| 847 | A 1215400173 | BRACKET |
| HEATER PLUG STARTING SWITCH | ||
| 849 | A 3195400291 | WIRE CABLE |
| HEATER PLUG STARTING SWITCH | ||
| 849 | A 3095400191 | WIRE CABLE |
| HEATER PLUG STARTING SWITCH | ||
| 849 | A 3095400091 | WIRE CABLE |
| HEATER PLUG STARTING SWITCH | ||
| 849 | A 3095400291 | WIRE CABLE |
| HEATER PLUG STARTING SWITCH | ||
| 851 | N 001434004001 | PIN |
| WIRE CABLE | ||
| 853 | N 000094001006 | COTTER PIN |
| WIRE CABLE | ||
| 855 | N 000084004111 | SCREW |
| BRACKET MOUNTING | ||
| 857 | N 009021004200 | WASHER |
| BRACKET MOUNTING | ||
| 859 | N 912004004102 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 861 | N 000934004006 | NUT |
| BRACKET MOUNTING | ||
| 863 | A 0019978390 | LOOM TIE |
| AT FIRE WALL | ||
| 865 | A 0005450937 | BUTTON |
| Repalced by: A 0005452437 | ||
| 865 | A 0005452437 | BUTTON |
| HEATER PLUG STARTING SWITCH | ||
| 867 | N 000933005059 | SCREW |
| STARTING CABLE AND MAIN CABLE HARNESS TO STIFFENING STRUT | ||
| 869 | N 912004005101 | LOCK WASHER |
| WIRE CABLE TO BRACKET | ||
| 871 | N 000934005008 | NUT |
| STARTING CABLE AND MAIN CABLE HARNESS TO STIFFENING STRUT | ||
| 873 | N 000433005300 | WASHER |
| WIRE CABLE TO INJECTION PUMP ANGLE | ||
| 875 | N 000094001519 | COTTER PIN |
| WIRE CABLE TO INJECTION PUMP ANGLE | ||
| 877 | N 000933004006 | SCREW |
| HEATER PLUG STARTING SWITCH WIRE CABLE TO FUEL FILTER SUSPENSION | ||
| 879 | N 912004004102 | LOCK WASHER |
| HEATER PLUG STARTING SWITCH WIRE CABLE TO FUEL FILTER SUSPENSION | ||
| 881 | N 000934004006 | NUT |
| HEATER PLUG STARTING SWITCH WIRE CABLE TO FUEL FILTER SUSPENSION | ||
| 883 | N 007985005148 | SCREW |
| CABLE HARNESS MOUNTING | ||
| 885 | N 912004005101 | LOCK WASHER |
| CABLE HARNESS MOUNTING | ||
| 887 | A 0005450606 | SWITCH |
| BACK-UP LIGHT SWITCH | ||
| 887 | A 0005455011 | SWITCH |
| BACK-UP LIGHT SWITCH | ||
| 889 | A 1832610474 | PIN |
| 889 | A 1832610574 | PIN |
| 889 | A 1832610674 | PIN |
| 891 | A 0005460035 | BOOT |
| BACK-UP LIGHT SWITCH | ||
| 901 | A 0005441507 | BACK-UP LAMP |
| A 0005441707 | BACK-UP LAMP | |
| Repalced by: A 0005441807 | ||
| 903 | A 0005442307 | BACK-UP LAMP |
| 905 | A 0008253610 | LENS |
| 907 | A 0005441807 | BACK-UP LAMP |
| Repalced by: A 0005443007 | ||
| 907 | A 0005443007 | BACK-UP LAMP |
| 907 | A 0005443007 | BACK-UP LAMP |
| 907 | A 0005443007 | BACK-UP LAMP |
| 907 | A 0005443007 | BACK-UP LAMP |
| A 0015444690 | LENS | |
| A 0005447680 | GASKET | |
| A 0005447292 | REFLECTOR | |
| 910 | A 0015445390 | LENS |
| 910 | A 0015445390 | LENS |
| 910 | A 0015445390 | LENS |
| 912 | A 0008266980 | SEAL |
| 912 | A 0008266980 | SEAL |
| 912 | A 0008266980 | SEAL |
| 914 | A 0005441318 | BEAM UNIT |
| 914 | A 0005441318 | BEAM UNIT |
| 914 | A 0005442318 | BEAM UNIT |
| TO 000 544 30 07 | ||
| 916 | A 0005442407 | BACK-UP LAMP |
| Repalced by: A 0018201856 | ||
| 916 | A 0018201856 | EXTERIOR LAMP |
| Repalced by: A 0005442407 | ||
| 916 | A 0005442407 | BACK-UP LAMP |
| 918 | A 0015449290 | LENS |
| 920 | N 072601012500 | BULB |
| Repalced by: N 072601012190 | ||
| 920 | N 072601012190 | BULB |
| 922 | N 072601012400 | BULB |
| 12 V 35 W | ||
| 922 | N 072601012400 | BULB |
| 12 V 35 W | ||
| 922 | N 072601012400 | BULB |
| 12 V 35 W | ||
| 922 | N 072601012400 | BULB |
| 12 V 35 W | ||
| 922 | N 072601012400 | BULB |
| 12 V 35 W | ||
| 924 | A 3098261014 | BRACKET |
| BACK-UP LIGHT | ||
| 924 | A 3098260914 | BRACKET |
| BACK-UP LIGHT | ||
| 926 | A 3095442638 | BRACKET |
| BACK-UP LIGHT | ||
| 928 | N 000558008011 | SCREW |
| BRACKET MOUNTING | ||
| 930 | N 000558010011 | SCREW |
| 932 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 932 | N 009021008213 | WASHER |
| BRACKET MOUNTING | ||
| 934 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 934 | N 009021010209 | WASHER |
| 936 | N 912004008102 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 938 | N 912004010102 | LOCK WASHER |
| 940 | N 304032008006 | NUT |
| BRACKET MOUNTING | ||
| 942 | N 000934010014 | NUT |
| A 3095440538 | BRACKET | |
| BACK-UP LIGHT | ||
| A 3095440538 | BRACKET | |
| BACK-UP LIGHT | ||
| 944 | A 3095402973 | BRACKET |
| BACK-UP LIGHT | ||
| 944 | A 3095402973 | BRACKET |
| Repalced by: A 3095404673 | ||
| 944 | A 3095404673 | BRACKET |
| BACK-UP LIGHT | ||
| 946 | A 3095403073 | BRACKET |
| BACK-UP LIGHT | ||
| 946 | A 3095403073 | BRACKET |
| Repalced by: A 3095404773 | ||
| 946 | A 3095404773 | BRACKET |
| BACK-UP LIGHT | ||
| 946 | A 3095404773 | BRACKET |
| BACK-UP LIGHT | ||
| 948 | N 000933006130 | SCREW |
| BRACKET MOUNTING | ||
| 948 | N 000933006130 | SCREW |
| BRACKET MOUNTING | ||
| 950 | N 000934005108 | NUT |
| 952 | N 006798005102 | SERRATED WASHER |
| 954 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 954 | N 913002006009 | NUT |
| BRACKET MOUNTING | ||
| 954 | N 913002006009 | NUT |
| BRACKET MOUNTING | ||
| 956 | A 0001569601 | CONDENSER |
| Repalced by: A 0011566701 | ||
| 956 | A 0011566701 | CONDENSER |
| FOR INTERFERENCE SUPPRESSION OF ALTERNATOR AT TERMINAL B+ | ||
| 956 | A 0011566701 | CONDENSER |
| FOR INTERFERENCE SUPPRESSION OF IGNITION COIL,TERMINAL 15 | ||
| 958 | A 0011561601 | CONDENSER |
| Repalced by: A 0011566901 | ||
| 958 | A 0011566901 | CONDENSER |
| FOR INTERFERENCE SUPPRESSION OF IGNITION COIL,TERMINAL 15 | ||
| 960 | A 0005460620 | GROUND STRAP |
| Repalced by: A 0005460720 | ||
| 960 | A 0005460720 | GROUND STRAP |
| FROM ENGINE BLOCK TO RADIATOR | ||
| 962 | A 0001568201 | CONDENSER |
| FOR WINDSHIELD WIPER MOTOR INTERFERENCE SUPPRESSION | ||
| 964 | N 007981005214 | SHEET METAL SCREW |
| FOR WINDSHIELD WIPER MOTOR INTERFERENCE SUPPRESSION | ||
| A 3235400381 | PLUG SOCKET | |
| FOR WINDSHIELD WIPER MOTOR INTERFERENCE SUPPRESSION | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
