Transporto priemonė: LKO 508 DG; VIN numerio dalis: 309431

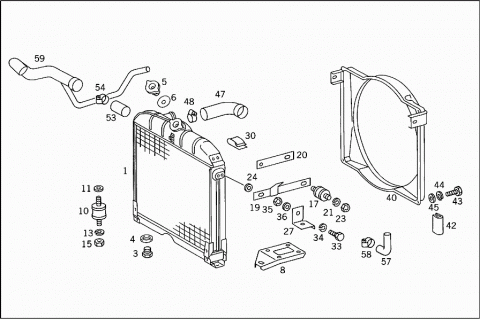

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3095000002 | RADIATOR | |
| Repalced by: A 3095000702 | ||
| A 3095000702 | RADIATOR | |
| Repalced by: A 3095001702 | ||
| 001 | A 3095001702 | RADIATOR |
| FA.BEHR | ||
| 003 | N 007604014101 | SCREW PLUG |
| 004 | N 007603014405 | SEAL RING |
| A 0005012115 | RADIATOR CAP | |
| Repalced by: A 0005013515 | ||
| 005 | A 0005013515 | RADIATOR CAP |
| 006 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 008 | A 3095040640 | BRACKET |
| LEFT | ||
| 008 | A 3095040740 | BRACKET |
| RIGHT | ||
| A 0019873140 | RUBBER BUFFER | |
| Repalced by: A 0019875340 | ||
| 010 | A 0019875340 | RUBBER BUFFER |
| RADIATOR MOUNTING | ||
| 011 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 011 | N 000125010532 | WASHER |
| RADIATOR MOUNTING | ||
| 013 | N 912004010102 | LOCK WASHER |
| RADIATOR MOUNTING | ||
| 015 | N 000934010014 | NUT |
| RADIATOR MOUNTING | ||
| A 0019872640 | RUBBER BUFFER | |
| Repalced by: A 0019875240 | ||
| 017 | A 0019875240 | RUBBER BUFFER |
| RADIATOR BRACING,TOP | ||
| 019 | A 3095000031 | BRACKET |
| RADIATOR BRACING,TOP | ||
| A 3095000131 | BRACKET | |
| Repalced by: A 3095000331 | ||
| 019 | A 3095000331 | BRACKET |
| RADIATOR BRACING,TOP | ||
| A 3095041540 | BRACKET | |
| Repalced by: A 3604293140 | ||
| 020 | A 3604293140 | BRACKET |
| RADIATOR BRACING,TOP | ||
| 021 | N 912004008102 | LOCK WASHER |
| RADIATOR BRACING,TOP | ||
| 023 | N 304032008006 | NUT |
| RADIATOR BRACING,TOP | ||
| 024 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 024 | N 000125008443 | WASHER |
| RADIATOR BRACING,TOP | ||
| 027 | A 3095040940 | BRACKET |
| LEFT | ||
| 027 | A 3095041040 | BRACKET |
| RIGHT | ||
| 030 | A 0019889878 | CLIP |
| 033 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 033 | N 304017008016 | SCREW |
| BRACKET MOUNTING | ||
| 034 | N 912004008102 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 035 | N 304032008006 | NUT |
| BRACKET MOUNTING | ||
| 036 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 036 | N 000125008443 | WASHER |
| BRACKET MOUNTING | ||
| A 3095001460 | FAN HOUSING | |
| Repalced by: A 3105050055 | ||
| 040 | A 3105050055 | FAN SHROUD |
| A 0009871036 | RUBBER SECTION | |
| Repalced by: A 0009870772 | ||
| 042 | A 0009876870 | RUBBER SECTION |
| 170 MM | ||
| 043 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 043 | N 304017006020 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 6X20 MM | ||
| 044 | N 912004006102 | LOCK WASHER |
| FAN SHROUD TO RADIATOR | ||
| 045 | N 000125006421 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| A 3095010982 | HOSE | |
| Repalced by: A 3095011682 | ||
| 047 | A 3095011682 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 048 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 048 | N 000000000671 | CLAMP |
| FROM THERMOSTAT TO RADIATOR | ||
| 053 | A 3095012182 | HOSE |
| Repalced by: N 900271042012 | ||
| 053 | N 900271042012 | HOSE |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| 054 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 054 | N 000000000671 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| N 916017040000 | CLAMP | |
| Repalced by: N 000000000671 | ||
| N 000000000671 | CLAMP | |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| 057 | A 3095060135 | HOSE |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| 057 | A 3095062435 | HOSE |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| 058 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 058 | N 000000000667 | CLAMP |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| A 3095060435 | HOSE | |
| Repalced by: A 3105010082 | ||
| 059 | A 3105010082 | HOSE |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| A 3109970081 | GROMMET | |
| FRONT END HEATER | ||
