Transporto priemonė: LKO 508 DG; VIN numerio dalis: 309433

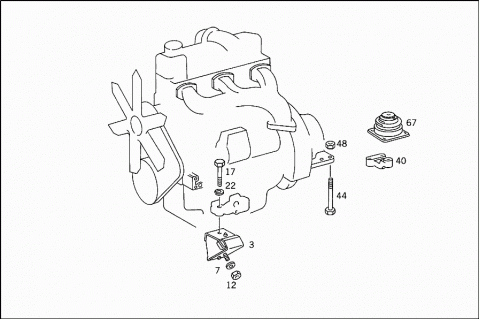

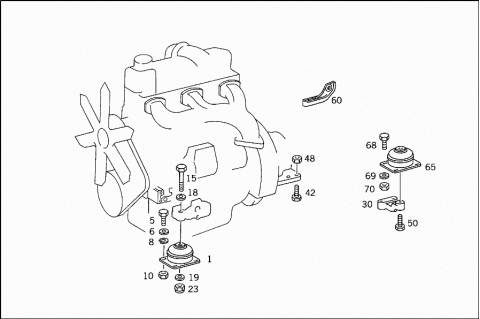

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3142230112 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| A 3102410213 | RUBBER MOUNTING | |
| Repalced by: A 3102410313 | ||
| 003 | A 3102410313 | RUBBER MOUNTING |
| FRONT | ||
| 005 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 006 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 006 | N 000125010532 | WASHER |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 007 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 007 | N 000125017016 | WASHER |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 008 | N 912004010102 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 010 | N 913002010001 | NUT |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 012 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 012 | N 910113016001 | NUT |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 015 | N 000960014180 | SCREW |
| Repalced by: N 308765014009 | ||
| 015 | N 308765014009 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 017 | N 000961016105 | SCREW |
| Repalced by: N 308676016004 | ||
| 017 | N 308676016004 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 018 | N 000433015005 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 019 | A 3149900440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 022 | N 912004016101 | LOCK WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 023 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 023 | N 910113014000 | NUT |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR FURTHER PARTS, SEE OM314 ENGINE PARTS LIST, GROUP 22 | ||
| 030 | A 3142231004 | ENGINE SUPPORT |
| ENGINE REAR SUSPENSION | ||
| 040 | A 3142240107 | ENGINE SUPPORT |
| ENGINE REAR SUSPENSION | ||
| 042 | N 000960014244 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| 044 | N 000960014138 | SCREW |
| Repalced by: N 000961014084 | ||
| 044 | N 000961014084 | SCREW |
| Repalced by: N 000961014148 | ||
| 044 | N 000961014148 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 14 X 75 | ||
| 044 | N 000961014148 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 14 X 75 | ||
| 044 | N 000961014148 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 14 X 75 | ||
| 044 | N 000960014143 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 14X95 | ||
| 048 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 048 | N 910113014000 | NUT |
| SUPPORTING ARM TO BELL HOUSING | ||
| 050 | N 000961016097 | SCREW |
| Repalced by: N 308676016005 | ||
| 050 | N 308676016005 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 050 | A 0029909301 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 050 | N 000960016209 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| N 913004016005 | NUT | |
| Repalced by: N 910113016001 | ||
| N 910113016001 | NUT | |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| A 3102420066 | WASHER | |
| WITH RUBBER LINING | ||
| A 3092930036 | BEARING BRACKET | |
| Repalced by: A 3092930336 | ||
| 060 | A 3092930336 | BEARING BRACKET |
| REAR | ||
| 065 | A 3142230012 | RUBBER MOUNTING |
| REAR | ||
| A 3102420013 | RUBBER MOUNTING | |
| Repalced by: A 3102420113 | ||
| 067 | A 3102420113 | RUBBER MOUNTING |
| REAR | ||
| 068 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 069 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 069 | N 000125010532 | WASHER |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 070 | N 913002010000 | NUT |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 915042015000 | PLUG | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 900083019000 | PLUG | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
