Transporto priemonė: LKO 508 DG; VIN numerio dalis: 309433

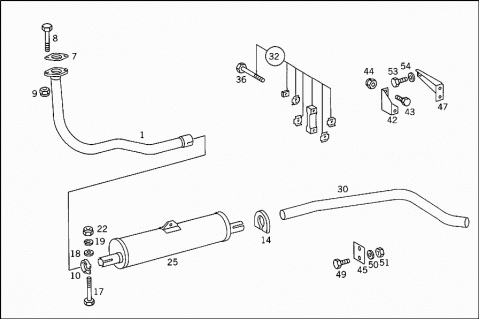

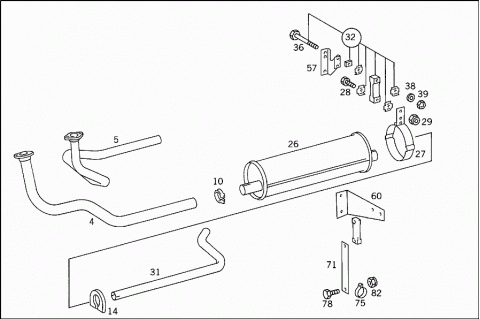

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3094901319 | EXHAUST PIPE | |
| Repalced by: A 3094901619 | ||
| 001 | A 3094901619 | EXHAUST PIPE |
| FRONT | ||
| 001 | A 3094901719 | EXHAUST PIPE |
| FRONT | ||
| 001 | A 3094902019 | EXHAUST PIPE |
| FRONT | ||
| A 3094900519 | EXHAUST PIPE | |
| FRONT | ||
| 004 | A 3104900719 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3104900819 | EXHAUST PIPE |
| FRONT | ||
| A 3094920080 | FLANGE GASKET | |
| Repalced by: N 917003060003 | ||
| 007 | N 917003060003 | GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 008 | N 000931012114 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 009 | A 0019904751 | NUT |
| Repalced by: N 913004012010 | ||
| 009 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 010 | A 3094920140 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| A 1074900141 | CLAMP | |
| Repalced by: A 1074900041 | ||
| 014 | A 1074900041 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 017 | N 000931008251 | SCREW |
| TO CLAMP PIPE CLAMPS | ||
| M 8X75 | ||
| 017 | N 304014008004 | SCREW |
| Repalced by: N 304014008001 | ||
| 017 | N 304014008001 | SCREW |
| TO CLAMP PIPE CLAMPS | ||
| M 8X70 | ||
| 017 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 017 | N 304017008043 | SCREW |
| TO CLAMP PIPE CLAMPS | ||
| M 8X55 | ||
| 018 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 018 | N 000125008443 | WASHER |
| TO CLAMP PIPE CLAMPS | ||
| 019 | N 912004008102 | LOCK WASHER |
| TO CLAMP PIPE CLAMPS | ||
| 022 | N 304032008006 | NUT |
| TO CLAMP PIPE CLAMPS | ||
| A 0019907751 | NUT | |
| Repalced by: N 913004008007 | ||
| 022 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 022 | A 1201420072 | NUT |
| TO CLAMP PIPE CLAMPS | ||
| A 3144900301 | EXHAUST MUFFLER | |
| Repalced by: A 3144900501 | ||
| 025 | A 3144900501 | EXHAUST MUFFLER |
| 026 | A 3094900901 | EXHAUST MUFFLER |
| 027 | A 3094910041 | BRACKET |
| EXHAUST MUFFLER TO DAMPING PAD | ||
| 028 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 028 | N 304017008021 | SCREW |
| BRACKET TO DAMPING PAD | ||
| A 0019907751 | NUT | |
| Repalced by: N 913004008007 | ||
| 029 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 029 | A 1201420072 | NUT |
| BRACKET TO DAMPING PAD | ||
| A 3094900921 | EXHAUST PIPE | |
| Repalced by: A 3094921004 | ||
| A 3094921004 | REAR EXHAUST PIPE | |
| Repalced by: A 3104920904 | ||
| 030 | A 3104920904 | REAR EXHAUST PIPE |
| 030 | A 3104920904 | REAR EXHAUST PIPE |
| 031 | A 3094925504 | REAR EXHAUST PIPE |
| A 3095860049 | REPAIR KIT | |
| Repalced by: A 3094900037 | ||
| 032 | A 3094900037 | SUSPENSION |
| EXHAUST MUFFLER TO SUPPORT | ||
| 032 | A 3094900037 | SUSPENSION |
| REAR EXHAUST PIPE TO BRACKET | ||
| 036 | N 000931008266 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X40 | ||
| 036 | N 000931008244 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X45 | ||
| 038 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 038 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 039 | N 304032008006 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 039 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 039 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 042 | A 3094920016 | SUPPORT |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 043 | N 000933010105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 044 | N 913002010001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 045 | A 3094920241 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 047 | A 3144920416 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 049 | N 000933010128 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X20 | ||
| 050 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 050 | N 000125010532 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 051 | N 000934010014 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 053 | N 000931008266 | SCREW |
| REAR EXHAUST PIPE TO FRAME | ||
| 054 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 054 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE TO FRAME | ||
| 057 | A 3094920516 | SUPPORT |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 060 | A 3094921341 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 071 | A 3094921441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 075 | N 071555050503 | CLAMP |
| Repalced by: N 000000001641 | ||
| 075 | N 000000001641 | CLAMP |
| Repalced by: A 9424310043 | ||
| 075 | A 9424310043 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 075 | A 9424310043 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 078 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 078 | N 304017008034 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| A 0019907751 | NUT | |
| Repalced by: N 913004008007 | ||
| 082 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 082 | A 1201420072 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
