Transporto priemonė: LKO 508 DG; VIN numerio dalis: 309433

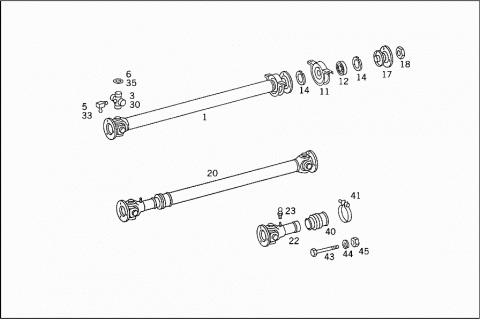

Grupė: 41 PROPELER SHAFT - 001 PROPELLER SHAFT

#	Kodas	Pavadinimas
001	A 3104100201	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1138 MM
003	A 3024100031	UNIVERSAL JOINT CROSS
	Repalced by: A 3854100231
003	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
005	N 071412008302	GREASE NIPPLE
006	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
006	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
006	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
006	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
006	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
006	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
	A 3104100222	INTERMEDIATE BEARING
	Repalced by: A 3095860141
	A 3104100422	INTERMEDIATE BEARING
	Repalced by: A 3095860141
011	A 3094100110	REPAIR KIT
	Repalced by: A 3104100822
011	A 3104100822	INTERMEDIATE BEARING
012	A 0009818025	BALL BEARING
	Repalced by: A 0079815825
012	A 0079815825	BALL BEARING
012	A 0019811025	BALL BEARING
012	A 0019815925	BALL BEARING
014	N 000472072000	LOCK RING
014	N 912009072200	SNAP RING
017	A 3104100030	CENTERING FLANGE
		PROPELLER SHAFT BEARING
017	A 3104100230	CENTERING FLANGE
		PROPELLER SHAFT BEARING
018	A 3104110072	NUT
		FOLLOWER FLANGE TO PROPELLER SHAFT
018	A 3104110172	NUT
		FOLLOWER FLANGE TO PROPELLER SHAFT
020	A 3144100502	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1901 MM
020	A 3124107902	PROPELLER SHAFT
	Repalced by: A 3214103402
020	A 3214103402	PROPELLER SHAFT
		REAR,FROM INTERMEDIATE BEARING TO REAR AXLE
		1286 MM
022	A 3234100108	UNIVERSAL JOINT YOKE
023	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
023	N 071412008102	GREASE NIPPLE
	A 3024100031	UNIVERSAL JOINT CROSS
	Repalced by: A 3854100231
030	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
033	N 071412008302	GREASE NIPPLE
035	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
035	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
035	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
035	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
035	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
035	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
040	A 3284100080	BOOT
	Repalced by: A 3144100080
040	A 3144100080	BOOT
		SLIP JOINT
041	N 916002070101	CLAMP
		SLIP JOINT
041	N 916002078100	CLAMP
		SLIP JOINT
043	A 3219901501	SCREW
	Repalced by: A 3539900001
043	A 3539900001	SCREW
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
043	A 3539900001	SCREW
		INTERMEDIATE SHAFT
044	N 912004010102	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
044	N 912004010102	LOCK WASHER
		INTERMEDIATE SHAFT
045	N 000934010010	NUT
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
045	N 000934010010	NUT
		INTERMEDIATE SHAFT
