Transporto priemonė: LK 508 DG; VIN numerio dalis: 309444

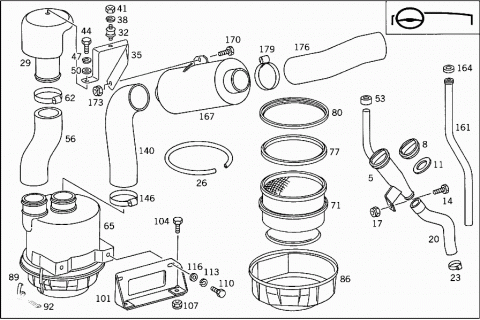

Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3140100564 | OIL FILLER NECK |
| 005 | A 3140100764 | OIL FILLER NECK |
| 008 | A 3520100168 | CAP |
| Repalced by: A 0000180702 | ||
| 008 | A 0000180702 | CAP |
| OIL REFILLING | ||
| 008 | A 1020180302 | CAP |
| OIL REFILLING | ||
| 008 | A 1020180402 | CAP |
| OIL REFILLING | ||
| 011 | A 3520180180 | GASKET |
| TO 352 010 01 68 | ||
| 011 | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 011 | A 1020180380 | GASKET |
| TO 000 018 07 02 | ||
| 014 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 014 | N 304017008016 | SCREW |
| OIL FILLER NECK TO CAB | ||
| 017 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 017 | N 913004008001 | NUT |
| OIL FILLER NECK TO CAB | ||
| 020 | A 3090180082 | HOSE |
| FROM OIL FILTER NECK TO ENGINE | ||
| 020 | A 3140180182 | HOSE |
| FROM OIL FILTER NECK TO ENGINE | ||
| 023 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 023 | N 000000000670 | CLAMP |
| FROM OIL FILTER NECK TO ENGINE | ||
| 026 | A 0009876870 | RUBBER SECTION |
| 029 | A 3095200401 | AIR INTAKE PIPE |
| Repalced by: A 3095201501 | ||
| 029 | A 3095201501 | AIR INTAKE PIPE |
| 032 | A 0019872640 | RUBBER BUFFER |
| Repalced by: A 0019875240 | ||
| 032 | A 0019875240 | RUBBER BUFFER |
| AIR INTAKE PIPE TO SUPPORT | ||
| 035 | A 3095200141 | BRACKET |
| Repalced by: A 3095282140 | ||
| 035 | A 3095282140 | BRACKET |
| AIR INTAKE PIPE TO SUPPORT | ||
| 038 | N 912004008102 | LOCK WASHER |
| BRACKET TO RUBBER BUFFER | ||
| 041 | N 304032008006 | NUT |
| BRACKET TO RUBBER BUFFER | ||
| 044 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 044 | N 304017008021 | SCREW |
| AIR INTAKE PIPE TO BRACKET | ||
| 047 | N 912004008102 | LOCK WASHER |
| AIR INTAKE PIPE TO BRACKET | ||
| 050 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 050 | N 000125008443 | WASHER |
| AIR INTAKE PIPE TO BRACKET | ||
| 053 | A 3140180051 | SPACER RING |
| OIL REFILLING | ||
| 056 | A 3095280408 | AIR INTAKE PIPE |
| FROM AIR INTAKE PIPE TO OIL BATH AIR CLEANER | ||
| 059 | A 3095280708 | AIR INTAKE PIPE |
| FROM AIR INTAKE PIPE TO OIL BATH AIR CLEANER | ||
| 059 | A 3095283108 | AIR INTAKE PIPE |
| FROM AIR INTAKE PIPE TO OIL BATH AIR CLEANER | ||
| 062 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 062 | N 000000000674 | CLAMP |
| FROM AIR INTAKE PIPE TO OIL BATH AIR CLEANER | ||
| 065 | A 0060940002 | AIR CLEANER |
| Repalced by: A 0110941602 | ||
| 065 | A 0110941602 | AIR CLEANER |
| FA.KNECHT | ||
| 065 | A 0060945202 | AIR CLEANER |
| Repalced by: A 0120942002 | ||
| 065 | A 0120942002 | AIR CLEANER |
| FA.KNECHT | ||
| 068 | A 0120942202 | AIR CLEANER |
| FA.KNECHT | ||
| 071 | A 0010942204 | FILTER ELEMENT |
| TO 006 094 00 02,011 094 16 02 | ||
| 074 | A 0010940904 | FILTER ELEMENT |
| TO 006 094 52 02 | ||
| 074 | A 0020945604 | FILTER ELEMENT |
| TO 012 094 20 02,012 094 22 02 | ||
| 077 | A 0010941080 | GASKET |
| INSIDE | ||
| TO 006 094 00 02,011 094 16 02 | ||
| 080 | A 0000948180 | GASKET |
| Repalced by: A 0010945980 | ||
| 080 | A 0010945980 | GASKET |
| Repalced by: A 0010947880 | ||
| 080 | A 0010947880 | GASKET |
| OUTSIDE | ||
| TO 006 094 00 02,011 094 16 02 | ||
| 083 | A 0000948680 | GASKET |
| Repalced by: A 0000940879 | ||
| 083 | A 0000940879 | GASKET |
| TO 006 094 52 02,012 094 20 02,22 02 | ||
| 086 | A 0110941302 | AIR CLEANER |
| LOWER PART | ||
| TO 011 094 16 02 | ||
| 089 | A 0000940955 | FASTENER |
| TO 006 094 00 02 | ||
| 089 | A 0000941455 | FASTENER |
| Repalced by: A 0000941355 | ||
| 089 | A 0000941355 | FASTENER |
| TO 006 094 52 02 | ||
| 089 | A 0000941855 | FASTENER |
| Repalced by: A 0000941255 | ||
| 089 | A 0000941255 | FASTENER |
| TO 011 094 16 02 | ||
| 092 | N 000094004014 | COTTER PIN |
| TO 006 094 00 02 | ||
| 095 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 095 | N 000125008443 | WASHER |
| TO 012 094 20 02,012 094 22 02 | ||
| 098 | A 0000940372 | NUT |
| Repalced by: N 913002008004 | ||
| 098 | N 913002008004 | NUT |
| TO 012 094 20 02,012 094 22 02 | ||
| 101 | A 3095280039 | SUPPORT |
| AIR CLEANER | ||
| 104 | N 000933010105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 107 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 107 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 110 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 110 | N 304017008016 | SCREW |
| OIL BATH AIR CLEANER TO SUPPORT | ||
| 113 | N 912004008102 | LOCK WASHER |
| OIL BATH AIR CLEANER TO SUPPORT | ||
| 116 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 116 | N 000125008443 | WASHER |
| OIL BATH AIR CLEANER TO SUPPORT | ||
| 119 | A 3095200341 | BRACKET |
| AIR CLEANER | ||
| 119 | A 3095202441 | BRACKET |
| AIR CLEANER | ||
| A 3095280495 | REINFORCEMENT | |
| AIR CLEANER | ||
| 122 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 122 | N 304017008021 | SCREW |
| BRACKET TO FIRE WALL | ||
| 125 | N 912004008102 | LOCK WASHER |
| BRACKET TO FIRE WALL | ||
| 128 | A 0019872640 | RUBBER BUFFER |
| Repalced by: A 0019875240 | ||
| 128 | A 0019875240 | RUBBER BUFFER |
| OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL | ||
| 131 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 131 | N 000125008443 | WASHER |
| OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL | ||
| 134 | N 912004008102 | LOCK WASHER |
| OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL | ||
| 137 | N 304032008006 | NUT |
| OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL | ||
| 140 | A 3095280208 | AIR INTAKE PIPE |
| FROM OIL BATH AIT CLEANER TO INTAKE MUFFLER | ||
| 143 | A 3095280808 | AIR INTAKE PIPE |
| FROM OIL BATH AIT CLEANER TO INTAKE MUFFLER | ||
| 143 | A 3095283008 | AIR INTAKE PIPE |
| FROM OIL BATH AIT CLEANER TO INTAKE MUFFLER | ||
| 146 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 146 | N 000000000674 | CLAMP |
| FROM OIL BATH AIT CLEANER TO INTAKE MUFFLER | ||
| 149 | A 3095200081 | MUD APRON |
| Repalced by: A 3095200381 | ||
| 149 | A 3095200181 | MUD APRON |
| Repalced by: A 3095200381 | ||
| 149 | A 3095200381 | MUD APRON |
| 152 | N 000933005035 | SCREW |
| MUD APRON TO SUPPORT | ||
| 155 | N 912004005103 | LOCK WASHER |
| MUD APRON TO SUPPORT | ||
| 158 | N 000934005008 | NUT |
| MUD APRON TO SUPPORT | ||
| 161 | A 3099970982 | HOSE |
| WATER DRAIN | ||
| 161 | A 3099975182 | HOSE |
| WATER DRAIN | ||
| 164 | A 1164661382 | RUBBER RING |
| TO 309 997 51 82 | ||
| 167 | A 3095200001 | AIR INTAKE PIPE |
| Repalced by: A 3095280608 | ||
| 167 | A 3095280608 | AIR INTAKE PIPE |
| 167 | A 3095280908 | AIR INTAKE PIPE |
| 170 | N 000933010128 | SCREW |
| AIR INTAKE PIPE TO SUPPORT | ||
| 173 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 173 | N 910113010000 | NUT |
| AIR INTAKE PIPE TO SUPPORT | ||
| 176 | A 3095280308 | AIR INTAKE PIPE |
| FROM AIR INTAKE PIPE TO INTAKE FITTING | ||
| 176 | A 3095281008 | AIR INTAKE PIPE |
| FROM AIR INTAKE PIPE TO INTAKE FITTING | ||
| 179 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 179 | N 000000000674 | CLAMP |
| FROM AIR INTAKE PIPE TO INTAKE FITTING | ||

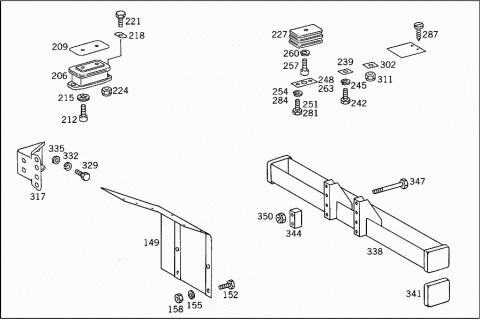

| 206 | A 3093100577 | BUFFER |
| Repalced by: A 3093100777 | ||
| 206 | A 3093100777 | BUFFER |
| FRONT | ||
| 209 | A 3093110184 | SHIM |
| RUBBER MOUNTING TO BODY | ||
| 212 | A 3099900020 | SCREW |
| Repalced by: N 914125010521 | ||
| 212 | N 914125010521 | SCREW |
| RUBBER MOUNTING TO BODY | ||
| M 10X45 | ||
| 212 | A 0009905912 | SCREW |
| RUBBER MOUNTING TO BODY | ||
| M 10X60 | ||
| 215 | N 006798010301 | SERRATED WASHER |
| RUBBER MOUNTING TO BODY | ||
| A 3093110284 | SHIM | |
| BODY MOUNTING | ||
| 218 | A 3093110684 | SHIM |
| FRONT RUBBER MOUNTING TO FRAME | ||
| 221 | N 000933010145 | SCREW |
| FRONT RUBBER MOUNTING TO FRAME | ||
| 10X35 MM | ||
| 224 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 224 | N 910113010000 | NUT |
| FRONT RUBBER MOUNTING TO FRAME | ||
| 227 | A 3093100277 | BUFFER |
| REAR | ||
| 239 | A 3148910111 | PLATE |
| BODY TO FRAME | ||
| 242 | N 000933012064 | SCREW |
| BODY TO FRAME | ||
| M 12X25M | ||
| 242 | N 000961012106 | SCREW |
| BODY TO FRAME | ||
| M 12X35 | ||
| 245 | N 912004012100 | LOCK WASHER |
| BODY TO FRAME | ||
| 248 | A 3093110784 | SHIM |
| BODY TO FRAME | ||
| 251 | N 304017010027 | SCREW |
| BODY TO FRAME | ||
| 254 | N 912004010102 | LOCK WASHER |
| BODY TO FRAME | ||
| 257 | N 000912012122 | SCREW |
| BUFFER TO FRAME | ||
| 260 | N 007980012001 | LOCK WASHER |
| BUFFER TO FRAME | ||
| 263 | A 3093110784 | SHIM |
| BUFFER TO FRAME | ||
| 281 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 281 | N 304017010028 | SCREW |
| BUFFER TO FRAME | ||
| 284 | N 912004010102 | LOCK WASHER |
| BUFFER TO FRAME | ||
| A 3093110484 | SHIM | |
| BODY TO FRAME | ||
| 287 | N 007976005202 | SHEET METAL SCREW |
| BODY TO FRAME | ||
| 302 | A 3148910111 | PLATE |
| SHIM TO FRAME | ||
| 311 | N 913002012002 | NUT |
| SHIM TO FRAME | ||
| 317 | A 3095250239 | BRACKET |
| Repalced by: A 3095251839 | ||
| 317 | A 3095251839 | BRACKET |
| Repalced by: A 3095202641 | ||
| 317 | A 3095202641 | BRACKET |
| FRONT BUMPER | ||
| 329 | N 000933010128 | SCREW |
| BRACKET TO SPRING FRONT BRACKET | ||
| 332 | N 912004010102 | LOCK WASHER |
| BRACKET TO SPRING FRONT BRACKET | ||
| 335 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 335 | N 000125010532 | WASHER |
| BRACKET TO SPRING FRONT BRACKET | ||
| 338 | A 3095200571 | BUMPER |
| Repalced by: A 3095201771 | ||
| 338 | A 3095201771 | BUMPER |
| 341 | A 3095250038 | CAP |
| 344 | A 3095250084 | SHIM |
| AT FRAME | ||
| 347 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 347 | N 304017010050 | SCREW |
| AT FRAME | ||
| 347 | N 000931010271 | SCREW |
| Repalced by: N 304017010051 | ||
| 347 | N 304017010051 | SCREW |
| AT FRAME | ||
| 347 | N 000933010128 | SCREW |
| AT FRAME | ||
| 350 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 350 | N 910113010000 | NUT |
| AT FRAME | ||
