Transporto priemonė: LK 508 DG; VIN numerio dalis: 309444
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|

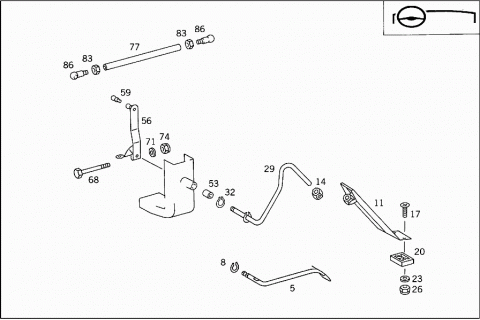

| 005 | A 3093000304 | ACCELERATOR PEDAL |
| 008 | N 900055010402 | LOCK RING |
| 011 | A 3093001204 | ACCELERATOR PEDAL |
| Repalced by: A 3093001304 | ||
| 011 | A 3093001304 | ACCELERATOR PEDAL |
| 014 | A 3093010022 | JOINT |
| 017 | N 000965006014 | SCREW |
| ACCELERATOR PEDAL TO CAB | ||
| M 6X16 | ||
| 017 | N 000965006040 | SCREW |
| ACCELERATOR PEDAL TO CAB | ||
| M 6X30 | ||
| 020 | A 3093010184 | SHIM |
| ACCELERATOR PEDAL TO CAB | ||
| 023 | N 000125006421 | WASHER |
| ACCELERATOR PEDAL TO CAB | ||
| 026 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 026 | N 913004006001 | NUT |
| ACCELERATOR PEDAL TO CAB | ||
| 029 | A 3093001225 | LEVER |
| Repalced by: A 3103000425 | ||
| 029 | A 3093002225 | LEVER |
| Repalced by: A 3103000425 | ||
| 029 | A 3093002325 | LEVER |
| Repalced by: A 3103000425 | ||
| 029 | A 3103000425 | LEVER |
| (CONTROL LEVER) | ||
| 032 | N 900055010402 | LOCK RING |

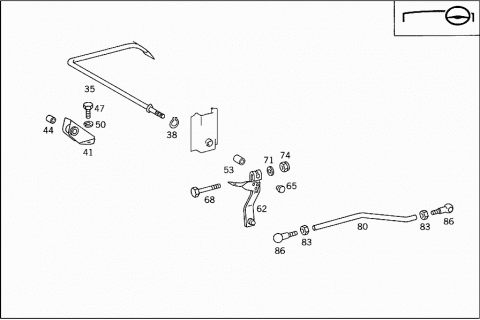

| 035 | A 3093000704 | ACCELERATOR PEDAL |
| Repalced by: A 3103000004 | ||
| 035 | A 3093001404 | ACCELERATOR PEDAL |
| Repalced by: A 3103000004 | ||
| 035 | A 3103000004 | ACCELERATOR PEDAL |
| 038 | N 900055010402 | LOCK RING |
| 041 | A 3093000236 | BEARING BRACKET |
| Repalced by: A 3093000436 | ||
| 041 | A 3093000436 | BEARING BRACKET |
| ACCELERATOR PEDAL | ||
| 044 | A 3193010150 | BUSHING |
| 044 | A 3193010150 | BUSHING |
| 047 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 047 | N 304017006018 | SCREW |
| BEARING BRACKET TO CAB FLOOR | ||
| 050 | N 912004006102 | LOCK WASHER |
| BEARING BRACKET TO CAB FLOOR | ||
| 053 | A 3193010150 | BUSHING |
| 053 | A 3193010150 | BUSHING |
| 056 | A 3093000325 | LEVER |
| Repalced by: A 3103000025 | ||
| 056 | A 3093002525 | LEVER |
| Repalced by: A 3103000025 | ||
| 056 | A 3103000025 | LEVER |
| (CONTROL LEVER) | ||
| 056 | A 3103000525 | LEVER |
| (CONTROL LEVER) | ||
| 059 | N 071803008207 | BALL PIVOT |
| 062 | A 3093000725 | LEVER |
| Repalced by: A 3103000225 | ||
| 062 | A 3093002725 | LEVER |
| Repalced by: A 3103000225 | ||
| 062 | A 3103000225 | LEVER |
| (CONTROL LEVER) | ||
| 062 | A 3103000725 | LEVER |
| (CONTROL LEVER) | ||
| 065 | N 915042016000 | PLUG |
| 068 | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 068 | N 304017006012 | SCREW |
| CONTROL LEVER TO ACCELERATOR PEDAL AND TO INTERMEDIATE SHAFT,RESP. | ||
| 068 | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 068 | N 304017006012 | SCREW |
| CONTROL LEVER TO ACCELERATOR PEDAL AND TO INTERMEDIATE SHAFT,RESP. | ||
| 071 | N 000125006421 | WASHER |
| CONTROL LEVER TO ACCELERATOR PEDAL AND TO INTERMEDIATE SHAFT,RESP. | ||
| 071 | N 000137010201 | SPRING WASHER |
| CONTROL LEVER TO ACCELERATOR PEDAL AND TO INTERMEDIATE SHAFT,RESP. | ||
| 074 | N 000985006000 | NUT |
| CONTROL LEVER TO ACCELERATOR PEDAL AND TO INTERMEDIATE SHAFT,RESP. | ||
| 074 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 074 | N 308673010000 | NUT |
| CONTROL LEVER TO ACCELERATOR PEDAL AND TO INTERMEDIATE SHAFT,RESP. | ||
| 074 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 074 | N 913004006001 | NUT |
| CONTROL LEVER TO ACCELERATOR PEDAL AND TO INTERMEDIATE SHAFT,RESP. | ||
| 077 | A 3093001015 | ROD |
| FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE | ||
| 077 | A 3093002515 | ROD |
| Repalced by: A 3093011515 | ||
| 077 | A 3093011515 | ROD |
| FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE | ||
| 080 | A 3093001315 | ROD |
| Repalced by: A 3093011915 | ||
| 080 | A 3093011615 | ROD |
| Repalced by: A 3093011915 | ||
| 080 | A 3093011915 | ROD |
| FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE | ||
| 083 | N 000934005008 | NUT |
| 083 | N 000934006007 | NUT |
| 086 | A 0009910620 | BALL SOCKET |
| Repalced by: A 0009911220 | ||
| 086 | A 0009911220 | BALL SOCKET |
| ROD TO LEVER | ||
| 086 | A 0009911220 | BALL SOCKET |
| ROD TO LEVER | ||
| 086 | A 0009911220 | BALL SOCKET |
| ROD TO LEVER | ||
| 086 | A 0009914922 | BALL SOCKET |
| Repalced by: A 0009914722 | ||
| 086 | A 0009914722 | BALL SOCKET |
| ROD TO LEVER | ||
| 086 | A 0009914722 | BALL SOCKET |
| ROD TO LEVER | ||
| 086 | A 0009915022 | BALL SOCKET |
| Repalced by: A 0009914822 | ||
| 086 | A 0009914822 | BALL SOCKET |
| ROD TO LEVER | ||
| 086 | A 0009910820 | BALL SOCKET |
| Repalced by: A 0009911320 | ||
| 086 | A 0009911320 | BALL SOCKET |
| ROD TO LEVER | ||

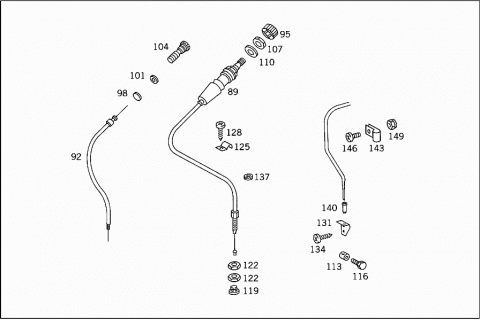

| 089 | A 3143001107 | KNOB |
| Repalced by: A 3183000007 | ||
| 089 | A 3183000007 | KNOB |
| WITH SPINDLE,WIRE CABLE,AND END PIECE | ||
| 089 | A 3093000807 | KNOB |
| Repalced by: A 3093000907 | ||
| 089 | A 3093000907 | KNOB |
| WITH SPINDLE,WIRE CABLE,AND END PIECE | ||
| 092 | A 3143000230 | WIRE CABLE |
| Repalced by: A 3523000230 | ||
| 092 | A 3523000230 | WIRE CABLE |
| 095 | A 3523020001 | KNOB |
| Repalced by: A 3523020201 | ||
| 095 | A 3523020101 | KNOB |
| Repalced by: A 3523020201 | ||
| 095 | A 3523020201 | KNOB |
| 095 | A 3093020001 | KNOB |
| 098 | A 3523020176 | WASHER |
| 101 | A 3129902140 | WASHER |
| 104 | A 3523020108 | GUIDE |
| Repalced by: A 3523020308 | ||
| 104 | A 3523020208 | GUIDE |
| Repalced by: A 3523020308 | ||
| 104 | A 3523020308 | GUIDE |
| 107 | A 3129901151 | NUT |
| 107 | A 0003020072 | NUT |
| Repalced by: A 3129901151 | ||
| 107 | A 3129901151 | NUT |
| 110 | A 0019900040 | WASHER |
| 110 | A 0003020052 | SPACER WASHER |
| 113 | A 1203020087 | RING |
| Repalced by: A 3093020068 | ||
| 113 | A 3093000086 | END PIECE |
| Repalced by: A 3093020068 | ||
| 113 | A 3093200068 | END PIECE |
| Repalced by: A 3093020068 | ||
| 113 | A 3093020068 | END PIECE |
| Repalced by: A 1233000086 | ||
| 113 | A 1233000086 | END PIECE |
| WIRE CABLE TO LEVER | ||
| 116 | A 3099900015 | SCREW |
| Repalced by: N 000933005058 | ||
| 116 | N 000933005058 | SCREW |
| WIRE CABLE TO LEVER | ||
| 119 | A 3093020050 | BUSHING |
| WIRE CABLE TO LEVER | ||
| 122 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 122 | N 304035008001 | NUT |
| WIRE CABLE TO LEVER | ||
| 125 | A 1869950220 | CLAMP |
| Repalced by: N 072571001035 | ||
| 125 | N 072571001035 | CLAMP |
| Repalced by: A 1279950020 | ||
| 125 | A 1279950020 | CLAMP |
| MANUAL CONTROL | ||
| 128 | N 007981004274 | SHEET METAL SCREW |
| MANUAL CONTROL | ||
| 131 | A 3093010240 | BRACKET |
| MANUAL CONTROL | ||
| 134 | N 007971004316 | SHEET METAL SCREW |
| Repalced by: N 000000000459 | ||
| 134 | N 000000000459 | SHEET METAL SCREW |
| BRACKET TO FIRE WALL | ||
| 137 | A 0009972881 | GROMMET |
| MANUAL CONTROL | ||
| 140 | A 3183020091 | GROMMET |
| CHOKE CABLE TO COWL | ||
| 143 | A 3609950301 | CLAMP |
| CHOKE CABLE TO COWL | ||
| 146 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 146 | N 000000001145 | SCREW |
| CHOKE CABLE TO COWL | ||
| 149 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 149 | N 913004006001 | NUT |
| CHOKE CABLE TO COWL | ||
