Transporto priemonė: LK 508 DG; VIN numerio dalis: 309444
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

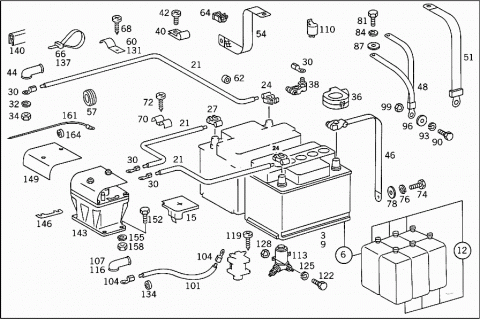

| 003 | A 0005419401 | BATTERY |
| Repalced by: A 0005417401 | ||
| 003 | A 0005417401 | BATTERY |
| Repalced by: A 0025419901 | ||
| 003 | A 0025419901 | BATTERY |
| 12V/70AH | ||
| 006 | A 1235400101 | BATTERY |
| Repalced by: A 1405400001 | ||
| 006 | A 1405400001 | BATTERY |
| PARTS KIT | ||
| 009 | A 0015417901 | BATTERY |
| Repalced by: A 0025414301 | ||
| 009 | A 0025414301 | BATTERY |
| Repalced by: A 0045412301 | ||
| 009 | A 0045412301 | BATTERY |
| 12 V/66 AH | ||
| 012 | A 0009890515 | BATTERY ACID BOTTLE SET |
| Repalced by: A 0009891315 | ||
| 012 | A 0009891315 | BATTERY ACID BOTTLE SET |
| TO 001 541 79 01 | ||
| 015 | A 0005462335 | BOOT |
| POS. POLE | ||
| 021 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 021 | A 6735460013 | ELECTRIC CABLE |
| BATTERY | ||
| 024 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 027 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 030 | N 046234010007 | CABLE SHOE |
| WITH BORE | ||
| 10.5 MM | ||
| 030 | N 046234012006 | CABLE SHOE |
| WITH BORE | ||
| 13 MM | ||
| 032 | N 912004010102 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| 034 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 034 | N 304035010001 | NUT |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| 036 | A 0005463735 | BOOT |
| NEG.POLE | ||
| 038 | A 0005469844 | CLAMPING PIECE |
| A 3105400539 | ELECTRIC CABLE | |
| FROM BATTERY I TO BATTERY CHANGE-OVER SWITCH | ||
| 040 | A 3609950601 | CLAMP |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 042 | N 007985006208 | SCREW |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 044 | A 3095460035 | BOOT |
| Repalced by: A 0005460135 | ||
| 044 | A 0005460135 | BOOT |
| POS. CABLE | ||
| 046 | A 3145400931 | NEG. CABLE |
| FROM BATTERY TO BATTERY SUPPORT | ||
| 048 | A 3095400341 | GROUND STRAP |
| Repalced by: A 3135400041 | ||
| 048 | A 3135400041 | GROUND STRAP |
| FROM BELL HOUSING TO CAB SIDE MEMBER | ||
| 051 | A 3095400441 | GROUND STRAP |
| Repalced by: A 3145400041 | ||
| 051 | A 3145400041 | GROUND STRAP |
| Repalced by: A 3525400041 | ||
| 051 | A 3525400041 | GROUND STRAP |
| FROM CAB CROSS MEMBER TO BELL HOUSING | ||
| 054 | A 3095460120 | GROUND STRAP |
| FROM CAB RIGHT SIDE MEMBER TO FRAME SIDE MEMBER | ||
| 057 | A 1869970781 | GROMMET |
| BATTERY CABLE THRU CAB FLOOR | ||
| 060 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 060 | A 1109950401 | CLAMP |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 062 | A 3524340123 | GUIDE |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 064 | A 0049881378 | CLIP |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 066 | A 0019978490 | LOOM TIE |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 068 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 068 | N 007981006305 | SHEET METAL SCREW |
| CLAMP MOUNTING | ||
| 070 | A 3039950232 | CLAMP |
| MAIN CABLE HARNESS & STARTING CABLE TO CAB LEFT SIDE MEMBER | ||
| 070 | A 3039950232 | CLAMP |
| STARTING CABLE AND MAIN CABLE HARNESS TO CROSS MEMBER | ||
| 072 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 072 | N 007981006305 | SHEET METAL SCREW |
| CLAMP MOUNTING | ||
| 074 | N 000933010128 | SCREW |
| BATTERY CABLE TO BATTERY SUPPORT | ||
| 076 | N 912004010102 | LOCK WASHER |
| BATTERY CABLE TO BATTERY SUPPORT | ||
| 078 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 078 | N 009021010209 | WASHER |
| BATTERY CABLE TO BATTERY SUPPORT | ||
| 081 | N 000125010532 | WASHER |
| Repalced by: N 304017010043 | ||
| 081 | N 304017010043 | SCREW |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| M 10X20 | ||
| 084 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| 087 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 087 | N 009021010209 | WASHER |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| 090 | N 000933010128 | SCREW |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| M 10X20 | ||
| 093 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 096 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 096 | N 009021010209 | WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 099 | N 000934010014 | NUT |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 101 | N 922002050000 | ELECTRIC CABLE |
| Repalced by: A 6735460011 | ||
| 101 | A 6735460011 | ELECTRIC CABLE |
| FROM BATTERY CHANGE-OVER SWITCH TO PUMP | ||
| 101 | N 922002035000 | ELECTRIC CABLE |
| FROM CONTACTOR TO ELECTRO-HYDRAULIC PUMP | ||
| 101 | N 922002035000 | ELECTRIC CABLE |
| FROM CONTACTOR TO STARTING MOTOR | ||
| 104 | N 046234010008 | CABLE SHOE |
| FROM BATTERY CHANGE-OVER SWITCH TO PUMP | ||
| 104 | N 046234008004 | CABLE SHOE |
| 104 | N 046234010002 | CABLE SHOE |
| 107 | A 3095460035 | BOOT |
| Repalced by: A 0005460135 | ||
| 107 | A 0005460135 | BOOT |
| POS. CABLE | ||
| 110 | A 0005428419 | RELAY |
| Repalced by: A 0015424719 | ||
| 110 | A 0015424719 | RELAY |
| Repalced by: A 0025420719 | ||
| 110 | A 0025420719 | RELAY |
| 110 | A 0005458605 | RELAY |
| DUMPER CONTROL | ||
| 110 | A 0005458905 | RELAY |
| DUMPER CONTROL | ||
| 113 | A 0005450567 | CONTACTOR |
| Repalced by: A 0005450967 | ||
| 113 | A 0005450967 | CONTACTOR |
| DUMPER CONTROL | ||
| 116 | A 1115460035 | BOOT |
| CONTACTOR | ||
| 119 | N 007981004245 | SHEET METAL SCREW |
| Repalced by: N 007981004339 | ||
| 119 | N 007981004339 | SHEET METAL SCREW |
| Repalced by: N 000000000459 | ||
| 119 | N 000000000459 | SHEET METAL SCREW |
| CONTACTOR TO SEAT BOX | ||
| 122 | N 000933005058 | SCREW |
| CONTACTOR TO SEAT BOX | ||
| 125 | N 912004005103 | LOCK WASHER |
| CONTACTOR TO SEAT BOX | ||
| 128 | N 000934005008 | NUT |
| CONTACTOR TO SEAT BOX | ||
| 131 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 131 | A 1109950401 | CLAMP |
| LINE TO SIDE MEMBER | ||
| 134 | A 3524340123 | GUIDE |
| LINE TO SIDE MEMBER | ||
| 137 | A 0019978490 | LOOM TIE |
| LINE TO SIDE MEMBER | ||
| 140 | A 0009876870 | RUBBER SECTION |
| LINE TO SIDE MEMBER | ||
| 143 | A 0005450908 | SWITCH |
| BATTERY | ||
| 146 | A 0005450334 | FUSE |
| 149 | A 3095450046 | COVERING |
| SWITCH | ||
| 152 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 152 | N 304017008034 | SCREW |
| SWITCH | ||
| 155 | N 912004008102 | LOCK WASHER |
| SWITCH | ||
| 158 | N 304032008006 | NUT |
| SWITCH | ||
| A 3095401939 | ELECTRIC CABLE | |
| FROM STARTING MOTOR TO ALTERNATOR | ||
| A 3525401439 | ELECTRIC CABLE | |
| FROM BATTERY CHANGE-OVER SWITCH TO BATTERY SUPPORT | ||
| A 3525401439 | ELECTRIC CABLE | |
| FROM BATTERY CHANGE-OVER SWITCH TO BATTERY SUPPORT | ||
| 161 | A 3095402039 | ELECTRIC CABLE |
| FROM BATTERY CHANGE-OVER SWITCH TO BATTERY SUPPORT | ||
| 164 | A 3129970521 | PART NAME MISSING |
| Repalced by: A 1109970481 | ||
| 164 | A 1109970481 | GROMMET |
| BATTERY CABLE TO BATTERY SUPPORT | ||

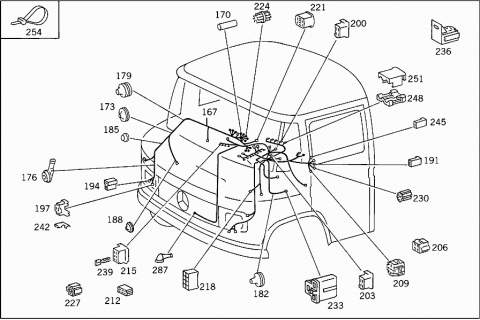

| 167 | A 3095400805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 167 | A 3105400005 | CABLE HARNESS |
| Repalced by: A 3105407305 | ||
| 167 | A 3105407305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 167 | A 3105400305 | CABLE HARNESS |
| Repalced by: A 3105400705 | ||
| 167 | A 3105400705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 167 | A 3105401005 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 167 | A 3105401605 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 167 | A 3105404205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 167 | A 3095400905 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 167 | A 3105400105 | CABLE HARNESS |
| Repalced by: A 3105400805 | ||
| 167 | A 3105407405 | CABLE HARNESS |
| Repalced by: A 3105400805 | ||
| 167 | A 3105400805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 167 | A 3105401105 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 167 | A 3105401705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 167 | A 3105404305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 170 | A 0009970381 | GROMMET |
| 170 | A 0009970581 | GROMMET |
| 170 | A 0009970681 | GROMMET |
| 173 | A 3099970881 | GROMMET |
| 173 | A 1109970481 | GROMMET |
| 176 | A 3149970181 | GROMMET |
| 179 | A 3219970281 | GROMMET |
| Repalced by: A 3359970081 | ||
| 179 | A 3359970081 | GROMMET |
| 182 | A 3109970081 | GROMMET |
| 185 | A 3099970081 | GROMMET |
| 188 | A 3099970681 | GROMMET |
| 191 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 194 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 197 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 200 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 203 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 206 | A 0075457328 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 209 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 212 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 215 | A 0035451028 | PIN BUSHING HOUSING |
| Repalced by: A 0015458128 | ||
| 215 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 218 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 221 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 224 | A 0045451428 | PLUG |
| 8-POLE | ||
| 227 | A 0025451728 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 230 | A 0055459928 | PIN BUSHING HOUSING |
| 7-POLE | ||
| 233 | A 0025459528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 236 | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| 239 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 239 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 239 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 239 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 239 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 239 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 242 | A 0005453626 | PIN BUSHING |
| Repalced by: A 0075457426 | ||
| 242 | A 0075457426 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4MM2 | ||
| 242 | A 0005457926 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 245 | A 0005451745 | BOOT |
| 248 | A 0065457928 | PLUG |
| Repalced by: A 0025454928 | ||
| 248 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 248 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 251 | A 0005452403 | CAP |
| AT COUPLER STRIP | ||
| 254 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| 254 | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||
| 257 | A 3145450001 | FUSE BOX |
| 10-POLE | ||
| 260 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 260 | N 072581008101 | FUSE |
| 8 A | ||
| 263 | N 914025004103 | COMBINATION BOLT |
| CABLE TO FUSE BOX | ||
| 266 | N 000084006132 | SCREW |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 269 | N 912004006102 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||

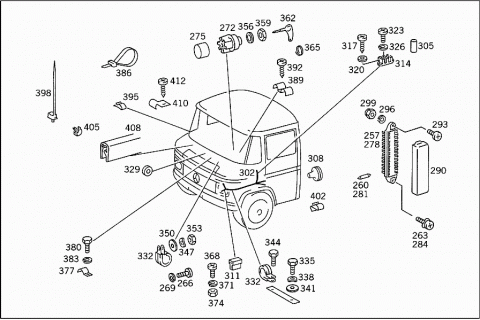

| 272 | A 0005453013 | SWITCH |
| (IGNITION AND LIGHT SWITH) | ||
| 275 | A 3099971181 | GROMMET |
| SWITCH BOX | ||
| 278 | A 3145450001 | FUSE BOX |
| 10-POLE | ||
| 278 | A 0005458501 | FUSE BOX |
| 12-POLE;TERMINALS 2-8;9-10;11-12 SHUNTED | ||
| 278 | A 0005458401 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-8,9-12 SHUNTED | ||
| 281 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 281 | N 072581008101 | FUSE |
| A 8 | ||
| 284 | N 914025004103 | COMBINATION BOLT |
| CABLE TO FUSE BOX | ||
| 287 | A 0005460235 | BOOT |
| Repalced by: A 0005463335 | ||
| 287 | A 0005463335 | BOOT |
| FUSE BOX | ||
| 290 | A 0005452303 | CAP |
| FUSE BOX | ||
| 293 | N 007985005175 | SCREW |
| FUSE BOX MOUNTING | ||
| 293 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 293 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 293 | N 000000001149 | SCREW |
| FUSE BOX MOUNTING | ||
| 296 | N 912004005103 | LOCK WASHER |
| FUSE BOX MOUNTING | ||
| 299 | N 000934005008 | NUT |
| FUSE BOX MOUNTING | ||
| 299 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 299 | N 913004006001 | NUT |
| FUSE BOX MOUNTING | ||
| 302 | A 3095402537 | ELECTRIC CABLE |
| FROM ALTERNATOR TO REGULATOR AND TO CABLE CONNECTOR | ||
| 302 | A 3095402537 | ELECTRIC CABLE |
| FROM ALTERNATOR TO REGULATOR AND TO CABLE CONNECTOR | ||
| 305 | A 0009970381 | GROMMET |
| 305 | A 0009970581 | GROMMET |
| 308 | A 3109970081 | GROMMET |
| 311 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 311 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 314 | A 0005468041 | CABLE CONNECTOR |
| IN ENGINE COMPARTMENT | ||
| 314 | A 0005468041 | CABLE CONNECTOR |
| IN ENGINE COMPARTMENT | ||
| 317 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 317 | N 000000000453 | SHEET METAL SCREW |
| IN ENGINE COMPARTMENT | ||
| 320 | N 000125004331 | WASHER |
| IN ENGINE COMPARTMENT | ||
| 320 | N 000125004331 | WASHER |
| IN ENGINE COMPARTMENT | ||
| 323 | N 007985006161 | SCREW |
| Repalced by: N 007985006580 | ||
| 323 | N 007985006580 | SCREW |
| CABLE TO FUSE BOX | ||
| 323 | N 007985006580 | SCREW |
| CABLE TO FUSE BOX | ||
| 323 | N 007985004107 | SCREW |
| CABLE TO FUSE BOX | ||
| 323 | N 007985004107 | SCREW |
| CABLE TO FUSE BOX | ||
| 326 | N 912004006102 | LOCK WASHER |
| CABLE TO FUSE BOX | ||
| 326 | N 912004006102 | LOCK WASHER |
| CABLE TO FUSE BOX | ||
| 329 | A 3109970181 | GROMMET |
| REGULATOR FEED CABLE TO VENTILATION DUCT | ||
| 329 | A 3109970181 | GROMMET |
| REGULATOR FEED CABLE TO VENTILATION DUCT | ||
| 329 | A 3109970181 | GROMMET |
| REGULATOR FEED CABLE TO VENTILATION DUCT | ||
| 332 | N 916016012201 | CLAMP |
| CABLE TO ALTERNATOR | ||
| 332 | N 916016015201 | CLAMP |
| CABLE TO ALTERNATOR | ||
| A 3141500173 | BRACKET | |
| CABLE TO ALTERNATOR | ||
| 335 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 335 | N 304017006018 | SCREW |
| BRACKET MOUNTING | ||
| 338 | N 000137006204 | SPRING WASHER |
| BRACKET MOUNTING | ||
| 341 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 341 | N 009021006208 | WASHER |
| BRACKET MOUNTING | ||
| 344 | N 000933005059 | SCREW |
| CLAMP TO BRACKET | ||
| 347 | N 000137005203 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| 350 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 350 | N 009021005205 | WASHER |
| CABLE TO ALTERNATOR | ||
| 353 | N 000934005008 | NUT |
| CABLE TO ALTERNATOR | ||
| 356 | A 0005450176 | WASHER |
| Repalced by: A 0005450376 | ||
| 356 | A 0005450376 | WASHER |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 359 | A 0005450672 | NUT |
| Repalced by: A 0005451072 | ||
| 359 | A 0005451072 | NUT |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 362 | A 0005451235 | KEY |
| IGNITION AND LIGHT SWITCH | ||
| 365 | A 0005830296 | RING |
| IGNITION AND LIGHT SWITCH | ||
| 368 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 368 | N 000000001145 | SCREW |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 371 | N 912004006102 | LOCK WASHER |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 374 | N 000934006007 | NUT |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 377 | A 3209950220 | CLAMP |
| Repalced by: A 1989950020 | ||
| 377 | A 1989950020 | CLAMP |
| TO MOUNT MAIN CABLE HARNESS BRANCH-OFF TO WINDSHIELD WIPER MOTOR | ||
| 380 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 380 | N 304017006018 | SCREW |
| CLAMP MOUNTING | ||
| 383 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 386 | A 0019978390 | LOOM TIE |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| 389 | A 3039950232 | CLAMP |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| 392 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 392 | N 007981006305 | SHEET METAL SCREW |
| CLAMP MOUNTING | ||
| 395 | A 0009885378 | CLIP |
| MAIN CABLE HARNESS TO WINDOW LEVEL GIRDER | ||
| 398 | A 0005461143 | BRACKET |
| MAIN CABLE HARNESS TO WINDOW LEVEL GIRDER | ||
| 402 | A 0009881778 | CLIP |
| MAIN CABLE HARNESS TO CAB FLOOR PLATE | ||
| 405 | A 0009883478 | CLIP |
| MAIN CABLE HARNESS TO WINDOW LEVEL GIRDER | ||
| 408 | A 3099870072 | EDGE GUARD SECTION |
| Repalced by: A 0009876870 | ||
| 408 | A 0009876870 | RUBBER SECTION |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| 75 MM | ||
| 410 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 410 | A 1109950401 | CLAMP |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| 412 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 412 | N 007981006305 | SHEET METAL SCREW |
| CLAMP MOUNTING | ||

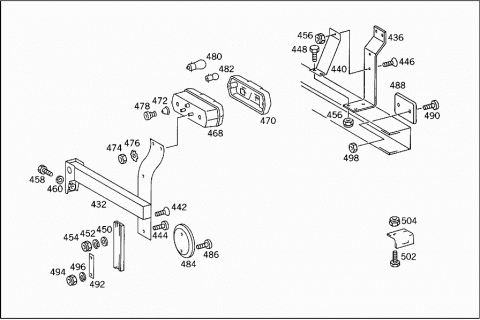

| 432 | A 3095400373 | BRACKET |
| Repalced by: A 3095401873 | ||
| 432 | A 3095401873 | BRACKET |
| LEFT TAIL LAMP | ||
| 432 | A 3095401873 | BRACKET |
| LEFT TAIL LAMP | ||
| 432 | A 3095400473 | BRACKET |
| Repalced by: A 3095401973 | ||
| 432 | A 3095401973 | BRACKET |
| RIGHT TAIL LAMP | ||
| 432 | A 3095401973 | BRACKET |
| RIGHT TAIL LAMP | ||
| 432 | A 3095441738 | BRACKET |
| Repalced by: A 3095443438 | ||
| 436 | A 3095443438 | BRACKET |
| TAIL AND LICENSE PLATE LAMPS | ||
| 436 | A 3095443438 | BRACKET |
| TAIL AND LICENSE PLATE LAMPS | ||
| 440 | A 3095250054 | STRUT |
| UNDERRUN PROTECTION | ||
| 442 | N 000963006005 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 444 | N 000084006137 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 446 | N 000965008002 | SCREW |
| UNDERRUN PROTECTION | ||
| 448 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 448 | N 304017008021 | SCREW |
| UNDERRUN PROTECTION | ||
| A 3095440084 | SHIM | |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 450 | N 000125006421 | WASHER |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 452 | N 912004006102 | LOCK WASHER |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 454 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 454 | N 910113006001 | NUT |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 456 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 456 | N 913004008001 | NUT |
| UNDERRUN PROTECTION | ||
| 458 | N 000933010128 | SCREW |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| M 10X20 | ||
| 458 | N 000933010105 | SCREW |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 460 | N 912004010102 | LOCK WASHER |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 468 | A 0015441203 | TAIL LAMP |
| Repalced by: A 0015445403 | ||
| 468 | A 0015445403 | TAIL LAMP |
| Repalced by: A 0025441503 | ||
| 468 | A 0025441503 | TAIL LAMP |
| LEFT | ||
| 468 | A 0015447603 | TAIL LAMP |
| Repalced by: A 0015449203 | ||
| 468 | A 0015449203 | TAIL LAMP |
| LEFT | ||
| 468 | A 0015441403 | TAIL LAMP |
| Repalced by: A 0015445303 | ||
| 468 | A 0015445303 | TAIL LAMP |
| Repalced by: A 0025441403 | ||
| 468 | A 0025441403 | TAIL LAMP |
| RIGHT | ||
| 468 | A 0015447503 | TAIL LAMP |
| Repalced by: A 0015449103 | ||
| 468 | A 0015449103 | TAIL LAMP |
| RIGHT | ||
| 470 | A 0018265390 | LENS |
| LEFT | ||
| 470 | A 0015447790 | LENS |
| LEFT | ||
| 470 | A 0018265490 | LENS |
| RIGHT | ||
| 470 | A 0015447890 | LENS |
| RIGHT | ||
| 472 | A 0009978081 | GROMMET |
| 474 | N 000934006007 | NUT |
| TAIL LAMP TO BRACKET | ||
| 476 | N 006798006103 | SERRATED WASHER |
| TAIL LAMP TO BRACKET | ||
| 478 | A 3095860054 | REPAIR KIT |
| Repalced by: A 0009970434 | ||
| 478 | A 6019972181 | GROMMET |
| CABLE SEALING AT TAIL LAMPS | ||
| 480 | N 072601012190 | BULB |
| BLINKER AND STOP LIGHTS | ||
| 12 V/21 W | ||
| 480 | N 072601024190 | BULB |
| Repalced by: N 072601024192 | ||
| 480 | N 072601024192 | BULB |
| STOP AND BLINKER LIGHTS | ||
| 24 V/21 W | ||
| 482 | N 072601012702 | BULB |
| TAIL LIGHT | ||
| 12 V/10 W | ||
| 482 | N 072601024702 | BULB |
| Repalced by: N 072601024704 | ||
| 482 | N 072601024704 | BULB |
| TAIL LIGHT | ||
| 24 V/10 W | ||
| 484 | A 0005443305 | REFLECTOR |
| 486 | N 007985005146 | SCREW |
| REFLECTOR TO BRACKET | ||
| 488 | A 0005442905 | REFLECTOR |
| Repalced by: A 0005443205 | ||
| 488 | A 0005443205 | REFLECTOR |
| 490 | N 000084006137 | SCREW |
| UNDERRUN PROTECTION | ||
| 492 | A 3225440184 | SHIM |
| REFLECTOR TO BRACKET | ||
| 494 | N 913004005001 | NUT |
| REFLECTOR TO BRACKET | ||
| 496 | N 912004005101 | LOCK WASHER |
| REFLECTOR TO BRACKET | ||
| 498 | N 000934006007 | NUT |
| UNDERRUN PROTECTION | ||
| A 3095440838 | BRACKET | |
| UNDERRUN PROTECTION | ||
| 502 | N 000933010128 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 504 | N 913002010001 | NUT |
| BRACKET TO SIDE MEMBER | ||

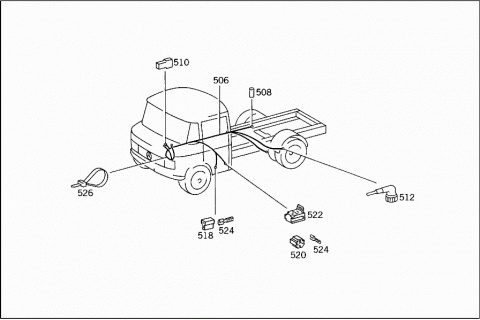

| 506 | A 3095404337 | ELECTRIC CABLE |
| Repalced by: A 3095409937 | ||
| 506 | A 3095409937 | ELECTRIC CABLE |
| FROM DUMPER CONTROL TELL-TALE LAMP TO NO. 9 FUSE | ||
| 506 | A 3095401108 | CABLE HARNESS |
| FROM DUMPER CONTROL TELL-TALE LAMP TO FUSE,SWITCH BOX,DUMPER VALVE,CONTACTOR | ||
| 506 | A 3095404237 | ELECTRIC CABLE |
| FROM DUMPER CONTROL TELL-TALE LAMP TO NO. 9 FUSE | ||
| 506 | A 3095401208 | CABLE HARNESS |
| FROM DUMPER CONTROL TELL-TALE LAMP TO FUSE,SWITCH BOX,DUMPER VALVE,CONTACTOR | ||
| 506 | A 3095405937 | ELECTRIC CABLE |
| FROM DUMPER CONTROL TELL-TALE LAMP TO NO. 9 FUSE | ||
| 506 | A 3095401008 | CABLE HARNESS |
| FROM DUMPER CONTROL TELL-TALE LAMP TO FUSE,SWITCH BOX,DUMPER VALVE,CONTACTOR | ||
| 508 | A 0009970381 | GROMMET |
| 510 | A 0005451745 | BOOT |
| 512 | A 0005400481 | PLUG SOCKET |
| Repalced by: A 3805400181 | ||
| 512 | A 3805400181 | PLUG SOCKET |
| Repalced by: A 3805402181 | ||
| 512 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 512 | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 512 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 518 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 520 | A 0045454028 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 522 | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| 524 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 524 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 524 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 524 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 526 | A 0029970790 | LOOM TIE |
| Repalced by: A 0019974190 | ||
| 526 | A 0019974190 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 530 | A 3095400127 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 530 | A 3095402127 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 530 | A 3105403727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 530 | A 3095402227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 530 | A 3105400127 | ELECTRIC CABLE |
| Repalced by: A 3105400327 | ||
| 530 | A 3105400227 | ELECTRIC CABLE |
| Repalced by: A 3105400327 | ||
| 530 | A 3105400327 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 530 | A 3105403827 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3095402627 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 530 | A 3105400627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 530 | A 3105401027 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 530 | A 3105403927 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 530 | A 3105400727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 530 | A 3105405327 | ELECTRIC CABLE |
| Repalced by: A 3105405927 | ||
| 530 | A 3105405427 | ELECTRIC CABLE |
| Repalced by: A 3105405927 | ||
| 530 | A 3105405927 | ELECTRIC CABLE |
| Repalced by: A 3105407627 | ||
| 530 | A 3105407627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 530 | A 3105402208 | CABLE HARNESS |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 532 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 534 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 536 | A 0025459528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 538 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 540 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 540 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 540 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4 MM2 | ||
| 542 | A 0009970381 | GROMMET |
| 542 | A 0009970581 | GROMMET |
| 544 | A 0009972781 | GROMMET |
| Repalced by: A 0009972881 | ||
| 544 | A 0009972881 | GROMMET |
| 546 | A 0005461237 | GROMMET |
| 548 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| A 3095402632 | ELECTRIC CABLE | |
| FROM PLUG CONNECTION TO STOP LIGHT SWITCH | ||
| 552 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 554 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 554 | A 0075458226 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 560 | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 560 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 560 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 562 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 562 | N 000000001145 | SCREW |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 564 | N 912004006102 | LOCK WASHER |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 566 | N 000934006007 | NUT |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 568 | A 3129951040 | CLAMP |
| Repalced by: A 0005460875 | ||
| 568 | A 0005460875 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 570 | A 3099950140 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 572 | A 0049882678 | CLIP |
| 574 | A 3099950240 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 576 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 576 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 578 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 578 | N 009021006208 | WASHER |
| 580 | A 0005466141 | CABLE CONNECTOR |
| REAR | ||
| 582 | A 0005460781 | COVERING |
| WITH GASKET | ||
| 584 | A 0005469541 | CABLE CONNECTOR |
| Repalced by: A 0015463341 | ||
| 584 | A 0015463341 | CABLE CONNECTOR |
| Repalced by: A 0015463841 | ||
| 584 | A 0015463841 | CABLE CONNECTOR |
| Repalced by: A 0015465441 | ||
| 584 | A 0015465441 | CABLE CONNECTOR |
| REAR | ||
| 586 | A 0005460481 | COVERING |
| Repalced by: A 0005460581 | ||
| 586 | A 0005460581 | COVERING |
| 588 | A 0045458928 | PLUG |
| Repalced by: A 0105456728 | ||
| 588 | A 0105456728 | PLUG |
| REAR CABLE CONNECTOR | ||
| 590 | A 0009872844 | EXPANSION PLUG |
| CABLE CONNECTOR | ||
| 592 | N 007985004179 | SCREW |
| CABLE CONNECTOR TO FRAME | ||
| 594 | N 007985005175 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| 596 | N 912004004102 | LOCK WASHER |
| CABLE CONNECTOR TO FRAME | ||
| 596 | N 912004005103 | LOCK WASHER |
| CABLE CONNECTOR TO BRACKET | ||
| 598 | N 000125004308 | WASHER |
| CABLE CONNECTOR TO FRAME | ||
| 598 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 598 | N 000433005304 | WASHER |
| CABLE CONNECTOR TO BRACKET | ||
| 600 | N 000934004006 | NUT |
| CABLE CONNECTOR TO FRAME | ||
| 600 | N 000934005008 | NUT |
| CABLE CONNECTOR TO BRACKET | ||
| 602 | A 3095403573 | BRACKET |
| Repalced by: A 3095405173 | ||
| 602 | A 3095405173 | BRACKET |
| Repalced by: A 6675400273 | ||
| 602 | A 6675400273 | BRACKET |
| CABLE CONNECTOR | ||
| 604 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 604 | N 000000001146 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 6X16 | ||
| 604 | N 000000001146 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 6X16 | ||
| 604 | N 007985008107 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 606 | N 912004006102 | LOCK WASHER |

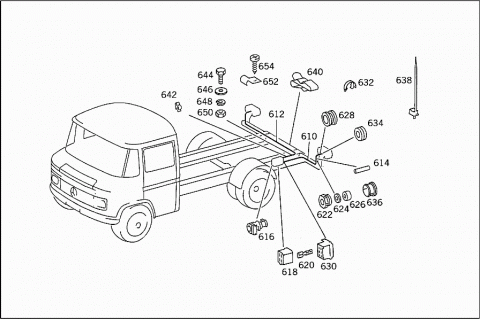

| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 606 | N 912004006102 | LOCK WASHER |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 606 | N 912004008102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| A 3095400327 | ELECTRIC CABLE | |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 610 | A 3095407827 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 610 | A 3095402832 | ELECTRIC CABLE |
| Repalced by: A 3095402932 | ||
| 610 | A 3095402932 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 610 | A 3095406932 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 612 | A 3095400427 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 612 | A 3095407927 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 612 | A 3095402932 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 612 | A 3095407032 | ELECTRIC CABLE |
| Repalced by: A 3095409632 | ||
| 612 | A 3095409632 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 614 | A 0009970381 | GROMMET |
| PIN BUSHING | ||
| 616 | A 3805461937 | GROMMET |
| REAR CABLE CONNECTOR | ||
| 618 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 620 | A 0005455326 | PIN BUSHING |
| 2.5 MM2 | ||
| 620 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 620 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 620 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 620 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 622 | A 0009970434 | SCREW |
| CABLE SEALING AT TAIL LAMPS | ||
| 624 | A 0009910145 | RING |
| CABLE SEALING AT TAIL LAMPS | ||
| 626 | A 0009975486 | PLUG |
| CABLE SEALING AT TAIL LAMPS | ||
| 628 | A 0005461237 | GROMMET |
| REAR CABLE CONNECTOR | ||
| 630 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 632 | A 0015460144 | CLAMPING PIECE |
| ELECTRIC CABLE TENSILE STRESS RELIEF | ||
| 634 | A 3129970481 | GROMMET |
| TAIL LAMP CABLES THRU FRAME SIDE MEMBERS | ||
| 634 | A 3129970481 | GROMMET |
| ELECTRIC CABLE THRU TAIL LAMP BRACKET | ||
| 634 | A 0009972281 | GROMMET |
| TAIL LAMP CABLES THRU TAIL LAMP BRACKETS | ||
| 634 | A 8339970081 | GROMMET |
| TAIL LAMP CABLES THRU TAIL LAMP BRACKETS | ||
| 634 | A 3099970181 | GROMMET |
| ELECTRIC CABLE THRU FRAME SIDE MEMBER | ||
| 636 | A 3094760350 | BUSHING |
| Repalced by: A 0009973481 | ||
| 636 | A 0009973481 | GROMMET |
| TAIL LAMP CABLES THRU FRAME SIDE MEMBERS | ||
| 638 | A 0005461143 | BRACKET |
| ELECTRIC CABLE TO BRACKET | ||
| 640 | A 0005460875 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 640 | A 0005460875 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 642 | A 3099950140 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 644 | N 000933010128 | SCREW |
| GROUND CABLE TO SIDE MEMBER | ||
| 644 | N 000933010128 | SCREW |
| GROUND CABLE TO SIDE MEMBER | ||
| 646 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 646 | N 009021010209 | WASHER |
| GROUND CABLE TO SIDE MEMBER | ||
| 646 | N 009021010209 | WASHER |
| GROUND CABLE TO SIDE MEMBER | ||
| 648 | N 912004010102 | LOCK WASHER |
| GROUND CABLE TO SIDE MEMBER | ||
| 648 | N 912004010102 | LOCK WASHER |
| GROUND CABLE TO SIDE MEMBER | ||
| 650 | N 000934010014 | NUT |
| GROUND CABLE TO SIDE MEMBER | ||
| 650 | N 000934010014 | NUT |
| GROUND CABLE TO SIDE MEMBER | ||
| 652 | N 072571001030 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 654 | A 0009900232 | SCREW |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||

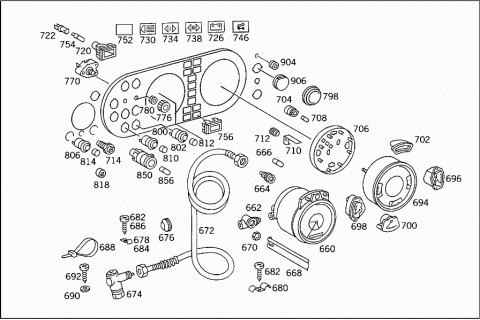

| 660 | A 0055426306 | SPEEDOMETER |
| Repalced by: A 0075422506 | ||
| 660 | A 0075422506 | SPEEDOMETER |
| Repalced by: A 0075429210 | ||
| 660 | A 0055426606 | SPEEDOMETER |
| Repalced by: A 0075422906 | ||
| A 0075422906 | SPEEDOMETER | |
| Repalced by: A 0075429210 | ||
| 660 | A 0075429210 | TACHOGRAPH |
| 660 | A 0095424310 | TACHOGRAPH |
| Repalced by: A 0095424410 | ||
| 660 | A 0095424410 | TACHOGRAPH |
| Repalced by: A 0085425310 | ||
| 660 | A 0085425310 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| 660 | A 0085425310 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| 662 | A 0025429330 | ANGLE DRIVE |
| TO 009 542 43 10, | ||
| A 0005423394 | DIAGRAM PAPER | |
| TO 008 542 53 10,007 542 92 10, 009 542 43 10,009 542 44 10 | ||
| 664 | A 0005421347 | COUPLER |
| TACHOGRAPH | ||
| 666 | N 072601012800 | BULB |
| 12 V/2 W | ||
| 666 | A 0015442594 | BULB |
| 12 V/1.2 W | ||
| 666 | A 0015442694 | BULB |
| 24 V/1.2 W | ||
| 668 | A 0005421840 | BRACKET |
| TACHOGRAPH | ||
| 670 | A 0005421172 | NUT |
| Repalced by: N 000934005008 | ||
| 670 | N 000934005008 | NUT |
| TACHOGRAPH | ||
| 672 | A 0015427507 | FLEXIBLE SHAFT |
| 2000 MM | ||
| 672 | A 0045428607 | FLEXIBLE SHAFT |
| 2000 MM | ||
| 672 | A 0025421207 | FLEXIBLE SHAFT |
| 2450 MM | ||
| 672 | A 0045423207 | FLEXIBLE SHAFT |
| 2450 MM | ||
| 674 | A 0015421530 | ANGLE DRIVE |
| Repalced by: A 0015421730 | ||
| 674 | A 0015421730 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.909 | ||
| 674 | A 0025428730 | ANGLE DRIVE |
| Repalced by: A 0005424230 | ||
| 674 | A 0005424230 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.882 | ||
| 674 | A 0005425830 | ANGLE DRIVE |
| Repalced by: A 0025422330 | ||
| 674 | A 0025422330 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.937 | ||
| 676 | A 3219970081 | GROMMET |
| Repalced by: A 3359970081 | ||
| 676 | A 3359970081 | GROMMET |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 676 | A 3099971081 | GROMMET |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 678 | A 3049951920 | CLAMP |
| Repalced by: A 3049951620 | ||
| 678 | A 3049951620 | CLAMP |
| FLEXIBLE SHAFT TO CAB STAY | ||
| 680 | A 3039950232 | CLAMP |
| STARTING CABLE AND FLEXIBLE SHAFT TO CROSS MEMBER | ||
| 682 | N 007981004279 | SHEET METAL SCREW |
| FLEXIBLE SHAFT TO CAB STAY | ||
| 684 | A 3049951520 | CLAMP |
| FLEXIBLE SHAFT TO CAB | ||
| 686 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 686 | N 007981006305 | SHEET METAL SCREW |
| FLEXIBLE SHAFT TO CAB | ||
| 688 | A 0009953344 | CLAMP |
| Repalced by: A 0019978390 | ||
| 688 | A 0019978390 | LOOM TIE |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 690 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 690 | N 000125004319 | WASHER |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 692 | N 007981003214 | SHEET METAL SCREW |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 694 | A 0015406347 | INSTRUMENT CLUSTER |
| 694 | A 0025402447 | INSTRUMENT CLUSTER |
| Repalced by: A 0025406647 | ||
| 694 | A 0025406647 | INSTRUMENT CLUSTER |
| 694 | A 0025408947 | INSTRUMENT CLUSTER |
| Repalced by: A 0035408747 | ||
| 694 | A 0035408747 | INSTRUMENT CLUSTER |
| Repalced by: A 0035407347 | ||
| 694 | A 0035407347 | INSTRUMENT CLUSTER |
| 694 | A 0025409547 | INSTRUMENT CLUSTER |
| Repalced by: A 0035408847 | ||
| 694 | A 0035408847 | INSTRUMENT CLUSTER |
| Repalced by: A 0035407447 | ||
| 694 | A 0035407447 | INSTRUMENT CLUSTER |
| A 0025425505 | TEMPERATURE GAUGE | |
| Repalced by: A 0035421005 | ||
| 696 | A 0035421005 | TEMPERATURE GAUGE |
| TO 001 540 63 47,002 540 24 47/66 47 | ||
| 696 | A 0035423805 | TEMPERATURE GAUGE |
| TO 002 540 89 47 | ||
| 696 | A 0035428905 | TEMPERATURE GAUGE |
| TO 003 540 87 47 | ||
| 696 | A 0035423305 | TEMPERATURE GAUGE |
| TO 002 540 95 47 | ||
| 696 | A 0035428805 | TEMPERATURE GAUGE |
| TO 003 540 88 47 | ||
| 696 | A 0035429605 | TEMPERATURE GAUGE |
| TO 003 540 73 47 | ||
| 696 | A 0035427405 | TEMPERATURE GAUGE |
| TO 003 540 74 47 | ||
| 698 | A 0015424102 | OIL PRESSURE GAUGE |
| TO 001 540 63 47,002 540 24 47/66 47 | ||
| 698 | A 0025420202 | OIL PRESSURE GAUGE |
| TO 002 540 89 47 | ||
| 698 | A 0025422802 | OIL PRESSURE GAUGE |
| TO 003 540 87 47 | ||
| 698 | A 0015429902 | OIL PRESSURE GAUGE |
| TO 002 540 95 47 | ||
| 698 | A 0025422702 | OIL PRESSURE GAUGE |
| TO 003 540 88 47 | ||
| 698 | A 0025423202 | OIL PRESSURE GAUGE |
| TO 003 540 73 47 | ||
| 698 | A 0025421702 | OIL PRESSURE GAUGE |
| TO 003 540 74 47 | ||
| 700 | A 0005428503 | FUEL GAUGE DASH UNIT |
| TO 001 540 63 47,002 540 24 47/66 47 | ||
| 700 | A 0015425103 | FUEL GAUGE DASH UNIT |
| TO 002 540 89 47 | ||
| 700 | A 0025429103 | FUEL GAUGE DASH UNIT |
| TO 003 540 87 47 | ||
| 700 | A 0015424503 | FUEL GAUGE DASH UNIT |
| TO 002 540 95 47 | ||
| 700 | A 0025429203 | FUEL GAUGE DASH UNIT |
| TO 003 540 88 47 | ||
| 700 | A 0025429303 | FUEL GAUGE DASH UNIT |
| TO 003 540 73 47 | ||
| 700 | A 0025428503 | FUEL GAUGE DASH UNIT |
| TO 003 540 74 47 | ||
| 702 | A 0005420332 | TELL-TALE LAMP |
| A 0015424208 | AIR PRESSURE GAUGE | |
| TO 003 540 73 47,003 540 74 47 | ||
| 704 | A 0005451219 | SOCKET |
| 706 | A 0005422878 | CONNECTION PLATE |
| TO 002 540 95 47,002 540 89 47 | ||
| 706 | A 0005423278 | CONNECTION PLATE |
| TO 003 540 87 47 | ||
| 706 | A 0005422978 | CONNECTION PLATE |
| TO 003 540 88 47 | ||
| 706 | A 0005423878 | CONNECTION PLATE |
| TO 003 540 73 47 | ||
| 706 | A 0005423778 | CONNECTION PLATE |
| TO 003 540 74 47 | ||
| 708 | N 072601012800 | BULB |
| 12V/2W | ||
| 708 | N 072601024801 | BULB |
| 24V/2W | ||
| 710 | A 0005421740 | BRACKET |
| INSTRUMENT CLUSTER | ||
| 712 | A 0005421072 | NUT |
| INSTRUMENT CLUSTER | ||
| 714 | A 0005453926 | PLUG SOCKET |
| Repalced by: A 0015458526 | ||
| 714 | A 0005454426 | PLUG SOCKET |
| Repalced by: A 0015458526 | ||
| 714 | A 0005453526 | PLUG SOCKET |
| Repalced by: A 0015458526 | ||
| 714 | A 0015458526 | PLUG SOCKET |
| HAND LAMP | ||
| 716 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 716 | A 0045454326 | PLUG SOCKET |
| AT INSTRUMENT PANEL | ||
| 718 | A 0009900946 | WASHER |
| AT INSTRUMENT PANEL | ||
| 720 | A 0015450615 | TELL-TALE LAMP |
| Repalced by: A 0005451630 | ||
| 720 | A 0005451630 | SHELL |
| LESS LENS | ||
| 722 | A 0005452319 | SOCKET |
| 724 | A 0015451815 | TELL-TALE LAMP |
| LESS LENS | ||
| 726 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| 726 | A 0005453790 | LENS |
| Repalced by: A 0035453290 | ||
| 728 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 730 | A 0005451190 | LENS |
| HIGH BEAM | ||
| A 0005455290 | LENS | |
| Repalced by: A 0035453390 | ||
| A 0035453390 | LENS | |
| Repalced by: A 0065451990 | ||
| 732 | A 0065451990 | LENS |
| HIGH BEAM | ||

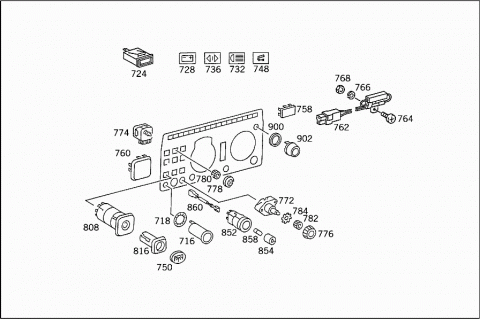

| 734 | A 0005451290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| A 0005455390 | LENS | |
| Repalced by: A 0035454190 | ||
| A 0035454190 | LENS | |
| Repalced by: A 0035455290 | ||
| 736 | A 0035455290 | LENS |
| BLINKER LIGHT CONTROL | ||
| 738 | A 0005451390 | LENS |
| TRAILER BLINKER | ||
| 746 | A 0005450790 | LENS |
| DUMPER PLATFORM SUBSTRUCTURE | ||
| 748 | A 0005454590 | LENS |
| DUMPER PLATFORM SUBSTRUCTURE | ||
| A 0005459090 | LENS | |
| Repalced by: A 0005459590 | ||
| 750 | A 0005459590 | LENS |
| INTERIOR LIGHTING | ||
| 752 | A 0015450690 | LENS |
| LESS SYMBOL; RED | ||
| TO 001 545 06 15 | ||
| 752 | A 0015450790 | LENS |
| LESS SYMBOL; GREEN | ||
| TO 001 545 06 15 | ||
| 752 | A 0015450890 | LENS |
| LESS SYMBOL; AMBER | ||
| TO 001 545 06 15 | ||
| 752 | A 0015450990 | LENS |
| LESS SYMBOL; WHITE | ||
| TO 001 545 06 15 | ||
| 754 | N 072601012800 | BULB |
| 12 V/2 W | ||
| 754 | N 072601024801 | BULB |
| 24V/2W | ||
| 756 | A 0009973535 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 758 | A 0009974335 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 760 | A 0009974435 | PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 762 | A 0015452518 | RESISTOR |
| CHARGE CONTROL | ||
| 764 | N 007985005157 | SCREW |
| RESISTOR TO WINDOW SILL | ||
| 766 | N 912004005103 | LOCK WASHER |
| RESISTOR TO WINDOW SILL | ||
| 768 | N 000934005008 | NUT |
| RESISTOR TO WINDOW SILL | ||
| 770 | A 0005421425 | POTENTIOMETER |
| Repalced by: A 3015420025 | ||
| 770 | A 3015420025 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 772 | A 0005422525 | POTENTIOMETER |
| Repalced by: A 0005422925 | ||
| 772 | A 0005422925 | POTENTIOMETER |
| Repalced by: A 6155420125 | ||
| 772 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 772 | A 0005423025 | POTENTIOMETER |
| Repalced by: A 6155420225 | ||
| 772 | A 6155420225 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 774 | A 0005421325 | POTENTIOMETER |
| HEATER BLOWER | ||
| 774 | A 0005421725 | POTENTIOMETER |
| HEATER BLOWER | ||
| 776 | A 0005420689 | KNOB |
| Repalced by: A 0005421189 | ||
| 776 | A 0005421189 | KNOB |
| Repalced by: A 0005421889 | ||
| 776 | A 0005421889 | KNOB |
| SYMBOL: INSTRUMENT LIGHTING | ||
| 778 | A 0005421089 | KNOB |
| Repalced by: A 3095420089 | ||
| 778 | A 3095420089 | KNOB |
| SYMBOL: HEATER BLOWER | ||
| 780 | A 0005450372 | NUT |
| HEATER BLOWER SWITCH | ||
| 780 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING | ||
| 782 | A 0005451472 | NUT |
| Repalced by: A 0029906251 | ||
| 782 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING | ||
| 784 | N 006797012153 | TOOTHED WASHER |
| INSTRUMENT LIGHTING | ||
| 710 | A 0025452624 | SWITCH,AUTOMATIC |
| Repalced by: A 0025457724 | ||

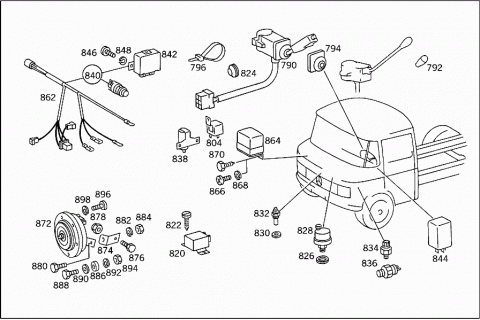

| 790 | A 0025457724 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 790 | A 0035453324 | SWITCH,AUTOMATIC |
| Repalced by: A 0035455724 | ||
| 790 | A 0035455724 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 790 | A 0055453124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 790 | A 0055453124 | SWITCH,AUTOMATIC |
| Repalced by: A 0065450324 | ||
| 790 | A 0065450324 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 792 | A 0005454237 | BUTTON |
| 792 | A 0005454437 | BUTTON |
| 794 | A 0005453445 | BOOT |
| 796 | A 0029976890 | LOOM TIE |
| Repalced by: A 0019978390 | ||
| 796 | A 0019978390 | LOOM TIE |
| STEERING-COLUMN-MOUNTED-SWITCH CABLE TO SUSPENDED PEDAL SUPPORT | ||
| 203 MM | ||
| 796 | A 0019978390 | LOOM TIE |
| STEERING-COLUMN-MOUNTED-SWITCH CABLE TO SUSPENDED PEDAL SUPPORT | ||
| 798 | A 3099970981 | GROMMET |
| TO PLUG THE BORE IN WINDOW SILL LOWER PART | ||
| 800 | A 0005458211 | SWITCH |
| WINDSHIELD WIPER O F F O N | ||
| 800 | A 0005459311 | SWITCH |
| WINDSHIELD WIPER O F F O N | ||
| 802 | A 0005459211 | SWITCH |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 804 | A 0005458305 | RELAY |
| IGNITION/STARTING SWITCH | ||
| 804 | A 0005458405 | RELAY |
| Repalced by: A 0035459605 | ||
| 804 | A 0005455405 | RELAY |
| Repalced by: A 0035459605 | ||
| 806 | A 0005459111 | SWITCH |
| INTERIOR LIGHTING | ||
| 806 | A 0005459111 | SWITCH |
| DUMPER CONTROL | ||
| 808 | A 0015450311 | SWITCH |
| Repalced by: A 0015450511 | ||
| 808 | A 0015450511 | SWITCH |
| INTERIOR LIGHTING | ||
| 808 | A 0015450411 | SWITCH |
| Repalced by: A 0015450611 | ||
| 808 | A 0015450611 | SWITCH |
| INTERIOR LIGHTING | ||
| 810 | A 0005451483 | CAP |
| WINDSHIELD WIPER O F F O N | ||
| 812 | A 0005451583 | CAP |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 814 | A 0005451883 | CAP |
| INTERIOR LIGHTING | ||
| 816 | A 0005452883 | CAP |
| INTERIOR LIGHTING | ||
| 818 | A 0005453483 | CAP |
| DUMPER CONTROL | ||
| 820 | A 0055450524 | SENDER UNIT |
| Repalced by: A 0055451324 | ||
| 820 | A 0055451324 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 12V | ||
| 820 | A 0055451524 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 12V | ||
| 820 | A 0055450624 | SENDER UNIT |
| Repalced by: A 0225452532 | ||
| 820 | A 0225452532 | CONTROL UNIT |
| WIPER INTERMITTENT ACTION | ||
| 820 | A 0055451424 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 820 | A 0055451624 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 822 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 822 | N 007981006305 | SHEET METAL SCREW |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| A 3149970281 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 824 | A 3359970081 | GROMMET |
| STEERING-COLUMN-MOUNTED-SWITCH CABLE THRU BODY | ||
| 826 | N 007603014400 | SEAL RING |
| OIL PRESSURE GAUGE | ||
| 828 | A 0015424417 | SENDER UNIT |
| Repalced by: A 0045428917 | ||
| 828 | A 0015424917 | SENDER UNIT |
| Repalced by: A 0045428917 | ||
| 828 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| 830 | N 007603014400 | SEAL RING |
| TEMPERATURE GAUGE | ||
| 832 | A 0015422317 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 834 | A 0005452209 | SWITCH |
| Repalced by: A 0005456109 | ||
| 834 | A 0005456109 | SWITCH |
| Repalced by: A 0015450809 | ||
| 834 | A 0015450809 | SWITCH |
| STOP LIGHT | ||
| 836 | A 0005454709 | SWITCH |
| Repalced by: A 0005455909 | ||
| 836 | A 0005455009 | SWITCH |
| Repalced by: A 0005455909 | ||
| 836 | A 0005455909 | SWITCH |
| 836 | A 0005455909 | SWITCH |
| STOP LIGHT | ||
| 836 | A 0005455909 | SWITCH |
| 836 | A 0005455909 | SWITCH |
| DUMPER CONTROL | ||
| 838 | A 0015442532 | SENDER UNIT |
| 838 | A 0015442732 | SENDER UNIT |
| 840 | A 3095440032 | CONVERSION KIT |
| HAZARD WARNING LIGHT | ||
| 842 | A 0015445132 | SENDER UNIT |
| Repalced by: A 0025447332 | ||
| 842 | A 0025440932 | SENDER UNIT |
| Repalced by: A 0025447332 | ||
| 842 | A 0015447932 | SENDER UNIT |
| Repalced by: A 0025447332 | ||
| 842 | A 0025447332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 844 | A 0025444832 | SENDER UNIT |
| Repalced by: A 0025449832 | ||
| 844 | A 0025449832 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 844 | A 0025444132 | SENDER UNIT |
| Repalced by: A 0025448632 | ||
| 844 | A 0025448632 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| HELLA | ||
| 844 | A 0025448332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 844 | A 0025448332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 844 | A 0025449432 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 844 | A 0025449432 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 846 | N 007985005157 | SCREW |
| BLINKER SENDER UNIT TO BODY | ||
| 848 | N 000127005103 | LOCK WASHER |
| BLINKER SENDER UNIT TO BODY | ||
| 850 | A 0025457124 | SWITCH,AUTOMATIC |
| HAZARD WARNING LIGHT | ||
| 852 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 854 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 856 | N 072601012110 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 858 | N 072601012800 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 858 | N 072601024801 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 860 | A 3015400165 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 860 | A 3015400265 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 862 | A 3095402527 | ELECTRIC CABLE |
| HAZARD WARNING LIGHT | ||
| 864 | A 0011548406 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021543606 | ||
| 864 | A 0021543606 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021547406 | ||
| 864 | A 0021547406 | REGULATOR AND CUT-OUT |
| BATTERY | ||
| 864 | A 0011548506 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021542806 | ||
| 864 | A 0021542806 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021543606 | ||
| 864 | A 0021543606 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021547406 | ||
| 864 | A 0021547406 | REGULATOR AND CUT-OUT |
| SHIELDED | ||
| 866 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 866 | N 000000001145 | SCREW |
| REGULATOR AND CUT-OUT TO BODY | ||
| 868 | N 912004006102 | LOCK WASHER |
| REGULATOR AND CUT-OUT TO BODY | ||
| 870 | N 007976004217 | SHEET METAL SCREW |
| Repalced by: N 914128004303 | ||
| 870 | N 914128004303 | SHEET METAL SCREW |
| REGULATOR TO VENTILATION DUCT | ||
| 872 | A 0015428020 | HORN |
| Repalced by: A 0035423220 | ||
| 872 | A 0015427920 | HORN |
| Repalced by: A 0035423220 | ||
| 872 | A 0025426220 | HORN |
| Repalced by: A 0035423220 | ||
| 872 | A 0035423220 | HORN |
| Repalced by: A 6315420120 | ||
| 872 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 872 | A 0035422720 | HORN |
| 872 | A 0015428320 | HORN |
| Repalced by: A 0025426420 | ||
| 872 | A 0025425320 | HORN |
| Repalced by: A 0025426420 | ||
| 872 | A 0025426420 | HORN |
| Repalced by: A 6315420120 | ||
| 872 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 872 | A 0035422720 | HORN |
| 872 | A 0025426720 | HORN |
| Repalced by: A 0045424420 | ||
| 872 | A 0045424420 | HORN |
| 872 | A 0025428320 | HORN |
| Repalced by: A 0045422920 | ||
| 872 | A 0045422920 | HORN |
| Repalced by: A 0045424420 | ||
| 872 | A 0045424420 | HORN |
| 872 | A 0035425320 | HORN |
| Repalced by: A 0025426720 | ||
| 874 | A 3095420140 | BRACKET |
| Repalced by: A 3095421340 | ||
| 874 | A 3095421340 | BRACKET |
| HORN | ||
| 876 | N 000933010105 | SCREW |
| BRACKET TO FRAME | ||
| 878 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 878 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 880 | N 000933010128 | SCREW |
| HORN TO BRACKET | ||
| 882 | N 912004010102 | LOCK WASHER |
| HORN TO BRACKET | ||
| 884 | N 000934010014 | NUT |
| HORN TO BRACKET | ||
| 886 | A 3044310076 | WASHER |
| HORN TO FRAME | ||
| 888 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 888 | N 304017008034 | SCREW |
| HORN TO FRAME | ||
| 890 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 890 | N 000125008443 | WASHER |
| HORN TO FRAME | ||
| 892 | N 912004008102 | LOCK WASHER |
| HORN TO FRAME | ||
| 894 | N 304032008006 | NUT |
| HORN TO FRAME | ||
| 896 | N 007985004123 | SCREW |
| CABLE TO DISC-TYPE HORN | ||
| 898 | N 912004004102 | LOCK WASHER |
| CABLE TO DISC-TYPE HORN | ||
| 900 | A 3099900640 | WASHER |
| SWITCH | ||
| 902 | A 0015454914 | SWITCH |
| STARTING MOTOR | ||
| 904 | A 3129971681 | GROMMET |
| Repalced by: A 0009870344 | ||
| 904 | A 0009870344 | EXPANSION PLUG |
| HEATER PLUG STARTING SWITCH | ||
| 906 | A 3099870244 | EXPANSION PLUG |
| HEATER-PLUG INDICATOR RESISTOR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
