Transporto priemonė: LK 508 DG; VIN numerio dalis: 309444

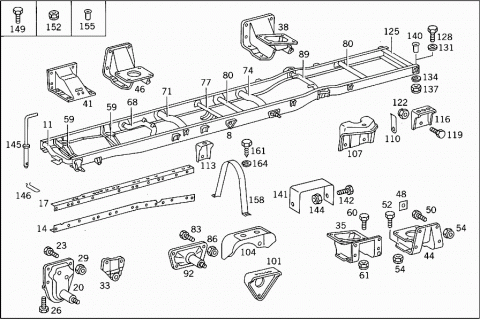

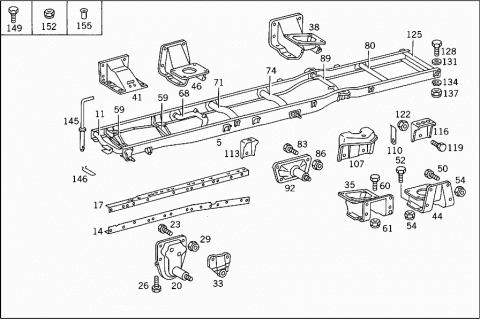

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3093101401 | FRAME |
| 005 | A 3103104502 | FRAME |
| Repalced by: A 3093108501 | ||
| 005 | A 3103104502 | FRAME |
| DELIVER ADDITIONALLY ALSO: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 X 001444 010228 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 X 001444 010229 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 X 900055 008002 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 3 X 900055 010002 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 2 X 913004 006001 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 4 X 913004 010008 | ||
| 005 | A 3103104502 | FRAME |
| 1 X 310 420 03 68 | ||
| 005 | A 3103104502 | FRAME |
| 1 X 310 420 04 68 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 X 310 420 20 74 | ||
| 005 | A 3103104502 | FRAME |
| DELIVER ADDITIONALLY ALSO: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1X 309 310 15 22 | ||
| 005 | A 3093108501 | FRAME |
| 005 | A 3093108501 | FRAME |
| 005 | A 3093107002 | FRAME |
| 008 | A 3103105902 | FRAME |
| Repalced by: A 3093101502 | ||
| 008 | A 3103105902 | FRAME |
| DELIVER ADDITIONALLY ALSO: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1X 001444 010228 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1X 001444 010229 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1X 900055 008002 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 3X 900055 010002 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 2X 913004 006001 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 4X 913004 010008 | ||
| 008 | A 3103105902 | FRAME |
| 1X 310 420 03 68 | ||
| 008 | A 3103105902 | FRAME |
| 1X 310 420 04 68 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1X 310 420 20 74 | ||
| 008 | A 3103105902 | FRAME |
| DELIVER ADDITIONALLY ALSO: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1X 309 310 15 22 | ||
| 008 | A 3093101502 | FRAME |
| 011 | A 3093101022 | CROSS MEMBER |
| RADIATOR | ||
| 011 | A 3093101522 | CROSS MEMBER |
| RADIATOR | ||
| 011 | A 3093102722 | CROSS MEMBER |
| RADIATOR | ||
| 014 | A 3093111060 | REINFORCEMENT |
| LEFT BOTTOM | ||
| 014 | A 3093111160 | REINFORCEMENT |
| RIGHT BOTTOM | ||
| 017 | A 3093110860 | REINFORCEMENT |
| LEFT TOP | ||
| 017 | A 3093110960 | REINFORCEMENT |
| RIGHT TOP | ||
| 020 | A 3093200270 | REAR SUBFRAME |
| (FRONT SPRING BRACKET),FRONT | ||
| 023 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 023 | N 304017010002 | SCREW |
| FRONT SPRING BRACKET AND CROSS MEMBER TO FRAME | ||
| M 10X30 | ||
| 026 | N 000933010105 | SCREW |
| FRONT SPRING BRACKET AND CROSS MEMBER TO FRAME | ||
| M 10X25 | ||
| 029 | N 913002010001 | NUT |
| FRONT SPRING BRACKET AND CROSS MEMBER TO FRAME | ||
| 033 | A 3143200478 | CONSOLE |
| STABILIZER,LEFT | ||
| 033 | A 3143200578 | CONSOLE |
| RIGHT STABILIZER | ||
| 035 | A 3092401006 | CONSOLE |
| ENGINE FRONT LEFT MOUNTING | ||
| 038 | A 3092401106 | CONSOLE |
| ENGINE FRONT RIGHT MOUNTING | ||
| 041 | A 3102410102 | SUPPORT |
| ENGINE FRONT MOUNTING | ||
| 044 | A 3092400806 | CONSOLE |
| REAR LEFT | ||
| 044 | A 3092401206 | CONSOLE |
| ENGINE LEFT REAR MOUNTING | ||
| 046 | A 3092400906 | CONSOLE |
| ENGINE RIGHT REAR MOUNTING | ||
| 046 | A 3092401306 | CONSOLE |
| ENGINE RIGHT REAR MOUNTING | ||
| 048 | A 3102410084 | SHIM |
| Repalced by: A 4075460143 | ||
| 048 | A 4075460143 | BRACKET |
| CONSOLE,FRONT | ||
| 050 | N 000933010105 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X25 | ||
| 052 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 052 | N 304017010002 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X30 | ||
| 052 | N 000933010145 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X35 | ||
| 054 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 054 | N 910113010000 | NUT |
| CONSOLE TO FRAME | ||
| 059 | A 3093120005 | ENGINE CROSS MEMBER |
| NO.2,NO.3 | ||
| 059 | A 3093120205 | ENGINE CROSS MEMBER |
| Repalced by: A 3093100126 | ||
| 059 | A 3093100126 | ENGINE CROSS MEMBER |
| NO.2,NO.3 | ||
| 060 | N 000933010164 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| 061 | N 913002010000 | NUT |
| CROSS MEMBER TO CONSOLE | ||
| 068 | A 3093100732 | CROSS MEMBER |
| PISTOL-GRIP HAND BRAKE | ||
| NO. 4 | ||
| 068 | A 3103100332 | CROSS MEMBER |
| PISTOL-GRIP HAND BRAKE | ||
| NO.4 | ||
| 068 | A 3103100232 | CROSS MEMBER |
| PISTOL-GRIP HAND BRAKE | ||
| NO.4 | ||
| 071 | A 3093101237 | CROSS MEMBER |
| NO.5 | ||
| 074 | A 3093100537 | CROSS MEMBER |
| Repalced by: A 3093100036 | ||
| 074 | A 3093100036 | CROSS MEMBER |
| NO.6 | ||
| 074 | A 3093100036 | CROSS MEMBER |
| NO.7 | ||
| 077 | A 3093100738 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO. 6 | ||
| 080 | A 3093100938 | CROSS MEMBER |
| Repalced by: A 3093100136 | ||
| 080 | A 3093100136 | CROSS MEMBER |
| NO.8 | ||
| 080 | A 3093100136 | CROSS MEMBER |
| NO.9 | ||
| 080 | A 3093100136 | CROSS MEMBER |
| NO.7,NO.10 | ||
| 083 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 083 | N 304017010002 | SCREW |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| 086 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 086 | N 910113010000 | NUT |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| 089 | A 3093100941 | CROSS MEMBER |
| Repalced by: A 3093101441 | ||
| 089 | A 3093101441 | CROSS MEMBER |
| Repalced by: A 3093101341 | ||
| 089 | A 3093101341 | CROSS MEMBER |
| SHOCK ABSORBER | ||
| NO.7 | ||
| 089 | A 3093101341 | CROSS MEMBER |
| SHOCK ABSORBER | ||
| NO.8 | ||
| 089 | A 3093101441 | CROSS MEMBER |
| Repalced by: A 3093101341 | ||
| 089 | A 3093101341 | CROSS MEMBER |
| SHOCK ABSORBER | ||
| NO.7 | ||
| 089 | A 3093101341 | CROSS MEMBER |
| SHOCK ABSORBER | ||
| NO.8 | ||
| 089 | A 3093101541 | CROSS MEMBER |
| SHOCK ABSORBER | ||
| NO.7 | ||
| 092 | A 3093201675 | SPRING BRACKET |
| Repalced by: A 3093201475 | ||
| 092 | A 3093201475 | SPRING BRACKET |
| (REAR SPRING BRACKET),FRONT | ||
| 101 | A 3093110763 | CONSOLE |
| AT CROSS MEMBER NO.6 | ||
| 104 | A 3093110263 | CONSOLE |
| AT CROSS MEMBER NO.7 | ||
| 107 | A 3093121140 | BRACKET |
| RUBBER SPRING | ||
| 110 | A 3094281140 | BRACKET |
| REAR BRAKE HOSE | ||
| 113 | A 3093110363 | CONSOLE |
| Repalced by: A 3093111863 | ||
| 113 | A 3093111863 | CONSOLE |
| BODY MOUNTING | ||
| 116 | A 3093110663 | CONSOLE |
| BODY MOUNTING | ||
| 119 | N 000933010164 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 122 | N 913002010001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 125 | A 3093120625 | CROSS MEMBER |
| Repalced by: A 3093121525 | ||
| 125 | A 3093121525 | CROSS MEMBER |
| Repalced by: A 3093122025 | ||
| 125 | A 3093122025 | CROSS MEMBER |
| REAR | ||
| 128 | N 000609010008 | FITTED SCREW |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X30 | ||
| 128 | N 000933010105 | SCREW |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X25 | ||
| 128 | N 000963010033 | SCREW |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X22 | ||
| 131 | A 3099900440 | WASHER |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 134 | N 912004010102 | LOCK WASHER |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 137 | N 000934010014 | NUT |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 137 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 137 | N 910113010000 | NUT |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 140 | N 910005010012 | RIVET |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 10X24 MM | ||
| 140 | N 000302010014 | RIVET |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 10X18 MM | ||
| 141 | A 3093110055 | COVER |
| BODY MOUNTING | ||
| 142 | N 000933010128 | SCREW |
| COVER PLATE TO FRAME | ||
| M 10X20 | ||
| 142 | N 000933010105 | SCREW |
| COVER PLATE TO FRAME | ||
| M 10X25 | ||
| 144 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 144 | N 910113010000 | NUT |
| COVER PLATE TO FRAME | ||
| 145 | A 3093150306 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 146 | A 3093150031 | LOCKING SPRING |
| COUPLING PIN | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 149 | N 000609010004 | FITTED SCREW |
| M 10X11X14X28 | ||
| 149 | N 000610010003 | FITTED SCREW |
| M 10X11X25X38 | ||
| 149 | N 000609010014 | FITTED SCREW |
| M 10X11X24X40 | ||
| 149 | A 3859900514 | SCREW |
| M 10X11X26,5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 149 | A 3859900714 | SCREW |
| M 12X12X10X25 | ||
| 149 | A 3859901414 | SCREW |
| Repalced by: A 3859900714 | ||
| 149 | A 3859900714 | SCREW |
| M 12X12X11X26 | ||
| 149 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 149 | A 0029908201 | SCREW |
| M 12X12X12X28 | ||
| 149 | A 3859901514 | SCREW |
| M 12X12X13X28 | ||
| 149 | A 0029908201 | SCREW |
| M 12X12X14X30 | ||
| 149 | A 3859902114 | SCREW |
| M 12X12X15X30 | ||
| 149 | A 0029908301 | SCREW |
| Repalced by: N 308676012013 | ||
| 149 | N 308676012013 | SCREW |
| M 12X12X16X32 | ||
| 149 | A 3859902214 | SCREW |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 149 | A 6209900114 | SCREW |
| M 12X13X12X29 | ||
| 149 | A 3969900314 | SCREW |
| M 12X13X13X30 | ||
| 149 | A 3589901914 | SCREW |
| M 12X13X15X32 | ||
| 149 | A 3559900014 | SCREW |
| M 12X13X18X35 | ||
| 149 | A 3589900614 | SCREW |
| M 12X13X21X38 | ||
| 149 | A 6179900114 | SCREW |
| M 12X13X23X40 | ||
| 149 | A 6249900014 | SCREW |
| M 12X13X25X42 | ||
| 149 | A 3859900214 | SCREW |
| M 12X13X35X52 | ||
| 149 | A 6689900114 | SCREW |
| M 12X13X58X80 | ||
| 149 | A 6689900014 | SCREW |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 149 | A 3859900814 | SCREW |
| Repalced by: A 3229903101 | ||
| 149 | A 3229903101 | SCREW |
| M 14X14X18X32 | ||
| 149 | A 3859902014 | SCREW |
| M 14X14X18X34 | ||
| 149 | A 3559900114 | SCREW |
| M 12X14X13X35 | ||
| 149 | A 3219901601 | SCREW |
| M 14X14X17X35 | ||
| 149 | A 3219901901 | SCREW |
| M 14X14X22X40 | ||
| 149 | A 3559900501 | SCREW |
| M 14X14X24X42 | ||
| 149 | A 3409900201 | SCREW |
| M 14X14X27X45 | ||
| 149 | N 308676014010 | SCREW |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 149 | A 3589900114 | SCREW |
| M 14X15X15X32 | ||
| 149 | A 3589900814 | SCREW |
| M 14X15X17X34 | ||
| 149 | A 6459900014 | SCREW |
| M 14X15X18X35 | ||
| 149 | A 3589901014 | SCREW |
| M 14X15X19X36 | ||
| 149 | A 3589900214 | SCREW |
| M 14X15X21X38 | ||
| 149 | A 3589900414 | SCREW |
| M 14X15X25X42 | ||
| 149 | A 3589900714 | SCREW |
| M 14X15X27X44 | ||
| 149 | A 3589900914 | SCREW |
| M 14X15X29X46 | ||
| 149 | A 3859900414 | SCREW |
| M 14X15X31X48 | ||
| 149 | A 3859900314 | SCREW |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 149 | A 3859900914 | SCREW |
| Repalced by: N 308676016020 | ||
| 149 | N 308676016020 | SCREW |
| M 16X16X18X36 | ||
| 149 | A 3859901714 | SCREW |
| M 16X16X20X38 | ||
| 149 | A 3859901014 | SCREW |
| M 16X16X22X40 | ||
| 149 | A 3859901114 | SCREW |
| M 16X16X24X42 | ||
| 149 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 149 | A 3959900501 | SCREW |
| M 16X16X20X45 | ||
| 149 | A 3859901814 | SCREW |
| M 16X16X30X48 | ||
| 149 | A 3859901914 | SCREW |
| M 16X16X32X50 | ||
| 149 | A 6259900301 | SCREW |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 149 | A 3589900514 | SCREW |
| M 16X17X22X42 | ||
| 149 | A 6459900714 | SCREW |
| M 16X17X24X44 | ||
| 149 | A 3609900114 | SCREW |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 149 | A 3469900014 | SCREW |
| M 16X18X18X40 | ||
| 149 | A 3859902314 | SCREW |
| M 18X18X23X45 | ||
| 149 | A 6209900014 | SCREW |
| M 16X18X26X48 | ||
| 149 | A 3469900114 | SCREW |
| M 16X18X31X50 | ||
| 149 | A 3859902414 | SCREW |
| M 18X18X33X55 | ||
| 149 | A 6229900014 | SCREW |
| M 16X18X38X60 | ||
| 149 | A 3919900014 | SCREW |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 149 | N 000610018004 | FITTED SCREW |
| M 18X19X25X45 | ||
| 149 | N 000610018009 | FITTED SCREW |
| M 18X19X33X55 | ||
| 149 | N 000610018006 | FITTED SCREW |
| M 18X19X38X60 | ||
| 149 | N 000609018000 | FITTED SCREW |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 152 | N 913004010011 | NUT |
| 152 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 152 | N 910113012003 | NUT |
| 152 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 152 | N 910113014000 | NUT |
| 152 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 152 | N 910113016001 | NUT |
| 152 | N 913004018004 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 155 | N 910005010038 | RIVET |
| 10X16 MM | ||
| 155 | N 910005010012 | RIVET |
| 10X24 MM | ||
| 155 | N 910005010014 | RIVET |
| 10X26 MM | ||
| 155 | N 910005010016 | RIVET |
| 10X28 MM | ||
| 155 | N 910005010020 | RIVET |
| 10X32 MM | ||
| 155 | N 910005010022 | RIVET |
| 10X34 MM | ||
| 158 | A 3104110083 | PROTECTIVE PLATE |
| PROPELLER SHAFT | ||
| 161 | N 007976008301 | SHEET METAL SCREW |
| PORTECTIVE PLATE TO FRMAE | ||
| 164 | N 912004008102 | LOCK WASHER |
| PORTECTIVE PLATE TO FRMAE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
