Transporto priemonė: LK 508 DG; VIN numerio dalis: 309444

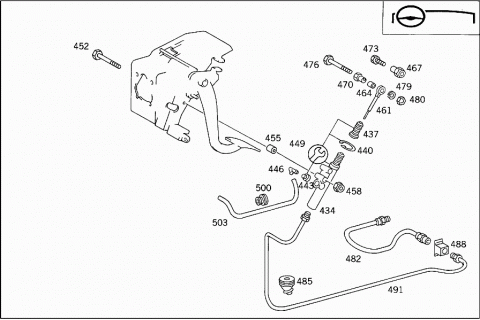

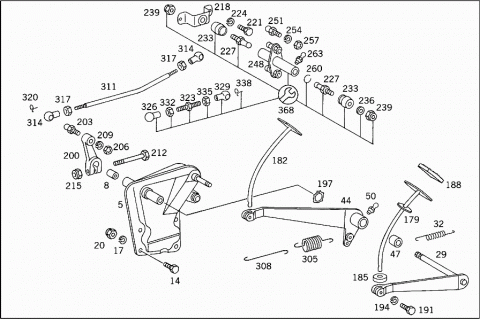

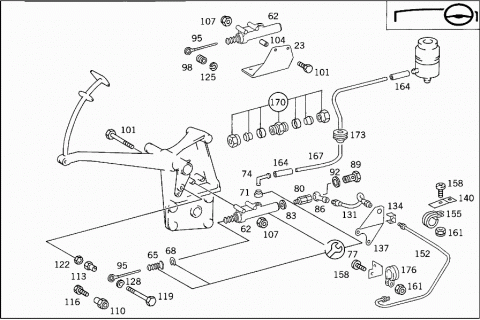

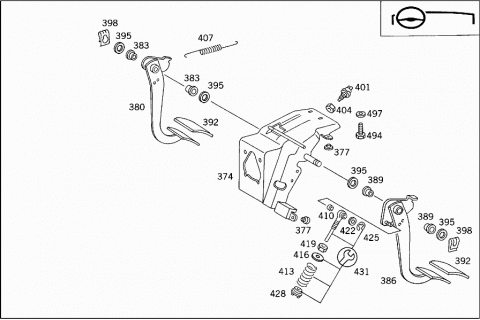

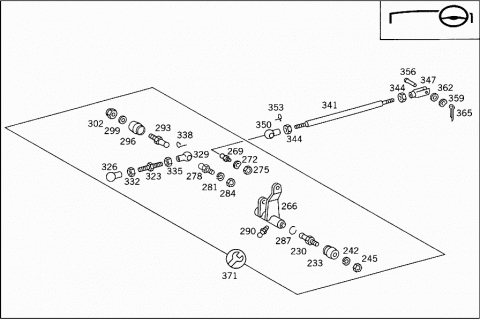

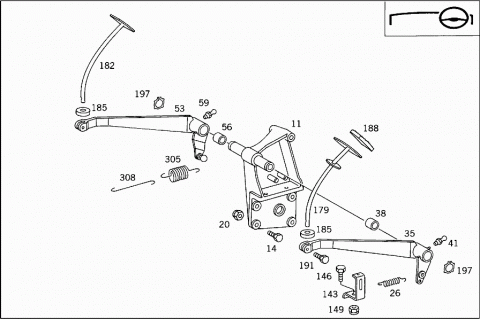

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3092902719 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 005 | A 3102900019 | BEARING BRACKET |
| Repalced by: A 3102900119 | ||
| 005 | A 3102900119 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 008 | A 3198920117 | BUSHING |
| 011 | A 3092903319 | BEARING BRACKET |
| Repalced by: A 3092903419 | ||
| 011 | A 3092903419 | BEARING BRACKET |
| Repalced by: A 3092903619 | ||
| 011 | A 3092903619 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 014 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 014 | N 304017010002 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X30 | ||
| 014 | N 304017010002 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X30 | ||
| 014 | N 000933010105 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X25 | ||
| 014 | N 000931010271 | SCREW |
| Repalced by: N 304017010051 | ||
| 014 | N 304017010051 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X60 | ||
| 014 | N 000931010258 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X55 | ||
| 014 | N 000931010282 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X40 | ||
| 014 | N 000933010145 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X35 | ||
| 017 | N 912004010102 | LOCK WASHER |
| PEDAL BEARING BRACKET TO FRAME | ||
| 020 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 020 | N 910113010000 | NUT |
| PEDAL BEARING BRACKET TO FRAME | ||
| 020 | N 910113010000 | NUT |
| PEDAL BEARING BRACKET TO FRAME | ||
| 023 | A 3102950440 | BRACKET |
| Repalced by: A 3102951440 | ||
| 023 | A 3102951440 | BRACKET |
| CLUTCH AND BRAKE | ||
| 026 | A 3099931110 | SPRING |
| RELEASE SPRING | ||
| 029 | A 3092900216 | PEDAL |
| Repalced by: A 3092900716 | ||
| 029 | A 3092900716 | PEDAL |
| CLUTCH | ||
| 032 | A 3149931010 | SPRING |
| SPRING TO CLUTCH PEDAL | ||
| 035 | A 3092900516 | PEDAL |
| CLUTCH | ||
| 035 | A 3092901216 | PEDAL |
| CLUTCH | ||
| 035 | A 3092902416 | PEDAL |
| CLUTCH | ||
| 038 | A 3092920050 | BUSHING |
| 041 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 041 | N 071412008102 | GREASE NIPPLE |
| 044 | A 3092900218 | PEDAL |
| BRAKE | ||
| 047 | A 3092920050 | BUSHING |
| 050 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 050 | N 071412008102 | GREASE NIPPLE |
| 053 | A 3092900818 | PEDAL |
| BRAKE | ||
| 056 | A 3092920050 | BUSHING |
| 059 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 059 | N 071412008102 | GREASE NIPPLE |
| 062 | A 0012951506 | MASTER CYLINDER |
| Repalced by: A 0002957706 | ||
| 062 | A 0012951406 | MASTER CYLINDER |
| Repalced by: A 0002959106 | ||
| 062 | A 0002959106 | MASTER CYLINDER |
| CLUTCH | ||
| 062 | A 0002957706 | MASTER CYLINDER |
| Repalced by: A 0012958706 | ||
| 062 | A 0012958706 | MASTER CYLINDER |
| CLUTCH | ||
| 065 | A 0002951583 | BOOT |
| 068 | N 000472019000 | LOCK RING |
| 071 | A 0009971186 | PLUG |
| 074 | A 3092950036 | INTERMEDIATE PIECE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 077 | A 0005862929 | REPAIR KIT |
| LESS PISTON | ||
| 077 | A 0005865229 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 000 295 77 06 | ||
| A 0002903112 | REPAIR KIT | |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 87 06 | ||
| 080 | A 0004313707 | VALVE |
| Repalced by: A 0002950720 | ||
| 080 | A 0002950720 | VALVE |
| PRESSURE RETAINING | ||
| 080 | A 0002950820 | VALVE |
| PRESSURE RETAINING | ||
| 080 | A 0004230384 | FITTING |
| Repalced by: A 0002950720 | ||
| 080 | A 0004281931 | CONNECTOR |
| Repalced by: A 0002950720 | ||
| 083 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 083 | N 007603010110 | SEAL RING |
| PRESSURE RETAINING VALVE | ||
| TO 000 431 37 07 | ||
| 086 | A 0004281830 | CONNECTOR |
| PRESSURE RETAINING VALVE | ||
| 089 | A 0009901763 | HOLLOW SCREW |
| PRESSURE RETAINING VALVE | ||
| 092 | N 007603014106 | SEAL RING |
| PRESSURE RETAINING VALVE | ||
| 095 | A 1152900639 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 095 | A 3102900339 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 098 | A 1102950250 | BUSHING |
| 101 | N 000931006191 | SCREW |
| MASTER CYLINDER TO SUPPORT | ||
| M 6X55 | ||
| 101 | N 000931006118 | SCREW |
| MASTER CYLINDER TO SUPPORT | ||
| M 6X35 | ||
| 101 | N 000931006181 | SCREW |
| Repalced by: N 000933006226 | ||
| 101 | N 000933006226 | SCREW |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| M 6X120 | ||
| 101 | N 000931006216 | SCREW |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| M 6X110 | ||
| 104 | A 3092950153 | SPACER TUBE |
| Repalced by: A 3529910340 | ||
| 104 | A 3529910340 | SPACER TUBE |
| Repalced by: A 4082910153 | ||
| 104 | A 4082910153 | SPACER TUBE |
| MASTER CYLINDER TO SUPPORT | ||
| 107 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 107 | N 913004006001 | NUT |
| MASTER CYLINDER TO SUPPORT | ||
| 110 | A 1102950571 | SCREW |
| Repalced by: A 1152950172 | ||
| 110 | A 1152950172 | NUT |
| PISTON ROD TO LEVER | ||
| 113 | A 1232950150 | BUSHING |
| PISTON ROD TO LEVER | ||
| 116 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 116 | N 304017008016 | SCREW |
| PISTON ROD TO LEVER | ||
| M 8X16 | ||
| 119 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 119 | N 304017008018 | SCREW |
| PISTON ROD TO LEVER | ||
| M 8X35 | ||
| 122 | N 000439008213 | NUT |
| PISTON ROD TO LEVER | ||
| 122 | N 304032008006 | NUT |
| PISTON ROD TO LEVER | ||
| 125 | N 912004008102 | LOCK WASHER |
| PISTON ROD TO LEVER | ||
| 128 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 128 | N 000137008212 | SPRING WASHER |
| PISTON ROD TO LEVER | ||
| 131 | A 3092950035 | HOSE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 134 | A 1072950073 | LOCK |
| Repalced by: A 1072950173 | ||
| 134 | A 1072950173 | LOCK |
| 137 | A 3102950840 | BRACKET |
| CLUTCH CYLINDER | ||
| 140 | A 3102950940 | BRACKET |
| LINE MOUNTING | ||
| A 3104312740 | BRACKET | |
| LINE MOUNTING | ||
| A 3095441338 | BRACKET | |
| LINE MOUNTING | ||
| 143 | A 3094280940 | BRACKET |
| RELEASE SPRING | ||
| 146 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 149 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 149 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 152 | A 3102900113 | LINE |
| Repalced by: A 3404201829 | ||
| 152 | A 3404201829 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 1050 MM | ||
| 152 | A 3404201429 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 850 MM | ||
| 155 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 155 | N 916016008200 | CLAMP |
| PIPE LINE TO BRACKET | ||
| 155 | N 916016008200 | CLAMP |
| PIPE LINE TO BRACKET | ||
| 158 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 158 | N 000000001146 | SCREW |
| PIPE LINE TO BRACKET | ||
| M 6X16 | ||
| 161 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 161 | N 913004006001 | NUT |
| PIPE LINE TO BRACKET | ||
| 164 | A 3059970382 | HOSE |
| Repalced by: A 3099971682 | ||
| 164 | A 3099971682 | HOSE |
| Repalced by: A 6039970482 | ||
| 164 | A 6039970482 | HOSE |
| LINE FROM FLUID RESERVOIR TO CLUTCH MASTER CYLINDER | ||
| 7.3X11.8 MM | ||
| 167 | A 0089979082 | HOSE |
| LINE FROM FLUID RESERVOIR TO CLUTCH MASTER CYLINDER | ||
| 6X8 MM | ||
| 170 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 170 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 173 | A 1869970681 | GROMMET |
| RESERVOIR LINE THRU CAB WINDOW SILL | ||
| 176 | N 916016008200 | CLAMP |
| HOSE TO SLAVE CYLINDER | ||
| 179 | A 3092900724 | PEDAL PLATE |
| CLUTCH | ||
| 179 | A 3092900124 | PEDAL PLATE |
| CLUTCH | ||
| 182 | A 3092900524 | PEDAL PLATE |
| BRAKE | ||
| 182 | A 3092900524 | PEDAL PLATE |
| BRAKE | ||
| 185 | A 3092920086 | BUFFER |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 185 | A 3092920086 | BUFFER |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 188 | A 3192920082 | PAD |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 188 | A 3192920082 | PAD |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 191 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 191 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 194 | N 912004010102 | LOCK WASHER |
| PEDAL PLATE TO PEDAL | ||
| 194 | N 912004010102 | LOCK WASHER |
| PEDAL PLATE TO PEDAL | ||
| 197 | N 000983028001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 197 | N 000983028001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 200 | A 3092900334 | LEVER |
| Repalced by: A 3092931210 | ||
| 200 | A 3092931210 | LEVER |
| CLUTCH OPERATION | ||
| 203 | A 3179910415 | BALL PIVOT |
| Repalced by: A 3099910015 | ||
| 203 | A 3099910015 | BALL PIVOT |
| Repalced by: A 4429915215 | ||
| 203 | A 4429915215 | BALL PIVOT |
| FOLLOWER LEVER TO CLUTCH BOOSTER | ||
| 206 | N 000936010008 | NUT |
| LEVER TO BALL PIVOT | ||
| 209 | N 912004010102 | LOCK WASHER |
| LEVER TO BALL PIVOT | ||
| 212 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 212 | N 304017008018 | SCREW |
| LVER TO CLUTCH PEDAL | ||
| 215 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 215 | N 913004008001 | NUT |
| LVER TO CLUTCH PEDAL | ||
| 218 | A 3092931640 | BRACKET |
| Repalced by: A 3092931840 | ||
| 218 | A 3092931840 | BRACKET |
| ACCELERATOR/CLUTCH PEDAL SHAFTS | ||
| 221 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 221 | N 304017008018 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 8X35 | ||
| 221 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 221 | N 304017008034 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 8X25 | ||
| 224 | N 912004008102 | LOCK WASHER |
| BRACKET TO TRANSMISSION | ||
| 227 | A 3149910115 | BALL PIVOT |
| CLUTCH SHAFT | ||
| 230 | A 3149910215 | BALL PIVOT |
| Repalced by: A 3149910315 | ||
| 230 | A 3149910315 | BALL PIVOT |
| CLUTCH SHAFT | ||
| 233 | A 3522930060 | SEAL RING |
| CLUTCH SHAFT | ||
| 233 | A 3522930060 | SEAL RING |
| CLUTCH SHAFT | ||
| 236 | N 000125013008 | WASHER |
| 239 | N 913002012009 | NUT |
| CLUTCH SHAFT | ||
| 242 | N 000137012203 | SPRING WASHER |
| CLUTCH SHAFT | ||
| 242 | A 3149900940 | WASHER |
| CLUTCH SHAFT | ||
| 245 | N 000934012021 | NUT |
| CLUTCH SHAFT | ||
| 245 | N 913002012002 | NUT |
| CLUTCH SHAFT | ||
| 248 | A 3092900126 | SHAFT |
| Repalced by: A 3092901739 | ||
| 251 | A 3179910415 | BALL PIVOT |
| Repalced by: A 3099910015 | ||
| 251 | A 3099910015 | BALL PIVOT |
| Repalced by: A 4429915215 | ||
| 251 | A 4429915215 | BALL PIVOT |
| 254 | N 912004010102 | LOCK WASHER |
| 257 | N 000934010014 | NUT |
| 260 | N 071805016300 | SNAP RING |
| 263 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 263 | N 071412008102 | GREASE NIPPLE |
| 8X1 MM | ||
| 263 | N 071412010100 | GREASE NIPPLE |
| 10X1 MM | ||
| A 3052540033 | COVER | |
| 266 | A 3092900028 | LEVER |
| Repalced by: A 3092900128 | ||
| 266 | A 3092900128 | LEVER |
| Repalced by: A 3092901839 | ||
| 269 | N 071803013102 | BALL PIVOT |
| 272 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 272 | N 000137008212 | SPRING WASHER |
| 275 | N 304032008006 | NUT |
| 278 | A 3099910015 | BALL PIVOT |
| Repalced by: A 4429915215 | ||
| 278 | A 4429915215 | BALL PIVOT |
| 281 | N 912004010102 | LOCK WASHER |
| 284 | N 000934010014 | NUT |
| 287 | N 071805016300 | SNAP RING |
| 290 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 290 | N 071412008102 | GREASE NIPPLE |
| 290 | N 071412010100 | GREASE NIPPLE |
| 293 | A 3149910115 | BALL PIVOT |
| Repalced by: A 3149910315 | ||
| 293 | A 3149910315 | BALL PIVOT |
| CLUTCH SHAFT | ||
| 296 | A 3522930060 | SEAL RING |
| CLUTCH SHAFT | ||
| 299 | N 912004012100 | LOCK WASHER |
| CLUTCH SHAFT | ||
| 299 | A 3149900940 | WASHER |
| CLUTCH SHAFT | ||
| 302 | N 913002012002 | NUT |
| CLUTCH SHAFT | ||
| 302 | N 000934012021 | NUT |
| CLUTCH SHAFT | ||
| 305 | A 3099930010 | SPRING |
| CLUTCH-PEDAL/BRAKE-PEDAL RESET | ||
| 305 | A 3099930010 | SPRING |
| CLUTCH-PEDAL/BRAKE-PEDAL RESET | ||
| 308 | A 3092920042 | EXTENSION |
| CLUTCH-PEDAL/BRAKE-PEDAL RESET | ||
| 308 | A 3092920042 | EXTENSION |
| CLUTCH-PEDAL/BRAKE-PEDAL RESET | ||
| 311 | A 3092930829 | ROD |
| Repalced by: A 3092931029 | ||
| 311 | A 3092931029 | ROD |
| CLUTCH OPERATION | ||
| 314 | A 0009916222 | BALL SOCKET |
| CLUTCH OPERATION | ||
| 314 | A 0009912923 | BALL SOCKET |
| CLUTCH OPERATION | ||
| 317 | N 000934010014 | NUT |
| CLUTCH OPERATION | ||
| 317 | N 000934012022 | NUT |
| CLUTCH OPERATION | ||
| 320 | N 071805016402 | SECURING CLIP |
| CLUTCH OPERATION | ||
| 320 | N 071805016402 | SECURING CLIP |
| CLUTCH OPERATION | ||
| 323 | A 3092901139 | ROD |
| CLUTCH OPERATION | ||
| 323 | A 3092901139 | ROD |
| CLUTCH OPERATION | ||
| 326 | A 3099910422 | BALL SOCKET |
| CLUTCH OPERATION | ||
| 326 | A 3099910422 | BALL SOCKET |
| CLUTCH OPERATION | ||
| 329 | A 3099910522 | BALL SOCKET |
| CLUTCH OPERATION | ||
| 329 | A 3099910522 | BALL SOCKET |
| CLUTCH OPERATION | ||
| 332 | N 000934010014 | NUT |
| CLUTCH OPERATION | ||
| 332 | N 000934010014 | NUT |
| CLUTCH OPERATION | ||
| 335 | N 000934010035 | NUT |
| CLUTCH OPERATION | ||
| 335 | N 000934010035 | NUT |
| CLUTCH OPERATION | ||
| 338 | N 071805016402 | SECURING CLIP |
| CLUTCH OPERATION | ||
| 338 | N 071805016402 | SECURING CLIP |
| CLUTCH OPERATION | ||
| 341 | A 3092901239 | ROD |
| PUSH ROD TO INTERMEDIATE LEVER | ||
| 344 | N 304032008006 | NUT |
| PUSH ROD TO INTERMEDIATE LEVER | ||
| 347 | N 071752008001 | YOKE |
| PUSH ROD TO INTERMEDIATE LEVER | ||
| 350 | N 071805013203 | BALL SOCKET |
| PUSH ROD TO INTERMEDIATE LEVER | ||
| 353 | N 071805013402 | SECURING CLIP |
| PUSH ROD TO INTERMEDIATE LEVER | ||
| 356 | N 001434008038 | PIN |
| ROD TO CLUTCH PEDAL | ||
| 359 | N 900055008002 | SPRING WASHER |
| ROD TO CLUTCH PEDAL | ||
| 362 | N 000433008406 | WASHER |
| ROD TO CLUTCH PEDAL | ||
| 365 | N 000094002059 | COTTER PIN |
| ROD TO CLUTCH PEDAL | ||
| 368 | A 3095860129 | REPAIR KIT |
| Repalced by: A 3092901739 | ||
| 368 | A 3092901739 | REPAIR KIT |
| CLUTCH ACTUATING PARTS | ||
| 371 | A 3095860229 | REPAIR KIT |
| Repalced by: A 3092901839 | ||
| 371 | A 3092901839 | REPAIR KIT |
| CLUTCH ACTUATING PARTS | ||
| 374 | A 3092900833 | BRACKET |
| Repalced by: A 3092901333 | ||
| 374 | A 3092901133 | BRACKET |
| Repalced by: A 3092901333 | ||
| 374 | A 3092901333 | BRACKET |
| PEDAL ASSEMBLY | ||
| 377 | A 1152910186 | STOP |
| PEDAL ASSEMBLY | ||
| 380 | A 3092900918 | PEDAL |
| BRAKE PEDAL | ||
| 383 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 383 | A 1242920050 | BUSHING |
| 386 | A 3092901016 | PEDAL |
| CLUTCH | ||
| 386 | A 3092901416 | PEDAL |
| Repalced by: A 3092902216 | ||
| 386 | A 3092902216 | PEDAL |
| Repalced by: A 3102900416 | ||
| 386 | A 3102900416 | PEDAL |
| CLUTCH AND BRAKE | ||
| 389 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 389 | A 1242920050 | BUSHING |
| 392 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 392 | A 1072910182 | PAD |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 395 | A 1152910076 | WASHER |
| PEDALS TO PIVOT PINS | ||
| 398 | A 0009941151 | LOCK |
| PEDALS TO PIVOT PINS | ||
| 401 | A 0005453509 | SWITCH |
| STOP LIGHT | ||
| 401 | A 0005456909 | SWITCH |
| STOP LIGHT | ||
| 404 | A 0009909251 | NUT |
| STOP LIGHT SWITCH TO CONSOLE | ||
| 407 | A 3099931110 | SPRING |
| CLUTCH-PEDAL/BRAKE-PEDAL RESET | ||
| A 3812900039 | ROD | |
| Repalced by: A 3132900139 | ||
| A 3132900139 | ROD | |
| Repalced by: A 3102900439 | ||
| A 3102900439 | ROD | |
| OVER-CENTER ACTING SPRING | ||
| 410 | A 1102910750 | BUSHING |
| 413 | A 1109930501 | SPRING |
| (DEAD CENTER SPRING) | ||
| 416 | A 1112910491 | SPRING RETAINER |
| DEAD CENTER SPRING,TOP | ||
| 419 | N 070616010003 | NUT |
| SPRING TO PUSH ROD | ||
| 422 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 422 | N 000125008443 | WASHER |
| PUSH ROD TO PEDAL | ||
| 425 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| 428 | A 1102900633 | BRACKET |
| Repalced by: A 3092910091 | ||
| 428 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 431 | A 3092900093 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 434 | A 0012951506 | MASTER CYLINDER |
| Repalced by: A 0002957706 | ||
| 434 | A 0012951406 | MASTER CYLINDER |
| Repalced by: A 0002959106 | ||
| 434 | A 0002959106 | MASTER CYLINDER |
| Repalced by: A 0002957706 | ||
| 434 | A 0002957706 | MASTER CYLINDER |
| Repalced by: A 0012958706 | ||
| 434 | A 0012958706 | MASTER CYLINDER |
| CLUTCH | ||
| 437 | A 0002951583 | BOOT |
| 440 | N 000472019000 | LOCK RING |
| 443 | A 0009971186 | PLUG |
| 446 | A 3092950036 | INTERMEDIATE PIECE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 449 | A 0005862929 | REPAIR KIT |
| LESS PISTON | ||
| 449 | A 0005865229 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 000 295 77 06 | ||
| A 0002903112 | REPAIR KIT | |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 87 06 | ||
| 452 | N 000931006115 | SCREW |
| Repalced by: N 000933006151 | ||
| 452 | N 000933006151 | SCREW |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| M 6X50,TO 000 295 77 06 | ||
| 452 | N 000933006147 | SCREW |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| M 6X45,TO 000 295 91 06 | ||
| 455 | A 3092950053 | SPACER TUBE |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| TO 000 295 91 06 | ||
| 458 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 458 | N 913004006001 | NUT |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 461 | A 1152900639 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 461 | A 3102900339 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 464 | A 1102950250 | BUSHING |
| 467 | A 1102950571 | SCREW |
| Repalced by: A 1152950172 | ||
| 467 | A 1152950172 | NUT |
| PISTON ROD TO LEVER | ||
| 470 | A 1232950150 | BUSHING |
| PISTON ROD TO LEVER | ||
| 473 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 473 | N 304017008016 | SCREW |
| PISTON ROD TO LEVER | ||
| M 8X16 | ||
| 476 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 476 | N 304017008018 | SCREW |
| PISTON ROD TO LEVER | ||
| M 8X35 | ||
| 479 | N 912004008102 | LOCK WASHER |
| PISTON ROD TO LEVER | ||
| 480 | N 000439008213 | NUT |
| PISTON ROD TO LEVER | ||
| 480 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 480 | N 913004008001 | NUT |
| PISTON ROD TO LEVER | ||
| 482 | A 3092950035 | HOSE |
| FROM CLUTCH MASTER CYLINDER TO SLAVE CYLINDER LINE | ||
| 485 | A 1109971481 | GROMMET |
| Repalced by: A 1079970881 | ||
| 485 | A 1079970881 | GROMMET |
| Repalced by: A 0079975881 | ||
| 485 | A 0079975881 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 488 | A 1072950073 | LOCK |
| Repalced by: A 1072950173 | ||
| 488 | A 1072950173 | LOCK |
| CLUTCH HOSE TO BRACKET AT CAB | ||
| 491 | A 3092900013 | LINE |
| Repalced by: A 3404201129 | ||
| 491 | A 3404201129 | LINE |
| FROM CLUTCH MASTER CYLINDER TO SLAVE CYLINDER LINE | ||
| 494 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 494 | N 304017008021 | SCREW |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 497 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 497 | N 000125008443 | WASHER |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 500 | A 3099970381 | GROMMET |
| Repalced by: A 0009972781 | ||
| 500 | A 0009972781 | GROMMET |
| Repalced by: A 0009972881 | ||
| 500 | A 0009972881 | GROMMET |
| RESERVOIR LINE THRU CAB WINDOW SILL | ||
| 503 | A 0099973882 | HOSE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
