Transporto priemonė: LK 608 D; VIN numerio dalis: 310441
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST: | ||
| 730.5 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR REAR WHEEL BRAKE, SEE PARTS LIST: | ||
| 741.2 | ||

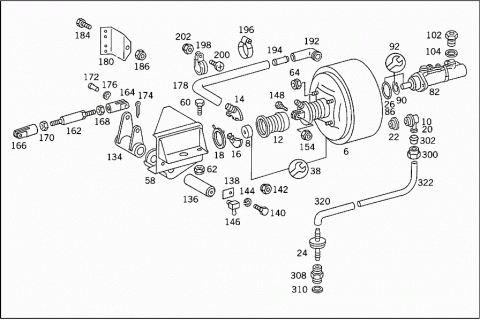

| A 0004307530 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0014301430 | ||
| A 0004309730 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0014301430 | ||
| A 0014300330 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0014301430 | ||
| 006 | A 0014301430 | BRAKE BOOSTER ASSEMBLY |
| Repalced by: A 0044300630 | ||
| 006 | A 0044300630 | BRAKE BOOSTER ASSEMBLY |
| 006 | A 0044300630 | BRAKE BOOSTER ASSEMBLY |
| A 0014302130 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0014304630 | ||
| 006 | A 0014304630 | BRAKE BOOSTER ASSEMBLY |
| 006 | A 0014304630 | BRAKE BOOSTER ASSEMBLY |
| 006 | A 0014304630 | BRAKE BOOSTER ASSEMBLY |
| 008 | A 0004350712 | DAMPING RING |
| A 0004350612 | FILTER RING | |
| Repalced by: A 0015864143 | ||
| 010 | A 0004303681 | CONNECTION HOUSING |
| 012 | A 0004312987 | PROTECTIVE CAP |
| 012 | A 0004315387 | PROTECTIVE CAP |
| 014 | A 0004311940 | BRACKET |
| UPPER PART | ||
| 016 | A 0004312040 | BRACKET |
| LOWER PART | ||
| 018 | A 0004311091 | CLAMPING RING |
| 020 | A 0019900371 | ELBOW FITTING |
| 022 | A 0004319960 | SEAL RING |
| A 0004313107 | VALVE | |
| Repalced by: A 0004313607 | ||
| 024 | A 0004313607 | VALVE |
| (CHECK VALVE) | ||
| 024 | A 0004314007 | VALVE |
| Repalced by: A 0004316107 | ||
| 024 | A 0004316107 | VALVE |
| (CHECK VALVE) | ||
| 026 | A 0049973245 | SEAL RING |
| A 0014302530 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0024305630 | ||

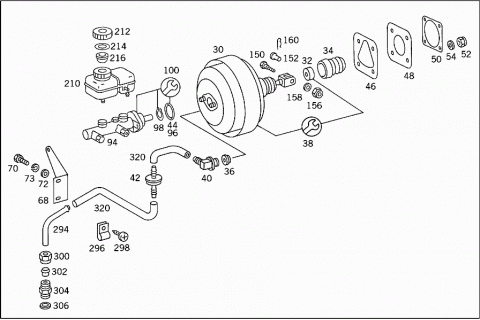

| 030 | A 0024305630 | BRAKE BOOSTER ASSEMBLY |
| Repalced by: A 0024304830 | ||
| 030 | A 0024304830 | BRAKE BOOSTER ASSEMBLY |
| A 0014303030 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0024305730 | ||
| 030 | A 0024305730 | BRAKE BOOSTER ASSEMBLY |
| 032 | A 0004350712 | DAMPING RING |
| A 0004350612 | FILTER RING | |
| Repalced by: A 0015864143 | ||
| 034 | A 0004312987 | PROTECTIVE CAP |
| 036 | A 0004319960 | SEAL RING |
| 038 | A 0015864143 | REPAIR KIT |
| TO 001 430 14 30,001 430 25 30 | ||
| 038 | A 0015864143 | REPAIR KIT |
| TO 002 430 57 30 | ||
| 040 | A 0019900371 | ELBOW FITTING |
| A 0004313107 | VALVE | |
| Repalced by: A 0004313607 | ||
| 042 | A 0004313607 | VALVE |
| 042 | A 0004314007 | VALVE |
| Repalced by: A 0004316107 | ||
| 042 | A 0004316107 | VALVE |
| 044 | A 0049973245 | SEAL RING |
| 046 | A 3094350080 | GASKET |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| 048 | A 3094350180 | GASKET |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| 050 | A 1154310180 | GASKET |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| 052 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 052 | N 913004008001 | NUT |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| 054 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 054 | N 000125008443 | WASHER |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| A 3104300039 | SUPPORT | |
| Repalced by: A 3104301039 | ||
| 056 | A 3104301039 | SUPPORT |
| BRAKE BOOSTER ASSEMBLY | ||
| 056 | A 3104301239 | SUPPORT |
| BRAKE BOOSTER ASSEMBLY | ||
| A 3104300139 | SUPPORT | |
| Repalced by: A 3104301139 | ||
| 058 | A 3104301139 | SUPPORT |
| BRAKE BOOSTER ASSEMBLY | ||
| 058 | A 3104301339 | SUPPORT |
| BRAKE BOOSTER ASSEMBLY | ||
| 058 | A 3104301339 | SUPPORT |
| BRAKE BOOSTER ASSEMBLY | ||
| 060 | N 000933010105 | SCREW |
| 060 | N 000933010105 | SCREW |
| 062 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 062 | N 910113010000 | NUT |
| 062 | N 910113010000 | NUT |
| 064 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 064 | N 913004008001 | NUT |
| A 3104311340 | BRACKET | |
| Repalced by: A 3104312740 | ||
| A 3104311740 | BRACKET | |
| Repalced by: A 3104312740 | ||
| 066 | A 3104312740 | BRACKET |
| 066 | A 3104312740 | BRACKET |
| 068 | A 3094311240 | BRACKET |
| BRAKE BOOSTER BRACING | ||
| 068 | A 3094311240 | BRACKET |
| BRAKE BOOSTER BRACING | ||
| 070 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 070 | N 304017008016 | SCREW |
| BRAKE BOOSTER BRACING | ||
| 070 | N 304017008016 | SCREW |
| BRAKE BOOSTER BRACING | ||
| 070 | N 304017008016 | SCREW |
| BRAKE BOOSTER BRACING | ||
| 072 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 072 | N 000125008443 | WASHER |
| BRAKE BOOSTER BRACING | ||
| 072 | N 000125008443 | WASHER |
| BRAKE BOOSTER BRACING | ||
| 073 | N 912004008102 | LOCK WASHER |
| BRAKE BOOSTER BRACING | ||
| 073 | N 912004008102 | LOCK WASHER |
| BRAKE BOOSTER BRACING | ||
| A 0024305901 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0024306301 | ||
| 074 | A 0024306301 | BRAKE MASTER CYLINDER |
| 074 | A 0024306301 | BRAKE MASTER CYLINDER |
| 074 | A 0034300301 | BRAKE MASTER CYLINDER |
| 076 | N 000472025000 | LOCK RING |
| TO 002 430 63 01,003 430 03 01 | ||
| 078 | A 0049973245 | SEAL RING |
| 080 | A 0005866543 | REPAIR KIT |
| BRAKE MASTER CYLINDER | ||
| 002 430 59 01 | ||
| 080 | A 0015866543 | REPAIR KIT |
| BRAKE MASTER CYLINDER | ||
| TO 002 430 64 01,003 430 03 01 | ||
| 082 | A 0024306401 | BRAKE MASTER CYLINDER |
| 082 | A 0034300701 | BRAKE MASTER CYLINDER |
| 082 | A 0034300701 | BRAKE MASTER CYLINDER |
| 082 | A 0034300701 | BRAKE MASTER CYLINDER |
| 086 | A 0049973245 | SEAL RING |
| 090 | N 000472028000 | LOCK RING |
| TO 003 430 07 01 | ||
| A 0005866643 | REPAIR KIT | |
| Repalced by: A 0004302183 | ||
| 092 | A 0004302183 | REPAIR KIT |
| 002 430 64 01 | ||
| 094 | A 0034300401 | BRAKE MASTER CYLINDER |
| 22.20 MM | ||
| 094 | A 0034300601 | BRAKE MASTER CYLINDER |
| 25.40 MM | ||
| 094 | A 0034300601 | BRAKE MASTER CYLINDER |
| 25.40 MM | ||
| 096 | A 0049973245 | SEAL RING |
| A 0004308081 | VALVE | |
| 098 | N 000472025000 | LOCK RING |
| A 0005866643 | REPAIR KIT | |
| Repalced by: A 0004302183 | ||
| 100 | A 0004302183 | REPAIR KIT |
| TO 003 430 04 01 | ||
| 100 | A 0015860543 | REPAIR KIT |
| TO 003 430 06 01,003 430 07 01 | ||
| A 3099900054 | NUT | |
| Repalced by: A 0009904968 | ||
| 102 | A 0009904968 | FITTING |
| LINE TO BRAKE BOOSTER | ||
| 104 | N 007603022102 | SEAL RING |
| LINE TO BRAKE BOOSTER | ||
| A 3104300062 | PROTECTIVE PLATE | |
| 106 | N 007513006110 | TAPPING SCREW |
| 108 | N 000933006102 | SCREW |
| 110 | N 000125006421 | WASHER |
| 112 | N 912004006102 | LOCK WASHER |
| 114 | N 000934006007 | NUT |
| 116 | A 3104310462 | COVERING |
| 116 | A 3104310462 | COVERING |
| 116 | A 3104310662 | COVERING |
| 116 | A 3104310662 | COVERING |
| 116 | A 3104310562 | COVERING |
| 116 | A 3104310562 | COVERING |
| 116 | A 3104310762 | COVERING |
| 116 | A 3104310762 | COVERING |
| A 3104312640 | BRACKET | |
| A 3104312640 | BRACKET | |
| A 3104312640 | BRACKET | |
| A 3104312940 | BRACKET | |
| Repalced by: A 3184923641 | ||
| 118 | A 3184923641 | BRACKET |
| Repalced by: A 3184923441 | ||
| 118 | A 3184923441 | BRACKET |
| 118 | A 3184923441 | BRACKET |
| 118 | A 3184923441 | BRACKET |
| 118 | A 3184923441 | BRACKET |
| 120 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 120 | N 304017006016 | SCREW |
| BRACKET TO COVER PLATE | ||
| M 6X16 | ||
| 120 | N 304017006016 | SCREW |
| BRACKET TO COVER PLATE | ||
| M 6X16 | ||
| 120 | N 304017006016 | SCREW |
| BRACKET TO COVER PLATE | ||
| M 6X16 | ||
| 120 | N 304017006016 | SCREW |
| BRACKET TO COVER PLATE | ||
| M 6X16 | ||
| 122 | N 000125006421 | WASHER |
| BRACKET TO COVER PLATE | ||
| 122 | N 000125006421 | WASHER |
| BRACKET TO COVER PLATE | ||
| 122 | N 000125006421 | WASHER |
| BRACKET TO COVER PLATE | ||
| 122 | N 000125006421 | WASHER |
| BRACKET TO COVER PLATE | ||
| 124 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 124 | N 913004006001 | NUT |
| BRACKET TO COVER PLATE | ||
| 124 | N 913004006001 | NUT |
| BRACKET TO COVER PLATE | ||
| 124 | N 913004006001 | NUT |
| BRACKET TO COVER PLATE | ||
| 124 | N 913004006001 | NUT |
| BRACKET TO COVER PLATE | ||
| 126 | N 913010006106 | RIVETED NUT |
| BRACKET TO CAB | ||
| 126 | N 913010006106 | RIVETED NUT |
| BRACKET TO CAB | ||
| 126 | N 913010006106 | RIVETED NUT |
| BRACKET TO CAB | ||
| 126 | N 913010006106 | RIVETED NUT |
| BRACKET TO CAB | ||
| 128 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 128 | N 304017006020 | SCREW |
| BRACKET TO CAB | ||
| 128 | N 304017006020 | SCREW |
| BRACKET TO CAB | ||
| 128 | N 304017006020 | SCREW |
| BRACKET TO CAB | ||
| 128 | N 304017006020 | SCREW |
| BRACKET TO CAB | ||
| 130 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 130 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 130 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 130 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| N 000127006204 | LOCK WASHER | |
| Repalced by: N 912004006102 | ||
| 132 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB | ||
| 132 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB | ||
| 132 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB | ||
| 132 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB | ||
| A 3104200081 | LEVER | |
| Repalced by: A 3104200781 | ||
| A 3104200481 | LEVER | |
| Repalced by: A 3104200781 | ||
| 134 | A 3104200781 | LEVER |
| INTERMEDIATE LEVER | ||
| 134 | A 3104200781 | LEVER |
| INTERMEDIATE LEVER | ||
| 134 | A 3104200981 | LEVER |
| INTERMEDIATE LEVER | ||
| 134 | A 3104200981 | LEVER |
| INTERMEDIATE LEVER | ||
| 134 | A 3104200981 | LEVER |
| INTERMEDIATE LEVER | ||
| 136 | A 3104260003 | PIVOT |
| INTERMEDIATE LEVER TO BRACKET | ||
| 136 | A 3104260003 | PIVOT |
| INTERMEDIATE LEVER TO BRACKET | ||
| 136 | A 3104260203 | PIVOT |
| INTERMEDIATE LEVER TO BRACKET | ||
| 136 | A 3104260203 | PIVOT |
| INTERMEDIATE LEVER TO BRACKET | ||
| 136 | A 3104260203 | PIVOT |
| INTERMEDIATE LEVER TO BRACKET | ||
| 138 | A 3149940101 | LOCK |
| INTERMEDIATE LEVER TO BRACKET | ||
| 140 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 140 | N 304017008021 | SCREW |
| INTERMEDIATE LEVER TO BRACKET | ||
| 140 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 140 | N 304017008016 | SCREW |
| INTERMEDIATE LEVER TO BRACKET | ||
| 142 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 142 | N 913004008001 | NUT |
| INTERMEDIATE LEVER TO BRACKET | ||
| 144 | N 912004008102 | LOCK WASHER |
| INTERMEDIATE LEVER TO BRACKET | ||
| 146 | N 071412010100 | GREASE NIPPLE |
| INTERMEDIATE LEVER TO BRACKET | ||
| 146 | N 071412010100 | GREASE NIPPLE |
| INTERMEDIATE LEVER TO BRACKET | ||
| 146 | N 071412010300 | GREASE NIPPLE |
| INTERMEDIATE LEVER TO BRACKET | ||
| 146 | N 071412010300 | GREASE NIPPLE |
| INTERMEDIATE LEVER TO BRACKET | ||
| 148 | A 3104260071 | SCREW |
| A 3094260071 | SCREW | |
| Repalced by: A 3094260171 | ||
| 150 | A 3094260171 | SCREW |
| PUSH ROD TO BRAKE PEDAL | ||
| 152 | A 1262920074 | PIN |
| PUSH ROD TO BRAKE PEDAL | ||
| 154 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 154 | N 913004008001 | NUT |
| PUSH ROD TO BRAKE PEDAL | ||
| 156 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 156 | N 913004006001 | NUT |
| PUSH ROD TO BRAKE PEDAL | ||
| 158 | N 000125006421 | WASHER |
| PUSH ROD TO BRAKE PEDAL | ||
| 160 | N 912011008000 | LOCK |
| PUSH ROD TO BRAKE PEDAL | ||
| A 3104200074 | ROD | |
| Repalced by: A 3104201274 | ||
| A 3104201274 | ROD | |
| Repalced by: A 3104201174 | ||
| A 3104201174 | ROD | |
| Repalced by: A 3104260430 | ||
| 162 | A 3104260430 | ROD |
| 162 | A 3104260430 | ROD |
| 164 | A 3109960001 | YOKE |
| L.H. THREAD | ||
| 164 | A 3109960001 | YOKE |
| L.H. THREAD | ||
| 166 | A 3199960101 | YOKE |
| R.H. THREAD | ||
| 166 | A 3199960101 | YOKE |
| R.H. THREAD | ||
| 168 | N 000934012022 | NUT |
| 170 | N 000934012037 | NUT |
| L.H. THREAD | ||
| 172 | N 001434012106 | PIN |
| PUSH ROD TO BRAKE PEDAL AND TO INTERMEDIATE LEVER | ||
| 174 | N 000094004051 | COTTER PIN |
| PUSH ROD TO BRAKE PEDAL AND TO INTERMEDIATE LEVER | ||
| 176 | N 900055012001 | SPRING WASHER |
| PUSH ROD TO BRAKE PEDAL AND TO INTERMEDIATE LEVER | ||
| A 3109970182 | HOSE | |
| Repalced by: A 3109970282 | ||
| 178 | A 3109970282 | HOSE |
| 178 | A 3109970282 | HOSE |
| 180 | A 3104311440 | BRACKET |
| FROM BRAKE CIRCUIT II TEST CONNECTION TO BRAKE HOSE,REAR AXLE I | ||
| 180 | A 3104311440 | BRACKET |
| FROM BRAKE CIRCUIT II TEST CONNECTION TO BRAKE HOSE,REAR AXLE I | ||
| 182 | A 3094281240 | BRACKET |
| HOSE | ||
| 184 | N 000933010128 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 186 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 186 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 188 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 190 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 190 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 192 | A 3104310135 | CONNECTOR |
| 192 | A 3104310135 | CONNECTOR |
| 194 | A 3104310035 | CONNECTOR |
| 194 | A 3104310035 | CONNECTOR |
| 196 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 196 | N 000000000667 | CLAMP |
| A 0009959501 | CLAMP | |
| Repalced by: N 916016022203 | ||
| 198 | N 916016022206 | CLAMP |
| FRESH AIR HOSE TO BRACKET | ||
| 200 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 200 | N 000000001146 | SCREW |
| FRESH AIR HOSE TO BRACKET | ||
| M 6X16 | ||
| 202 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 202 | N 913004006001 | NUT |
| FRESH AIR HOSE TO BRACKET | ||

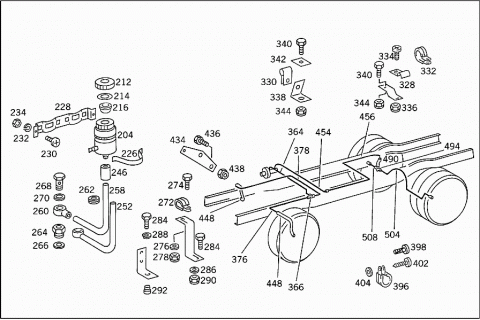

| 204 | A 0004318302 | RESERVOIR |
| 204 | A 0004318302 | RESERVOIR |
| A 0014313902 | RESERVOIR | |
| 206 | A 0004314702 | RESERVOIR |
| 206 | A 0004314702 | RESERVOIR |
| 206 | A 0004314702 | RESERVOIR |
| 206 | A 0004314702 | RESERVOIR |
| A 0014312902 | RESERVOIR | |
| Repalced by: A 0004314702 | ||
| A 0004316502 | RESERVOIR | |
| Repalced by: A 0004318302 | ||
| A 0004311202 | RESERVOIR | |
| Repalced by: A 0004318302 | ||
| 208 | A 0004318502 | RESERVOIR |
| 210 | A 0004318602 | RESERVOIR |
| A 0004311333 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| A 0004313133 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| A 0004314333 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| A 0004315133 | FILLER CAP | |
| Repalced by: A 0004315433 | ||
| 212 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| 212 | A 0002950237 | SCREW PLUG |
| Repalced by: A 0004315433 | ||
| 214 | A 0009972940 | SEAL RING |
| 43.7X30 MM | ||
| 214 | A 0039976440 | SEAL RING |
| 42X21.5 MM | ||
| A 0002950023 | STRAINER | |
| Repalced by: A 0004313734 | ||
| A 0004310034 | STRAINER | |
| Repalced by: A 0004313734 | ||
| A 0004313734 | STRAINER | |
| Repalced by: A 0004314334 | ||
| 216 | A 0004314334 | STRAINER |
| TO 000 431 47 02, 001 431 29 02 | ||
| 216 | A 0004314334 | STRAINER |
| TO 000 431 83 02,86 02,65 02 | ||
| 218 | A 0004311371 | SCREW |
| 220 | A 0004316287 | PROTECTIVE CAP |
| 222 | A 0014310060 | SEAL RING |
| 224 | A 0004311040 | CLAMP |
| TO 000 431 47 02 | ||
| 226 | A 3094310043 | CLAMP |
| 228 | A 3094311840 | BRACKET |
| FLUID RESERVOIR TO SEAT BOX | ||
| 230 | N 007985006161 | SCREW |
| Repalced by: N 007985006580 | ||
| 230 | N 007985006580 | SCREW |
| M 6X10 | ||
| 232 | N 912006006002 | LOCK WASHER |
| 234 | N 000934006007 | NUT |
| A 3094310840 | BRACKET | |
| FLUID RESERVOIR TO FIRE WALL | ||
| 238 | N 000933006102 | SCREW |
| FLUID RESERVOIR TO FIRE WALL | ||
| M 6X25 | ||
| 240 | N 912004006102 | LOCK WASHER |
| FLUID RESERVOIR TO FIRE WALL | ||
| 242 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 242 | N 009021006208 | WASHER |
| FLUID RESERVOIR TO FIRE WALL | ||
| 244 | N 000934006007 | NUT |
| FLUID RESERVOIR TO FIRE WALL | ||
| A 3149970982 | HOSE | |
| Repalced by: A 3109970382 | ||
| A 3109970382 | HOSE | |
| Repalced by: A 6039970482 | ||
| 246 | A 6039970482 | HOSE |
| 246 | A 6039970482 | HOSE |
| 248 | A 3092950036 | INTERMEDIATE PIECE |
| 250 | A 0099973882 | HOSE |
| A 3104200028 | LINE | |
| Repalced by: A 3104282301 | ||
| A 3104202228 | LINE | |
| Repalced by: A 3104208528 | ||
| 252 | A 3104208528 | LINE |
| FROM FLUID RESERVOIR TO MASTER CYLINDER | ||
| A 3104200128 | LINE | |
| Repalced by: A 3104282301 | ||
| 252 | A 3104282301 | LINE |
| FROM FLUID RESERVOIR TO MASTER CYLINDER | ||
| A 3104203128 | LINE | |
| Repalced by: A 3104208528 | ||
| 254 | A 3104208528 | LINE |
| FROM FLUID RESERVOIR TO MASTER CYLINDER | ||
| A 3104282901 | LINE | |
| Repalced by: A 0004290801 | ||
| 254 | A 0004290801 | LINE |
| FROM FLUID RESERVOIR TO MASTER CYLINDER | ||
| 256 | A 1809900066 | UNION SCREW |
| 258 | A 0089979082 | HOSE |
| 500 MM | ||
| A 0009905888 | BANJO UNION | |
| Repalced by: N 915052006005 | ||
| 260 | N 915052006021 | BANJO UNION |
| 262 | A 3109970081 | GROMMET |
| 262 | A 1869970681 | GROMMET |
| 264 | A 3099900054 | NUT |
| 266 | N 007603022102 | SEAL RING |
| N 915011008103 | HOLLOW SCREW | |
| Repalced by: N 915036010200 | ||
| 268 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 268 | N 915036010108 | HOLLOW SCREW |
| 270 | N 007603014405 | SEAL RING |
| N 916002014100 | CLAMP | |
| Repalced by: N 916026010000 | ||
| 272 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 272 | N 000000000665 | CLAMP |
| A 0009951801 | CLAMP | |
| Repalced by: A 3609950201 | ||
| 272 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 272 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 272 | N 916016008200 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 274 | N 000933006102 | SCREW |
| BRAKE LINE MOUNTING | ||
| 274 | N 000933006102 | SCREW |
| BRAKE LINE MOUNTING | ||
| 276 | N 000125006421 | WASHER |
| BRAKE LINE MOUNTING | ||
| 276 | N 000125006421 | WASHER |
| BRAKE LINE MOUNTING | ||
| 278 | N 913002006000 | NUT |
| BRAKE LINE MOUNTING | ||
| 278 | N 913002006000 | NUT |
| BRAKE LINE MOUNTING | ||
| A 3094280440 | BRACKET | |
| BRAKE LINE MOUNTING | ||
| A 3094280440 | BRACKET | |
| BRAKE LINE MOUNTING | ||
| A 3094280840 | BRACKET | |
| BRAKE LINE MOUNTING | ||
| 284 | N 000933010105 | SCREW |
| BRAKE LINE MOUNTING | ||
| 284 | N 000933010105 | SCREW |
| BRAKE LINE MOUNTING | ||
| 284 | N 000933006102 | SCREW |
| BRAKE LINE MOUNTING | ||
| 286 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 286 | N 000125010532 | WASHER |
| BRAKE LINE MOUNTING | ||
| 286 | N 000125010532 | WASHER |
| BRAKE LINE MOUNTING | ||
| 288 | N 912004006102 | LOCK WASHER |
| BRAKE LINE MOUNTING | ||
| 290 | N 913002010001 | NUT |
| 290 | N 913002010001 | NUT |
| A 0009841221 | RIVETED NUT | |
| Repalced by: N 913010006106 | ||
| 292 | N 913010006106 | RIVETED NUT |
| A 3104290001 | LINE | |
| Repalced by: A 3104320038 | ||
| 294 | A 3104320038 | PIPE |
| FROM VACUUM PUMP TO CHECK VALVE | ||
| 294 | A 3094350425 | LINE |
| FROM VACUUM PUMP TO CHECK VALVE | ||
| A 3094350225 | LINE | |
| Repalced by: A 3104320038 | ||
| A 3094350525 | LINE | |
| FROM CHECK VALVE TO BRAKE BOOSTER ASSY | ||
| 296 | A 3609950401 | CLAMP |
| VACUUM LINE TO BRACKET | ||
| 298 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 298 | N 007981006305 | SHEET METAL SCREW |
| VACUUM LINE TO BRACKET | ||
| 300 | N 915017012100 | UNION NUT |
| VACUUM LINE | ||
| 300 | N 915017010100 | UNION NUT |
| VACUUM LINE | ||
| 302 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 302 | A 0019901967 | SEAL CONE |
| VACUUM LINE | ||
| 302 | N 003861010009 | GLAND |
| VACUUM LINE | ||
| 304 | A 0029971172 | FITTING |
| AT AIR COMPRESSOR | ||
| 304 | N 074313010100 | FITTING |
| AT AIR COMPRESSOR | ||
| N 007603022103 | SEAL RING | |
| Repalced by: N 007603022102 | ||
| 306 | N 007603022102 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 308 | A 0029971572 | FITTING |
| N 007603016100 | SEAL RING | |
| Repalced by: N 007603016105 | ||
| 310 | N 007603016401 | SEAL RING |
| A 1884350182 | HOSE | |
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| A 3104290101 | LINE | |
| A 0004353482 | HOSE | |
| Repalced by: A 0004358382 | ||
| A 0004355182 | HOSE | |
| Repalced by: A 0004358382 | ||
| A 0004355282 | HOSE | |
| Repalced by: A 0004358382 | ||
| A 0004356982 | HOSE | |
| Repalced by: A 0004358382 | ||
| 320 | A 0004358382 | HOSE |
| FROM CHECK VALVE TO BRAKE BOOSTER ASSY | ||
| 322 | A 3104300129 | LINE |
| FROM CHECK VALVE TO BRAKE BOOSTER ASSY | ||
| 322 | A 3104350125 | LINE |
| FROM CHECK VALVE TO BRAKE BOOSTER ASSY | ||
| A 1104350282 | HOSE | |
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| A 1819950020 | CLAMP | |
| Repalced by: A 1239951320 | ||
| A 1239951320 | CLAMP | |
| N 007513005210 | TAPPING SCREW | |
| 328 | A 1879950037 | CLAMP |
| VACUUM LINE TO BRACKET | ||
| 330 | A 3609950401 | CLAMP |
| VACUUM LINE TO BRACKET | ||
| 330 | A 3609950301 | CLAMP |
| A 0009952101 | CLAMP | |
| Repalced by: N 916016012200 | ||
| 332 | N 916016012200 | CLAMP |
| VACUUM LINE TO BRACKET | ||
| 334 | N 007985006538 | SCREW |
| VACUUM LINE TO BRACKET | ||
| M 6X16 | ||
| 336 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 336 | N 913004006001 | NUT |
| VACUUM LINE TO BRACKET | ||
| 338 | A 3104312240 | BRACKET |
| 340 | N 000933010105 | SCREW |
| BRACKET TO FRAME | ||
| M 10X25 | ||
| 342 | N 000436011004 | WASHER |
| BRACKET TO FRAME | ||
| 344 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 344 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| N 007981006208 | SHEET METAL SCREW | |
| Repalced by: N 007981006305 | ||
| N 007981006305 | SHEET METAL SCREW | |
| 348 | A 0019978390 | LOOM TIE |
| A 0019876172 | EDGE GUARD SECTION | |
| Repalced by: A 0009871972 | ||
| 350 | A 0009871972 | EDGE GUARD SECTION |
| FRONT PANEL | ||

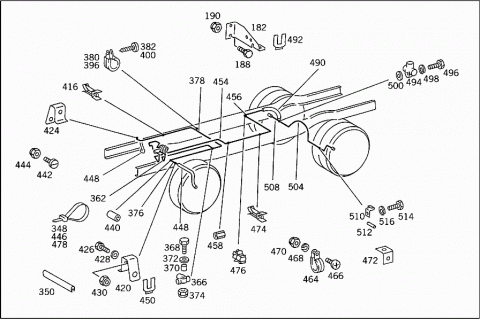

| A 3104200228 | LINE | |
| Repalced by: A 3404201129 | ||
| 360 | A 3404201129 | LINE |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| 700 MM | ||
| 362 | A 3404202829 | LINE |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| 1550 MM | ||
| A 3104200328 | LINE | |
| Repalced by: A 3404202929 | ||
| 364 | A 3404202929 | LINE |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| 1600 MM | ||
| 364 | A 3404203129 | LINE |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| 1700 MM | ||
| 364 | A 3404203329 | LINE |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| 1800 MM | ||
| 364 | A 3404203329 | LINE |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| 1800 MM | ||
| 364 | A 3404203429 | LINE |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| 1850MM | ||
| 366 | A 0004290437 | DISTRIBUTOR |
| 366 | A 0004294337 | DISTRIBUTOR |
| 368 | N 000931008244 | SCREW |
| 368 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 368 | N 304017008043 | SCREW |
| 370 | A 1801550053 | SPACER TUBE |
| 370 | A 3094280053 | SPACER TUBE |
| 372 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 372 | N 000125008443 | WASHER |
| 374 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 374 | N 913004008001 | NUT |
| A 3094200628 | LINE | |
| Repalced by: A 3404201329 | ||
| A 3094203528 | LINE | |
| Repalced by: A 3404201329 | ||
| 376 | A 3404201329 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 800 MM | ||
| 376 | A 3404201229 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 750 MM | ||
| 376 | A 3404200729 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 500 MM | ||
| A 3094203728 | LINE | |
| Repalced by: A 3404203829 | ||
| 378 | A 3404203829 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 2200 MM | ||
| 378 | A 3404203529 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 1900 MM | ||
| 378 | A 3404203529 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 1900 MM | ||
| 378 | A 3404203429 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 1850 MM | ||
| 380 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 380 | N 916016008200 | CLAMP |
| 382 | N 007981005214 | SHEET METAL SCREW |
| 384 | A 3094300110 | BRACKET |
| LEFT | ||
| 384 | A 3094300110 | BRACKET |
| LEFT | ||
| 384 | A 3094300210 | BRACKET |
| RIGHT | ||
| 384 | A 3094300210 | BRACKET |
| RIGHT | ||
| 386 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 386 | N 916016008200 | CLAMP |
| BRAKE LINE TO CROSS MEMBER | ||
| 388 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 388 | N 304017010028 | SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 390 | N 912004010102 | LOCK WASHER |
| BRAKE LINE TO CROSS MEMBER | ||
| 392 | N 007985006115 | SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 392 | N 007985006109 | SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 394 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 394 | N 913004006001 | NUT |
| BRAKE LINE TO CROSS MEMBER | ||
| 394 | N 913004006001 | NUT |
| BRAKE LINE TO CROSS MEMBER | ||
| 396 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 396 | N 916016008200 | CLAMP |
| BRAKE LINE TO CROSS MEMBER | ||
| 396 | N 916016008200 | CLAMP |
| BRAKE LINE TO CROSS MEMBER | ||
| 398 | N 007516006105 | TAPPING SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 398 | N 007516006105 | TAPPING SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 400 | N 007981006216 | SHEET METAL SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 402 | N 007981006207 | SHEET METAL SCREW |
| Repalced by: N 000000000471 | ||
| 402 | N 000000000471 | SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 404 | A 1369912240 | SPACER TUBE |
| BRAKE LINE TO CROSS MEMBER | ||
| A 0009955501 | CLAMP | |
| Repalced by: A 3604300143 | ||
| 406 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 406 | N 916016008200 | CLAMP |
| BRAKE LINE TO FRAME | ||
| 408 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 408 | N 000000001146 | SCREW |
| BRAKE LINE TO FRAME | ||
| M 6X16 | ||
| 410 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 410 | N 304017006016 | SCREW |
| LINE MOUNTING | ||
| M 6X16 | ||
| 412 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 412 | N 913004006001 | NUT |
| BRAKE LINE TO FRAME | ||
| 414 | A 3604280143 | ANGLE |
| BRAKE LINE TO FRAME | ||
| 416 | A 0049881478 | CLIP |
| 420 | A 3094280043 | ANGLE |
| LEFT | ||
| 420 | A 3094280443 | ANGLE |
| LEFT | ||
| 424 | A 3094280543 | ANGLE |
| 424 | A 3094280643 | ANGLE |
| RIGHT | ||
| 424 | A 3094280143 | ANGLE |
| RIGHT | ||
| 426 | N 000933010045 | SCREW |
| M 10X28 | ||
| 426 | N 000931010331 | SCREW |
| MOUNTING ANGLE TO FRAME | ||
| M 10X65 | ||
| 428 | N 007349010007 | WASHER |
| MOUNTING ANGLE TO FRAME | ||
| 430 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 430 | N 910113010000 | NUT |
| A 3092920440 | BRACKET | |
| RELEASE SPRING | ||
| 434 | A 3092921840 | BRACKET |
| 436 | N 000933010105 | SCREW |
| BRACKET TO FRAME | ||
| M 10X25 | ||
| 438 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 438 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 440 | A 3129970582 | HOSE |
| A 3129950935 | CLAMP | |
| Repalced by: A 0019978290 | ||
| 442 | N 000084004151 | SCREW |
| HOSE TO BRAKE LINE | ||
| 444 | N 000934004006 | NUT |
| HOSE TO BRAKE LINE | ||
| 446 | A 0019978390 | LOOM TIE |
| HOSE TO BRAKE LINE | ||
| A 0004287635 | BRAKE HOSE | |
| Repalced by: A 0024280535 | ||
| 448 | A 0024280535 | BRAKE HOSE |
| 448 | A 0014285535 | BRAKE HOSE |
| A 1072950073 | LOCK | |
| Repalced by: A 1072950173 | ||
| 450 | A 1072950173 | LOCK |
| A 0004280473 | BRACKET | |
| Repalced by: A 6525040038 | ||
| 450 | A 6525040038 | MOUNTING PLATE |
| A 3104200428 | LINE | |
| Repalced by: A 3404204029 | ||
| 452 | A 3404204029 | LINE |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| 452 | A 3404204029 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 452 | A 3404204029 | LINE |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| A 3104200528 | LINE | |
| Repalced by: A 3404204229 | ||
| 452 | A 3404204229 | LINE |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| 3000 MM | ||
| 454 | A 3404203829 | LINE |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE | ||
| 2200 MM | ||
| 454 | A 3404202429 | LINE |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE | ||
| 1350 MM | ||
| 454 | A 3404202629 | LINE |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE | ||
| 1450 MM | ||
| 456 | A 3404203529 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 456 | A 3404203529 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 456 | A 3404204029 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 2600 MM | ||
| 456 | A 3404204029 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 2600 MM | ||
| 456 | A 3404204029 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 2600 MM | ||
| 456 | A 3404204129 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 2800 MM | ||
| 456 | A 3404204229 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 3000 MM | ||
| 456 | A 3404204429 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 3400 MM | ||
| 458 | A 0004292736 | CONNECTOR |
| 458 | A 0004292736 | CONNECTOR |
| 464 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 464 | N 916016008200 | CLAMP |
| BRAKE LINE TO FRAME | ||
| 466 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 466 | N 000000001146 | SCREW |
| BRAKE LINE TO FRAME | ||
| M 6X16 | ||
| 466 | N 007513006107 | TAPPING SCREW |
| BRAKE LINE TO FRAME | ||
| 468 | N 912004006102 | LOCK WASHER |
| BRAKE LINE TO FRAME | ||
| 470 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 470 | N 913004006001 | NUT |
| BRAKE LINE TO FRAME | ||
| 470 | N 000934006007 | NUT |
| BRAKE LINE TO FRAME | ||
| 472 | A 3604280143 | ANGLE |
| BRAKE LINE TO FRAME | ||
| 474 | A 0049881478 | CLIP |
| 476 | A 0049882678 | CLIP |
| 478 | A 0019978490 | LOOM TIE |
| A 3129950332 | CLAMP | |
| Repalced by: A 3609950101 | ||
| 480 | A 3609950101 | CLAMP |
| BRAKE LINE TO FRAME | ||
| 482 | A 3125421039 | PLATE |
| BRAKE LINE TO FRAME | ||
| 484 | N 007985005157 | SCREW |
| BRAKE LINE TO FRAME | ||
| 486 | N 912004005103 | LOCK WASHER |
| BRAKE LINE TO FRAME | ||
| 488 | N 000934005008 | NUT |
| BRAKE LINE TO FRAME | ||
| 490 | A 0004280135 | BRAKE HOSE |
| REAR | ||
| 450 MM | ||
| A 0014283635 | BRAKE HOSE | |
| Repalced by: A 0004280135 | ||
| A 1072950073 | LOCK | |
| Repalced by: A 1072950173 | ||
| 492 | A 1072950173 | LOCK |
| A 0004280473 | BRACKET | |
| Repalced by: A 6525040038 | ||
| 492 | A 6525040038 | MOUNTING PLATE |
| 494 | A 0004290437 | DISTRIBUTOR |
| 494 | A 0004294337 | DISTRIBUTOR |
| 496 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 496 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 496 | A 0099900101 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| M 8X28 | ||
| 496 | N 000931008266 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| M 8X40 | ||
| 498 | N 912004008102 | LOCK WASHER |
| DISTRIBUTOR TO REAR AXLE | ||
| 500 | A 3094280053 | SPACER TUBE |
| DISTRIBUTOR TO REAR AXLE | ||
| A 3094201628 | LINE | |
| Repalced by: A 3404200729 | ||
| A 3094205028 | LINE | |
| Repalced by: A 3404200729 | ||
| 502 | A 3404200729 | LINE |
| TO LEFT REAR WHEEL | ||
| 502 | A 3404200829 | LINE |
| TO LEFT REAR WHEEL | ||
| 550 MM | ||
| 504 | A 3404201929 | LINE |
| TO LEFT REAR WHEEL | ||
| 1100 MM | ||
| 504 | A 3404202129 | LINE |
| TO LEFT REAR WHEEL | ||
| 1200 MM | ||
| A 3094201728 | LINE | |
| Repalced by: A 3404202029 | ||
| A 3094205128 | LINE | |
| Repalced by: A 3404202029 | ||
| A 3404201829 | LINE | |
| Repalced by: A 3404202029 | ||
| 506 | A 3404202029 | LINE |
| TO RIGHT REAR WHEEL | ||
| 506 | A 3404201929 | LINE |
| TO RIGHT REAR WHEEL | ||
| 1100 MM | ||
| 508 | A 3404200829 | LINE |
| TO RIGHT REAR WHEEL | ||
| 550 MM | ||
| 508 | A 3404200629 | LINE |
| TO RIGHT REAR WHEEL | ||
| 450 MM | ||
| 510 | A 3129951020 | CLAMP |
| 512 | A 3129973482 | HOSE |
| 514 | N 000933008175 | SCREW |
| 516 | N 912004008102 | LOCK WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |

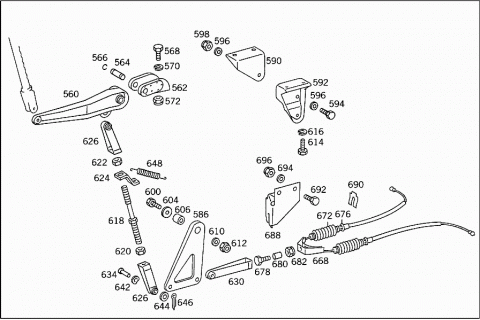

| PISTOL-GRIP HAND BRAKE | ||
| A 3094200188 | RATCHET ROD | |
| Repalced by: A 3094200288 | ||

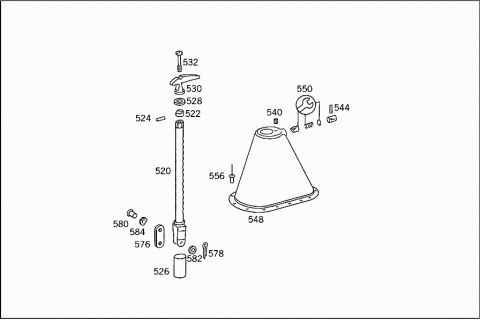

| 520 | A 3094200288 | RATCHET ROD |
| A 3094200188 | RATCHET ROD | |
| Repalced by: A 3094200488 | ||
| 520 | A 3094200488 | RATCHET ROD |
| 522 | A 3124271151 | SPACER RING |
| 522 | A 3124271151 | SPACER RING |
| 524 | N 001473004021 | GROOVED PIN |
| 524 | N 001473004021 | GROOVED PIN |
| 526 | A 3534270095 | PROTECTIVE CAP |
| 526 | A 3534270095 | PROTECTIVE CAP |
| 528 | A 3124271086 | DAMPING RING |
| 530 | A 3094270020 | HANDLE |
| 532 | N 007985010120 | SCREW |
| Repalced by: N 000965010006 | ||
| 532 | N 000965010006 | SCREW |
| A 3094200144 | PROTECTIVE PLATE | |
| Repalced by: A 3094200044 | ||
| A 3124271215 | PAWL | |
| Repalced by: A 3145860142 | ||
| A 1539930701 | SPRING | |
| Repalced by: A 3145860142 | ||
| A 3129900043 | PLATE | |
| Repalced by: A 3145860142 | ||
| 540 | N 001472003009 | GROOVED PIN |
| AS REQUIRED | ||
| N 000965003013 | SCREW | |
| 544 | N 001470003002 | GROOVED PIN |
| A 3099870115 | PLUG | |
| 548 | A 3094200044 | PROTECTIVE PLATE |
| A 3145860142 | REPAIR KIT | |
| Repalced by: A 3144200092 | ||
| 550 | A 3144200092 | REPAIR KIT |
| PAWL | ||
| 550 | A 3094200292 | REPAIR KIT |
| PAWL | ||
| N 007988006105 | SCREW | |
| BEARING BRACKET TO FIRE WALL | ||
| A 0009900297 | RIVET | |
| 556 | N 910002004110 | RIVET |

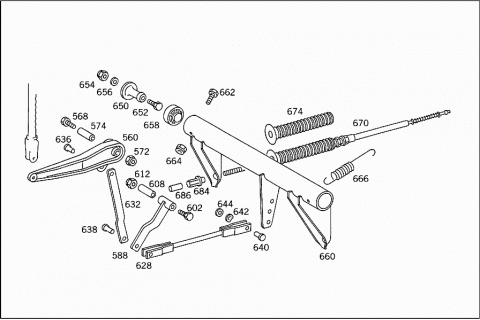

| 560 | A 3094201512 | BRAKE LEVER |
| 560 | A 3094201612 | BRAKE LEVER |
| 562 | A 3094200678 | BEARING BRACKET |
| HAND BRAKE LEVER | ||
| 564 | A 3094270274 | PIN |
| BRAKE LEVER TO BEARING BRACKET | ||
| 566 | N 009045016001 | SNAP RING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 568 | N 000933010128 | SCREW |
| BRAKE LEVER TO BEARING BRACKET | ||
| 568 | N 000931010331 | SCREW |
| BRAKE LEVER TO BEARING BRACKET | ||
| 570 | N 912004010102 | LOCK WASHER |
| BRAKE LEVER TO BEARING BRACKET | ||
| 572 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 572 | N 910113010000 | NUT |
| BRAKE LEVER TO BEARING BRACKET | ||
| 574 | A 3104270550 | BUSHING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 576 | A 3094270489 | CONNECTOR |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 576 | A 3094270489 | CONNECTOR |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 578 | N 000094002059 | COTTER PIN |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 580 | N 001434008063 | PIN |
| Repalced by: N 001444008210 | ||
| 580 | N 001444008210 | PIN |
| 580 | N 001444008210 | PIN |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 580 | N 001434008092 | PIN |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 580 | N 001434008092 | PIN |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 580 | N 001444008223 | PIN |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 582 | N 000433008406 | WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 582 | N 000433008406 | WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 582 | N 000433008003 | WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 582 | N 000433008003 | WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 582 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 582 | N 000125008443 | WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 584 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 584 | N 000137008212 | SPRING WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 584 | N 000137008212 | SPRING WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 584 | N 900055008002 | SPRING WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 586 | A 3104200181 | LEVER |
| INTERMEDIATE LEVER | ||
| 588 | A 3104201481 | LEVER |
| INTERMEDIATE LEVER | ||
| 590 | A 3094270536 | CONSOLE |
| INTERMEDIATE LEVER | ||
| 592 | A 3104270036 | CONSOLE |
| INTERMEDIATE LEVER | ||
| 592 | A 3104270136 | CONSOLE |
| INTERMEDIATE LEVER | ||
| 594 | N 000933010105 | SCREW |
| CONSOLE TO CONSOLE | ||
| 596 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 596 | N 000125010532 | WASHER |
| CONSOLE TO CONSOLE | ||
| 598 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 598 | N 910113010000 | NUT |
| CONSOLE TO CONSOLE | ||
| 600 | N 000931010282 | SCREW |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 602 | N 000931010331 | SCREW |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 604 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 604 | N 009021010209 | WASHER |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 606 | A 3104270050 | BUSHING |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 608 | A 3104270550 | BUSHING |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 610 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 610 | N 000125010532 | WASHER |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 612 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 612 | N 910113010000 | NUT |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 614 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 614 | N 304017008021 | SCREW |
| CONSOLE TO CAB | ||
| 614 | N 304017008021 | SCREW |
| CONSOLE TO CAB | ||
| 614 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 614 | N 304017008053 | SCREW |
| CONSOLE TO CAB | ||
| 616 | N 912004008102 | LOCK WASHER |
| CONSOLE TO CAB | ||
| A 3094270184 | SHIM | |
| Repalced by: A 3094270284 | ||
| A 3094270284 | SHIM | |
| CONSOLE TO CAB | ||
| 618 | A 3104200374 | ROD |
| CENTRAL INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 618 | A 3104200374 | ROD |
| CENTRAL INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 618 | A 3094202274 | ROD |
| CENTRAL INTERMEDIATE LEVER TO BEARING BRACKET | ||
| N 900331010667 | PULL ROD | |
| 200 MM | ||
| N 900331010668 | PULL ROD | |
| 400 MM | ||
| 620 | N 000934010014 | NUT |
| R.H. THREAD | ||
| 622 | N 000934010035 | NUT |
| L.H. THREAD | ||
| 624 | A 3094270689 | CONNECTOR |
| BRACKET | ||
| 626 | A 3214200176 | END PIECE |
| 628 | A 3104202074 | ROD |
| 628 | A 3104202174 | ROD |
| 630 | A 3094200276 | END PIECE |
| 632 | A 3104271289 | CONNECTOR |
| HAND BRAKE LEVER | ||
| 634 | N 001434010125 | PIN |
| ROD TO LEVER | ||
| 636 | N 001444010228 | PIN |
| HAND BRAKE LEVER | ||
| 11X25 | ||
| 638 | N 001444010229 | PIN |
| HAND BRAKE LEVER | ||
| 11X36 | ||
| N 001444010207 | PIN | |
| Repalced by: A 4252920074 | ||
| 640 | A 4252920074 | PIN |
| PULL ROD TO LEVER | ||
| 11X28 | ||
| 642 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 642 | N 000137010205 | SPRING WASHER |
| ROD TO LEVER | ||
| 644 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 644 | N 000433010510 | WASHER |
| ROD TO LEVER | ||
| 644 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 644 | N 000125010532 | WASHER |
| HAND BRAKE LEVER | ||
| 646 | N 000094003219 | COTTER PIN |
| 648 | A 3199930810 | SPRING |
| 650 | A 3104270083 | SPHERICAL PIECE |
| 652 | N 000931010274 | SCREW |
| Repalced by: N 304014010004 | ||
| 652 | N 304014010004 | SCREW |
| AT FRAME | ||
| 654 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 654 | N 910113010000 | NUT |
| AT FRAME | ||
| 656 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 656 | N 000125010532 | WASHER |
| AT FRAME | ||
| 658 | A 3104270332 | BEARING BODY |
| A 3104200368 | SUPPORT | |
| Repalced by: A 3104200568 | ||
| 660 | A 3104200568 | SUPPORT |
| 660 | A 3104200468 | SUPPORT |
| 662 | N 000931006187 | SCREW |
| Repalced by: N 304014006005 | ||
| 662 | N 304014006005 | SCREW |
| SUPPORT TO SPHERICAL PIECE | ||
| M 6X70 | ||
| 664 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 664 | N 913004006001 | NUT |
| SUPPORT TO SPHERICAL PIECE | ||
| 666 | A 3149931210 | SPRING |
| A 3094200485 | BRAKE CABLE | |
| Repalced by: A 3094201385 | ||
| A 3094201085 | BRAKE CABLE | |
| Repalced by: A 3094201385 | ||
| A 3094200685 | BRAKE CABLE | |
| Repalced by: A 3094201385 | ||
| 668 | A 3094201385 | BRAKE CABLE |
| Repalced by: A 3094201685 | ||
| 668 | A 3094201685 | BRAKE CABLE |
| 3975 MM | ||
| 668 | A 3094201485 | BRAKE CABLE |
| Repalced by: A 3094201785 | ||
| 668 | A 3094201785 | BRAKE CABLE |
| 5045 MM | ||
| A 3104200485 | BRAKE CABLE | |
| Repalced by: A 3104200985 | ||
| 670 | A 3104200985 | BRAKE CABLE |
| 672 | A 3094270296 | CUP |
| 672 | A 3094270296 | CUP |
| 674 | A 3104270096 | CUP |
| 676 | A 3094270077 | THIMBLE |
| 676 | A 3094270077 | THIMBLE |
| 678 | N 000931010282 | SCREW |
| BRAKE CABLE TO FORK | ||
| 680 | A 3094270153 | SPACER TUBE |
| BRAKE CABLE TO FORK | ||
| 682 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 682 | N 910113010000 | NUT |
| BRAKE CABLE TO FORK | ||
| 684 | A 3104270072 | NUT |
| 686 | A 3149972882 | HOSE |
| BRAKE CABLE TO FORK | ||
| 45 MM | ||
| A 3094271441 | BRACKET | |
| Repalced by: A 3094272341 | ||
| A 3094272341 | BRACKET | |
| Repalced by: A 3094272941 | ||
| 688 | A 3094272941 | BRACKET |
| LEFT | ||
| A 3094271541 | BRACKET | |
| Repalced by: A 3094272441 | ||
| A 3094272441 | BRACKET | |
| Repalced by: A 3094273041 | ||
| 688 | A 3094273041 | BRACKET |
| RIGHT | ||
| 690 | A 3093250040 | BRACKET |
| (CLAMPING PIECE) | ||
| 692 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 692 | N 304017008021 | SCREW |
| BRACKET TO FRAME | ||
| 692 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 692 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| 694 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 694 | N 000125008443 | WASHER |
| BRACKET TO FRAME | ||
| 696 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 696 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
