Transporto priemonė: LK 608 D; VIN numerio dalis: 310441

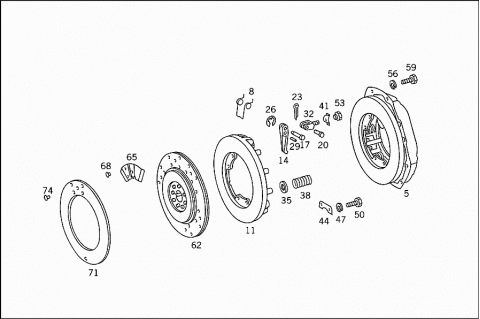

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0002509904 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032501004 | ||
| 005 | A 0012507504 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032501004 | ||
| 005 | A 0032501004 | CLUTCH PRESSURE PLATE |
| A 0002521632 | HOUSING | |
| 008 | A 0002520527 | SPRING |
| A 0002507204 | CLUTCH PRESSURE PLATE | |
| 011 | A 0002522206 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0002526212 | ||
| 011 | A 0002526212 | PRESSURE PLATE |
| 014 | A 0002522613 | RELEASE LEVER |
| Repalced by: A 0002525713 | ||
| 014 | A 0002525713 | RELEASE LEVER |
| Repalced by: A 0002526413 | ||
| 014 | A 0002526413 | RELEASE LEVER |
| 017 | A 0002520016 | SPINDLE |
| Repalced by: A 0002523516 | ||
| 017 | A 0002523516 | SPINDLE |
| Repalced by: A 0002524216 | ||
| 017 | A 0002524216 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 020 | A 0002520516 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 020 | A 0002523616 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 020 | A 0002523816 | SPINDLE |
| FOR BRACKETS | ||
| 023 | N 000094002059 | COTTER PIN |
| 026 | N 006799007007 | LOCK PLATE |
| 029 | A 0002520018 | ROLLER |
| 032 | A 0002521014 | BRACKET |
| Repalced by: A 0002522514 | ||
| 032 | A 0002522514 | BRACKET |
| Repalced by: A 0002523114 | ||
| 032 | A 0002523114 | BRACKET |
| 035 | A 0002520024 | INSULATING WASHER |
| 038 | A 0002524720 | PRESSURE SPRING |
| Repalced by: A 0002528120 | ||
| 038 | A 0002528120 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.2 MM,TO 000 250 99 04 | ||
| 038 | A 0002526320 | PRESSURE SPRING |
| Repalced by: A 0002527920 | ||
| 038 | A 0002527920 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.5 MM, TO 003 250 10 04,001 250 75 04 | ||
| 041 | A 0002520819 | LEAF SPRING |
| 044 | A 0002520573 | LOCK |
| 047 | N 912004008102 | LOCK WASHER |
| 050 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 050 | N 304017008039 | SCREW |
| 053 | A 0002521172 | NUT |
| Repalced by: A 0002523372 | ||
| 053 | A 0002521171 | NUT |
| Repalced by: A 0002523372 | ||
| 053 | A 0002523372 | NUT |
| 056 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 059 | A 3122521071 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 062 | A 0072502103 | CLUTCH DISC |
| Repalced by: A 0142509403 | ||
| 062 | A 0142509403 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 062 | A 0012500603 | CLUTCH DISC |
| Repalced by: A 0022507403 | ||
| 062 | A 0022507403 | CLUTCH DISC |
| 065 | A 0002520919 | LEAF SPRING |
| A 0002525819 | LEAF SPRING | |
| TO 014 250 94 03 | ||
| 068 | A 0002520175 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 068 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| TO 014 250 94 03 | ||
| 071 | A 0012525310 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 071 | A 0002522310 | CLUTCH LINING |
| TO 014 250 94 03 | ||
| 071 | A 0002528110 | CLUTCH LINING |
| 074 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 074 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 074 | A 0002524375 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| 074 | A 0002524375 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| TO 014 250 94 03 | ||

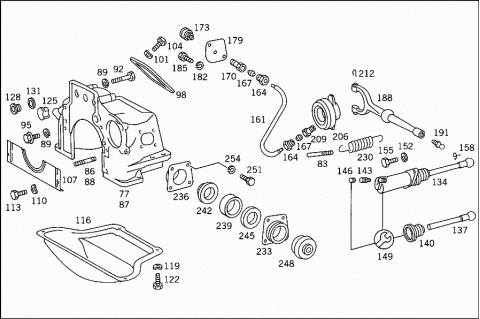

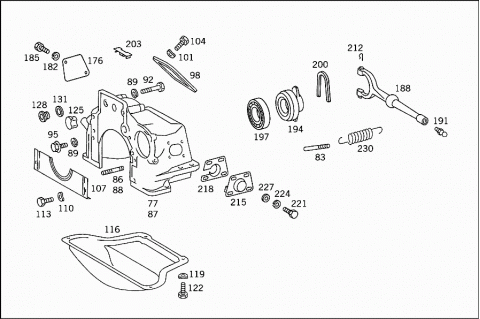

| 077 | A 3222500905 | HOUSING |
| Repalced by: A 3102510301 | ||
| 077 | A 3222500905 | HOUSING |
| Repalced by: A 3102510301 | ||
| 077 | A 3102500105 | HOUSING |
| Repalced by: A 3102510301 | ||
| 083 | A 3142540074 | PIN |
| BELL HOUSING | ||
| 083 | A 3142540074 | PIN |
| BELL HOUSING | ||
| 086 | N 000939010027 | STUD BOLT |
| BELL HOUSING | ||
| M 10X40 | ||
| A 3102510301 | BELL HOUSING | |
| Repalced by: A 3102510501 | ||
| 087 | A 3102510501 | BELL HOUSING |
| Repalced by: A 3102510601 | ||
| 087 | A 3102510601 | BELL HOUSING |
| TOP | ||
| 088 | A 0009902805 | STUD |
| BELL HOUSING | ||
| 089 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 092 | N 000931012180 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X110 | ||
| 095 | N 900170012005 | SCREW |
| Repalced by: A 0029906804 | ||
| 095 | A 0029906804 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X35 | ||
| 098 | A 3242510004 | END COVER |
| Repalced by: A 3602510004 | ||
| 098 | A 3602510004 | END COVER |
| BELL HOUSING TOP | ||
| 101 | N 000137006204 | SPRING WASHER |
| END COVER TO BELL HOUSING | ||
| 104 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 104 | N 304017006034 | SCREW |
| END COVER TO BELL HOUSING | ||
| 107 | A 3122511006 | PROTECTIVE PLATE |
| Repalced by: A 3522500055 | ||
| 107 | A 3522500055 | PROTECTIVE PLATE |
| Repalced by: A 3522510106 | ||
| 107 | A 3522510106 | PROTECTIVE PLATE |
| BELL HOUSING | ||
| 110 | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 113 | N 914125006306 | SCREW |
| Repalced by: N 910106006006 | ||
| 113 | N 910106006006 | SCREW |
| Repalced by: N 000000002270 | ||
| 113 | N 000000002270 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 116 | A 3122511002 | BELL HOUSING |
| Repalced by: A 3142510002 | ||
| 116 | A 3142510002 | BELL HOUSING |
| Repalced by: A 3142501005 | ||
| 116 | A 3142501005 | HOUSING |
| Repalced by: A 3142510302 | ||
| 116 | A 3142510302 | BELL HOUSING |
| LOWER PART | ||
| 119 | N 000137006204 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 122 | N 914125006306 | SCREW |
| Repalced by: N 910106006006 | ||
| 122 | N 910106006006 | SCREW |
| Repalced by: N 000000002270 | ||
| 122 | N 000000002270 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 125 | A 3242510083 | PLUG |
| BELL HOUSING | ||
| 128 | N 000908016008 | SCREW PLUG |
| BELL HOUSING | ||
| 131 | N 007603016401 | SEAL RING |
| BELL HOUSING | ||
| 134 | A 0002958307 | SLAVE CYLINDER |
| CLUTCH | ||
| 134 | A 0002958307 | SLAVE CYLINDER |
| CLUTCH | ||
| 137 | A 0002950233 | ROD |
| 137 | A 0002950233 | ROD |
| 140 | A 0002952983 | BOOT |
| 140 | A 0002952983 | BOOT |
| A 0002950873 | LOCK | |
| Repalced by: A 0005863829 | ||
| 143 | A 0004202155 | BLEEDER VALVE |
| Repalced by: A 0004310265 | ||
| 143 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 143 | A 3075530107 | VALVE |
| 143 | A 3075530107 | VALVE |
| 146 | A 0004212687 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 146 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 146 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 146 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 146 | A 0004210887 | PROTECTIVE CAP |
| 146 | A 0004210887 | PROTECTIVE CAP |
| 149 | A 0005863829 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 149 | A 0005863829 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 152 | N 912004008102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 152 | N 912004008102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 155 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 155 | N 304017008034 | SCREW |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 155 | N 304017008034 | SCREW |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 158 | N 071805016402 | SECURING CLIP |
| CLUTCH SLAVE CYLINDER TO RELEASE YOKE | ||
| 158 | N 071805016402 | SECURING CLIP |
| CLUTCH SLAVE CYLINDER TO RELEASE YOKE | ||
| 161 | A 3059971982 | HOSE |
| RELEASE COLLAR LUBRICATION | ||
| 161 | A 3059971982 | HOSE |
| RELEASE COLLAR LUBRICATION | ||
| A 6209970288 | GREASE NIPPLE | |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| A 6209970288 | GREASE NIPPLE | |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 164 | N 003871004102 | UNION SCREW |
| RELEASE COLLAR LUBRICATION | ||
| 164 | N 003871004102 | UNION SCREW |
| RELEASE COLLAR LUBRICATION | ||
| 167 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE COLLAR LUBRICATION | ||
| 167 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE COLLAR LUBRICATION | ||
| 170 | N 071428004102 | SCREW-IN FITTING |
| RELEASE COLLAR LUBRICATION | ||
| 170 | N 071428004102 | SCREW-IN FITTING |
| RELEASE COLLAR LUBRICATION | ||
| 173 | N 003411002000 | GREASE CUP |
| RELEASE COLLAR LUBRICATION | ||
| 173 | N 003411002000 | GREASE CUP |
| RELEASE COLLAR LUBRICATION | ||
| 173 | N 003411002001 | GREASE CUP |
| RELEASE COLLAR LUBRICATION | ||
| 176 | A 3272510033 | COVER |
| Repalced by: A 3522510004 | ||
| 176 | A 3522510004 | END COVER |
| 176 | A 3522510004 | END COVER |
| 179 | A 3102500055 | COVER |
| Repalced by: A 3102500155 | ||
| 179 | A 3102500055 | COVER |
| Repalced by: A 3102500155 | ||
| 179 | A 3102500155 | COVER |
| LATERAL | ||
| 182 | N 912004008102 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 185 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 185 | N 304017008016 | SCREW |
| COVER TO BELL HOUSING | ||
| 188 | A 3522900029 | RELEASE YOKE |
| Repalced by: A 3522930311 | ||
| 188 | A 3522500113 | RELEASE LEVER |
| Repalced by: A 3522930311 | ||
| 188 | A 3522930311 | RELEASE YOKE |
| CLUTCH | ||
| 188 | A 3142540008 | RELEASE LEVER |
| CLUTCH | ||
| 191 | A 3179910515 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 191 | A 3029910015 | BALL PIVOT |
| RELEASE LEVER | ||
| 191 | A 3529910415 | BALL PIVOT |
| RELEASE LEVER | ||
| 194 | A 3522500115 | RELEASE BEARING |
| Repalced by: A 3402500215 | ||
| 194 | A 3402500215 | RELEASE BEARING |
| CLUTCH | ||
| 194 | A 3402500215 | RELEASE BEARING |
| CLUTCH | ||
| 197 | A 0002540020 | RELEASE BEARING |
| 197 | A 0002540020 | RELEASE BEARING |
| 197 | A 0002540120 | RELEASE BEARING |
| 197 | A 0002540120 | RELEASE BEARING |
| 200 | A 3129870110 | STRIP |
| Repalced by: A 3409830010 | ||
| 200 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| TO 352 250 01 15 | ||
| 200 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| TO 352 250 01 15 | ||
| 200 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| TO 340 250 02 15 | ||
| 200 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| TO 340 250 02 15 | ||
| 203 | A 3052540033 | COVER |
| TO 352 250 01 15 | ||
| 203 | A 3052540033 | COVER |
| TO 352 250 01 15 | ||
| 206 | A 0002501715 | RELEASE BEARING |
| Repalced by: A 0002504015 | ||
| 206 | A 0002501715 | RELEASE BEARING |
| 206 | A 0002503715 | RELEASE BEARING |
| Repalced by: A 0002504015 | ||
| 206 | A 0002504015 | RELEASE BEARING |
| CLUTCH | ||
| 206 | A 0002504015 | RELEASE BEARING |
| CLUTCH | ||
| 206 | A 0002503115 | RELEASE BEARING |
| CLUTCH | ||
| 206 | A 0002503115 | RELEASE BEARING |
| CLUTCH | ||
| 206 | A 0002504615 | RELEASE BEARING |
| Repalced by: A 0012509315 | ||
| 206 | A 0012509315 | RELEASE BEARING |
| CLUTCH | ||
| 206 | A 0002504215 | RELEASE BEARING |
| CLUTCH | ||
| 209 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 209 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 212 | A 3402540013 | SPRING LOCK |
| RELEASE YOKE TO RELEASE BEARING | ||
| 212 | A 3812540113 | SPRING LOCK |
| RELEASE YOKE TO RELEASE BEARING | ||
| 215 | A 3522900031 | BEARING |
| RELEASE YOKE TO BELL HOUSING | ||
| 215 | A 3522900131 | BEARING |
| RELEASE YOKE TO BELL HOUSING | ||
| 218 | A 3522930012 | BRACKET |
| RELEASE YOKE TO BELL HOUSING | ||
| 218 | A 3522930112 | BRACKET |
| RELEASE YOKE TO BELL HOUSING | ||
| 221 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 221 | N 304017008021 | SCREW |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| 221 | N 304017008021 | SCREW |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| 224 | N 912004008102 | LOCK WASHER |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| 224 | N 912004008102 | LOCK WASHER |
| RELEASE YOKE TO BELL HOUSING | ||
| 227 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 227 | N 000125008443 | WASHER |
| RELEASE YOKE TO BELL HOUSING | ||
| 227 | N 000125008443 | WASHER |
| RELEASE YOKE TO BELL HOUSING | ||
| 230 | A 3149930910 | SPRING |
| (RELEASE SPRING) | ||
| 230 | A 3149930910 | SPRING |
| (RELEASE SPRING) | ||
| 233 | A 3102500043 | BRACKET |
| Repalced by: A 3102540540 | ||
| 233 | A 3102500043 | BRACKET |
| Repalced by: A 3102540540 | ||
| 233 | A 3102540540 | BRACKET |
| OUTSIDE | ||
| 236 | A 3102540140 | BRACKET |
| Repalced by: A 3102540440 | ||
| 236 | A 3102540140 | BRACKET |
| Repalced by: A 3102540440 | ||
| 236 | A 3102540440 | BRACKET |
| INSIDE | ||
| 239 | A 3522540135 | BEARING |
| Repalced by: A 3802540035 | ||
| 239 | A 3522540135 | BEARING |
| Repalced by: A 3802540035 | ||
| 239 | A 3802540035 | BEARING |
| OUTSIDE | ||
| 239 | A 3802540135 | BEARING |
| OUTSIDE | ||
| 242 | A 3802540059 | SEAL RING |
| SOFT | ||
| 242 | A 3802540259 | SEAL RING |
| SOFT | ||
| 245 | A 3802540159 | SEAL RING |
| HARD | ||
| 245 | A 3802540359 | SEAL RING |
| HARD | ||
| 248 | A 3522540097 | BOOT |
| Repalced by: A 3142540197 | ||
| 248 | A 3142540197 | BOOT |
| RELEASE YOKE | ||
| 248 | A 3142540197 | BOOT |
| RELEASE YOKE | ||
| 251 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 251 | N 304017008021 | SCREW |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| 251 | N 304017008021 | SCREW |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| 251 | N 914126008016 | SCREW |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| 254 | N 912004008102 | LOCK WASHER |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| 254 | N 912004008102 | LOCK WASHER |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
