Transporto priemonė: LK 608 D; VIN numerio dalis: 310441

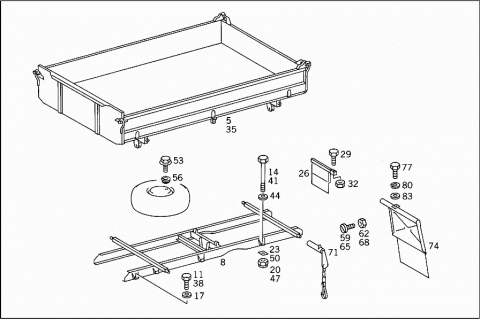

Grupė: 60 PLATFORM
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PLATFORM USED FOR DAUTEL THREE-SIDE DUMP TRUCK | ||
| 005 | A 3096000100 | PLATFORM |
| 3000X2000X350 MM | ||
| 008 | A 3096103301 | SUBSTRUCTURE |
| AUXILIARY FRAME | ||
| 011 | N 000933010094 | SCREW |
| AUXILIARY FRAME TO CHASSIS | ||
| 014 | N 000960012199 | SCREW |
| Repalced by: N 308676012018 | ||
| 014 | N 308676012018 | SCREW |
| AUXILIARY FRAME TO CHASSIS | ||
| 017 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 017 | N 000125010532 | WASHER |
| AUXILIARY FRAME TO CHASSIS | ||
| 020 | N 913002012002 | NUT |
| AUXILIARY FRAME TO CHASSIS | ||
| 023 | A 3148910111 | PLATE |
| AUXILIARY FRAME TO CHASSIS | ||
| 026 | A 3098800722 | SPLASH GUARD |
| LEFT | ||
| 026 | A 3098800822 | SPLASH GUARD |
| RIGHT | ||
| 029 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 029 | N 308676012026 | SCREW |
| MUD APRON TO SUBSTRUCTURE | ||
| 032 | N 000934012022 | NUT |
| MUD APRON TO SUBSTRUCTURE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PLATFORM USED FOR MEILLER THREE-SIDE DUMP TRUCK | ||
| 035 | A 3096000000 | PLATFORM |
| 3000X2000X350 MM | ||
| 035 | A 3096000200 | PLATFORM |
| 35000X2000X300 MM | ||
| A 3096103001 | SUBSTRUCTURE | |
| A 3096104601 | SUBSTRUCTURE | |
| 038 | N 000933010105 | SCREW |
| AUXILIARY FRAME TO CHASSIS | ||
| M 10X25 | ||
| 038 | N 000933010094 | SCREW |
| AUXILIARY FRAME TO CHASSIS | ||
| M 10X40 | ||
| 041 | N 000960012199 | SCREW |
| Repalced by: N 308676012018 | ||
| 041 | N 308676012018 | SCREW |
| AUXILIARY FRAME TO CHASSIS | ||
| M 12X65 | ||
| 041 | N 000960012264 | SCREW |
| Repalced by: N 308765012003 | ||
| 041 | N 308765012003 | SCREW |
| AUXILIARY FRAME TO CHASSIS | ||
| M 12X90 | ||
| 044 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 044 | N 007349013005 | WASHER |
| AUXILIARY FRAME TO CHASSIS | ||
| 047 | N 913002012008 | NUT |
| AUXILIARY FRAME TO CHASSIS | ||
| 050 | A 3148910111 | PLATE |
| AUXILIARY FRAME TO CHASSIS | ||
| 053 | N 900170014028 | SCREW |
| SPARE WHEEL TO AUXILIARY FRAME | ||
| 056 | N 074361014351 | LOCK WASHER |
| SPARE WHEEL TO AUXILIARY FRAME | ||
| 059 | N 000084005134 | SCREW |
| FUSE BOX MOUNTING | ||
| 062 | N 000935005002 | NUT |
| FUSE BOX MOUNTING | ||
| 065 | N 000084006198 | SCREW |
| FUSE BOX MOUNTING | ||
| 068 | N 000934006007 | NUT |
| FUSE BOX MOUNTING | ||
| 071 | A 0003150806 | COUPLING PIN |
| FROM DUMPER PLATFORM SUBSTRUCTURE LOCK TO FRAME | ||
| 074 | A 3098800422 | SPLASH GUARD |
| LEFT | ||
| 074 | A 3098800522 | SPLASH GUARD |
| RIGHT | ||
| 077 | N 308676012038 | SCREW |
| MUD APRON TO SUBSTRUCTURE | ||
| 080 | N 912004010102 | LOCK WASHER |
| MUD APRON TO SUBSTRUCTURE | ||
| 083 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 083 | N 007349013005 | WASHER |
| MUD APRON TO SUBSTRUCTURE | ||
