Transporto priemonė: LK 608 D; VIN numerio dalis: 310441

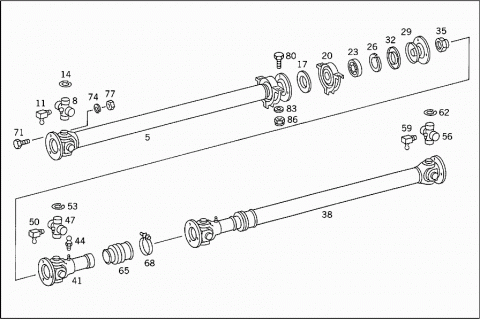

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
005	A 3104100201	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1138 MM
008	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
011	N 071412008302	GREASE NIPPLE
014	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
014	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
014	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
014	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
014	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
014	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
017	A 3104130061	PROTECTIVE CAP
020	A 3104100822	INTERMEDIATE BEARING
		INTERMEDIATE SHAFT BEARING
023	A 0019811025	BALL BEARING
023	A 0019815925	BALL BEARING
026	N 912009072200	SNAP RING
029	A 3104100230	CENTERING FLANGE
032	A 3104130061	PROTECTIVE CAP
035	A 3104110072	NUT
035	A 3104110172	NUT
038	A 3124108602	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1685 MM
038	A 3124108602	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1685 MM
038	A 3144100502	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1901 MM
038	A 3144100502	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1901 MM
038	A 3214103402	PROPELLER SHAFT
		FROM INTERMED.SHAFT BEARING TO REAR AXLE
		1312 MM
038	A 3214103402	PROPELLER SHAFT
		FROM INTERMED.SHAFT BEARING TO REAR AXLE
		1312 MM
041	A 3234100108	UNIVERSAL JOINT YOKE
044	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
044	N 071412008102	GREASE NIPPLE
047	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
050	N 071412008302	GREASE NIPPLE
053	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
053	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
053	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
053	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
053	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
053	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
056	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
059	N 071412008302	GREASE NIPPLE
062	A 3129941135	SNAP RING
		AS REQUIRED
		2.5 MM
062	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
062	A 3129941335	SNAP RING
		AS REQUIRED
		2.6 MM
062	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
062	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
062	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
065	A 3144100080	BOOT
068	N 900269078100	CLAMP
068	N 900269070101	CLAMP
071	A 3219901501	SCREW
	Repalced by: A 3539900001
071	A 3539900001	SCREW
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
071	A 3539900001	SCREW
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
074	N 912004010102	LOCK WASHER
		PROPELLER SHAFT
077	N 000934010010	NUT
		PROPELLER SHAFT
080	N 000933010105	SCREW
		INTERMEDIATE BEARING TO FRAME
083	N 000125010518	WASHER
	Repalced by: N 000125010532
083	N 000125010532	WASHER
		INTERMEDIATE BEARING TO FRAME
086	N 913002010001	NUT
		INTERMEDIATE BEARING TO FRAME
