Transporto priemonė: LO 608 D,LO 708 D/E; VIN numerio dalis: 308304
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE, SEE UNIT LIST | ||

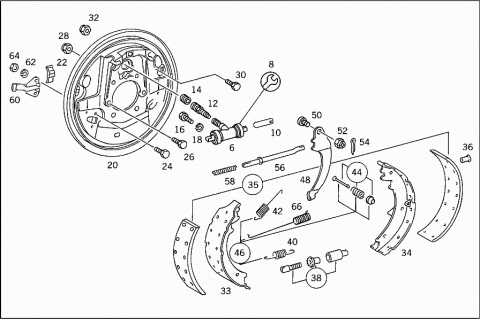

| 006 | H 983084200018 | WHEEL BRAKE CYLINDER |
| Repalced by: A 3084207018 | ||
| 006 | A 3084207018 | WHEEL BRAKE CYLINDER |
| Repalced by: A 3084207118 | ||
| 006 | A 3084207118 | WHEEL BRAKE CYLINDER |
| MAKE VARGA | ||
| A 0014313493 | SPRING | |
| TO 005 420 78 18 | ||
| H 983084200093 | CABLE PULLEY | |
| TO 98 308 420 00 18,308 420 70 18,7118 | ||
| H 983084210086 | CUP | |
| TO 98 308 420 00 18,308 420 70 18,7118 | ||
| H 983089940041 | LOCK | |
| TO 98 308 420 00 18,308 420 70 18,7118 | ||
| A 3084237083 | PISTON | |
| TO 98 308 420 00 18,308 420 70 18,7118 | ||
| H 983084230087 | PROTECTIVE CAP | |
| TO 98 308 420 00 18,308 420 70 18,7118 | ||
| A 0004210087 | PROTECTIVE CAP | |
| TO 005 420 78 18 | ||
| 008 | H 983085860142 | REPAIR KIT |
| TO 98 308 420 00 18,308 420 70 18,7118 | ||
| 010 | H 983084230088 | THRUST PIN |
| TO 98 308 420 00 18,308 420 70 18,7118 | ||
| 012 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 012 | A 3454317165 | VALVE |
| 014 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 014 | A 3454317287 | PROTECTIVE CAP |
| TO 308 420 70 18, 7118 | ||
| 016 | N 000933006221 | SCREW |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| M 6X18 | ||
| 018 | N 000127006203 | LOCK WASHER |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 020 | A 3094201217 | BRAKE ANCHOR PLATE |
| Repalced by: A 3094201617 | ||
| 020 | A 3094201617 | BRAKE ANCHOR PLATE |
| LEFT | ||
| 020 | A 3094201317 | BRAKE ANCHOR PLATE |
| Repalced by: A 3094201717 | ||
| 020 | A 3094201717 | BRAKE ANCHOR PLATE |
| RIGHT | ||
| 022 | A 3094210211 | PLUG |
| READJUSTMENT INSPECTION HOLE | ||
| 024 | N 000933008228 | SCREW |
| 026 | A 3099900401 | SCREW |
| Repalced by: A 3109900101 | ||
| 026 | A 3109900101 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 028 | N 913004010011 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 030 | N 000961014105 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 032 | N 913004014005 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 033 | A 3094203920 | BRAKE SHOE |
| Repalced by: A 3084200020 | ||
| 033 | A 3084200020 | BRAKE SHOE |
| PRIMARY SHOE | ||
| 034 | A 3094204220 | BRAKE SHOE |
| Repalced by: A 3084200320 | ||
| 034 | A 3084200320 | BRAKE SHOE |
| SECONDARY SHOE | ||
| A 3094211210 | BRAKE LINING | |
| Repalced by: A 3084210010 | ||
| A 3084210010 | BRAKE LINING | |
| STANDARD | ||
| 10.0 MM,JURID DO BRASIL | ||
| A 3094211310 | BRAKE LINING | |
| A 3084210110 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 10.5 MM,JURID DO BRASIL | ||
| A 3094211410 | BRAKE LINING | |
| A 3084210210 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 11.0 MM,JURID DO BRASIL | ||
| A 3094210910 | BRAKE LINING | |
| Repalced by: A 3084210310 | ||
| A 3084210310 | BRAKE LINING | |
| STANDARD | ||
| 10.0 MM,JURID DO BRASIL | ||
| A 3094211010 | BRAKE LINING | |
| Repalced by: A 3084210410 | ||
| A 3084210410 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 10.5 MM,JURID DO BRASIL | ||
| A 3094211110 | BRAKE LINING | |
| Repalced by: A 3084210510 | ||
| A 3084210510 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 11.0 MM,JURID DO BRASIL | ||
| 035 | A 3085867042 | REPAIR KIT |
| Repalced by: A 3084211910 | ||
| 035 | A 3084211910 | BRAKE LINING |
| BRAKE LINING;STANDARD | ||
| 10.0 MM | ||
| 035 | A 3085867142 | REPAIR KIT |
| Repalced by: A 3084212010 | ||
| 035 | A 3084212010 | BRAKE LINING |
| BRAKE LINING;REPAIR SIZE I | ||
| 10.5 MM | ||
| 035 | A 3085867242 | REPAIR KIT |
| Repalced by: A 3084212110 | ||
| 035 | A 3084212110 | BRAKE LINING |
| BRAKE LINING;REPAIR SIZE II | ||
| 11.0 MM | ||
| 036 | A 3089907095 | RIVET |
| Repalced by: N 007338006308 | ||
| 036 | A 3089907095 | RIVET |
| 6 X 12 | ||
| 038 | A 3094210037 | ADJUSTING SLEEVE |
| Repalced by: A 3095860242 | ||
| 038 | A 3094210237 | ADJUSTING SLEEVE |
| Repalced by: A 3095860242 | ||
| 038 | A 3094210019 | PIN |
| Repalced by: A 3095860242 | ||
| 038 | A 3094210419 | PIN |
| Repalced by: A 3095860242 | ||
| 038 | A 3094210033 | DETENT |
| Repalced by: A 3095860242 | ||
| 038 | A 3095860242 | REPAIR KIT |
| Repalced by: A 3094200238 | ||
| 038 | A 3094200238 | REPAIR KIT |
| 040 | A 3094210492 | SPRING |
| Repalced by: A 3094210592 | ||
| 040 | A 3094210592 | SPRING |
| READJUSTMENT OF REAR WHEEL BRAKE | ||
| 042 | A 3099930910 | SPRING |
| SECONDARY SHOE | ||
| A 3094210188 | THRUST PIN | |
| A 3099930201 | SPRING | |
| A 3094230089 | SPRING RETAINER | |
| 044 | A 3095860442 | REPAIR KIT |
| Repalced by: A 3094200082 | ||
| 044 | A 3094200082 | REPAIR KIT |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 046 | A 3094210992 | SPRING |
| BRAKE SHOE SPRINGS | ||
| 048 | A 3094271025 | LEVER |
| LEFT | ||
| 048 | A 3094271125 | LEVER |
| RIGHT | ||
| 050 | A 3094210071 | SCREW |
| Repalced by: A 3094270574 | ||
| 050 | A 3094270574 | PIN |
| LEVER TO BRAKE SHOE | ||
| 052 | N 000979010001 | NUT |
| 054 | N 000094002008 | COTTER PIN |
| 056 | A 3094210114 | ROD |
| Repalced by: A 3094210214 | ||
| 056 | A 3094210214 | ROD |
| HAND BRAKE LEVER | ||
| 058 | A 3094210190 | SPRING |
| HAND BRAKE LEVER | ||
| 060 | A 3094270344 | GUIDE |
| 062 | N 912004008100 | LOCK WASHER |
| BRAKE CABLE GUIDE TO BRAKE ANCHOR PLATE | ||
| 064 | N 000934008000 | NUT |
| BRAKE CABLE GUIDE TO BRAKE ANCHOR PLATE | ||
| 066 | A 3094210392 | SPRING |
| Repalced by: A 3094210792 | ||
| 066 | A 3094210792 | SPRING |
| BRAKE CABLE GUIDE TO BRAKE ANCHOR PLATE | ||

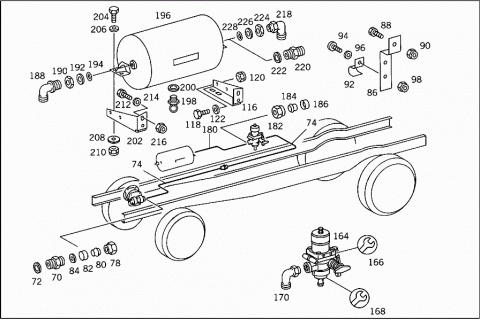

| 070 | N 003901018006 | SCREW-IN FITTING |
| AT AIR COMPRESSOR | ||
| 070 | N 003901018006 | SCREW-IN FITTING |
| AIR COMPRESSOR | ||
| 070 | A 3454298336 | CONNECTOR |
| AT AIR COMPRESSOR | ||
| 072 | N 007603022102 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 074 | A 3104201926 | LINE |
| FROM AIR COMPRESSOR TO DOUBLE FITTING | ||
| 18X1.5 MM | ||
| 074 | H 983084200126 | LINE |
| FROM DOUBLE FITTING TO TIRE INFLATOR CYLINDER | ||
| 18X1.5 MM | ||
| 074 | A 3084207226 | LINE |
| FROM AIR COMPRESSOR TO TIRE INFLATOR CYLINDER | ||
| 18X1.5 MM | ||
| 074 | A 3084207426 | LINE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 18X1.5 MM | ||
| 074 | A 3084209826 | LINE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 078 | N 915017015100 | UNION NUT |
| 078 | N 915017018100 | UNION NUT |
| 080 | N 003861015004 | GLAND |
| 080 | N 003861018003 | GLAND |
| 082 | N 915065018101 | THRUST RING |
| COMPRESSED AIR LINE TO AIR COMPRESSOR AND TO PRESSURE REGULATOR | ||
| 084 | N 915045015100 | SEAL RING |
| COMPRESSED AIR LINE TO AIR COMPRESSOR AND TO PRESSURE REGULATOR | ||
| 084 | N 915045014100 | SEAL RING |
| AIR COMPRESSOR | ||
| A 0004291584 | SEAL RING | |
| Repalced by: N 915045015100 | ||
| 084 | N 915045015100 | SEAL RING |
| AIR COMPRESSOR | ||
| 086 | A 3454290040 | BRACKET |
| COMPRESSED AIR LINE TO FRAME | ||
| 088 | N 000933008282 | SCREW |
| BRACKET TO FRAME | ||
| 090 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 092 | A 3049950120 | CLAMP |
| Repalced by: A 3049950220 | ||
| 092 | A 3049950220 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 094 | N 007985006515 | SCREW |
| CLAMP TO BRACKET | ||
| 096 | N 000125006420 | WASHER |
| CLAMP TO BRACKET | ||
| 098 | N 913004006001 | NUT |
| CLAMP TO BRACKET | ||
| 100 | A 3454297838 | ELBOW FITTING |
| TIRE INFLATOR CYLINDER | ||
| 102 | N 915065018101 | THRUST RING |
| LINE TO FITTING AND TO ELBOW FITTING | ||
| 104 | N 915045014100 | SEAL RING |
| LINE TO FITTING AND TO ELBOW FITTING | ||
| 106 | N 074305022202 | NUT |
| ELBOW FITTING TO TIRE INFLATOR CYLINDER | ||
| 108 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 108 | A 0009940203 | THRUST RING |
| ELBOW FITTING TO TIRE INFLATOR CYLINDER | ||
| 110 | A 0009870446 | O-RING |
| ELBOW FITTING TO TIRE INFLATOR CYLINDER | ||
| 112 | A 3445910019 | TIRE INFLATOR CYLINDER |
| 114 | A 0005910097 | REPAIR KIT |
| 116 | H 983084920116 | SUPPORT |
| Repalced by: A 3084320116 | ||
| 116 | A 3084320116 | SUPPORT |
| REAR AIR RESERVOIR | ||
| 118 | N 000931008370 | SCREW |
| PRESSURE REGULATOR TO BRACKET | ||
| 120 | N 913004008001 | NUT |
| PRESSURE REGULATOR TO BRACKET | ||
| 122 | N 000125008417 | WASHER |
| PRESSURE REGULATOR TO BRACKET | ||
| 124 | N 074313016401 | FITTING |
| PRESSURE REGULATOR TO TIRE INFLATOR CYLINDER | ||
| 124 | A 0019972372 | FITTING |
| PRESSURE REGULATOR TO TIRE INFLATOR CYLINDER | ||
| 126 | N 074305022202 | NUT |
| PRESSURE REGULATOR TO TIRE INFLATOR CYLINDER | ||
| 128 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 128 | A 0009940203 | THRUST RING |
| PRESSURE REGULATOR TO TIRE INFLATOR CYLINDER | ||
| 130 | A 0009870446 | O-RING |
| PRESSURE REGULATOR TO TIRE INFLATOR CYLINDER | ||
| 132 | N 007603022103 | SEAL RING |
| PRESSURE REGULATOR TO TIRE INFLATOR CYLINDER | ||
| 134 | A 0004312706 | PRESSURE REGULATOR |
| 136 | A 0004310212 | COMPENSATOR |
| 138 | A 0004310856 | SCREW PLUG |
| 140 | N 000934008000 | NUT |
| 142 | N 000933008288 | SCREW |
| 144 | A 0004310070 | STUD |
| 146 | N 000934005008 | NUT |
| 148 | A 0004310956 | SCREW PLUG |
| 150 | A 0004312493 | SPRING |
| 152 | A 0004312383 | PISTON |
| 154 | A 0004311476 | WASHER |
| 156 | A 0004311056 | SCREW PLUG |
| 158 | A 0004310073 | BREATHER PIPE |
| 160 | N 000063010122 | SCREW |
| 162 | H 983455860743 | REPAIR KIT |
| 164 | A 0014314106 | PRESSURE REGULATOR |
| Repalced by: A 0014312206 | ||
| 164 | A 3454317206 | PRESSURE REGULATOR |
| Repalced by: A 0014312206 | ||
| 164 | A 0014312206 | PRESSURE REGULATOR |
| WITH TIRE INFLATING CONNECTION | ||
| "FA WABCO" | ||
| 164 | A 0014319906 | PRESSURE REGULATOR |
| WITH TIRE INFLATING CONNECTION | ||
| 164 | A 0014319806 | PRESSURE REGULATOR |
| WITH TIRE INFLATING CONNECTION | ||
| 164 | A 0014310006 | PRESSURE REGULATOR |
| WITH TIRE INFLATING CONNECTION | ||
| 166 | A 3455868243 | REPAIR KIT |
| Repalced by: A 0015864343 | ||
| 166 | A 0015864343 | REPAIR KIT |
| TO 001 431 22 06,001 431 00 06 | ||
| 166 | A 0025866743 | REPAIR KIT |
| Repalced by: A 0004201371 | ||
| 166 | A 0004201371 | REPAIR KIT |
| TO 001 431 99 06,001 431 98 06 | ||
| 168 | A 0015868543 | REPAIR KIT |
| TO 001 431 41 06 | ||
| 170 | A 3454297838 | ELBOW FITTING |
| PRESSURE REGULATOR | ||
| 172 | N 074315000200 | FITTING |
| Repalced by: N 003911015101 | ||
| 172 | A 0009905871 | ELBOW FITTING |
| Repalced by: A 3764297338 | ||
| 172 | N 003911015101 | FITTING |
| PRESSURE REGULATOR | ||
| 172 | A 3764297338 | ELBOW FITTING |
| PRESSURE REGULATOR | ||
| 174 | N 074305022202 | NUT |
| ELBOW FITTING TO PRESSURE REGULATOR | ||
| 176 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 176 | A 0009940203 | THRUST RING |
| ELBOW FITTING TO PRESSURE REGULATOR | ||
| 178 | A 0009870446 | O-RING |
| ELBOW FITTING TO PRESSURE REGULATOR | ||
| 180 | H 983084200326 | LINE |
| Repalced by: A 3084200126 | ||
| 180 | A 3084200126 | LINE |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| 15X1.5 MM | ||
| 180 | A 3084207326 | LINE |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| 15X1.5 MM | ||
| 182 | N 915018015000 | UNION NUT |
| 184 | N 003861015004 | GLAND |
| 186 | N 915065015101 | THRUST RING |
| LINE TO PRESSURE REGULATOR & AIR RESERVOIR | ||
| 188 | N 074315000200 | FITTING |
| Repalced by: N 003911015101 | ||
| 188 | A 0009905871 | ELBOW FITTING |
| Repalced by: A 3764297338 | ||
| 188 | N 003911015101 | FITTING |
| FRONT AIR RESERVOIR | ||
| 188 | A 3764297338 | ELBOW FITTING |
| FRONT AIR RESERVOIR | ||
| 188 | A 3089907071 | ELBOW FITTING |
| FRONT AIR RESERVOIR | ||
| 190 | N 074305022202 | NUT |
| ELBOW FITTING TO AIR RESERVOIR | ||
| 192 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 192 | A 0009940203 | THRUST RING |
| ELBOW FITTING TO AIR RESERVOIR | ||
| 194 | A 0009870446 | O-RING |
| ELBOW FITTING TO AIR RESERVOIR | ||
| 196 | A 3224302205 | RESERVOIR |
| Repalced by: A 3084307005 | ||
| 196 | A 3084307005 | RESERVOIR |
| COMPRESSED AIR | ||
| 198 | A 0004320607 | VALVE |
| Repalced by: A 0004320807 | ||
| 198 | A 3454300281 | VALVE |
| Repalced by: A 0004320807 | ||
| 198 | A 3454300081 | VALVE |
| Repalced by: A 0004320807 | ||
| 198 | A 0004320807 | VALVE |
| DRAIN | ||
| 198 | A 3644327107 | VALVE |
| DRAIN | ||
| 198 | A 3454300181 | VALVE |
| Repalced by: A 3454300281 | ||
| 200 | N 007603022102 | SEAL RING |
| DRAIN VALVE | ||
| 202 | H 983084920016 | SUPPORT |
| Repalced by: A 3084320016 | ||
| 202 | A 3084320016 | SUPPORT |
| FRONT AIR RESERVOIR | ||
| 204 | N 000933008282 | SCREW |
| AIR RESERVOIR TO SUPPORT | ||
| 206 | N 000125008417 | WASHER |
| AIR RESERVOIR TO SUPPORT | ||
| 208 | N 009021008102 | WASHER |
| AIR RESERVOIR TO SUPPORT | ||
| 210 | N 913004008001 | NUT |
| AIR RESERVOIR TO SUPPORT | ||
| 212 | N 000933010174 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 214 | N 000125010517 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 216 | N 913004010011 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 218 | H 983089900171 | ELBOW FITTING |
| Repalced by: A 3089907071 | ||
| 218 | A 3089907071 | ELBOW FITTING |
| REAR AIR RESERVOIR | ||
| 220 | A 0019972372 | FITTING |
| REAR AIR RESERVOIR | ||
| 220 | N 074313016401 | FITTING |
| REAR AIR RESERVOIR | ||
| 222 | N 007603022102 | SEAL RING |
| REAR AIR RESERVOIR | ||
| 224 | N 074305022202 | NUT |
| ELBOW FITTING TO AIR RESERVOIR | ||
| 226 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 226 | A 0009940203 | THRUST RING |
| ELBOW FITTING TO AIR RESERVOIR | ||
| 228 | A 0009870446 | O-RING |
| ELBOW FITTING TO AIR RESERVOIR | ||
| 230 | A 3084207126 | LINE |
| FROM T-FITTING TO AIR RESERVOIR | ||
| 12X1.5 MM | ||
| 230 | A 3084207526 | LINE |
| FROM FITTING TO AIR RESERVOIR | ||
| 12X1.5 MM | ||
| 230 | A 3084209926 | LINE |
| FROM FITTING TO AIR RESERVOIR | ||
| 232 | N 915017012100 | UNION NUT |
| 232 | N 915017012100 | UNION NUT |
| 234 | N 003861012007 | GLAND |
| 234 | N 003861012007 | GLAND |
| 236 | A 3524281740 | BRACKET |
| LINE TO CROSS MEMBER | ||
| 238 | A 3609950401 | CLAMP |
| LINE TO CROSS MEMBER | ||
| 238 | A 3609950401 | CLAMP |
| LINE TO CROSS MEMBER | ||
| 240 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 240 | N 916016008200 | CLAMP |
| LINE TO SIDE MEMBER | ||
| 242 | N 007516006121 | TAPPING SCREW |
| LINE TO CROSS MEMBER | ||
| 244 | N 000933008282 | SCREW |
| LINE TO CROSS MEMBER | ||
| 246 | N 913004008001 | NUT |
| LINE TO CROSS MEMBER | ||
| 248 | N 007985006515 | SCREW |
| LINE TO CROSS MEMBER | ||
| 250 | N 913004006001 | NUT |
| LINE TO CROSS MEMBER | ||
| 252 | A 3609950401 | CLAMP |
| LINE TO SUBSTRUCTURE | ||
| 254 | N 000084006137 | SCREW |
| LINE TO SUBSTRUCTURE | ||
| 256 | N 000125006420 | WASHER |
| LINE TO SUBSTRUCTURE | ||
| 258 | N 000127006203 | LOCK WASHER |
| LINE TO SUBSTRUCTURE | ||
| 260 | N 000934006006 | NUT |
| LINE TO SUBSTRUCTURE | ||
| 260 | N 913004006001 | NUT |
| LINE TO SUBSTRUCTURE | ||
| 262 | A 0004311975 | THREADED UNION |
| 264 | N 003902012001 | CONNECTION FITTING |
| 266 | A 3104201226 | LINE |
| FROM T-FITTING TO BULKHEAD FITTING | ||
| 12X1.5 MM | ||
| 268 | N 915017012100 | UNION NUT |
| 270 | N 003861012007 | GLAND |
| 272 | N 003910012001 | BULKHEAD FITTING |
| 274 | N 080705018002 | NUT |
| 276 | N 000125019009 | WASHER |
| 278 | A 3104201326 | LINE |
| FROM FITTING TO BRAKE BOOSTER | ||
| 12X1.5 MM | ||
| 278 | A 3084207626 | LINE |
| FROM FITTING TO BRAKE BOOSTER | ||
| 12X1.5 MM | ||
| 280 | N 915017012100 | UNION NUT |
| 282 | N 003861012007 | GLAND |
| 284 | A 3094760236 | BRACKET |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| TO 308 420 76 26 | ||
| 286 | A 3049951520 | CLAMP |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| TO 308 420 76 26 | ||
| Repalced by: A 1009950420 | ||
| 286 | A 1009950420 | CLAMP |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| TO 308 420 76 26 | ||
| 288 | N 000933010129 | SCREW |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| TO 308 420 76 26 | ||
| 290 | N 913004010004 | NUT |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| TO 308 420 76 26 | ||
| 292 | N 000933006220 | SCREW |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| TO 308 420 76 26 | ||
| 294 | N 913004006001 | NUT |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| TO 308 420 76 26 | ||
| 296 | H 983089900071 | ELBOW FITTING |
| Repalced by: A 3089907171 | ||
| 296 | A 3089907171 | ELBOW FITTING |
| AT BRAKE BOOSTER | ||
| 298 | A 0004290727 | THRUST RING |
| Repalced by: A 3084297027 | ||
| 298 | A 3084297027 | THRUST RING |
| AT BRAKE BOOSTER | ||
| 300 | N 000936016003 | NUT |
| AT BRAKE BOOSTER | ||
| 302 | A 0029971640 | SEAL RING |
| AT BRAKE BOOSTER | ||
| 304 | A 3454297438 | ELBOW FITTING |
| AT BRAKE BOOSTER | ||
| 306 | N 000936012007 | NUT |
| AT BRAKE BOOSTER | ||
| 308 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 308 | A 0009940103 | THRUST RING |
| AT BRAKE BOOSTER | ||
| 310 | A 0019875046 | SEALING CORD |
| AT BRAKE BOOSTER | ||
| 312 | A 3105400061 | ELECTRIC CABLE |
| PRESSURE GAUGE LINE | ||
| 6X0.7 MM | ||
| 314 | N 915017006100 | UNION NUT |
| 316 | N 003861006007 | GLAND |
| 318 | A 3085407261 | ELECTRIC CABLE |
| PRESSURE GAUGE LINE,SUPPLY TANK PRESSURE | ||
| 318 | A 3085407361 | ELECTRIC CABLE |
| PRESSURE GAUGE LINE,SUPPLY TANK PRESSURE | ||
| 320 | A 3089970172 | FITTING |
| 322 | A 0089976082 | HOSE |
| 324 | N 915017006200 | UNION NUT |
| 326 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 326 | N 915062004000 | SLEEVE |
| 326 | A 0009920105 | BUSHING |
| 328 | N 915017006100 | UNION NUT |
| 330 | N 003861006007 | GLAND |
| 332 | A 3105400161 | ELECTRIC CABLE |
| PRESSURE GAUGE LINE | ||
| 6X0.7 MM | ||
| 334 | N 003870006104 | UNION NUT |
| LINE TO BRAKE BOOSTER | ||
| 336 | N 003861006007 | GLAND |
| LINE TO BRAKE BOOSTER | ||
| 338 | N 915017006100 | UNION NUT |
| LINE TO HOSE | ||
| 340 | N 003861006007 | GLAND |
| LINE TO HOSE | ||
| 342 | A 3085407161 | ELECTRIC CABLE |
| PRESSURE GAUGE LINE,BRAKE PRESSURE | ||
| 342 | A 3085407261 | ELECTRIC CABLE |
| PRESSURE GAUGE LINE,BRAKE PRESSURE | ||
| 344 | A 3089970172 | FITTING |
| 346 | A 0089976082 | HOSE |
| 348 | N 915017006200 | UNION NUT |
| 350 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 350 | N 915062004000 | SLEEVE |
| 350 | A 0009920105 | BUSHING |
| 352 | N 915017006100 | UNION NUT |
| 354 | N 003861006007 | GLAND |
| 356 | A 3085400161 | ELECTRIC CABLE |
| PRESSURE GAUGE LINE | ||
| 358 | A 3129950332 | CLAMP |
| Repalced by: A 3604300143 | ||
| 358 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 358 | N 916016008200 | CLAMP |
| BRAKE-LINE/PRESSURE-GAUGE-LINE MOUNTING | ||
| 360 | N 000084005177 | SCREW |
| BRAKE-LINE/PRESSURE-GAUGE-LINE MOUNTING | ||
| 362 | N 913002005000 | NUT |
| BRAKE-LINE/PRESSURE-GAUGE-LINE MOUNTING | ||
| 364 | A 3215422340 | BRACKET |
| BRAKE-LINE/PRESSURE-GAUGE-LINE MOUNTING | ||
| 366 | N 003901006005 | SCREW-IN FITTING |
| BRAKE-LINE/PRESSURE-GAUGE-LINE MOUNTING | ||
| 368 | N 007603012112 | SEAL RING |
| BRAKE-LINE/PRESSURE-GAUGE-LINE MOUNTING | ||
| 370 | A 0004314314 | BRAKE BOOSTER |
| COMPRESSED AIR | ||
| 372 | N 007603016102 | SEAL RING |
| 372 | N 007603016105 | SEAL RING |

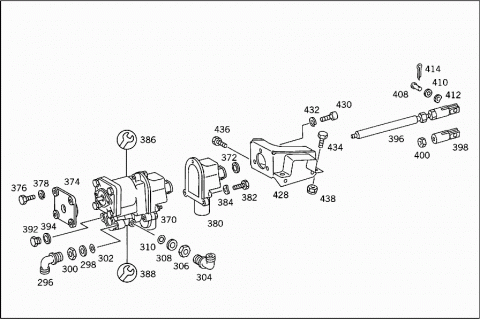

| 374 | H 983084310022 | COVER |
| 376 | N 000933008273 | SCREW |
| 378 | N 000127008200 | LOCK WASHER |
| 380 | H 983084310122 | COVER |
| 382 | N 000931008045 | SCREW |
| 384 | A 0084310389 | SPRING RETAINER |
| 386 | H 983085860043 | REPAIR KIT |
| 388 | H 983085860143 | REPAIR KIT |
| 390 | A 3094260096 | CUP |
| 392 | N 007604016102 | SCREW PLUG |
| AIR BRAKE BOOSTER | ||
| "A" | ||
| 394 | N 007603016105 | SEAL RING |
| AIR BRAKE BOOSTER | ||
| "A" | ||
| 396 | A 3104200674 | ROD |
| 398 | A 3109960001 | YOKE |
| L.H. THREAD | ||
| 400 | N 000934012031 | NUT |
| L.H. THREAD | ||
| 402 | A 3094202474 | ROD |
| Repalced by: A 3094202774 | ||
| 402 | A 3094202774 | ROD |
| 404 | N 000934010035 | NUT |
| TO 309 420 24 74,309 420 27 74 | ||
| 406 | A 3099960301 | YOKE |
| L.H. THREAD | ||
| TO 309 420 27 74 | ||
| 408 | N 001434012016 | PIN |
| 408 | N 001434012000 | PIN |
| PUSH ROD TO BRAKE PEDAL | ||
| 408 | N 001434008095 | PIN |
| PUSH ROD TO BRAKE PEDAL | ||
| 410 | N 000125013012 | WASHER |
| 412 | N 900055012001 | SPRING WASHER |
| PUSH ROD TO BRAKE PEDAL | ||
| 412 | N 900055008001 | SPRING WASHER |
| PUSH ROD TO BRAKE PEDAL | ||
| 414 | N 000094004050 | COTTER PIN |
| PUSH ROD TO BRAKE PEDAL | ||
| 414 | N 000094002059 | COTTER PIN |
| PUSH ROD TO BRAKE PEDAL | ||

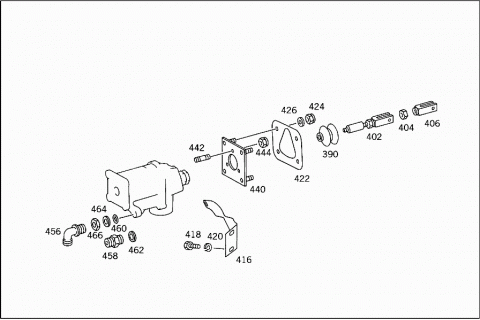

| 416 | A 3094311740 | BRACKET |
| BRAKE BOOSTER BRACING | ||
| 418 | N 000933008268 | SCREW |
| BRAKE BOOSTER BRACING | ||
| 420 | N 912004008100 | LOCK WASHER |
| BRAKE BOOSTER BRACING | ||
| 422 | A 3094350080 | GASKET |
| BRAKE BOOSTER TO FRONT PANEL | ||
| 424 | N 913004008001 | NUT |
| BRAKE BOOSTER TO FRONT PANEL | ||
| 426 | N 000125008417 | WASHER |
| BRAKE BOOSTER TO FRONT PANEL | ||
| 428 | H 983084300011 | CONSOLE |
| 430 | N 000912010007 | SCREW |
| BRAKE BOOSTER TO CONSOLE | ||
| 432 | N 007980010003 | LOCK WASHER |
| BRAKE BOOSTER TO CONSOLE | ||
| 434 | N 000933010174 | SCREW |
| CONSOLE TO FRAME | ||
| 436 | N 000933010129 | SCREW |
| CONSOLE TO FRAME | ||
| 438 | N 913004010004 | NUT |
| CONSOLE TO FRAME | ||
| 440 | A 3094300063 | REINFORCEMENT |
| BRAKE BOOSTER | ||
| 442 | N 000835010062 | STUD |
| BRAKE BOOSTER | ||
| 444 | N 913004010004 | NUT |
| BRAKE BOOSTER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRAKES | ||
| 446 | H 983084300001 | BRAKE MASTER CYLINDER |
| 448 | H 983084310085 | FILLER RING |
| 450 | H 983084310185 | FILLER RING |
| 452 | H 983084310094 | LOCK |
| 454 | H 983085860042 | REPAIR KIT |
| 454 | A 3085869742 | REPAIR KIT |
| 456 | A 3089907171 | ELBOW FITTING |
| BRAKE BOOSTER,"A" CONNECTION | ||
| 458 | N 003901012005 | SCREW-IN FITTING |
| BRAKE BOOSTER,"A" CONNECTION | ||
| 460 | A 0029971640 | SEAL RING |
| BRAKE BOOSTER,"A" CONNECTION | ||
| 462 | N 007603016105 | SEAL RING |
| BRAKE BOOSTER,"A" CONNECTION | ||
| 464 | A 3084297027 | THRUST RING |
| BRAKE BOOSTER,"A" CONNECTION | ||
| 466 | N 080705016003 | NUT |
| BRAKE BOOSTER,"A" CONNECTION | ||
| 468 | A 0009952101 | CLAMP |
| Repalced by: N 916016020201 | ||
| 468 | N 916016020201 | CLAMP |
| BRAKE LINE TO CAB SIDE MEMBER | ||
| 468 | A 3459957901 | CLAMP |
| BRAKE LINE TO CAB SIDE MEMBER | ||
| 470 | A 3459977390 | LOOM TIE |
| BRAKE LINE TO CAB SIDE MEMBER | ||
| 195 MM | ||
| 470 | A 0019978290 | LOOM TIE |
| BRAKE LINE TO CAB SIDE MEMBER | ||

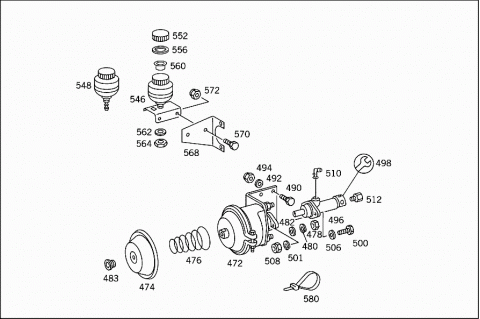

| 472 | A 3084317014 | BRAKE CYLINDER |
| WITH BRACKET | ||
| KNORR | ||
| A 0004317214 | BRAKE CYLINDER | |
| "WESTINGHOUSE" | ||
| A 0004311728 | DIAPHRAGM | |
| TO 000 431 72 14 | ||
| 474 | A 0004312628 | DIAPHRAGM |
| 1 TO 308 431 70 14 | ||
| A 0004210011 | PLUG | |
| TO 000 431 72 14 | ||
| 476 | A 0004234693 | SPRING |
| 1 TO 308 431 70 14 | ||
| 478 | N 000934016003 | NUT |
| 1 TO 308 431 70 14 | ||
| 480 | N 000127016201 | LOCK WASHER |
| 1 TO 308 431 70 14 | ||
| 482 | N 000125017009 | WASHER |
| 1 TO 308 431 70 14 | ||
| A 0004302568 | REPAIR KIT | |
| PARTS KIT | ||
| TO 000 431 72 14 | ||
| 483 | A 0004280032 | SCREW PLUG |
| DIAPHRAGM CYLINDER | ||
| 484 | A 3084317240 | BRACKET |
| DIAPHRAGM CYLINDER | ||
| 486 | N 000933010200 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 488 | N 913004010006 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 490 | N 000933010174 | SCREW |
| DIAPHRAGM CYLINDER TO BRAKE ANCHOR | ||
| 492 | N 000125010504 | WASHER |
| DIAPHRAGM CYLINDER TO BRAKE ANCHOR | ||
| 494 | N 913002010000 | NUT |
| DIAPHRAGM CYLINDER TO BRAKE ANCHOR | ||
| A 0024305001 | BRAKE MASTER CYLINDER | |
| 496 | A 3084307201 | BRAKE MASTER CYLINDER |
| A 0014317593 | SPRING | |
| TO 308 430 72 01 | ||
| A 0004316613 | VALVE | |
| TO 308 430 72 01 | ||
| A 0004319183 | PISTON | |
| TO 308 430 72 01 | ||
| A 0004312280 | GASKET | |
| TO 308 430 72 01 | ||
| A 0004310630 | BANJO UNION | |
| Repalced by: A 0019977868 | ||
| A 0019977868 | CONNECTOR | |
| TO 308 430 72 01 | ||
| A 0014313460 | SEAL RING | |
| TO 308 430 72 01 | ||
| A 0014313560 | SEAL RING | |
| TO 308 430 72 01 | ||
| A 0004310152 | SPACER WASHER | |
| TO 308 430 72 01 | ||
| A 0004314576 | WASHER | |
| TO 308 430 72 01 | ||
| A 0009941748 | LOCK | |
| TO 308 430 72 01 | ||
| 498 | A 0024302160 | REPAIR KIT |
| TO 308 430 72 01 | ||
| A 0025865143 | REPAIR KIT | |
| TO 002 430 50 01 | ||
| 500 | N 000933008282 | SCREW |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 501 | N 912004008100 | LOCK WASHER |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 502 | N 000908010000 | SCREW PLUG |
| BRAKE MASTER CYLINDER | ||
| 502 | N 000908010000 | SCREW PLUG |
| BRAKE MASTER CYLINDER | ||
| 504 | N 007603010110 | SEAL RING |
| BRAKE MASTER CYLINDER | ||
| 504 | N 007603010110 | SEAL RING |
| BRAKE MASTER CYLINDER | ||
| 506 | N 000125008517 | WASHER |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 508 | N 913004008001 | NUT |
| BRAKE MASTER CYLINDER | ||
| 510 | A 3092950036 | INTERMEDIATE PIECE |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| 512 | A 3089977072 | FITTING |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| 514 | A 0004280032 | SCREW PLUG |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| 516 | A 3454287026 | HOLLOW SCREW |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| A 0084280030 | CONNECTOR | |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| 518 | A 3454287030 | CONNECTOR |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| 520 | A 6369970244 | SEAL RING |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| 522 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 522 | A 0009872827 | PLASTIC PIPE |
| Repalced by: A 0009875027 | ||
| 522 | A 0009875027 | PLASTIC PIPE |
| DIAPHRAGM CYLINDER | ||
| 12 X 1.5 MM | ||
| 524 | N 915017012100 | UNION NUT |
| FROM HOSE TO BRAKE BOOSTER | ||
| 526 | N 003861012007 | GLAND |
| FROM HOSE TO BRAKE BOOSTER | ||
| 528 | N 915062009000 | SLEEVE |
| FROM HOSE TO BRAKE BOOSTER | ||
| 530 | N 040621012200 | INSULATING HOSE |
| FROM HOSE TO BRAKE BOOSTER | ||
| 532 | N 003901012005 | SCREW-IN FITTING |
| 532 | A 0029971572 | FITTING |
| 534 | N 007603016102 | SEAL RING |
| 536 | A 3089907171 | ELBOW FITTING |
| DIAPHRAGM CYLINDER,CONNECTION "1" | ||
| 538 | A 0029971640 | SEAL RING |
| DIAPHRAGM CYLINDER,CONNECTION "1" | ||
| 540 | A 3084297027 | THRUST RING |
| DIAPHRAGM CYLINDER,CONNECTION "1" | ||
| 542 | N 080705016003 | NUT |
| DIAPHRAGM CYLINDER,CONNECTION "1" | ||

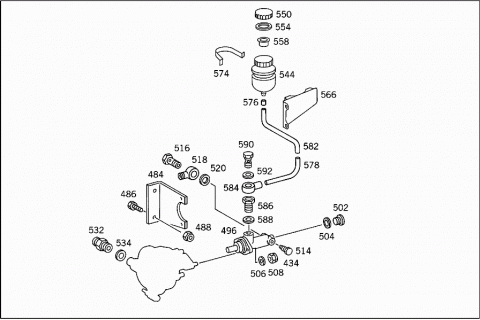

| 544 | A 0004316502 | RESERVOIR |
| 546 | A 3504317002 | RESERVOIR |
| Repalced by: A 3504317102 | ||
| 546 | A 3504317102 | RESERVOIR |
| (RESERVOIR) | ||
| 548 | A 0084310502 | RESERVOIR |
| TO 350 431 70 02,71 02 | ||
| 550 | A 0004313533 | FILLER CAP |
| TO 000 431 65 02 | ||
| 552 | A 3084317033 | FILLER CAP |
| Repalced by: A 3644317033 | ||
| 552 | A 3644317033 | FILLER CAP |
| SENSOR TO COVER | ||
| TO 350 431 70 02,71 02 | ||
| 554 | A 0009972940 | SEAL RING |
| TO 000 431 65 02 | ||
| 556 | A 0089970240 | SEAL RING |
| TO 350 431 70 02,71 02 | ||
| 558 | A 0004310034 | STRAINER |
| TO 000 431 65 02 | ||
| 560 | A 3084317034 | STRAINER |
| TO 350 431 70 02,71 02 | ||
| H 983084310140 | BRACKET | |
| TO 350 431 70 02,71 02 | ||
| 562 | H 983084310176 | WASHER |
| TO 350 431 70 02,71 02 | ||
| 564 | N 000934018012 | NUT |
| TO 350 431 70 02,71 02 | ||
| 566 | A 3104301510 | BRACKET |
| AT BRAKE BOOSTER | ||
| 568 | A 3084317140 | BRACKET |
| FLUID RESERVOIR | ||
| 570 | N 007985006515 | SCREW |
| FLUID RESERVOIR TO BRACKET | ||
| 572 | N 913004006001 | NUT |
| FLUID RESERVOIR TO BRACKET | ||
| 574 | A 3094310043 | CLAMP |
| 576 | A 3099970382 | HOSE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 578 | A 3084287035 | BRAKE HOSE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 2370 MM | ||
| 578 | A 3084287035 | BRAKE HOSE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 2100 MM | ||
| 580 | A 3459977390 | LOOM TIE |
| 195 MM | ||
| 580 | A 0019978290 | LOOM TIE |
| 582 | A 0089979082 | HOSE |
| Repalced by: A 0009874927 | ||
| 582 | A 0009874927 | PLASTIC PIPE |
| 8X6 MM | ||
| 584 | N 915052006005 | BANJO UNION |
| 586 | A 3099900054 | NUT |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| 588 | N 007603022100 | SEAL RING |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| 590 | N 915036010100 | HOLLOW SCREW |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| 592 | N 007603014100 | SEAL RING |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||

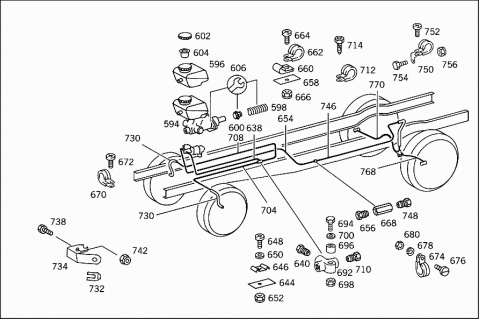

| 594 | A 3084307001 | BRAKE MASTER CYLINDER |
| Repalced by: A 3084307401 | ||
| 594 | A 3084307401 | BRAKE MASTER CYLINDER |
| 596 | A 3084307002 | RESERVOIR |
| 598 | A 3084317093 | SPRING |
| 600 | A 3084317081 | VALVE DISC |
| 602 | A 3084317033 | FILLER CAP |
| 604 | A 3084317034 | STRAINER |
| 606 | A 3085867043 | REPAIR KIT |
| 608 | N 913002008001 | NUT |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 54, FIG. NO. 335 | ||
| A 0084280126 | HOLLOW SCREW | |
| 610 | N 007603022102 | SEAL RING |
| A 0084280030 | CONNECTOR | |

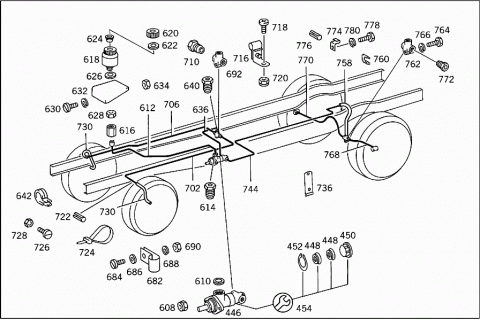

| 612 | H 983084200228 | LINE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 6X0.7 MM | ||
| 612 | A 3764207828 | LINE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 614 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 614 | A 0004280072 | UNION SCREW |
| 616 | A 0009971173 | FITTING |
| 616 | A 0009971173 | FITTING |
| 618 | H 983084310102 | RESERVOIR |
| 620 | A 0084310233 | FILLER CAP |
| 622 | A 0089970240 | SEAL RING |
| 624 | A 0084310334 | STRAINER |
| Repalced by: A 3084317034 | ||
| 624 | A 3084317034 | STRAINER |
| 626 | H 983084310176 | WASHER |
| 628 | N 000439018201 | NUT |
| H 983084310140 | BRACKET | |
| FLUID RESERVOIR | ||
| 630 | N 007985006502 | SCREW |
| 632 | N 000127006203 | LOCK WASHER |
| 634 | N 000934006006 | NUT |
| 636 | A 3104201228 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO FRONT DISTRIBUTOR | ||
| 6X0.7 MM | ||
| 638 | A 3104209128 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO FRONT DISTRIBUTOR | ||
| 6X0.7 MM | ||
| 640 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 640 | A 0004280072 | UNION SCREW |
| 642 | A 0009951801 | CLAMP |
| Repalced by: N 916016008200 | ||
| 642 | N 916016008200 | CLAMP |
| BRAKE LINE TO CAB SIDE MEMBER | ||
| 644 | A 3124293340 | BRACKET |
| BRAKE LINES ONE BELOW THE OTHER | ||
| 646 | A 3129950332 | CLAMP |
| Repalced by: A 3604300143 | ||
| 646 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 646 | N 916016008200 | CLAMP |
| BRAKE LINES ONE BELOW THE OTHER | ||
| 648 | N 007985006515 | SCREW |
| BRAKE LINES ONE BELOW THE OTHER | ||
| 648 | N 000933006220 | SCREW |
| BRAKE LINES ONE BELOW THE OTHER | ||
| 650 | N 000125006420 | WASHER |
| BRAKE LINES ONE BELOW THE OTHER | ||
| 652 | N 913004006001 | NUT |
| BRAKE LINES ONE BELOW THE OTHER | ||
| 654 | A 3104206528 | LINE |
| Repalced by: A 3084207328 | ||
| 654 | A 3084207328 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO CONNECTOR | ||
| 6X0.7 MM | ||
| 654 | A 3084209626 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO CONNECTOR | ||
| 654 | A 3104207728 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO CONNECTOR | ||
| 656 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 656 | A 0004280072 | UNION SCREW |
| 658 | A 3179950148 | CLAMPING PIECE |
| BRAKE LINE TO CROSS MEMBER | ||
| 660 | A 3609950401 | CLAMP |
| BRAKE LINE TO CROSS MEMBER | ||
| 662 | A 3459957801 | CLAMP |
| BRAKE LINE TO CROSS MEMBER | ||
| 662 | N 916016014201 | CLAMP |
| BRAKE LINE TO CROSS MEMBER | ||
| 664 | N 007985006515 | SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 666 | N 913004006001 | NUT |
| BRAKE LINE TO CROSS MEMBER | ||
| 668 | A 0004292736 | CONNECTOR |
| Repalced by: A 3454297836 | ||
| 668 | A 3454297836 | CONNECTOR |
| 670 | A 3129950332 | CLAMP |
| Repalced by: A 3604300143 | ||
| 670 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 670 | N 916016008200 | CLAMP |
| BRAKE LINE TO CAB SUBSTRUCTURE | ||
| 672 | N 007516006105 | TAPPING SCREW |
| BRAKE LINE TO CAB SUBSTRUCTURE | ||
| 674 | A 0009952401 | CLAMP |
| Repalced by: N 916016006201 | ||
| 674 | N 916016006201 | CLAMP |
| BRAKE LINE TO CAB SUBSTRUCTURE | ||
| 674 | A 3459957801 | CLAMP |
| BRAKE LINE TO CAB SUBSTRUCTURE | ||
| 676 | N 000084005114 | SCREW |
| BRAKE LINE TO CAB SUBSTRUCTURE | ||
| 678 | N 000127005001 | LOCK WASHER |
| BRAKE LINE TO CAB SUBSTRUCTURE | ||
| 680 | N 000934005004 | NUT |
| BRAKE LINE TO CAB SUBSTRUCTURE | ||
| 682 | A 3609950401 | CLAMP |
| BRAKE LINE TO CAB SUBSTRUCTURE | ||
| 684 | N 000084006137 | SCREW |
| BRAKE LINE TO CAB SUBSTRUCTURE | ||
| 686 | N 000125006420 | WASHER |
| BRAKE LINE TO CAB SUBSTRUCTURE | ||
| 688 | N 000127006203 | LOCK WASHER |
| BRAKE LINE TO CAB SUBSTRUCTURE | ||
| 690 | N 000934006006 | NUT |
| BRAKE LINE TO CAB SUBSTRUCTURE | ||
| 692 | A 0004294337 | DISTRIBUTOR |
| 692 | A 0004290437 | DISTRIBUTOR |
| 692 | A 3454297037 | DISTRIBUTOR |
| 694 | N 000933008296 | SCREW |
| DISTRIBUTOR TO FRAME | ||
| 696 | A 3094280053 | SPACER TUBE |
| DISTRIBUTOR TO FRAME | ||
| 698 | N 913002008001 | NUT |
| DISTRIBUTOR TO FRAME | ||
| A 1159905140 | WASHER | |
| 700 | N 000125008417 | WASHER |
| DISTRIBUTOR TO FRAME | ||
| 702 | A 3094203528 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 6X0.7 MM | ||
| 704 | A 3104209428 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 6X0.7 MM | ||
| 704 | A 3104202529 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 6X0.7 MM | ||
| 706 | A 3094203728 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 6X0.7 MM | ||
| 708 | A 3104209528 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 6X0.7 MM | ||
| 708 | A 3104202629 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 6X0.7 MM | ||
| 710 | A 0004280072 | UNION SCREW |
| 712 | A 0009952401 | CLAMP |
| Repalced by: N 916016006201 | ||
| 712 | N 916016006201 | CLAMP |
| BRAKE LINE TO CROSS MEMBER | ||
| 712 | A 3459957801 | CLAMP |
| BRAKE LINE TO CROSS MEMBER | ||
| 714 | N 007513006217 | TAPPING SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| N 000127006203 | LOCK WASHER | |
| BRAKE LINE TO CROSS MEMBER | ||
| 716 | A 0009955501 | CLAMP |
| LINE TO SIDE MEMBER | ||
| 718 | N 007985006515 | SCREW |
| LINE TO SIDE MEMBER | ||
| 720 | N 913002006001 | NUT |
| LINE TO SIDE MEMBER | ||
| 722 | A 3129970582 | HOSE |
| Repalced by: A 3449978082 | ||
| 722 | A 3449978082 | HOSE |
| BRAKE LINE THRU SIDE MEMBER | ||
| 724 | A 3129950935 | CLAMP |
| Repalced by: A 3459977290 | ||
| 724 | A 3459977290 | LOOM TIE |
| BRAKE LINE THRU SIDE MEMBER | ||
| 726 | N 000084004102 | SCREW |
| HOSE TO BRAKE LINE | ||
| 728 | N 000934004000 | NUT |
| HOSE TO BRAKE LINE | ||
| 730 | A 0004287635 | BRAKE HOSE |
| Repalced by: A 0024280535 | ||
| 730 | A 0024280535 | BRAKE HOSE |
| Repalced by: A 3084287335 | ||
| 730 | A 3084287335 | BRAKE HOSE |
| FRONT | ||
| 730 | A 0014285535 | BRAKE HOSE |
| Repalced by: A 3084287435 | ||
| 730 | A 3084287435 | BRAKE HOSE |
| FRONT | ||
| 732 | A 0004280473 | BRACKET |
| BRAKE HOSE | ||
| 734 | A 3094280043 | ANGLE |
| Repalced by: A 3084280043 | ||
| 734 | A 3084280043 | ANGLE |
| LEFT | ||
| 734 | A 3094280443 | ANGLE |
| LEFT | ||
| 734 | A 3094280143 | ANGLE |
| Repalced by: A 3084280143 | ||
| 734 | A 3084280143 | ANGLE |
| RIGHT | ||
| 734 | A 3094280543 | ANGLE |
| RIGHT | ||
| 736 | A 3092920440 | BRACKET |
| RELEASE SPRING | ||
| 738 | N 000933010129 | SCREW |
| ANGLE TO FRAME | ||
| M 10X30 | ||
| 738 | N 000933010174 | SCREW |
| ANGLE TO FRAME | ||
| M 10X25 | ||
| 742 | N 913004010004 | NUT |
| ANGLE TO FRAME | ||
| 744 | A 3104201328 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO BRAKE HOSE ON REAR AXLE | ||
| 6X0.7 MM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 601 B | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 601 C | ||
| 746 | A 3104206728 | LINE |
| Repalced by: A 3084207028 | ||
| 746 | A 3084207028 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO BRAKE HOSE ON REAR AXLE | ||
| 6X0.7 MM | ||
| 746 | A 3104201828 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO BRAKE HOSE ON REAR AXLE | ||
| 6X0.7 MM | ||
| 746 | A 3104206828 | LINE |
| Repalced by: A 3084207128 | ||
| 746 | A 3084207128 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO BRAKE HOSE ON REAR AXLE | ||
| 6X0.7 MM | ||
| 746 | A 3104202028 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO BRAKE HOSE ON REAR AXLE | ||
| 6X0.7 MM | ||
| 746 | A 3104206928 | LINE |
| Repalced by: A 3084207228 | ||
| 746 | A 3084207228 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO BRAKE HOSE ON REAR AXLE | ||
| 6X0.7 MM | ||
| 748 | A 0004280072 | UNION SCREW |
| 748 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 748 | A 0004280072 | UNION SCREW |
| 750 | A 0009955501 | CLAMP |
| REAR BRAKE LINE TO FRAME | ||
| 752 | N 007985006515 | SCREW |
| REAR BRAKE LINE TO FRAME | ||
| 754 | N 000933006220 | SCREW |
| REAR BRAKE LINE TO FRAME | ||
| 756 | N 913004006001 | NUT |
| REAR BRAKE LINE TO FRAME | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 601 E | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 601 F | ||
| 758 | A 0004280135 | BRAKE HOSE |
| Repalced by: A 3084287535 | ||
| 758 | A 3084287535 | BRAKE HOSE |
| REAR | ||
| 758 | A 0014283635 | BRAKE HOSE |
| Repalced by: A 3084287635 | ||
| 758 | A 3084287635 | BRAKE HOSE |
| REAR | ||
| 760 | A 0004280473 | BRACKET |
| BRAKE HOSE | ||
| 762 | A 0004290437 | DISTRIBUTOR |
| 762 | A 0004294337 | DISTRIBUTOR |
| 762 | A 3454297037 | DISTRIBUTOR |
| 764 | N 000933008273 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| 766 | N 912004008100 | LOCK WASHER |
| DISTRIBUTOR TO REAR AXLE | ||
| 768 | A 3094205028 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 6X0.7 MM | ||
| 770 | A 3094205128 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 6X0.7 MM | ||
| 772 | A 0004280072 | UNION SCREW |
| 774 | A 3129951020 | CLAMP |
| BRAKE LINE TO AXLE TUBE | ||
| 776 | A 3129973482 | HOSE |
| BRAKE LINE TO AXLE TUBE | ||
| 778 | N 000933008317 | SCREW |
| BRAKE LINE TO AXLE TUBE | ||
| 780 | N 912004008100 | LOCK WASHER |
| BRAKE LINE TO AXLE TUBE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |

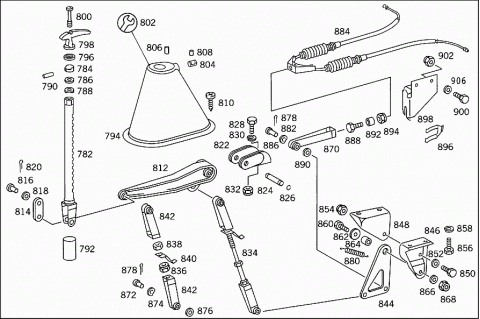

| HAND BRAKE | ||
| 782 | A 3094200188 | RATCHET ROD |
| 782 | A 3094200288 | RATCHET ROD |
| 784 | A 3124271151 | SPACER RING |
| 786 | N 000125017010 | WASHER |
| 788 | N 000137016202 | SPRING WASHER |
| 790 | N 001473004021 | GROOVED PIN |
| 792 | A 3534270095 | PROTECTIVE CAP |
| 794 | A 3094200044 | PROTECTIVE PLATE |
| 796 | A 3124271086 | DAMPING RING |
| 798 | A 3094270020 | HANDLE |
| 800 | N 007985010132 | SCREW |
| HANDLE TO RATCHET ROD | ||
| 802 | A 3124271215 | PAWL |
| Repalced by: A 3145860142 | ||
| 802 | A 1539930701 | SPRING |
| Repalced by: A 3145860142 | ||
| 802 | A 3129900043 | PLATE |
| Repalced by: A 3145860142 | ||
| 802 | A 3145860142 | REPAIR KIT |
| Repalced by: A 3144200092 | ||
| 802 | A 3144200092 | REPAIR KIT |
| 802 | A 3094200292 | REPAIR KIT |
| A 3094270415 | PAWL | |
| TO 309 420 02 92 | ||
| A 3099938501 | SPRING | |
| TO 309 420 02 92 | ||
| A 3099970686 | PLUG | |
| TO 309 420 02 92 | ||
| N 007981003283 | SHEET METAL SCREW | |
| TO 309 420 02 92 | ||
| 804 | A 3099870115 | PLUG |
| TO 314 420 00 92 | ||
| 806 | N 001472003009 | GROOVED PIN |
| TO 314 420 00 92 | ||
| 808 | N 001470003002 | GROOVED PIN |
| TO 314 420 00 92 | ||
| 810 | N 007981004226 | SHEET METAL SCREW |
| COVERING TO CAB | ||
| 812 | A 3094201512 | BRAKE LEVER |
| 814 | A 3094270489 | CONNECTOR |
| 816 | N 001434008063 | PIN |
| 816 | N 001444008214 | PIN |
| CONNECTOR TO PAWL ROD | ||
| 818 | N 000433008403 | WASHER |
| CONNECTOR TO PAWL ROD | ||
| 820 | N 000094002059 | COTTER PIN |
| CONNECTOR TO PAWL ROD | ||
| 822 | A 3094200678 | BEARING BRACKET |
| CONSOLE TO CAB | ||
| 824 | A 3094270274 | PIN |
| BRAKE LEVER TO BEARING BRACKET | ||
| 826 | N 007993016100 | SNAP RING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 828 | N 000933010294 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| 828 | N 000933010294 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| 830 | N 000127010202 | LOCK WASHER |
| BEARING BRACKET TO CROSS MEMBER | ||
| 832 | N 913004010004 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 834 | A 3104200374 | ROD |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 836 | N 913004010004 | NUT |
| R.H. THREAD | ||
| 838 | N 000934010035 | NUT |
| L.H. THREAD | ||
| 840 | A 3094270689 | CONNECTOR |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 842 | A 3214200176 | END PIECE |
| 844 | A 3104200181 | LEVER |
| (INTERMEDIATE LEVER),HAND BRAKE LINKAGE | ||
| 846 | A 3094270536 | CONSOLE |
| INTERMEDIATE LEVER | ||
| 848 | A 3104270036 | CONSOLE |
| INTERMEDIATE LEVER | ||
| 850 | N 000933010174 | SCREW |
| CONSOLE TO CONSOLE | ||
| 852 | N 000125010517 | WASHER |
| CONSOLE TO CONSOLE | ||
| 854 | N 913004010004 | NUT |
| 856 | N 000933008282 | SCREW |
| CONSOLE TO CAB | ||
| 858 | N 912004008100 | LOCK WASHER |
| CONSOLE TO CAB | ||
| 860 | N 000933010258 | SCREW |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 862 | N 009021010102 | WASHER |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 864 | A 3104270050 | BUSHING |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 866 | N 000125010517 | WASHER |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 868 | N 913004010004 | NUT |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 870 | A 3094200276 | END PIECE |
| BRAKE CABLES | ||
| 872 | N 001444010217 | PIN |
| PULL ROD TO HAND BRAKE LEVER AND TO INTERMEDIATE LEVER | ||
| 874 | N 900055010001 | SPRING WASHER |
| PULL ROD TO HAND BRAKE LEVER AND TO INTERMEDIATE LEVER | ||
| 876 | N 000433010500 | WASHER |
| PULL ROD TO HAND BRAKE LEVER AND TO INTERMEDIATE LEVER | ||
| 878 | N 000094003026 | COTTER PIN |
| PULL ROD TO HAND BRAKE LEVER AND TO INTERMEDIATE LEVER | ||
| 878 | N 000094003027 | COTTER PIN |
| PULL ROD TO HAND BRAKE LEVER AND TO INTERMEDIATE LEVER | ||
| 880 | A 3199930810 | SPRING |
| INTERMEDIATE LEVER | ||
| 882 | N 001444010217 | PIN |
| YOKE TO INTERMEDIATE LEVER | ||
| 884 | A 3094201085 | BRAKE CABLE |
| Repalced by: A 3094201385 | ||
| 884 | A 3094200685 | BRAKE CABLE |
| Repalced by: A 3094201385 | ||
| 884 | A 3094201385 | BRAKE CABLE |
| 884 | A 3084207185 | BRAKE CABLE |
| 884 | A 3084207285 | BRAKE CABLE |
| 884 | A 3094200785 | BRAKE CABLE |
| Repalced by: A 3094201485 | ||
| 884 | A 3094201185 | BRAKE CABLE |
| Repalced by: A 3094201485 | ||
| 884 | A 3094201485 | BRAKE CABLE |
| 884 | A 3094201585 | BRAKE CABLE |
| 884 | A 3084207385 | BRAKE CABLE |
| 886 | N 900055010001 | SPRING WASHER |
| YOKE TO INTERMEDIATE LEVER | ||
| 888 | N 000933010258 | SCREW |
| BRAKE CABLE TO FORK | ||
| 890 | N 000433010500 | WASHER |
| YOKE TO INTERMEDIATE LEVER | ||
| 892 | A 3094270153 | SPACER TUBE |
| BRAKE CABLE TO FORK | ||
| 894 | N 913004010004 | NUT |
| BRAKE CABLE TO FORK | ||
| 896 | A 3093250040 | BRACKET |
| 898 | A 3094272341 | BRACKET |
| Repalced by: A 3084277041 | ||
| 898 | H 983084270041 | BRACKET |
| Repalced by: A 3084277041 | ||
| 898 | A 3094272941 | BRACKET |
| Repalced by: A 3084277041 | ||
| 898 | A 3084277041 | BRACKET |
| LEFT | ||
| 898 | A 3094272441 | BRACKET |
| Repalced by: H 983084270141 | ||
| 898 | H 983084270141 | BRACKET |
| 898 | H 983084270141 | BRACKET |
| Repalced by: A 3084277141 | ||
| 898 | A 3094273041 | BRACKET |
| Repalced by: A 3084277141 | ||
| 898 | A 3084277141 | BRACKET |
| RIGHT | ||
| 900 | N 000933008282 | SCREW |
| BRACKET TO FRAME | ||
| 902 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| N 000933008288 | SCREW | |
| BRACKET TO FRAME | ||
| 906 | N 000125008417 | WASHER |
| BRACKET TO FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
